How to Build a Simple LED Blinker Circuit Step-by-Step Guide

Begin with a 555 timer IC in astable mode–this forms the core of any reliable pulsating light assembly. Pair it with a 10 kΩ resistor between pins 7 and 8, a 100 kΩ potentiometer for frequency control, and a 10 µF capacitor between pin 2 and ground. This setup ensures stable oscillations between 0.5 Hz and 2 Hz, ideal for visual indicators that require clear, rhythmic flashes rather than steady illumination.

Connect the output (pin 3) to a 220 Ω current-limiting resistor, then to the anode of any standard low-power indicator (e.g., T1-¾ package). The cathode should terminate at the power supply negative. For a 5 V source, this configuration draws approximately 15 mA, well within the safe operating range of most indicators. Avoid exceeding 20 mA to prevent thermal degradation.

For battery-operated units, add a 100 nF decoupling capacitor across the timer’s power pins (pins 1 and 8). This suppresses voltage spikes that can disrupt timing accuracy. If noise persists, replace the potentiometer with fixed resistors–e.g., 47 kΩ and 68 kΩ–to lock in a predictable flash rate of 1.2 Hz. Stability improves further with a 10 µF bulk capacitor placed near the input power terminal.

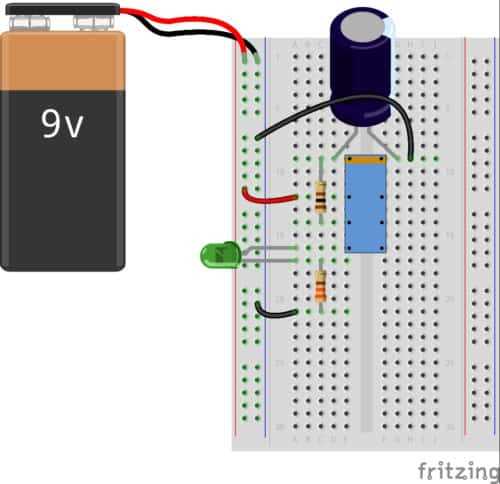

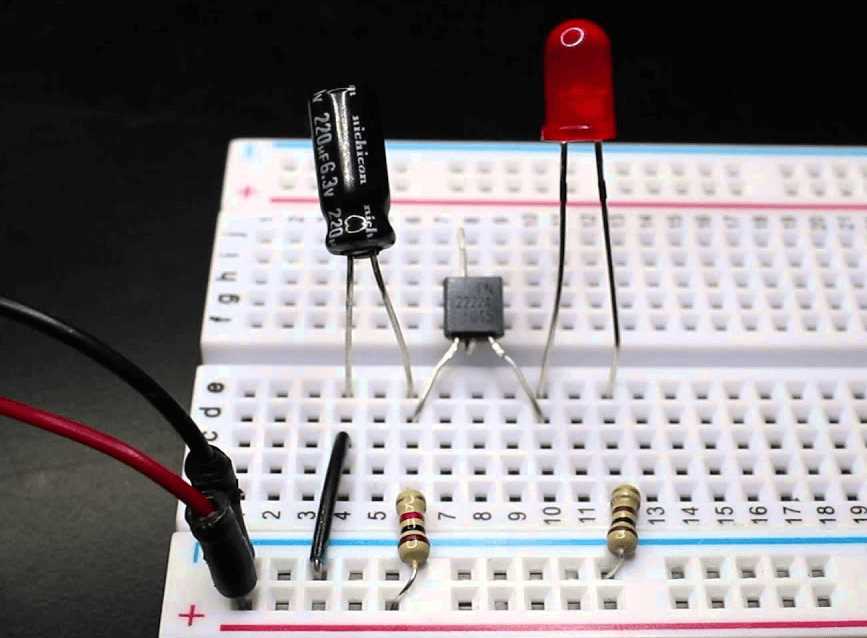

Test the circuit on a breadboard first. Verify the pulse width by monitoring pin 3 with an oscilloscope; the duty cycle should remain near 50% for symmetrical flashes. Adjust the potentiometer to fine-tune the interval–shorter values accelerate the rate, while longer values slow it. Once confirmed, transfer the layout to perfboard or a custom PCB, keeping trace lengths short to minimize parasitic capacitance.

Power the assembly via a regulated DC source. Unregulated adapters introduce jitter, especially under load fluctuations. If integrating multiple indicators, use a transistor array like the ULN2003 to handle higher current draw–each channel can sink up to 500 mA, sufficient for strings of 10 to 15 indicators in parallel.

Building a Simple Visual Signal Circuit: Key Design Steps

Start with a 555 timer IC in astable mode–this eliminates the need for complex coding while ensuring precise timing. Connect pin 2 to pin 6 via a 0.1µF capacitor to form the core timing loop. The charging path should include resistors of 10kΩ and 100kΩ in series, while the discharge path only uses the 10kΩ resistor through pin 7. This asymmetry creates a 1:3 on/off ratio, ideal for noticeable flashes without straining the power source.

Select a low-power indicator (3-5mm, 20mA max) and pair it with a 220Ω current-limiting resistor. For higher visibility, use a 1W high-brightness variant with a 47Ω resistor–this increases current to ~80mA while staying within safe limits. Avoid exceeding 100mA; prolonged overdrive degrades the semiconductor junction, shortening lifespan.

When powering from a 9V battery, incorporate a 1N4007 diode in series with the supply to protect against reverse polarity. For 3.3V microcontroller integration, bypass the 555 timer entirely–use a 1kHz PWM signal (50% duty cycle) from a GPIO pin instead, saving board space and reducing components.

Ground the circuit properly–connect all grounding points (555’s pin 1, resistor returns, and indicator cathode) to a single point near the power source. Floating grounds cause erratic behavior, especially in environments with electromagnetic interference. For breadboard testing, twist wire pairs to minimize noise pickup.

To stabilize the output, add a 47µF electrolytic capacitor between Vcc and ground close to the 555 timer. This filters voltage drops during high-current transitions, preventing false triggers. Omit this for battery-powered designs if weight is critical, but expect slightly uneven intervals.

For multi-indicator setups, use a 2N2222 transistor as a switch. Base connects to the 555’s output (pin 3) via a 1kΩ resistor; emitter to ground; collector to the indicator array’s common cathode. This handles up to 500mA total current–enough for 5-6 standard indicators or one 3W module.

Test frequency with an oscilloscope: probe pin 3 and adjust the 100kΩ resistor until pulses reach 1-2Hz. Replace the capacitor with a 0.01µF unit for faster cycling (10Hz+), suitable for hazard simulations. Document resistor values directly on the PCB silkscreen–future modifications become faster without re-calculating RC constants.

For outdoor use, seal all connections with silicone conformal coating. Humidity corrodes copper traces within weeks; even indoor circuits benefit from protective varnish near high-impedance nodes. Consider SMD components (0805 size) for compact designs–hand-soldered prototypes work with 25-30W irons if flux is applied generously.

Selecting an Optimal Processing Unit for Pulsing Light Projects

Begin with an 8-bit AVR MCU like ATtiny13A if power efficiency is critical–it draws under 100 nA in power-down mode while supporting internal 9.6 MHz oscillator without external components. For applications demanding precise timing, compare sleep current costs: an ATmega328P consumes 0.1 μA versus PIC12F675’s 0.5 μA, though the latter integrates an internal 4 MHz clock that eliminates crystal requirements.

For projects requiring extended I/O, the STM32G030F6P6 delivers 18 GPIOs in a TSSOP-20 package, outperforming the ATtiny45’s 6 GPIOs at similar cost while including a hardware I2C peripheral absent in basic AVR variants. When prototyping, prioritize development ecosystem: Pi Pico’s RP2040 offers drag-and-drop firmware flashing over USB, while Arduino-compatible boards simplify debugging through serial monitors.

If PWM control is essential for varying intensity, examine resolution: ESP8266 provides 10-bit resolution versus 8-bit on most AVR MCUs. For battery-powered setups, measure active current: an MSP430FR2111 draws 120 μA/MHz, less than half the STM32L0’s 270 μA/MHz in Run mode. Always validate voltage compatibility–an ATtiny operates from 1.8V to 5.5V, while some Cortex-M0+ chips like the SAMD21 require 3.3V precisely.

MCU Model	Active Current (μA/MHz)	Sleep Current (μA)	Min/Max Voltage (V)	Built-in Peripherals
ATtiny13A	300	0.1	1.8–5.5	ADC, Comparator
PIC12F675	180	0.5	2.0–5.5	ADC, Timer1 Gate
STM32G030F6P6	85	0.5	1.7–3.6	I2C, SPI, USART
MSP430FR2111	120	0.02	1.8–3.6	Op-Amp, Timer

For high-frequency operations, Cortex-M4 processors like the NUCLEO-F303K8 reach 72 MHz with hardware FPU, while low-cost options like the ATtiny85 max out at 20 MHz. When selecting memory, balance need: a blinking loop occupies ~256 bytes of flash, but adding wireless stacks on ESP32-C3 demands 500+ KB. Verify toolchain maturity–AVR-GCC supports all 8-bit AVRs, whereas STM32CubeIDE occasionally drops support for older chips like the STM32F1 series.

Incorporate ambient light sensing without external hardware by choosing MCUs with built-in ADCs: the ATmega328P includes a 10-bit ADC, while baseline STM32 chips often lack this feature. For multitasking, assess RTOS suitability: FreeRTOS runs on ESP32 but struggles with 8-bit AVRs due to limited stack depth. When soldering is impractical, opt for development boards with castellated edges like the ESP-C3-DevKitM-1 for easy module integration.

Evaluate recovery mechanisms: brown-out detection on most AVRs resets at 2.7V, while STM32 MCUs allow configurable thresholds from 1.69V to 2.9V via user registers. If project lifespan exceeds 5 years, prefer flash memory endurance: STM32L4 series guarantees 10k cycles versus ATTiny’s 1k cycles. For non-volatile data storage beyond flash, consider MCUs with EEPROM emulation like the STM32WL series, offering up to 64 KB of additional space.

Test board layouts before finalizing MCU choice–some QFN packages like the EFM32HG320 demand precise thermal pads, while SOIC variants like the ATtiny2313 tolerate hand soldering. When time-to-market is critical, leverage pre-certified modules: the ESP-01S costs $2 with FCC/CE approval, while self-certification of discrete designs can exceed $10k. Balance cost against flexibility–an ATtiny85 in SOIC-8 costs $0.50 in bulk, whereas ARM Cortex-M0+ chips like the SAMD11C start at $1.20.

Creating a Simple Pulsing Indicator Circuit Plan

Start by placing the power source symbol–typically a battery–at the top left corner of your layout. Use a 9V symbol for clarity, even if you later adjust voltage levels. Draw two vertical lines extending downward from the battery terminals: the positive rail on the left, the negative (ground) on the right. Keep these rails parallel and spaced 3–4 cm apart to accommodate components without crowding.

Add the timing element, a 555 timer IC, centered between the rails. Pin 1 connects directly to ground; pin 8 links to the positive rail through a short wire. Insert a 10 kΩ resistor between pin 7 (discharge) and the positive rail, then a 47 μF capacitor from pin 6 (threshold) to ground. Include a second 10 kΩ resistor from pin 2 (trigger) to pin 6, forming the timing network. Ensure component labels (R1, R2, C1) appear next to each part for reference.

For the output stage, route a wire from pin 3 to the base of an NPN transistor (e.g., 2N2222) via a 470 Ω current-limiting resistor. Connect the transistor’s emitter to ground and the collector to the indicator–an anode-arrow symbol–through another 470 Ω resistor. Attach the indicator’s cathode to the positive rail with a short line. Double-check all connections: no overlapping lines, and polarities on the capacitor and diode match conventional symbols.

Annotate each segment: specify resistor wattage (¼ W), capacitor tolerance (±20%), and transistor type near their symbols. Sketch bypass capacitors (0.1 μF) between IC power pins for stability. Finalize by tracing the circuit’s signal path–power → timing → drive → indicator–using a highlighter tool to confirm continuity before transferring to final draft medium.
