Step-by-Step Circuit Design for Light Control Using a Switch

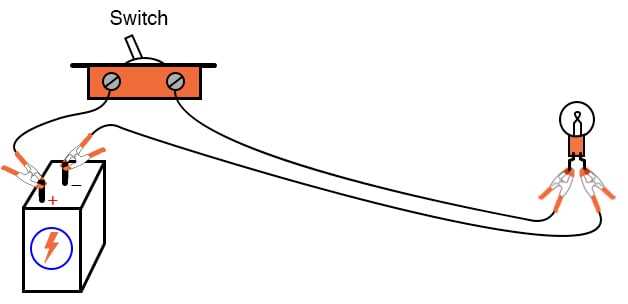

Start by wiring the power source directly to the control element. A basic 220V AC line, fused at 5A, ensures safe current flow before reaching the mechanical interrupter. Position the breaker no farther than 30 cm from the input terminal to minimize voltage drop. Use 1.5 mm² copper conductors for residential setups–thicker cables risk unnecessary expense without improving performance.
Attach the interrupter between the supply and load. A single-pole, single-throw toggle rated for 10A and 250V AC handles most low-power installations. Avoid push-button types if frequent manual switching is expected–spring mechanisms degrade faster under repetitive stress. Secure terminals with a torque of 1.2 Nm to prevent loosening from vibration.
Finalize the path to the illumination unit. Connect the load side of the interrupter to a standard E27 socket or LED driver, depending on the output device. Keep wire runs under 1.8 meters to prevent inductive interference. For dimmable setups, insert a 250V, 1μF capacitor in parallel with the load to smooth switching transients.
Test continuity before energizing. A multimeter set to ohms should read near zero between the power source and load when the interrupter is closed. Open position readings should exceed 1 MΩ–lower values indicate insulation failure or moisture ingress. Always verify ground integrity; a missing or corroded ground increases shock hazard, particularly in humid environments.

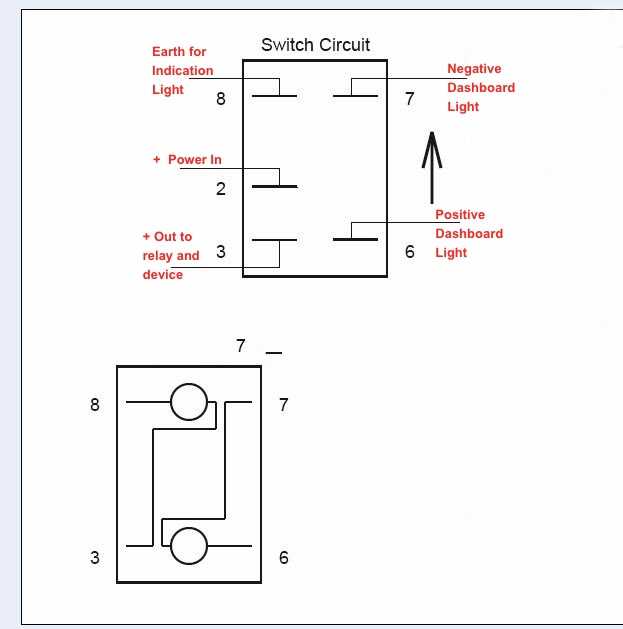

Wiring Schematic for Illumination Control via Toggle
Begin by verifying the power source’s voltage matches the fixture’s requirements–most residential systems operate at 120V AC, while low-voltage setups (e.g., 12V or 24V) demand a transformer. Overvoltage risks damaging components; undervoltage causes flickering or failure. Use a multimeter to confirm live wires before handling.

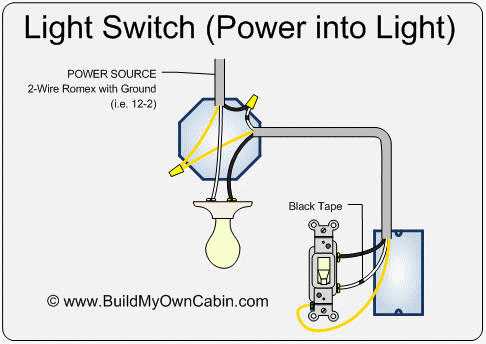

For a single-pole configuration, connect the hot wire (typically black or red) to one terminal of the manual control. The neutral (white) bypasses the toggle and links directly to the lamp’s socket. Ground (green or bare) secures to both the switch and fixture’s metal frame. Miswiring ground to neutral creates shock hazards–never substitute.
Component Compatibility Chart
| Element | Residential Gauge (AWG) | Max Amperage (120V) | Voltage Drop per 100 ft |
|---|---|---|---|
| Stranded Copper | 14 | 15A | 3.2V |
| Solid Copper | 12 | 20A | 2.0V |
| Aluminum (CO/ALR) | 12 | 15A | 5.1V |
Dimmer-capable toggles require compatible bulbs–incandescent and halogen tolerate smooth adjustment; LEDs and CFLs often need “dimmable” variants to avoid buzzing or premature burnout. Check the toggle’s wattage rating: a 600W dimmer handles five 100W bulbs, but exceeding this stresses internal contacts. Replace cracked toggles immediately–loose internals arc under load, igniting drywall insulation.

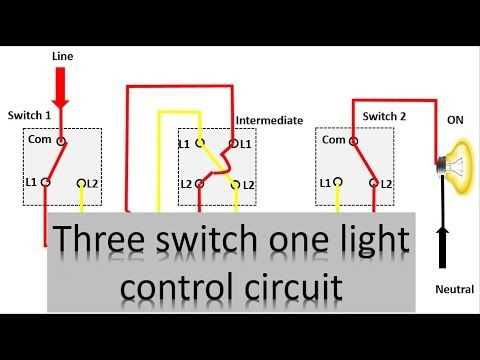

Three-way setups enable control from dual locations. Connect travelers (usually red and yellow) between toggles; the common terminal (black) links to the power source or load. Label all wires with masking tape to avoid confusion during installation. Test continuity with a probe–accidental shorts trip breakers or damage electronics.
Troubleshooting Sequence
Flickering often stems from loose connections. Tighten terminal screws to 12–15 in-lbs torque. Buzzing indicates incompatible components–swap for a universal toggle. No operation? Verify the breaker hasn’t tripped (reset if needed) and check for severed wires at splice points. For outdoor setups, use weatherproof enclosures and silicone-filled wire nuts to prevent corrosion.
Core Elements Required for a Fundamental Electrical Setup
Begin by sourcing a reliable power origin–opt for a 9V alkaline battery or a regulated 5V USB adapter for consistent operation in low-power arrangements. Voltage stability prevents premature failure of connected parts.
Select conductors with adequate gauge to handle current flow. For modest loads, 22 AWG solid copper wire suffices; larger setups may demand 18 AWG stranded variants to minimize resistance and heat buildup.
- Insulated male/female connectors (0.1″ pitch) simplify modular connections without soldering.
- Non-corrosive solder (60/40 tin-lead) ensures durable joints if permanent assembly is needed.
- Heat-shrink tubing shields exposed joints from short circuits and environmental damage.
A load-resistor pairing balances energy distribution. Choose resistors based on Ohm’s Law: for a 3V LED (20mA) paired with a 9V source, a 330Ω resistor (¼W) limits current to safe levels. Verify wattage ratings to avoid overheating.
Include a mechanical or solid-state control element–tactile buttons, slide toggles, or MOSFET transistors–to interrupt or divert flow. Mechanical variants require 3A contacts for safety, while solid-state options handle precise switching without wear.
Safety and Testing Components
Multimeters measure voltage, current, and resistance before energizing the path. Use continuity mode to detect unintended connections. A fuse (resettable or thermal) protects against overcurrent conditions; 250mA is typical for small configurations.
- Prototyping bases (breadboards) allow temporary assembly without permanent bonds–ideal for testing configurations.
- Stripped wire ends should be twisted tightly to avoid intermittent contact.
- Polarity-sensitive components (LEDs, capacitors) must align with the power source orientation.
Optional Enhancements
For dimming effects, incorporate a potentiometer (10kΩ linear taper) as a variable divider. Signal switches (DIP or push-button) enable multi-state functionality in mixed assemblies. Always prioritize insulated tools when handling live paths.
Installing a Basic Electrical Toggle: A Detailed Walkthrough
Shut off the power at the breaker panel before handling any wires to prevent shocks. Verify absence of voltage using a non-contact tester–hold it near the wires; if it beeps or lights up, power remains active and must be turned off again at the source.
Strip 6–8 mm of insulation from each wire end using wire strippers. For solid conductors, twist the exposed strands tightly with pliers to prevent fraying. If working with stranded wires, tin the ends lightly with solder or crimp them with a ferrule for secure connections.
Attach the live conductor (typically black or red) to the brass terminal on the toggle–insert it fully into the screw hole and tighten clockwise until snug. Repeat with the outbound wire leading to the fixture, securing it to the remaining brass terminal. Loop each wire ¾ around the screw in a U-shape for maximum contact.
Fasten the ground conductor–bare copper or green-sheathed–to the green terminal screw. If the fixture lacks a ground, bond this wire to the electrical box’s grounding screw or pigtail it to an existing ground. Avoid leaving loose strands; trim excess length with cutters.
Tuck the wired toggle into the box, ensuring no insulation is pinched. Secure the device with mounting screws, then re-energize the breaker. Test functionality by flipping the lever–if the fixture fails to respond, immediately cut power and recheck terminal connections for tightness or reversed wires.
Common Mistakes When Wiring a Toggle Control
Reverse the live and neutral conductors during installation. Mistaking the neutral wire for the live one–often marked blue and brown respectively in modern wiring–disrupts polarity. This error creates a hazardous scenario where the fixture remains energized even when turned off, increasing shock risk during maintenance. Verify connections with a non-contact voltage tester before securing terminals.
Avoid these critical errors:
- Overlooking ground wire attachment (bare or green-yellow) to the metal backbox or fixture base. Missing this link eliminates safety protection against faults.
- Stripping more than 8mm of insulation from conductors, exposing excess wire. Overstripping weakens terminal grip and invites short circuits.
- Snugging terminal screws insufficiently, allowing wires to loosen under thermal cycling. Tighten to 1.2 Nm torque for brass terminals.
- Bypassing junction boxes for splices, violating electrical codes. All splices must reside inside approved enclosures.
- Mismatching ampere ratings between the breaker and control device. A 10amp breaker paired with a 15amp rated device risks overload.
Expanding Power Paths for Additional Fixtures
Use a junction box rated for the combined wattage of all connected loads–12 AWG wire handles up to 20A at 120V; exceed this and risk overheating. Install a separate fuse or breaker for each parallel leg to isolate faults without cutting power to the entire system. Mount the box within 6 feet of the first fixture and secure all connections with wire nuts torqued to 10-15 inch-pounds–loose connections arc and fail.
Wire Routing and Load Balancing
Split the feeder into equal branches, keeping wire lengths under 50 feet to prevent voltage drop–measure with a multimeter at the farthest bulb; aim for less than 3% loss. For three or more branches, stagger their lengths by at least 2 feet to reduce inductive coupling. Run all conductors in the same conduit to maintain impedance consistency; mix conduit materials (PVC + metal) only if NEC 300.20 is followed precisely.
Label each branch at the box and at the last socket using heat-shrink tubing–include amperage and voltage ratings. Test every leg individually before energizing: flick the isolating breaker on, verify illumination, then off before proceeding. Keep spare terminals (SPST or DPST) in the box for future expansion; never daisy-chain more than five fixtures on a single 15A breaker path.
