Building a Reliable Linear Actuator Circuit Step-by-Step Guide
Begin with a dual H-bridge driver like the L298N to handle bidirectional force. Pair it with a 12V DC motor rated for at least 3A continuous load–this ensures smooth operation under typical mechanical resistance. Connect power rails directly to a stable 12V source, bypass capacitors (0.1µF) at both the driver and motor terminals to suppress voltage spikes that disrupt performance.
Add a microcontroller such as an Arduino Uno or STM32 for pulse-width modulation (PWM). Use 1kΩ current-limiting resistors on signal lines to protect GPIO pins. Implement a feedback loop with a potentiometer or linear variable differential transformer (LVDT) for position sensing–this maintains accuracy within ±0.5mm over a 200mm stroke. Calibrate the sensor’s voltage divider to output 0V at full retraction and 5V at full extension.
Avoid common pitfalls: omit diodes across motor coils, and back EMF will destroy the driver within seconds. Skip thermal vias on the PCB, and the L298N will overheat at loads exceeding 2A. Neglect fuse selection (5A slow-blow), and short circuits will weld contacts before the board fails safe. Use twisted-pair wiring for sensor signals to reject noise from nearby relay coils or switching regulators.
For high-cycle applications, replace the L298N with a DRV8871–its integrated current sensing simplifies stall detection. Add a flyback diode (1N4007) across the motor if using a relay instead of an H-bridge. Test stall current by monitoring the driver’s enable pin with an oscilloscope: expect transients up to 10A for 50ms during abrupt stops. Store calibration offsets in EEPROM to compensate for gearlash, reducing hysteresis by 40% in repetitive tasks.
Designing Precision Motion Control Schematics
Start with a dual H-bridge configuration for bidirectional force application. Use the DRV8871 or L298N driver ICs–both handle up to 36V and 2A continuous, but the DRV8871 integrates current sensing, eliminating external resistors. Connect the motor terminals directly to OUT1 and OUT2; ground the IC’s VM pin to a bulk capacitor (minimum 1000µF, 50V) to suppress voltage spikes. Add a 1kΩ pull-down resistor on the enable pin to prevent erratic movement during power-up. For position feedback, wire a 10kΩ potentiometer in voltage-divider mode to an ADC input (10-bit resolution minimum); this gives 3mm precision on a 300mm travel range.
Power and Signal Isolation
Separate logic (5V) and motor (12-24V) grounds with a 10Ω resistor or ferrite bead–never tie them directly. Run the control signals through optocouplers (PC817) if the controller operates in a noisy environment. Place a flyback diode (1N4007) across the motor terminals, cathode to positive, to clamp inductive kickback below 60V. For PWM control, use 20kHz frequency to minimize audible whine and reduce MOSFET switching losses; drive the enable pin with a 5V microcontroller output rated for 10mA sinking current.
Core Elements for an Elementary Motion Drive Setup

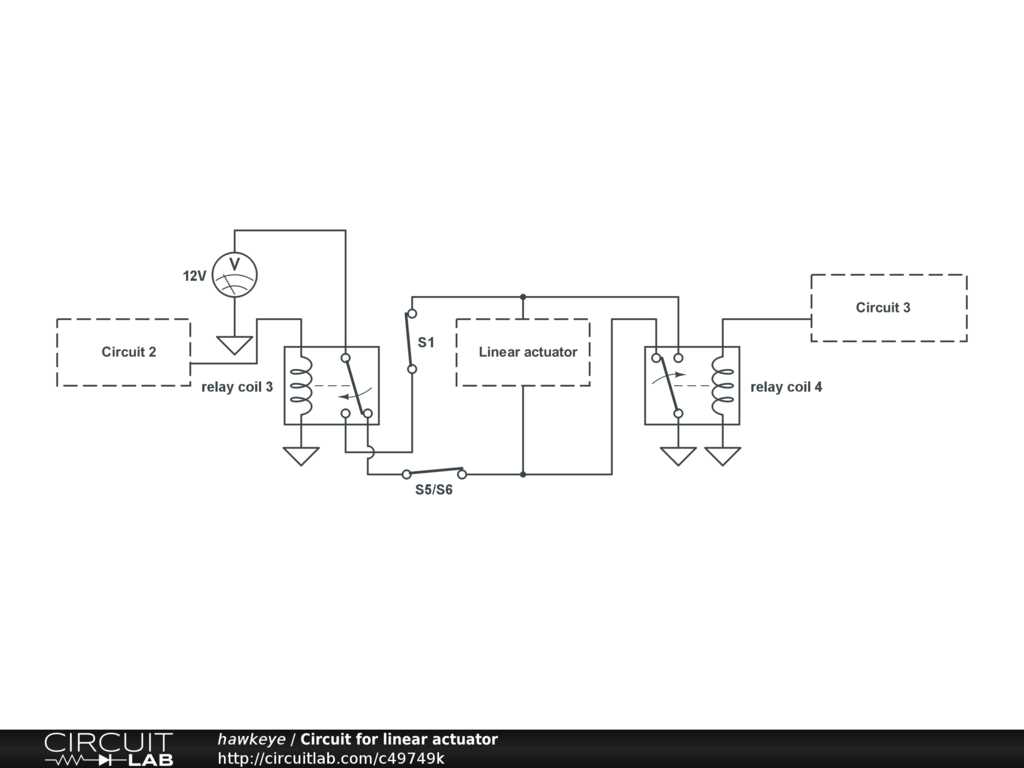

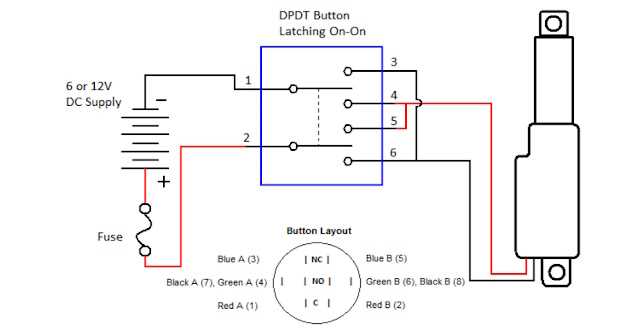

Choose a 12V or 24V DC motor with a gear ratio between 10:1 and 30:1 to balance speed and thrust–most off-the-shelf units deliver 50–150 mm/s at 200–500 N. Pair it with a dual-pole, double-throw relay rated for 10 A to reverse polarity without arcing; avoid solid-state relays under 2 A unless current sensing is employed.

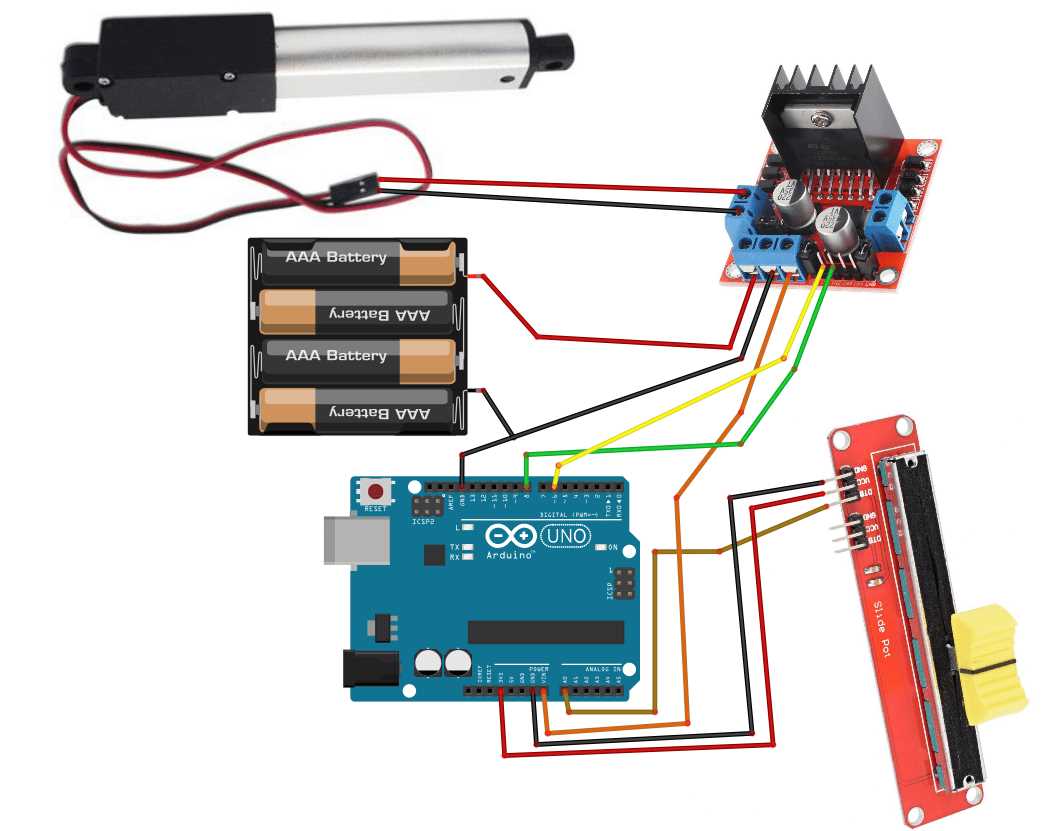

Include a 10 kΩ potentiometer (linear taper) as a feedback device for travel position; mount it on the output shaft with a 3D-printed coupler to eliminate slop. For closed-loop control, an H-bridge with L298N is adequate for currents up to 2 A, but swap to DRV8871 for 3.6 A continuous loads with built-in over-temperature protection.
Use a 1000 µF, 35V electrolytic capacitor across motor terminals to suppress voltage spikes; film capacitors tend to fail faster under PWM. Add a 1N4007 freewheeling diode in reverse across each motor terminal to clamp inductive kickback–skip this if the H-bridge already integrates them.
A microcontroller with at least two PWM outputs and one ADC input (e.g., ATmega328P) suffices; program a 1 kHz PWM frequency to minimize audible whine while keeping torque ripple below 5 %. Power the logic from a 7805 regulator with a 1 µF tantalum input capacitor and 10 µF output cap; place both within 10 mm of the regulator pins.
Install a normally-open limit switch at each end of travel; interrupt the microcontroller INT0 pin and disable the corresponding H-bridge leg within 2 ms to prevent stall current from exceeding 10 A. For longer strokes, add a third “home” switch on a GPIO pin and use a 1-second initialization routine before allowing user commands.
Route high-current traces (minimum 2 oz copper) at least 3 mm wide for every ampere; separate logic ground from motor ground at the power entry and reunite them only at the 7805 star point. Shield motor leads with braided mesh tied to chassis ground to cut EMI below 20 dBµV in the 30–500 MHz band.

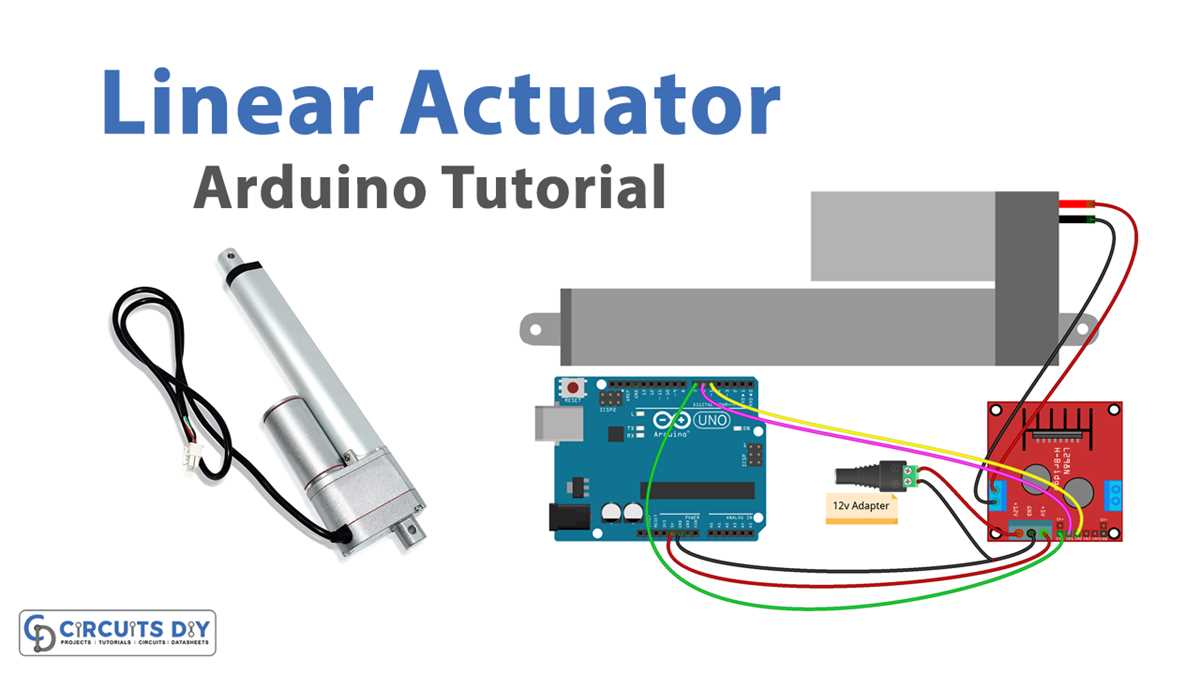

Wiring a DC Motor to a Microcontroller for Precise Movement Management
Connect the motor’s power leads to an H-bridge driver like the L298N or TB6612FNG to enable bidirectional control with minimal voltage drop. These modules handle currents up to 2A (L298N) or 1.2A (TB6612FNG) per channel, sufficient for small to medium 6V–24V motors. Avoid wiring motors directly to microcontroller pins–they lack current capacity and will overheat or damage the board.
Use a dedicated power supply for the motor, separate from the microcontroller’s 5V or 3.3V rail. A 9V battery or 12V adapter works for most setups; ensure the H-bridge’s logic voltage matches the microcontroller (e.g., 5V for Arduino Uno, 3.3V for ESP32). Connect the motor supply’s ground to the microcontroller’s ground to establish a common reference. Skip this step, and the system may behave erratically or fail entirely.
Configure PWM pins for speed regulation. On an Arduino, use analogWrite() on pins marked with a tilde (~); on ESP32, any GPIO can generate PWM via the LEDC library. Set a frequency between 1kHz and 20kHz–lower values cause audible whine, while higher values reduce torque. For example:
ledcSetup(channel, 5000, 8);(ESP32: 5kHz, 8-bit resolution)ledcAttachPin(motorPin, channel);ledcWrite(channel, 128);(50% duty cycle)
Route the H-bridge’s directional inputs to two microcontroller GPIOs. Pull these pins low with pinMode(pin, OUTPUT); digitalWrite(pin, LOW); in setup to prevent random startup spins. For clockwise motion, set one pin high and the other low; reverse the states for counterclockwise. Example logic for an Arduino:
- Clockwise:
digitalWrite(dir1, HIGH); digitalWrite(dir2, LOW); - Counterclockwise:
digitalWrite(dir1, LOW); digitalWrite(dir2, HIGH); - Brake/stop:
digitalWrite(dir1, LOW); digitalWrite(dir2, LOW);
Handling Noise and Power Surges
Add a 0.1µF ceramic capacitor across the motor terminals to suppress voltage spikes; larger motors may need 100µF electrolytic caps. Place a flyback diode (1N4007) in reverse bias across each H-bridge output if the driver lacks built-in protection. For microcontrollers near strong motors, use an optoisolator (e.g., PC817) to isolate logic circuits from electrical noise. Never omit these–even brief transients can corrupt data or damage semiconductors.
Power Supply Requirements and Voltage Regulation in Motion Control Systems
Select a DC power source with at least 20% higher wattage than the peak demand of your drive mechanism to prevent voltage sag. For 12V drives, maintain a current rating above 3A for 50mm/s strokes and 5A for 100mm/s. Use LM2596 or MP2307 buck converters for adjustable outputs (±0.2V accuracy) if battery voltage varies more than 1.5V under load. Avoid linear regulators (e.g., 7805) for currents above 1A–they dissipate heat excessively (≤70°C/W). Below are typical power demands for common setups:
| Mechanism Type | Voltage Range (V) | Peak Current (A) | Suggested PSU (W) | Recommended Regulator |
|---|---|---|---|---|
| Miniature screw drive | 6-9 | 1.2 | 15 | LM2575 |
| Standard DC motor push/pull | 12 | 3.5 | 50 | MP2307DN |
| Heavy-duty gear rack | 24 | 8.0 | 250 | LM2596HV |
Add a 1000μF low-ESR capacitor (e.g., Panasonic FK series) across the drive terminals to suppress inductive kickback (>50V spikes). For 24V setups, use a TVS diode (P6KE30CA) to clamp transients. Measure ripple with an oscilloscope: targets are <100mVpp for PWM-driven mechanisms and <10mVpp for constant-voltage loads. Isolate logic power (5V) with a dedicated AMS1117 to prevent noise coupling. Calibrate voltage trimmers at 50% load to minimize drift.
Integrating Safety Cutoffs for Stroke Control
Install normally closed (NC) mechanical cutoffs at both stroke endpoints–position them 2–3 mm beyond the desired travel limit to account for minor overshoot. Use microswitches with a 5–10 A rating; common models like Omron D2F or Honeywell V7 include lever actuators that reduce wear. Wire each switch in series with the power feed, ensuring the motor cuts instantly when contact breaks. For 12 V DC systems, pair with a flyback diode (1N4007) across the motor terminals to suppress voltage spikes that could damage switch contacts.
Adjustable mounts let you fine-tune cutoff placement without disassembling the assembly. For precise strokes under 100 mm, consider optical sensors (EE-SX671) offering ±0.1 mm repeatability. Place sensors just outside the mechanical limits; spindle clearance prevents fouling. Wire output to a relay or microcontroller–an Arduino Nano handles debounce logic with minimal delay. Test cutoff activation at full speed; hysteresis or slow deceleration may require secondary soft-stop circuits.
Combine limit detection with dynamic braking for faster halts–reverse motor polarity for 50–100 ms after cutoff triggers, then short terminals to ground. This reduces coast distance in high-inertia loads by 30–45%. For AC motors, use triacs with opto-isolated gate drivers (MOC3020); connect in antiparallel configuration to block current in both directions. Prevent false triggers from vibration by orienting switches perpendicular to motion and using rubber grommets on mounting screws.
Log cutoff events via serial output or SD card module–timestamp each trigger to track stroke consistency. In 24 V systems, add a bleeder resistor (470 Ω) across switch contacts to dissipate residual charge. Never rely solely on software limits; mechanical cutoffs serve as critical fail-safes even during MCU resets. For push-pull setups, cross-wire cutoffs so both switches halt motion when either end is reached–this prevents opposing motor forces from damaging linkages.
