How to Read and Understand Lionel Train Set Electrical Layouts
Connect the transformer’s AC terminals to the track’s outer rails using 16-gauge stranded copper wire for minimal voltage drop. Avoid solid wire–flexibility prevents breakage under repeated adjustments. Label each lead at both ends: “A” (outer loop), “B” (inner loop), and “C” (common ground) to eliminate confusion during troubleshooting.
For two-train operation, insert a directional relay rated at 5A between the power source and track sections. Verify coil resistance (typically 12Ω) matches the accessory voltage (18V AC standard) to prevent overheating. Solder joints with 60/40 rosin-core–acid-core flux creates corrosion within weeks.
Test continuity with a multimeter before securing wires beneath the baseboard. Set the probe to 200Ω range; readings above 0.5Ω indicate poor connections requiring rework. Use heat-shrink tubing (not electrical tape) over exposed splices–tape degrades under vibration from passing rolling stock.
Isolate sections with DPST switches to control blocks independently. Wire switches in series with track feeders, not parallel, to prevent backfeeding. For automated signaling, integrate a current-sensing module (e.g., transistor-based vs. mechanical relays) to detect stalled units without false triggers from intermittent wheel contact.
Ground all components to a single star point on the layout frame. Floating grounds create hum in accessories and erratic locomotive behavior. Use brass screws–steel oxidizes quickly, increasing resistance. Check polarity alignment monthly; reversed leads damage older motor assemblies instantly.
Understanding Model Rail System Circuit Layouts
Start with the transformer’s secondary terminals–identify the fixed-voltage AC outputs (typically 14V and 18V on older units). Label each post clearly before attaching any connectors to prevent reverse polarity, which can permanently damage locomotives. Use 18-gauge solid copper wire for main power feeds to minimize voltage drop over extended track sections. Avoid stranded wire for fixed installations, as it frays and causes intermittent shorts.
For track power distribution:
- Isolate the common rail (outer) from the center rail using insulating joiners at block boundaries.
- Attach a diode bridge rectifier (1N4004 or equivalent) at each accessory terminal to convert AC to DC for lights and switches.
- Limit accessory load to 5A per circuit; exceeding this trips circuit breakers in most vintage transformers.
- Ground all metal structures to the common rail to prevent stray current interference with control signals.
When configuring looped or reversing sections, install an automatic polarity reverser between the track feeders. Manual toggle switches introduce human error and risk short circuits during operation. For O-gauge layouts, use a DPDT relay rated at 10A; smaller relays fail under frequent switching. Test all insulated joiners with a continuity meter before powering up to confirm proper isolation.
For remote-controlled turnouts, dedicate a separate 16VAC circuit with momentary push-button switches. Wire each switch in series with a 1000μF electrolytic capacitor to smooth transient voltage spikes that cause erratic solenoid activation. Keep accessory wiring at least 2 inches away from track feeders to avoid induced noise in signal circuits. Color-code all wires–red for hot leads, black for common, and yellow for isolated block feeds–to simplify troubleshooting.
Locating Critical Elements in Model Railroader Electrical Layouts
Begin by examining the transformer outputs–these terminals dictate voltage levels across the entire system. Most vintage setups feature labeled posts: “A” for accessory power (12–18V AC), “U” for track voltage (0–18V AC), and “Common” as the shared ground. Verify connections with a multimeter; incorrect polarity risks damaging decoders or shorting circuits. Modern layouts often include a third-party power supply–cross-check amperage ratings to avoid overloading, as standard controllers typically handle 2–5A, while high-current models support 8A+.
Trace the trackside control components next. Switch machines (remote throw devices) rely on dual-coil solenoids requiring brief 16–20V pulses; ensure paired wires (typically red/green and black/gray) connect to the correct auxiliary posts. Momentary pushbuttons or toggle switches must interrupt power cleanly–failing mechanics cause solenoid burnout. For electronic turnout controllers, confirm compatibility: solenoid-based systems need instantaneous current, while stall-motor types (e.g., Tortoise) demand continuous low-voltage DC (12–16V).
Inspect rail connectivity points where sections meet. Gaps between insulated joiners must align precisely to prevent shorts; use plastic or fiber washers to isolate metal rails. Trackside feeds–where power enters each loop–require soldered or screw-clamped joints; corrosion here mimics intermittent failures. For layouts with reversing loops, install a double-pole double-throw (DPDT) relay or auto-reversing module to handle phase switching automatically–manual toggles risk track damage if left engaged.
| Component | Voltage Range | Current Draw | Failure Symptom |
|---|---|---|---|
| Track feeder | 0–18V AC | 1–4A | Engine stalls or slows |
| Switch machine (solenoid) | 16–20V AC | 3–6A (pulse) | Burnt smell or failed throw |
| Lighting circuit | 12–14V AC/DC | 0.2–0.5A | Flickering or dim bulbs |
| Accessory bus | 12–18V AC | 2–5A | Non-responsive devices |
Check signal pathways for low-voltage devices. LEDs in crossings or street lamps need series resistors (calculate using Ohm’s Law: Vdrop = Vsupply – VLED; I = 20mA). Incandescent bulbs (e.g., 12V #1449) draw 120mA–ensure the accessory bus can supply enough wattage for multiple fixtures. Dimmer switches or pulse-width modulation (PWM) modules help regulate brightness but introduce electrical noise–shield sensitive electronics nearby.
Evaluate ground distribution. A single shared ground reduces interference but requires thick gauge wire (12–14 AWG) to handle cumulative current. Avoid daisy-chaining grounds; instead, use a star topology converging at a central bus bar. For analog throttles, bond the transformer’s common post to this ground–digital command control (DCC) layouts separate track return paths to prevent noise corruption.
Test protection devices rigorously. Circuit breakers or polyswitches reset automatically but trip at fixed thresholds (typically 3–5A). Fuses (e.g., 250V 5x20mm) offer cheap insurance but require manual replacement. Voltage regulators (linear or switching) stabilize accessory power but generate heat–mount on aluminum heatsinks if exceeding 5W dissipation. Place these near the power source to isolate faults before they propagate.
Document each connection with labels or color-coded sleeves (red/black for power, green/white for signals, yellow/blue for accessories). Avoid relying on memory–critical faults often surface during complex operations like double-heading or sound effects integration. Use terminal blocks or barrier strips to simplify future upgrades or troubleshooting; direct soldering, while reliable, complicates modifications. For layouts with electronic upgrades (DCC decoders, sound modules), segregate high-current paths from logic-level circuits to prevent cross-talk or resets.
Step-by-Step Guide to Linking Model Rail Systems and Energy Sources
Begin by aligning the track sections on a flat, stable surface to prevent gaps or misalignment. Use a brass track cleaner to remove oxidation from rail joints–this ensures consistent current flow. For O-scale layouts, standard 3-rail systems require at least one center conductor connected to the power pack’s positive terminal, while the outer rails connect to the negative.
Secure the power supply’s output wires to the track using insulated alligator clips for temporary setups or soldered connections for permanent layouts. For DC systems, polarity matters: reverse the leads to change direction. AC systems (like those with whistle controllers) need matching terminals–consult the user manual for voltage ranges (typically 8–18V). Overloading causes motor burnout; use a multimeter to verify output before attaching.

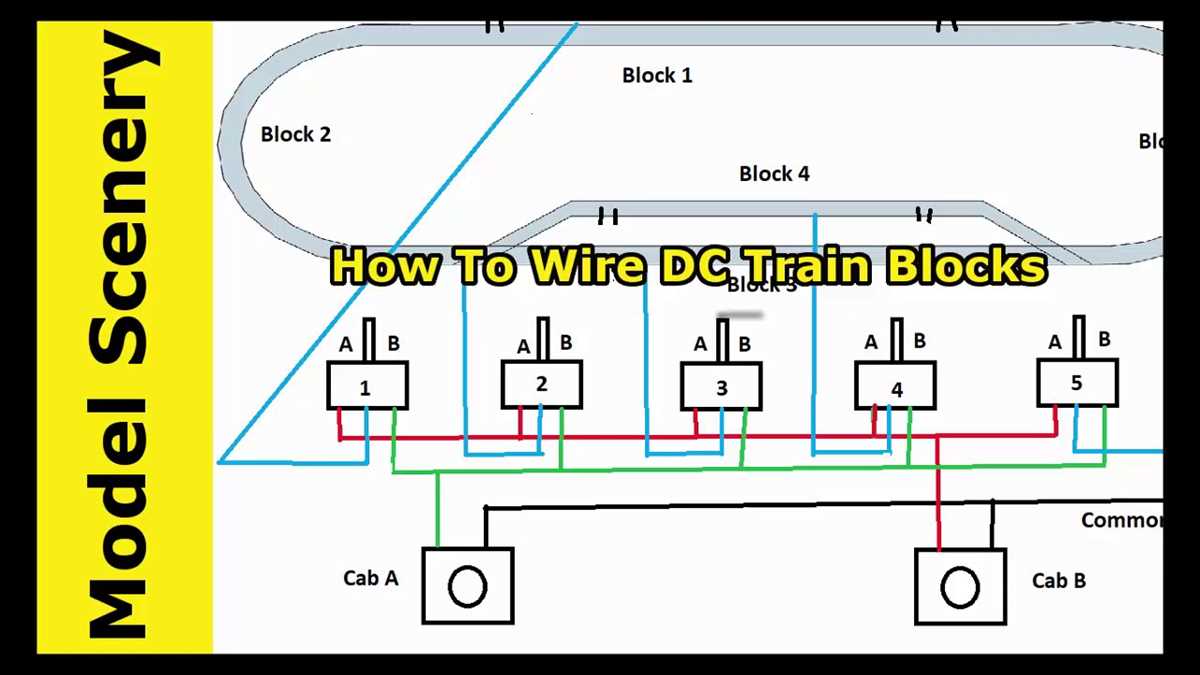

For complex routes, divide the layout into blocks using toggle switches or relays. Wire each block separately to a dedicated power source to prevent voltage drops over long stretches. Use 16-gauge solid copper wire for main power feeds–stranded wire risks fraying and poor conductivity. Label all wires at both ends to simplify troubleshooting.
Test the setup with a rolling stock unit equipped with a low-current motor to avoid damaging sensitive electronics. Observe the motion: jerky movement indicates loose connections or insufficient power. If the locomotive stalls, check for debris obstructing wheels or track joints–not all issues stem from electrical faults.
For sound-equipped models, ensure the auxiliary power supply matches the manufacturer’s specifications (often 12–15V). Connect the sound decoder’s power input to a separate circuit breaker to isolate it from track power surges. Ground all components to a single bus bar to reduce interference and hum.
Use twist-on wire connectors for temporary setups, but solder and heat-shrink tubing for reliability. Avoid electrical tape–it degrades over time. For outdoor setups, weatherproof all joints with dielectric grease or silicone sealant to prevent corrosion from humidity.
Document your configuration with hand-drawn schematics or digital notes. Include voltage readings at key points, switch positions, and block assignments. This record speeds up future adjustments and repairs, especially if expanding the layout later.
