LM7912 Negative Voltage Regulator Circuit Schematic Guide
Start with a 12V negative linear regulator core–select a 3-terminal TO-220 package for thermal efficiency. Input voltage must exceed the regulated output by at least 2.5V; for stable operation, maintain a minimum 15V differential under full load. Bypass capacitors are non-negotiable: place a 0.1µF ceramic capacitor directly between input and ground, and a 1µF tantalum or 10µF electrolytic capacitor at the output to prevent oscillations. Without these, transient response degrades, risking voltage spikes under dynamic loads.
Thermal management determines long-term reliability. Attach a heat sink rated for at least 10°C/W when dissipating 1W or more. For 5W power dissipation, a forced-air cooler or a sink with 5°C/W ensures the junction stays below 125°C. Exceeding this threshold shortens component lifespan or triggers thermal shutdown. Calculate dissipation as (Vin − Vout) × Iload–never ignore this step.
Ground wiring demands attention. Connect the regulator’s ground pin to a low-impedance plane, not a thin trace. Stray resistance as low as 0.1Ω introduces output voltage drift, especially under 1A loads. For multi-stage designs, separate analog and power grounds at the regulator, merging only at the power supply’s star point. Reverse voltage protection requires a Schottky diode across input-output; a 1N5817 handles 1A with minimal forward drop.
Load regulation degrades if the output capacitor’s equivalent series resistance (ESR) exceeds 1Ω. Use low-ESR tantalums below 500mA; for higher currents, polymer capacitors outperform electrolytics. Test stability by applying a 50% load step–oscilloscope measurements should show a clean transition with
For adjustable variants, replace the internal feedback resistors with precision 1% metal-film types. A 2.5kΩ resistor between the output and adjust pin, paired with a 5kΩ trimmer to ground, fine-tunes output within ±0.5V while maintaining 0.1% line regulation. Avoid exceeding the adjust pin’s 50µA current limit–this distorts the internal reference and introduces noise.
Practical Guide to the -12V Voltage Regulator Schematic
Begin with a 220μF input capacitor positioned within 5cm of the regulator’s input pin to suppress transients. Ensure the negative terminal connects directly to the IC’s Vin, while the positive lead links to ground–this orientation absorbs voltage spikes that exceed the reverse polarity tolerance of the device.
For stable operation, pair the regulator with a 1μF tantalum output capacitor on the Vout pin. Failure to include this component risks oscillations at load steps above 500mA, particularly when powering reactive loads like relays or small motors. Place the capacitor as close as possible to the output pin to minimize trace inductance.
Thermal Considerations and Safety Measures
Calculate power dissipation using P = (Vin – Vout) × Iload. For a 24V input and 1A load, dissipation reaches 12W–requiring a heatsink with a thermal resistance below 3°C/W. Without cooling, the internal thermal protection triggers at 125°C, cycling on/off and causing intermittent output drops.

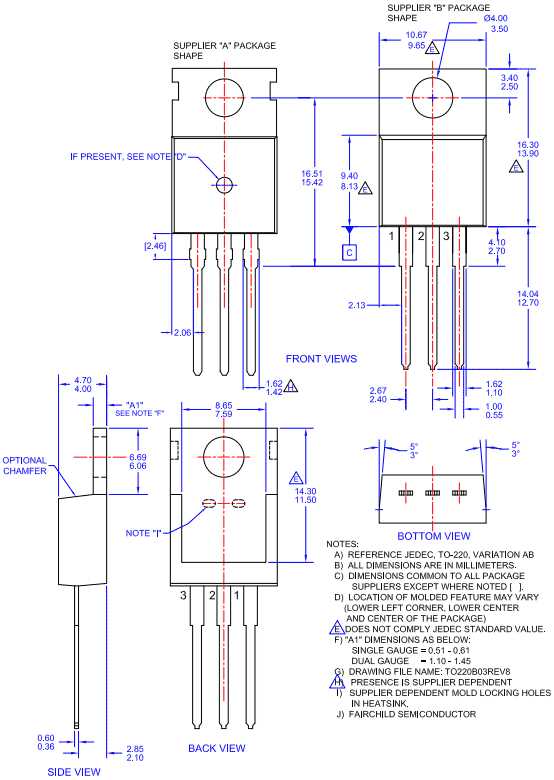

- Use a TO-220 package for currents up to 1.5A; switch to TO-3 for 3A+ applications.
- Avoid aluminum heatsinks with anodized coatings–remove oxidation with emery cloth for optimal heat transfer.
- Mount the regulator vertically if space permits; horizontal mounting increases footprint by 20% but worsens convection cooling.
Bypass capacitors must withstand at least 50V for the input and 25V for the output to prevent dielectric breakdown. Ceramic capacitors are unsuitable for bulk storage due to microphonic effects; polypropylene film types excel in high-noise environments like switching supplies.
Test for stability by applying a 10Hz–100kHz impedance analyzer across the output. A flat impedance response (
Layout and Noise Reduction Techniques
Route high-current traces (Vin, Vout, ground) with 2oz copper and a minimum width of 2.5mm per ampere. Keep the ground return path from the load separate from the input ground to prevent ground loops–connect them only at the regulator’s ground pin.
- Place the input capacitor as close as possible to the Vin pin, then route traces outward to minimize EMI coupling.
- Use star grounding for multiple loads; connect each load’s ground to the regulator’s ground pin via individual traces.
- Avoid routing signal traces beneath the regulator–its switching noise can couple into sensitive circuits.
- For PCB layouts, add a 100nF ceramic capacitor between Vin and ground at the input connector to filter high-frequency noise.

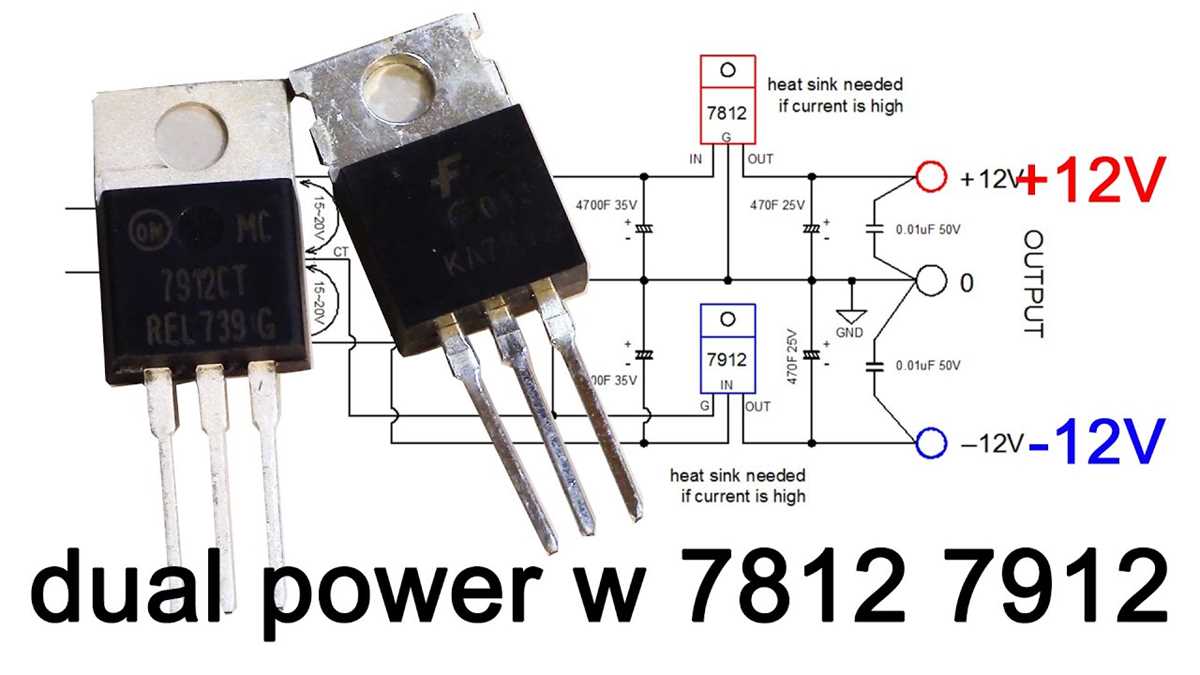

In dual-rail applications, synchronize the negative regulator’s ground with the positive rail’s ground only at a single point to prevent voltage offset errors. Use a 1N4007 diode in anti-parallel with the output to clamp reverse transients from inductive loads–this protects the regulator from voltages exceeding -0.7V.
Key Components for Building a Negative Voltage Stabilizer Configuration
Select a TO-220 package linear regulator with a fixed -12V output to handle input voltages ranging from -15V to -35V. Pair it with a 2A fuse on the input side to prevent overcurrent damage during transient spikes, particularly if the unregulated supply exceeds -25V. Use a 1000μF electrolytic capacitor rated at min. 35V on the input to smooth voltage ripples–position it within 5cm of the regulator’s input pin for optimal noise suppression. For output stability, add a 1μF tantalum capacitor with a 25V rating directly across the output and ground pins; this enhances transient response and prevents oscillations under dynamic loads.
Include a 1N4007 diode in reverse polarity across the input and output terminals to protect the regulator from voltage spikes when power is disconnected, especially if the load contains inductors. For heat dissipation, mount the regulator on a 3x5cm aluminum heatsink with a thermal resistance ≤10°C/W–a 2mm thick finned design suffices for ambient temperatures up to 50°C with a 1A load. Verify component polarities before power-up; reversed capacitors or diodes will catastrophically fail within milliseconds.
Step-by-Step Assembly of a Fixed -12V Regulation Module
Begin by securing the three-terminal voltage regulator IC to a heat sink using thermal compound and a mounting screw. Ensure the metal tab aligns with the sink’s surface to maximize heat dissipation, as this component handles up to 1.5A and dissipates excess energy as heat. Verify the regulator’s pinout: the leftmost lead is the input, the center is the common ground, and the rightmost is the regulated output.
Connect a 25V or higher electrolytic capacitor (minimum 1000µF) between the unregulated negative input and ground. This capacitor smooths rectified DC by filtering voltage ripples, reducing noise at the regulator’s entry point. Position it as close as possible to the regulator’s input pin to minimize lead inductance, which can degrade performance at higher currents.
Solder a 2A bridge rectifier to the transformer’s AC output, ensuring correct polarity–negative output must feed the regulator’s input. Use a fuse rated at 1.5A or slightly above on the AC side to protect against overloads. For additional stability, add a 0.1µF ceramic capacitor across the regulator’s input and ground to suppress high-frequency transients.
Output Filtering and Load Connections
Attach a 10µF electrolytic capacitor between the regulator’s output and ground to improve transient response under dynamic loads. This capacitor helps maintain steady voltage during sudden current demands, such as motor startups or relay activations. For further noise reduction, parallel it with a 0.1µF ceramic capacitor to handle rapid voltage fluctuations.
Wire the load to the regulator’s output terminal, ensuring the ground reference remains common throughout the setup. If the load exceeds 1A, verify the heat sink’s thermal resistance–aim for ≤2°C/W to prevent thermal shutdown. For intermittent high loads, consider a fan-cooled sink or switching to a higher-power alternative like the LM79T12, which handles 3A with proper cooling.
Testing and Final Adjustments
Power up the module using a variable DC source set to -15V while monitoring output with a multimeter. The reading should stabilize at -12V ±0.5V. If voltage deviates, check for reversed capacitors, loose connections, or insufficient input voltage. For debugging, measure the input voltage–it must exceed -13.5V to maintain regulation.
Apply a test load (e.g., a 5Ω power resistor) and verify the output remains within 50mV of -12V. If voltage drops under load, increase the input capacitor’s value or improve heat sink efficiency. For precision-sensitive applications, add a 1N4007 diode across the input and output pins (cathode to input) to protect against reverse polarity or backflow from inductive loads.
Encapsulate the assembly in a ventilated enclosure, routing wires away from heat sources. Label input, ground, and output terminals clearly. For extended reliability, include a 1A slow-blow fuse on the input line and a MOV (Metal Oxide Varistor) across the AC input to absorb voltage spikes from the mains.
Input Voltage Ranges and Output Stability for Negative Voltage Regulators
Apply a minimum differential of 2.5V between the unregulated input and the regulated output to ensure stable operation. For example, with a target output of -12V, maintain the input within -14.5V to -35V. Exceeding the upper limit risks thermal overload, while falling below the lower threshold causes dropout, where regulation fails and output voltage rises toward the input level. Linear regulators of this type show optimal performance when the input remains 3-5V above the nominal output under typical load conditions.
Load current significantly impacts the required input voltage headroom. At 1A output, the dropout voltage increases to approximately 2V, demanding an input of at least -14V. Under lighter loads (≤500mA), 1.5V headroom suffices. Below is a reference table for safe operating ranges under varying load currents:
| Load Current (mA) | Minimum Input (V) | Maximum Input (V) | Recommended Input Range (V) |
|---|---|---|---|
| 100 | -13.5 | -35 | -15 to -25 |
| 500 | -14 | -35 | -16 to -25 |
| 1000 | -14.5 | -35 | -17 to -25 |
| 1500 | -15 | -35 | -18 to -25 |
Thermal considerations dictate input voltage selection. At higher input voltages (e.g., -30V), power dissipation increases, requiring adequate heatsinking. For a 1A load, the regulator dissipates roughly (Vin – Vout) × Iload. Using -25V input at 1A results in 13W dissipation–thermal resistance must not exceed 4°C/W to keep the junction below 125°C. Lowering the input to -18V reduces dissipation to 6W, easing cooling requirements.
Handling Input Voltage Fluctuations
Rectified AC inputs introduce ripple–limit this to ≤2V peak-to-peak for reliable regulation. Capacitors (≥2200µF) at the input smooth fluctuations but cannot compensate for sustained under-voltage. Reverse polarity or voltage spikes exceeding -35V destroy the device instantly; incorporate a 35V Zener diode or transient voltage suppressor (TVS) for protection. For variable input sources, add a pre-regulator or switch-mode buck converter to maintain the input within safe bounds.
