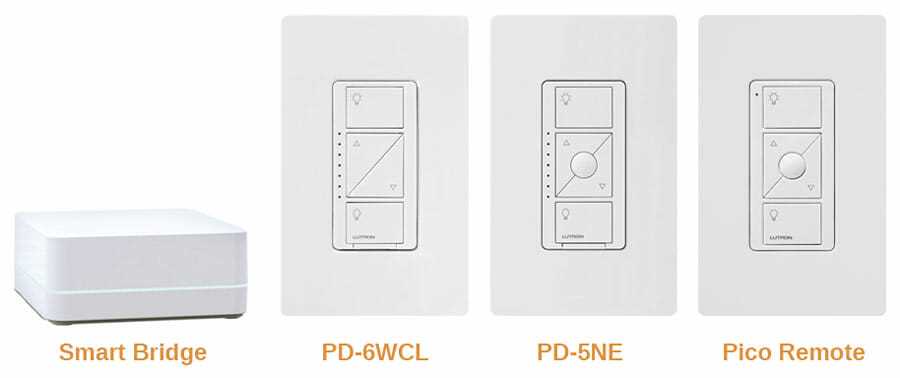

Complete Lutron PD-6WCL Dimmer Switch Wiring Guide with Diagram
Connect the line (hot) wire from the power source directly to the brass screw terminal marked “Line” on the dimmer. Use a 12-gauge solid copper wire stripped to 5/8 inch for a secure connection. The load wire should attach to the black screw labeled “Load”–ensure proper polarity to avoid flickering or premature failure. Neutral or ground wires are not required for this model, but if present, cap them with a wire nut to prevent accidental short circuits.
The red traveler wire (if part of a three-way setup) must link to the corresponding traveler terminal on the companion switch. Verify compatibility with bulb types before installation: this device works optimally with incandescent, halogen, and dimmable LED/CFL bulbs rated between 6-600 watts. Overloading beyond specifications will trip the internal breaker and may cause permanent damage.
Avoid daisy-chaining multiple switches or outlets on the same circuit when integrating this dimmer. Disconnect power at the circuit breaker before handling any wires–confirm with a non-contact voltage tester. If wiring extends beyond 6 feet, use a junction box to splice connections. Improper wiring may result in overheating or voiding the manufacturer’s warranty.
For three-way installations, the dimmer must function as the primary switch. The secondary switch should only toggle between on/off states, not dim levels. If the device fails to power on after installation, double-check screw tightness and wire insulation integrity. Loose connections generate heat and can melt the switch housing.
Installation Guide for PD-6WCL Smart Dimmer Switch
Connect the neutral wire bundle to the switch’s white terminal first–this ensures stable power distribution and prevents flickering. If your electrical box lacks a neutral, replace the dimmer with a compatible no-neutral model like the Maestro series. Verify circuit voltage (120V AC in North America) before proceeding; mismatches risk device failure.
Strip wire ends to ⅜ inch, twist firmly with pliers, and secure under terminal screws using a clockwise turn. Tighten until resistance is felt–loose connections cause overheating. For multi-way setups, route the red traveler wire to the corresponding terminal on the companion switch; label wires with masking tape to avoid confusion.
Grounding and Safety Checks
Attach the bare copper or green ground wire to the green screw on the dimmer. If the box is plastic, connect the ground to the nearest metal junction box or ground bus in the panel. Test continuity with a multimeter (probes on ground screw and neutral) before energizing; a reading below 1 ohm confirms proper grounding.
Match compatible bulb types: incandescent (up to 600W), halogen (500W), or dimmable LEDs/CFLs (150W max). Non-dimmable LEDs may hum or fail prematurely. For magnetic low-voltage systems, add a Lutron LUT-MLC capacitor in parallel with the load to smooth voltage fluctuations.
Toggle the circuit breaker on and press the switch’s top button to verify dimming range. If the LED indicator flickers or the load doesn’t respond, power off and recheck wire connections for stray strands bridging terminals. For advanced programming, hold the top button for 6 seconds to enter calibration mode; adjust fade rates via the lower buttons.
Troubleshooting Common Issues
Persistent flickering in dimmable LEDs often stems from incompatible drivers–consult the bulb manufacturer’s datasheet for recommended dimmers. If the switch feels warm, reduce the connected load by 20% below the maximum rating. Replace the device if it emits a burning odor or discolors, indicating internal damage.
For three-way circuits, wired the switch as the primary (power-source) unit; the companion switch must be the same model or a Lutron add-on (e.g., MA-R). Verify phase alignment with a non-contact voltage tester–hot wires in multi-way setups should show voltage only under specific switch positions. Labels: mark the “line” wire (from breaker) and “load” wire (to fixture) to prevent reverse polarity errors.
Installation Guide for PD-6WCL Dimmer Switch Connections
Connect the black (hot) conductor from the power source to the brass-colored terminal labeled “Common” on the device. Verify the circuit breaker is off before handling live wires to prevent shocks. Strip 3/8 inch of insulation from each wire end for secure contact.
Attach the red wire from the dimmer to the load (light fixture) using a wire nut or push-in connector. Ensure no exposed copper is visible after joining. For multi-way setups, identify the traveler wires–usually red and black–and link them to matching terminals on companion switches.
Secure the white (neutral) wire to the silver terminal if required by your specific model; some versions omit this connection. Ground the green or bare copper wire to the green grounding screw or metal junction box. Tighten all terminals with a screwdriver, ensuring no movement when gently tugged.
Fold wires neatly into the electrical box, avoiding sharp edges that could damage insulation. Align the dimmer’s mounting screws with the box slots and secure it in place. Test the switch by restoring power and toggling it on–observe for flickering or overheating, which indicates loose connections.
For LED bulbs, confirm compatibility with the dimmer’s minimum load rating (typically 10W). If lights buzz or fail to dim smoothly, replace incompatible bulbs or adjust the dimmer’s low-end trim using the built-in calibration feature found in the user manual.
Label wires with colored tape if multiple dimmers are installed in the same box to simplify future troubleshooting. Avoid overloading the circuit–check the dimmer’s maximum wattage (600W for incandescent/halogen, 150W for LEDs). Exceeding limits risks overheating and device failure.
After installation, program preset lighting scenes if the device supports smart features. Hold the “on” and “off” buttons simultaneously for 10 seconds to enter setup mode, then follow the blinking LED prompts to customize fade rates and levels.
Identifying Load, Line, and Neutral Conductors in Dimmer Setups
Verify wire assignments with a non-contact voltage detector before handling connections. The incoming hot conductor typically registers 120VAC relative to ground and will trigger the tester consistently. This wire feeds power to the device and must terminate at the brass-colored screw. Confirm its location by separating wires–only one will maintain voltage when the circuit is live.
- Load conductor carries power downstream to fixtures and will only show voltage when the device is turned on. Test by activating the switch: if the wire energizes, it connects to the load terminal (often copper-colored).
- Neutral (if required) is bundled with other whites in the box and measures 0V to ground. It attaches to the silver screw or dedicated neutral terminal if present in smart-switch variants.
- Ground wires are bare, green, or green/yellow striped–attach to the green screw or ground clip, never to live terminals.
Wrong connections risk damage–swap suspected load and line wires if the device flickers or doesn’t respond. Label each conductor with masking tape during testing. For older installations without neutral, check for bundled whites tied together in the box; these may serve as a neutral path even if not directly connected to the switch.
For three-way setups, identify the common (dark) screw on companion switches–it pairs with the master device’s load terminal. The remaining travelers (brass screws) should match between switches. Map all wires before securing connections, and re-test after installation. If issues persist, disconnect all wires and verify each with a multimeter in continuity mode.
Common Installation Errors and Preventive Measures for PD-6WCL Switches
Connecting the neutral wire to the load terminal instead of the line terminal will immediately trip the circuit breaker or damage internal components. Verify the terminal markings: the *LINE* side accepts the hot feed (typically black or red), while *LOAD* connects to the fixture. Use a non-contact voltage tester to confirm power is off before handling any conductors, and recheck connections against the schematics before restoring power.
Critical Missteps During Physical Hookup
| Error | Consequence | Corrective Action |
|---|---|---|
| Skipping ground conductor connection | Risk of shock, non-compliance with NEC 404.9 | Attach bare or green wire to the green screw; verify continuity with a multimeter |
| Over-tightening terminal screws | Stripped threads, cracked housing | Torque to 12-15 in-lbs using a precision screwdriver |
| Mixing incorrect wire gauges | Poor contact, overheating | Use 14-12 AWG solid copper conductors only; strand fraying voids warranty |
Bypassing the dimmer’s calibration procedure–pressing and holding the top paddle until LEDs flash–results in erratic performance. Reset by cutting power at the breaker for 15 seconds if flickering persists. Ensure compatible bulbs: LED drivers must tolerate 120 VAC phase-control dimming; incandescent-only ratings waste energy and generate excessive heat.
Compatibility Check: Six-Way Dimmer Switch Integration with Diverse Lighting Systems
Verify fixture wattage before installation–this dimmer model supports 120V resistive, inductive, or LED/CFL loads between 6W and 600W. Exceeding these limits risks damaging both the control module and connected bulbs. For halogen or incandescent setups, confirm the transformer type; magnetic transformers often require derating by 20% due to inrush current.
LED compatibility hinges on three factors: driver design, flicker resistance, and dimming curve. Non-compatible drivers may cause pop-on, drop-out, or ghosting–test with a single bulb first. Look for “ELV” or “TRIAC dimmable” labels on LED packaging; most ENERGY STAR-rated lamps meet these criteria, but verify against the manufacturer’s compatibility list. Smart bulbs with integrated Wi-Fi typically require a neutral wire and may not respond predictably.
Install mixed loads with caution. Pairing incandescent bulbs (100W) with dimmable LEDs (12W) can create imbalance, leading to uneven brightness or premature failure of lower-wattage components. If unavoidable, group similar technologies–use separate circuits or sibling dimmers for distinct loads. For multi-location setups (e.g., three-way switches), confirm auxiliary switches are mechanical, not electronic, to avoid signal conflicts.
Low-voltage track lighting (12V/24V) demands active transformer sequencing. Electronic low-voltage (ELV) transformers dim smoothly down to 10%, while magnetic low-voltage (MLV) types stall below 40% unless paired with a resistor-capacitor snubber circuit. Avoid daisy-chaining transformers; each should connect directly to the dimmer to prevent voltage drop. Test with a multimeter–ideal output ranges between 11.8V and 12.2V under load.
Fluorescent fixtures with dimming ballasts (0-10V or DALI) are incompatible without an intermediary relay or dedicated interface module. Probe the ballast documentation for “phase-cut dimming” support–conventional 0-10V systems require a separate controller. For non-dimmable fluorescents, replace the dimmer with a standard switch or risk humming, flickering, or ballast damage.
Outdoor lighting introduces moisture and temperature variables. Ensure IP44-rated or higher gaskets cover push buttons; condensation inside the switch can corrode contacts within weeks. For deck or pathway LEDs, use “wet location” certified drivers–standard drivers fail below -10°C or above 50°C. Space the dimmer 30cm from sprinkler zones to prevent thermal shock during activation.
Retrofit installations often uncover hidden compatibility issues. Older coaxial or cloth-insulated wiring (
Post-installation calibration prevents long-term issues. Use a light meter to map the dimming curve–adjust trim pots if LEDs flicker at low settings (typically 5-20% brightness). For multi-scene controls, program delays between zones to avoid power surges. Revisit settings after 72 hours–bulb filaments and drivers settle into optimal performance ranges. Keep a plug-in surge protector on adjacent outlets to safeguard against transient spikes.
