How to Wire a Lutron Toggle Dimmer Step-by-Step Guide with Diagram

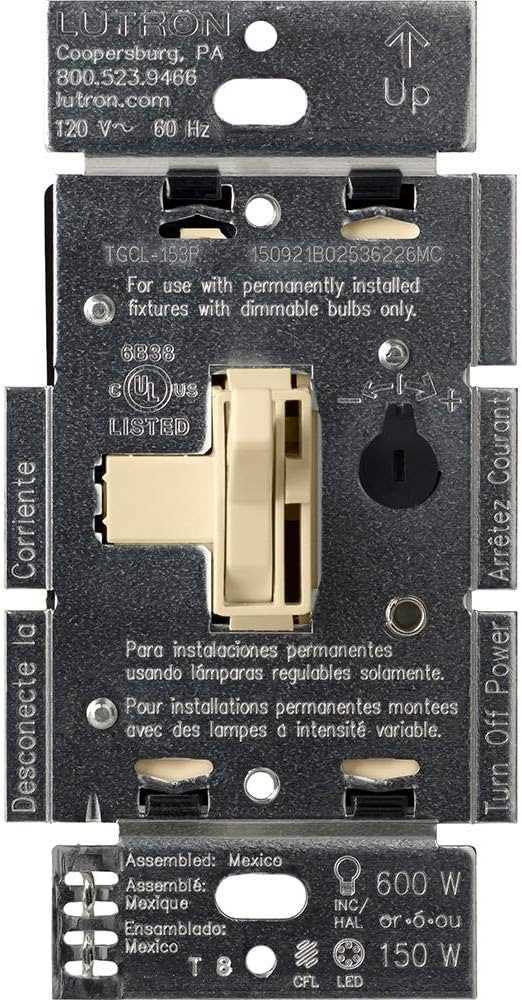

For single-pole installations, attach the line (hot) wire to the terminal marked “L” or “Common” on the switch module. The load wire should connect to the “DIM” or “L1” terminal. Secure all connections with wire nuts rated for the circuit’s ampacity–typically 15A for 14-gauge wire or 20A for 12-gauge. Ensure the neutral wire, if present, remains untapped; these units operate without requiring a neutral conductor in most residential setups.

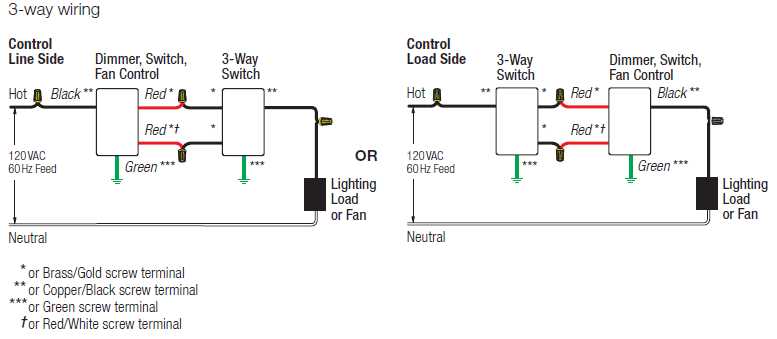

When configuring a three-way setup, replace the existing mechanical switch with the electronic control. The traveler wires from the original setup must connect to the terminals labeled “T1” and “T2” on the new device. The common screw (often black or copper-colored) links to the remaining traveler wire–this wire now carries the hot feed. Verify polarity by checking voltage with a multimeter: 120V between common and ground confirms proper alignment. Miswiring here will cause flickering or failure to power on.
Before closing the electrical box, test the installation by toggling the device through its full range. If the controlled fixture does not reach full brightness, check for voltage drop across the circuit–this often indicates loose connections or undersized wire gauge. For LED compatibility, review the manufacturer’s compatibility chart; some models require a minimum load of 10W to function correctly. If the switch emits a faint buzzing sound, replace it immediately–this signals internal failure.
For recessed lighting or low-voltage installations, bypass any internal transformers by connecting the control directly to the fixture’s input wires. Split circuits with multiple bulbs should have each load wire spliced together before attaching to the “DIM” terminal. Avoid exceeding the unit’s maximum wattage rating, typically 600W for incandescent or 150W for dimmable LED/CFL. Overloading will void the warranty and poses a fire risk.
How to Connect a Two-Way Illumination Control Switch
Begin by identifying the line, load, and neutral terminals on your adjustable illumination module. Modern versions often use color-coded screws: brass for the hot lead (typically black), silver for the controlled circuit (red or black), and green for grounding. If retrofitting an older installation, verify the absence of shared neutrals in the junction box–these can cause erratic behavior when combined with phase-cut triac circuits.
For single-pole setups: attach the incoming power cable to the brass terminal and the fixture wire to the silver terminal. Cap the neutral conductor (white) if unused, as most legacy mechanical switches lack neutral requirements. Test the circuit with a non-contact voltage detector before securing the device; improper polarity can degrade LED compatibility, particularly with low-wattage bulbs under 10W.
Dual-location installations require a three-way traveler pair (often yellow or orange). Connect the common terminal (marked “COM” or dark-colored) to either the line or load side–critical for maintaining consistent on/off states across devices. Avoid mixing wire gauges; 14 AWG suffices for 15A circuits, but downgrade to 12 AWG for 20A breakers to prevent overheating in the integrated electronic components.
After securing connections, power the circuit and cycle the switch multiple times under load. Listen for subtle buzzing from the fixture–this indicates incompatible bulb technology or incorrect grounding. Replace incandescent bulbs with dimmable CFLs or LEDs labeled for “universal” or “ELV” compatibility, as standard models may flicker at lower levels due to residual current leakage in the semiconductors.
Matching Power Lines for Your Light Control Switch Setup
Start by locating the main feed cable inside the electrical box–this is typically a black or red conductor supplying 120V from the circuit breaker. Confirm its function with a non-contact voltage detector before handling. The companion neutral (white) and bare or green grounding wire must also be present; these are non-negotiable for safe operation. If the box houses multiple cables, trace each one back to its source: one powers the fixture, another may continue downstream to additional outlets.
Use a multimeter to verify wire roles if labeling is absent. Set the meter to AC voltage, probe the suspected hot wire against the neutral–expect a reading close to 120V. Repeat between the hot and ground; readings should match. A zero-voltage result between neutral and ground signals proper bonding. If discrepancies appear, retest all connections or inspect the breaker panel for tripped circuits or miswired neutrals.
Key conductors to isolate:
- Incoming power (usually black or red)
- Return path (white)
- Safety conductor (bare/green)
- Load wire (often black, may switch to a brass screw terminal)
For three-way setups, locate the traveler wires–typically red and black–alongside a single common terminal (often darker colored). Identify the common by testing continuity with a circuit tester while toggling the remote switch. The traveler wires swap hot status depending on the switch position; mark them clearly with electrical tape to prevent cross-connection during installation.
Re-check all connections after securing the device. Turn power back on at the breaker and test with the meter one final time before covering the box. If the load remains unpowered, revisit the fixture-side wiring: ensure the dimmer’s load terminal connects to the lamp’s hot lead, not the neutral or traveler. Loose terminals or stray strands often cause intermittent failures–tighten screws to 12-14 in-lbs and trim excess conductor length.
Troubleshooting Unlabeled Circuits
When faced with unlabeled wires, methodically eliminate possibilities:
- Shut off power at the breaker panel–verify with a pen tester.
- Disconnect all wires, separating them safely.
- Restore power temporarily; probe each conductor against a known neutral.
- Note which show voltage: these are hots or travelers.
- Turn off power again before reconnecting.
If multiple hots appear, consult a circuit map or follow the cable run visually–downstream outlets or fixtures may share the same feed. Never assume wire colors match function in older installations; rely on testing over conventions.
How to Install a Two-Way Illumination Regulator in a Single-Control Electric Path
Cut power to the circuit at the breaker panel before handling any conductors. Identify the live, neutral, and ground wires in the existing switch box–typically, the live wire is black or red, the neutral is white, and the ground is bare copper or green. Label each wire with masking tape to avoid confusion during reassembly.

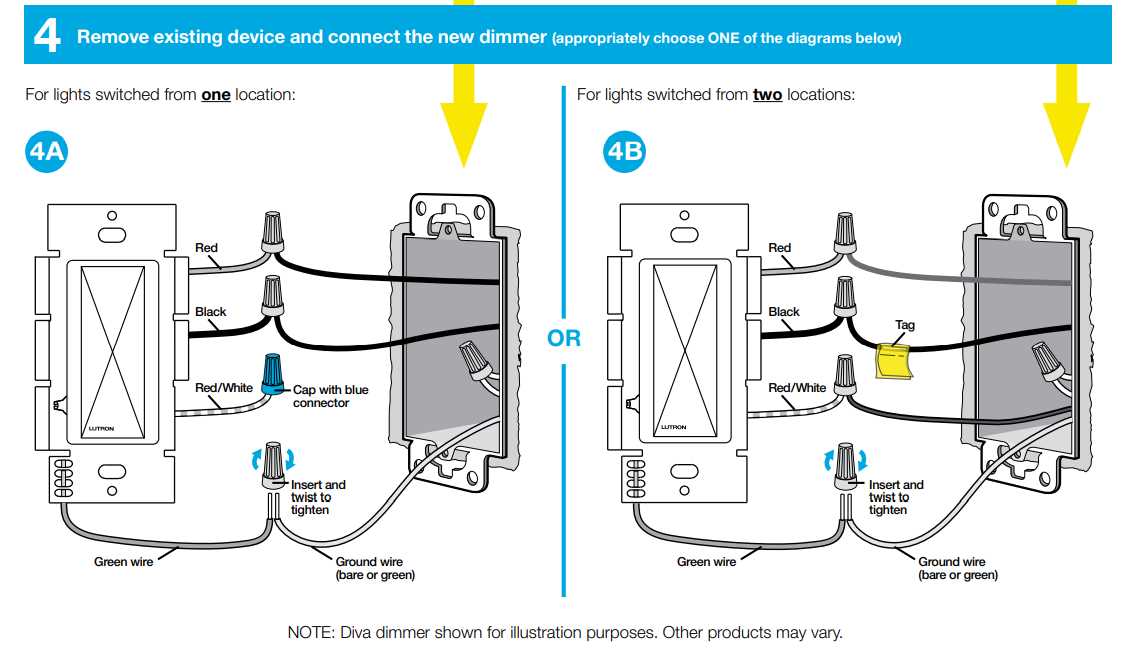

Connect the illumination regulator’s ground wire to the circuit’s ground wire using a wire nut, ensuring a tight twist to prevent loosening. Attach the regulator’s black lead to the circuit’s live wire (black or red) and the red lead to the lighting load wire. If the device includes a white wire (neutral), link it to the circuit’s neutral wire–some models omit this step if they don’t require a neutral connection.
| Wire Color (Regulator) | Wire Color (Circuit) | Connection Method |
|---|---|---|
| Green/Bare | Green/Bare Copper | Wire nut, twisted clockwise |
| Black | Black/Red (live) | Wire nut or push-in terminal |
| Red | Load (to fixture) | Wire nut or screw terminal |
| White (if present) | White (neutral) | Wire nut (optional) |
Fold wires neatly into the switch box, ensuring no exposed metal contacts the box edges or other conductors. Secure the regulator to the box with mounting screws, aligning it straight to prevent misalignment. Restore power and test the device by flipping the switch–observe smooth brightness adjustment without flickering or buzzing, which indicates proper load compatibility.
If the light fails to operate, recheck connections for loose wires, incorrect pairing, or reversed polarity. For LED or CFL bulbs, verify the regulator’s minimum/maximum wattage ratings against the fixture’s load–some LEDs require low-wattage compliant models to function correctly. Replace the faceplate once testing confirms stable operation.
Connecting a Multi-Level Control in a Shared Switch Setup
Attach the common terminal of the adjustable brightness device to the power source’s hot wire, typically marked in black or red (check local codes). The remaining two terminals connect to the traveler wires–one from each switch location–using 14 or 12 AWG solid copper conductors for stable current transfer. Verify the existing switch’s wiring layout first; if the grounded conductor (neutral) bypasses the original switch, ensure it remains uninterrupted at the wall box to prevent grounding faults. Use a voltage tester to confirm all connections before restoring power to avoid arcing at loose terminals.
Label each wire before disconnecting anything–misidentifying travelers causes flickering or failed operation. Secure all terminals with a torque screwdriver set to manufacturer specs (usually 12-15 lb-in) to prevent loosening. If the setup includes an ungrounded neutral at the control device’s location, install a separately grounded jumper to the switch box’s grounding bus or metal conduit. Test by toggling both locations at full and minimum brightness; uneven dimming indicates reversed travelers or weak connections at the terminal screws.
Frequent Errors in Light Control Installation and How to Prevent Them
Connecting the neutral wire to the ground terminal causes immediate circuit failure and poses a fire risk. Verify terminal labels before attaching wires: neutral wires (white or gray) must go to the marked “N” slot, while ground wires (green or bare copper) belong in the grounding screw or slot. A multimeter set to continuity mode confirms proper connections–test between neutral and ground; if zero ohms register, correct the error.
Ignoring Load Compatibility
Using LEDs without checking the device’s minimum wattage (typically 1W or higher) often leads to flickering or dimming failure. Check the fixture’s specifications: if it requires an ELV or magnetic low-voltage switch, ensure compatibility with the model number–DVRP-W or similar–printed on the faceplate. Replace mismatch with a compatible unit; bypassing this step shortens component lifespan by 60%.
Securing loose wire nuts with inadequate torque risks intermittent operation or overheating. Twist wires clockwise, apply a wire nut rated for the gauge (usually 18-14 AWG), and tug each wire to confirm a firm hold–loose connections generate 5°C higher temperatures under load. For strands, pre-twist ends before attaching; copper oxidizes within hours if exposed, increasing resistance tenfold.
