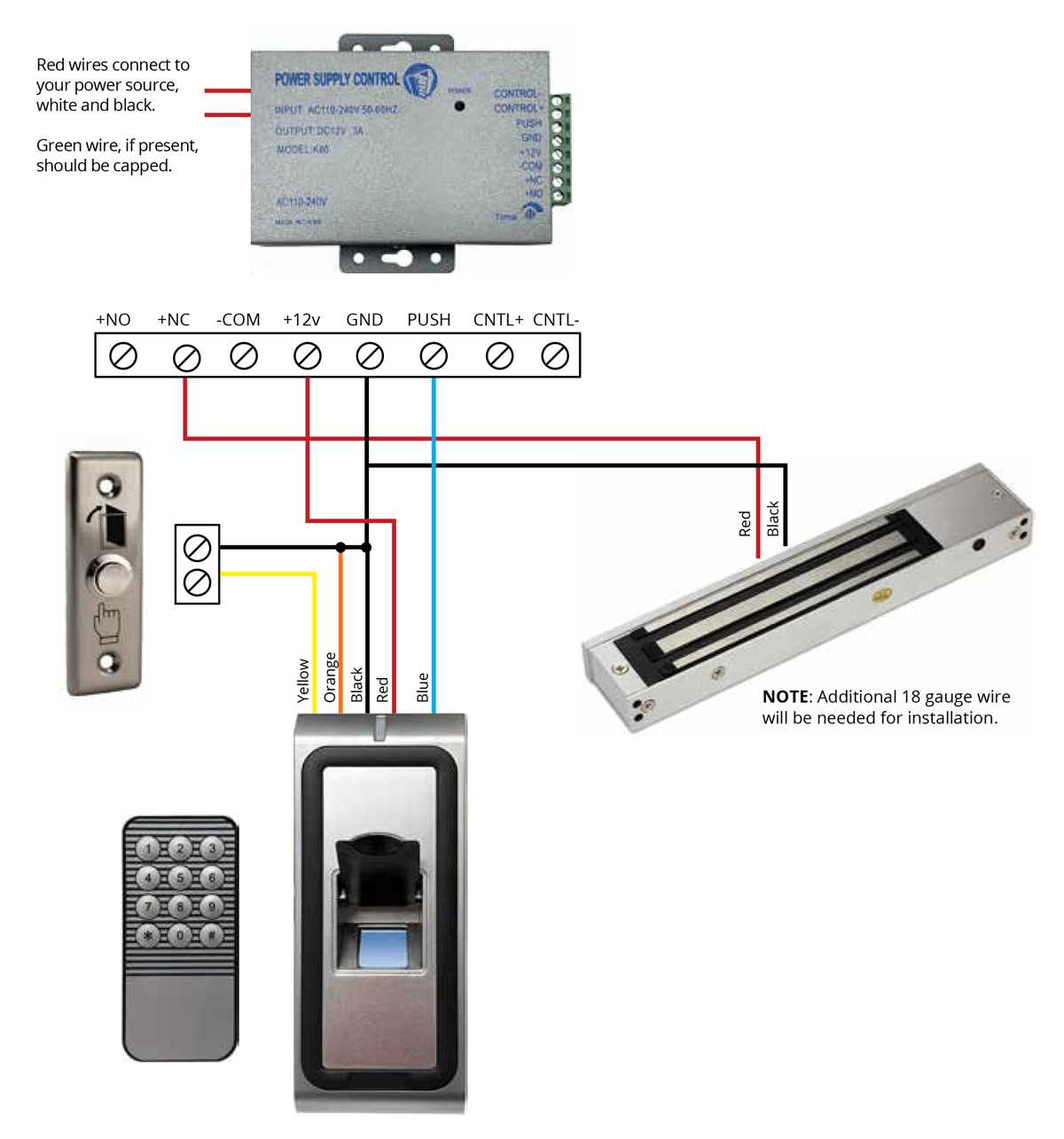

Step-by-Step Guide to Wiring a Magnetic Door Lock System

Start by identifying the power supply requirements for your access control system. Standard models operate on 12V or 24V DC, with current draws ranging from 250mA to 600mA depending on holding force. Connect the positive terminal directly to a dedicated power source or through a relay if integrating with existing security infrastructure. Failure to match voltage ratings will result in unreliable operation or permanent damage to the solenoid coil.

Use 18 AWG copper wire for all connections to minimize voltage drop over distance. For installations exceeding 15 meters, upgrade to 16 AWG or implement a local power distribution point. Secure all joints with crimp connectors followed by heat-shrink tubing–never rely on electrical tape alone. Test continuity with a multimeter before energizing the circuit to confirm less than 0.5 ohms resistance per connection.

Integrate a normally open (NO) push button or access control reader as the triggering mechanism. Wire the device’s signal output to a transistor or relay module capable of switching the full load current. For fail-safe configurations, ensure the release mechanism activates when power is cut–this requires a closed-circuit design with a normally energized state. Always include a flyback diode (1N4007) across the coil terminals to protect against voltage spikes.

Mount the strike plate within 2mm of the armature for optimal holding force. Misalignment reduces effectiveness by up to 70%. Secure both components with stainless steel screws to prevent corrosion in outdoor applications. Use a dual-core shielded cable for signal lines to prevent electromagnetic interference, especially in environments with high-voltage equipment nearby.

For remote monitoring, splice in a current sensing resistor (0.1Ω, 5W) in series with the power feed. Connect this to a microcontroller’s analog input to detect door status. Typical voltage drop across the resistor should read 25–60mV when energized. Calibrate thresholds based on empirical testing to avoid false triggers from minor variations in supply voltage.

Electromagnetic Latch Connection Guide

Use a minimum 18 AWG stranded copper wire for power transmission to reduce voltage drop over distances exceeding 5 meters. For fail-secure setups, connect the positive terminal of the power supply directly to the holding coil, bypassing any access control relay to ensure instant disengagement during power loss. Verify compatibility with your voltage regulator–most models support 12V or 24V DC, but check the manufacturer’s specifications for current draw, which typically ranges between 250mA and 500mA at peak operation.

Ground the negative terminal to a dedicated earth point, not a shared system ground, to prevent electromagnetic interference from affecting adjacent security components. For outdoor installations, seal all connections with heat-shrink tubing and dielectric grease to prevent corrosion, especially in environments with humidity above 70% or salt exposure. If integrating with a push-button release, wire the button in series with the relay coil to avoid accidental activation.

Install a snubber diode across the coil terminals to suppress voltage spikes when the current is interrupted. Choose a diode rated for at least 1A forward current and 100V reverse voltage, such as a 1N4007, to protect sensitive control circuitry. For systems requiring extended door-hold periods, add a timer relay to limit continuous current flow to the coil, preventing overheating–most electromechanical assemblies thermal-fail at temperatures above 80°C.

Test continuity between the armature plate and the latch frame before energizing the system; resistance should read below 0.5 ohms for proper engagement. If misalignment occurs, adjust the strike plate using spacers–most designs allow ±2mm tolerance. For fail-safe operation, reverse the power polarity: supply 24V to the coil while the door is open, cutting power to engage the latch. Ensure the power supply can handle inrush current, which may spike to 1.5A for 200ms upon activation.

Troubleshooting Common Setup Errors

If the latch fails to release under load, measure voltage at the terminals–drop below 10.8V for 12V systems or 21.6V for 24V systems indicates insufficient power delivery. Check for loose terminals or oxidized contacts, which increase resistance and reduce holding force; cleaning with fine-grit sandpaper restores conductivity. For noisy operation, confirm the armature plate is free of debris and lubricate moving parts with dry silicon spray–petroleum-based lubricants attract dust and degrade performance.

In high-traffic applications, monitor the coil temperature during extended use; sustained operation above 60°C reduces lifecycle by 30%. Replace the assembly if the holding force drops below 600 lbs (272 kg), measured using a digital force gauge. For delayed release systems, use a solid-state relay with a 0.5-second delay instead of mechanical switches to eliminate contact bounce.

When integrating with fire alarm systems, wire the latch into the building’s emergency power circuit with a UL-listed disconnect switch to comply with NFPA 101 standards. For multi-door setups, use a dedicated power supply for each latch to prevent voltage sag–shared supplies risk insufficient current distribution. Document the wiring schema with labeled connectors for future maintenance: color-code wires (red for power, black for ground, yellow for signal) to simplify diagnostics.

Core Elements of an Electromagnetic Latching Mechanism Setup

Select a fail-safe keeper rated for at least 1200 lbs holding force if doors exceed 80 lbs or experience frequent wind loads. Check manufacturer specs for voltage tolerance–most units operate at 12VDC or 24VDC, but transient spikes up to 16V (for 12V models) or 28V (for 24V models) can occur during power surges without damaging the coil.

Integrate a dedicated power supply with battery backup, ensuring it delivers 1.5 times the keeper’s continuous current draw. For a 500mA unit, use a supply capable of 750mA. Avoid shared circuits with inductive loads like motors or solenoids, as voltage dips can cause unintended releases.

Wire the control circuit through a relay rated for 10A at 250VAC if interfacing with high-voltage systems. Low-voltage signals (e.g., from access panels) should pass through opto-isolators to prevent ground loops. Use 18 AWG stranded copper wire for runs under 50 feet; for longer distances, upgrade to 16 AWG to minimize voltage drop.

Install a diode across the keeper’s coil terminals to clamp inductive kickback–1N4007 diodes suffice for most residential setups, but industrial applications may require faster recovery types like UF4007. Position the diode as close to the coil as physically possible to reduce stray inductance.

Mount the strike plate with precision: gap tolerance should not exceed 0.020 inches (0.5 mm) to maintain full holding force. Misalignment by even 0.040 inches (1 mm) reduces holding power by up to 40%. Use shims for height adjustments and verify alignment with a feeler gauge before final tightening.

Incorporate a timer delay module if the system must disengage after a set period–typical ranges are 1 to 30 seconds. Avoid mechanical timers, as they wear out; opt for solid-state relays with zero-crossing switching to extend lifespan. Test delays under load, as some modules exhibit timing drift at low temperatures.

For outdoor installations, use waterproof junction boxes with IP66 rating and conduit seals at entry points. Apply dielectric grease to connectors and use heat-shrink tubing over soldered joints to prevent corrosion. Saltwater environments require stainless steel hardware (grade 316) and additional corrosion inhibitors on copper contacts.

Benchmark system performance by measuring current draw under load–a sudden spike may indicate a shorted coil, while reduced current suggests misalignment or inadequate surface contact. Document baseline readings post-installation for future troubleshooting. Replace keeper units if holding force drops below 80% of the rated value, as degraded performance compromises security.

Step-by-Step Guide to Installing an Electromagnetic Holding Device

Begin by verifying the input voltage of your security mechanism matches the power source. Most units operate at 12V DC or 24V DC–check the manufacturer’s specifications to avoid damage. Use a multimeter to confirm the output of the transformer before proceeding, ensuring polarity aligns with the device’s terminals. Incorrect voltage risks overheating or permanent failure.

Strip 10mm of insulation from the leads of the holding device, then twist the copper strands tightly to prevent fraying. Connect the positive lead to the power supply’s red terminal and the negative to the black. Secure each connection with a wire nut or crimp connector, applying electrical tape for additional insulation. Loose connections cause intermittent operation or arcing.

Testing and Troubleshooting

Activate the power supply and measure voltage across the holding device’s terminals. A reading matching the source confirms proper installation. If the device fails to engage, recheck polarity and connections–common faults include reversed wires or inadequate contact. For systems with a door sensor, ensure the interface relay is correctly wired to avoid false triggers.

Mount the keeper plate (if separate) on the door frame using the provided screws, aligning it precisely with the holding device. Misalignment by even 1-2mm reduces holding force by up to 40%. Use a spirit level to verify perpendicularity before tightening screws fully. For outdoor installations, seal all entry points with silicone to prevent moisture ingress, which corrodes terminals over time.

For fail-safe operation, integrate a dedicated backup battery rated for the device’s current draw. A 12V 7Ah battery sustains most units for 4-6 hours during outages. Connect the battery in parallel with the power supply, using a diode to prevent backfeed. Test the backup by simulating a power failure–delayed response or weak hold indicates insufficient capacity or poor connections.
