How to Build a Basic AM Radio Receiver Step-by-Step Guide

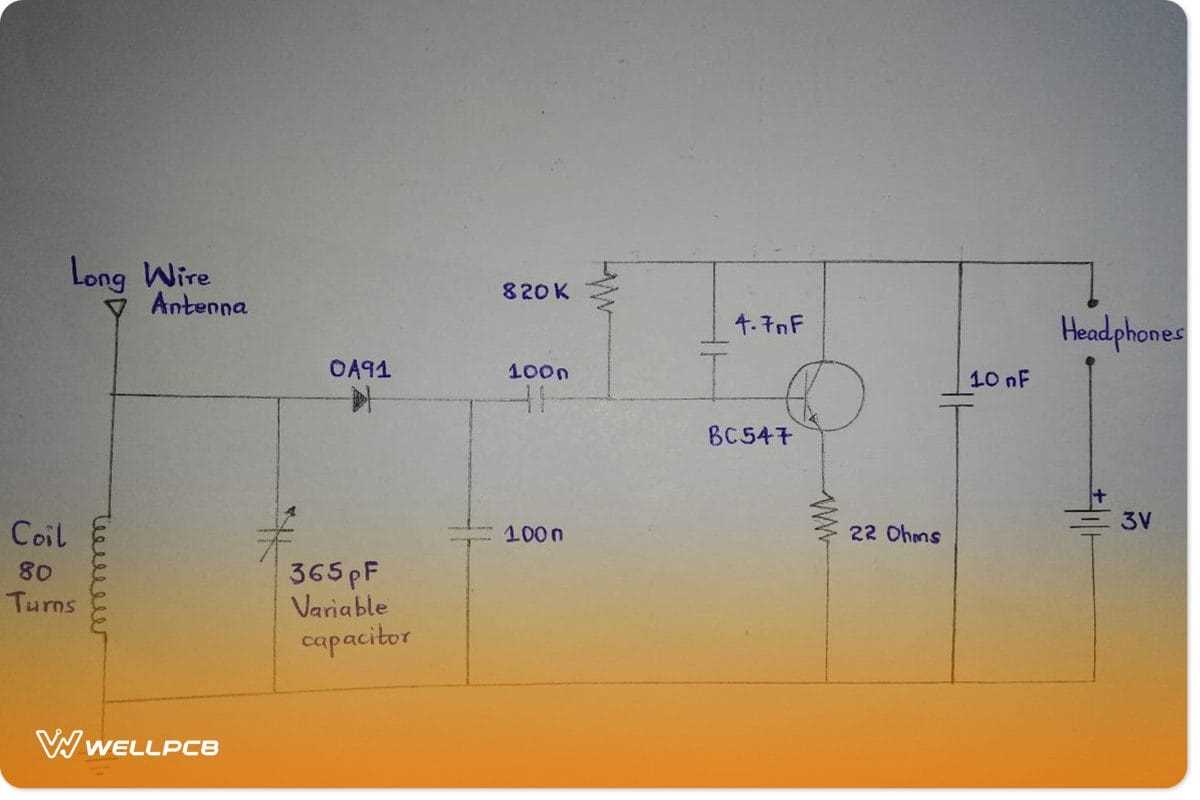

simple am receiver circuit diagram

Start with a germanium diode like the 1N34A for signal detection–its low forward voltage drop (0.3V) ensures better sensitivity than silicon alternatives. Pair it with a coil wound on a ferrite rod: 50 to 100 turns of 0.3mm enameled copper wire yields optimal inductance for medium-wave frequencies (530–1700 kHz). Adjustable capacitors in the 10–365 pF range allow fine-tuning; precise values depend on your coil’s inductance, but a 220 pF fixed cap paired with a 10–100 pF variable unit covers most cases.

Ground the antenna properly to reduce noise–use a 10–30 meter wire suspended at least 3 meters above ground, connected via a 10–100 pF coupling capacitor to the tuned stage. For amplification, a single common-emitter transistor stage (e.g., 2N3904) with a 10kΩ collector resistor and 1kΩ emitter resistor delivers sufficient gain without distortion. Add a 0.01µF bypass capacitor across the emitter resistor to stabilize frequency response.

Power the setup from a regulated 3–9V source; higher voltages increase sensitivity but risk overloading weaker stations. Test with an oscilloscope if available–peak-to-peak signals should reach 0.5–2V at the detector output. For DIY testing, connect a high-impedance earpiece (8–32Ω) or a crystal earpiece directly to the diode’s output; filter residual RF with a 1000pF capacitor to ground. Avoid long ground leads to minimize hum.

Calibrate by tuning to a known station (e.g., 600 kHz). Adjust the variable capacitor until the signal strength peaks, then fine-tune coil position on the ferrite rod. If selectivity suffers, add a second tuned stage with a tap on the coil to reduce loading. For portable builds, replace bulky capacitors with smaller values (e.g., 5–50 pF) and increase coil turns proportionally.

Building a Basic AM Tuner: Key Components and Assembly Steps

Start with a ferrite rod antenna–opt for a 10–15 cm length to maximize signal pickup without excessive noise. Pair it with a variable capacitor (20–500 pF) to fine-tune frequency ranges between 520–1710 kHz. For amplification, select a general-purpose transistor like the 2N3904 or BC547, ensuring it’s matched with a 10 kΩ resistor at the base and a 1 kΩ resistor at the emitter to stabilize gain. The power source should be a stable 3–9V DC, using batteries to avoid mains interference; alkaline cells (e.g., AAA or AA) perform better than zinc-carbon for longevity.

Critical Passive Elements and Their Roles

  • RF coil: Wind 80–100 turns of 0.2 mm enameled copper wire around the ferrite rod for the primary winding. Keep the secondary winding at 10–15 turns, spaced 2 mm apart to maintain inductance without parasitic coupling.
  • Capacitors: Use a 0.01 µF ceramic capacitor for RF bypass and a 10 µF electrolytic for audio coupling–polarity matters; the positive terminal connects to the transistor collector.
  • Diode: A germanium diode (e.g., 1N34A) outperforms silicon (e.g., 1N4148) for weak signals due to lower forward voltage drop (0.3V vs. 0.7V). Place it immediately after the antenna coil to rectify the modulated carrier.

Grounding is non-negotiable–connect the tuner’s ground plane to a metal chassis or dedicated copper rod driven 30 cm into soil to reduce hum. For audio output, a 8–32 Ω speaker works directly, but add a 50 µF capacitor in series to block DC offset. Test frequencies methodically: start at 550 kHz (low-band stations) and adjust the variable capacitor slowly, listening for amplitude changes. Weak signals often improve with a 10–20 cm wire attached to the diode anode as a rudimentary signal booster.

Troubleshooting Common Issues

  1. No signal: Verify transistor orientation (flat side facing left for 2N3904) and check for cold solder joints. Resolder any dubious connections with 60/40 rosin-core solder.
  2. Distortion: Replace the diode if audio sounds muffled–germanium diodes degrade with heat. Shield the variable capacitor with aluminum foil grounded to the chassis to minimize hand capacitance effects.
  3. Excessive noise: Move the tuner away from SMPS or LED lighting sources. Add a 0.1 µF capacitor across the power supply leads to filter high-frequency hash.
  4. Narrow bandwidth: Reduce primary coil turns by 5–10% for wider tuning, but expect slight sensitivity loss. Alternatively, add a 2–10 pF trimmer capacitor in parallel with the variable capacitor to fine-tune selectivity.

Key Components for Building an AM Signal Decoder

Select a tuned ferrite rod antenna (e.g., 10×120 mm with 20–600 µH inductance) to capture broadcast bands between 530–1700 kHz. Pair it with a variable capacitor (20–440 pF) for precise frequency adjustment, ensuring minimal interference from adjacent stations. For amplification, use a JFET (MPF102 or 2N3819) or BJT (BC547)–JFETs excel in low-noise performance, requiring a gate resistor (1–4.7 MΩ) and source resistor (1–4.7 kΩ) for stable bias. Include a 1N34A germanium diode for envelope detection, as its low forward voltage (0.3V) preserves weak signals better than silicon diodes.

Critical Part Specifications

Component Model/Value Role Tolerance/Notes
Ferrite Antenna Antenova SRFI268 or custom Signal pickup Q-factor >100 for selectivity
Variable Capacitor 20–440 pF Frequency tuning Air dielectric for stability
Active Device MPF102 (JFET) or BC547 (BJT) RF/IF amplification JFET reduces cross-modulation
Detector Diode 1N34A Signal demodulation Avoid Schottky diodes (high Vf)
Audio Transformer 1:8 or 1:10 impedance ratio Impedance matching Primary: 1–2 kΩ; Secondary: 8–16 Ω

Power the setup with a 9V battery and regulate current draw to using a 10–47 µF electrolytic capacitor across the supply. For audio output, pair a 1:8 or 1:10 impedance transformer with a 8–32 Ω speaker–direct coupling without a transformer risks signal clipping. Add a 10–100 kΩ potentiometer as a volume control between the detector and amplifier stage to prevent overloading downstream components. Test the assembly with a signal generator at 1 MHz (modulated at 400 Hz) to verify >30 dB SNR before field use.

Step-by-Step Assembly of a Basic AM Tuner

Begin with a ferrite rod antenna measuring 10-15 cm in length and 8-10 mm in diameter. Wind 60 turns of 0.3 mm enameled copper wire tightly around the rod, leaving 15 cm leads at both ends. Secure the winding with insulating tape to prevent unraveling. This coil forms the primary inductive component for signal pickup, critical for capturing medium-wave broadcasts between 530 and 1700 kHz.

Solder a 1N34A germanium diode to one end of the antenna coil. Connect the diode’s anode to the coil and the cathode to a 100 pF variable capacitor. This combination acts as the detector stage, rectifying the modulated carrier wave into an audible signal. Ensure the diode’s polarity aligns with the circuit’s flow–reversing it will block signal detection.

Attach a 10 kΩ potentiometer in series with a 0.01 µF ceramic capacitor between the diode’s output and ground. The potentiometer adjusts volume by controlling signal amplitude, while the capacitor filters high-frequency noise. Use shielded cable for connections to minimize interference from nearby electronics. Test each joint with a multimeter for continuity before proceeding.

Connect a high-impedance piezoelectric earpiece or a 1 kΩ resistor in parallel with the volume control. The earpiece converts electrical signals into sound, while the resistor serves as a dummy load for bench testing. For better sensitivity, add a two-transistor preamplifier stage using BC547 transistors, configured in common-emitter mode with a 4.7 µF coupling capacitor and 47 kΩ bias resistors.

Power the setup with a 3V coin cell or two AA batteries in series. Verify functionality by tuning the variable capacitor while listening for local AM stations. Adjust the coil’s position relative to the ferrite rod if reception is weak–orientation affects signal strength. For stability, mount all components on a perforated board, avoiding solder bridges between adjacent pads.

Adjusting the Assembly for AM Band Reception

Start with a variable capacitor rated between 30–500 pF. Match it to an antenna coil wound on a ferrite rod: 60–80 turns of 0.3 mm enamelled wire for medium-wave bands (530–1700 kHz). A 10:1 ratio between primary and secondary windings improves selectivity. Test resonance by sweeping a signal generator across the band while monitoring output with an oscilloscope or voltmeter.

  • For frequencies below 700 kHz, increase turns by 10–15%.
  • Above 1200 kHz, reduce turns by 5–8%.
  • Ferrite permeability drops above 1.6 MHz; substitute with powdered iron cores if needed.

Use a trimmer capacitor (10–60 pF) in parallel with the main tuning capacitor to fine-tune the upper band edge. Align the ferrite rod length to the target frequency: 15 cm rods suit 550–1600 kHz, while 10 cm rods shift resonance upward by 200–300 kHz. Ground the assembly chassis at a single point to minimize noise pickup from power lines.

Coupling between the input stage and detector should use a 1:20 turns ratio for minimal loading. A 1N34A germanium diode or similar low-forward-voltage diode (0.2–0.3 V) improves weak signal detection. Add a 10–22 nF capacitor across the diode to filter residual RF while preserving audio.

  1. Measure DC bias at the detector’s output; target 0.3–0.6 V for optimal sensitivity.
  2. Check bandwidth with a spectrum analyzer or by noting adjacent-channel rejection.
  3. Narrow bandwidth increases selectivity but may attenuate higher audio frequencies.

For portable designs, power the preamplifier with 3–6 V and use a regulated supply to prevent hum. A BC547 or 2N3904 transistor in common-emitter configuration boosts gain; emitter resistor values between 1–3 kΩ set stability. Replace with low-noise JFETs (e.g., MPF102) if interference from fluorescent lighting appears.
