Complete Metra Aftermarket Radio Wiring Installation Guide and Connector Pinout
Start by locating the harness adapter matching your vehicle’s OEM audio system. Common adapters include ASWC-1 for steering wheel control integration and AX-XXX series for direct plug-and-play compatibility. Verify the adapter’s compatibility with your head unit manufacturer–Pioneer, Alpine, or Sony–as voltage levels and signal types vary. Most adapters provide a 12-16 pin connector, but some vehicles require additional modules for features like CAN bus or MOST optical data.
Check the power supply lines first. The constant 12V (yellow) wire must connect directly to the battery with a 10A fuse–no intermediate splices. The switched 12V (red) wire routes through the ignition circuit; ensure it shows 12V only when the key is in the “ACC” or “ON” position. A faulty ignition wire causes intermittent power loss or battery drain. Ground (black) must terminate at a bare metal chassis point with a #14 AWG or thicker conductor to prevent voltage drops.
For speaker outputs, follow the impedance matching rule: 4-ohm aftermarket units pair with 2-4 ohm OEM speakers. Mismatches distort sound or overheat amplifiers. Identify the front/rear/left/right channels by testing with a multimeter in continuity mode–speaker wires should show ~0.5-4 ohms when probed. Tweeters and subwoofers often require high-pass/low-pass filters; adjust crossover settings in the head unit menu before final connections.
Antenna triggers (blue or blue/white) activate the motorized mast–confirm 12V on key-ON before soldering. Reverse signal (purple/white) backs up cameras; verify +12V only when in reverse gear to avoid false triggers. For Bluetooth/USB, use shielded twisted pair cables (e.g., CAT5 or RG-174)–unshielded wires introduce EMI, causing audio noise. Route wires away from high-current cables (alternator, ignition coil) to minimize interference.
Test circuit integrity before final assembly. Use a test light or LED to confirm signals on all wires–no voltage means a broken splice or wrong pin assignment. If the head unit powers on but no sound plays, check mute wires (orange/white) and verify that the amp remote turn-on (blue) receives 12V. For factory amplified systems (e.g., Bose, JBL, Harman Kardon), retain the OEM amplifier or replace it with a line output converter (LOC) to prevent signal clipping.
Vehicle Audio Integration Harness Guide
Begin by identifying the OEM connector pinout for your specific car model–adapter solutions vary drastically between manufacturers. Locate the factory documentation or use a multimeter in continuity mode to probe each wire’s function (e.g., power, ground, speaker outputs, antenna control). Incorrect mapping risks system malfunctions or permanent damage to the head unit.

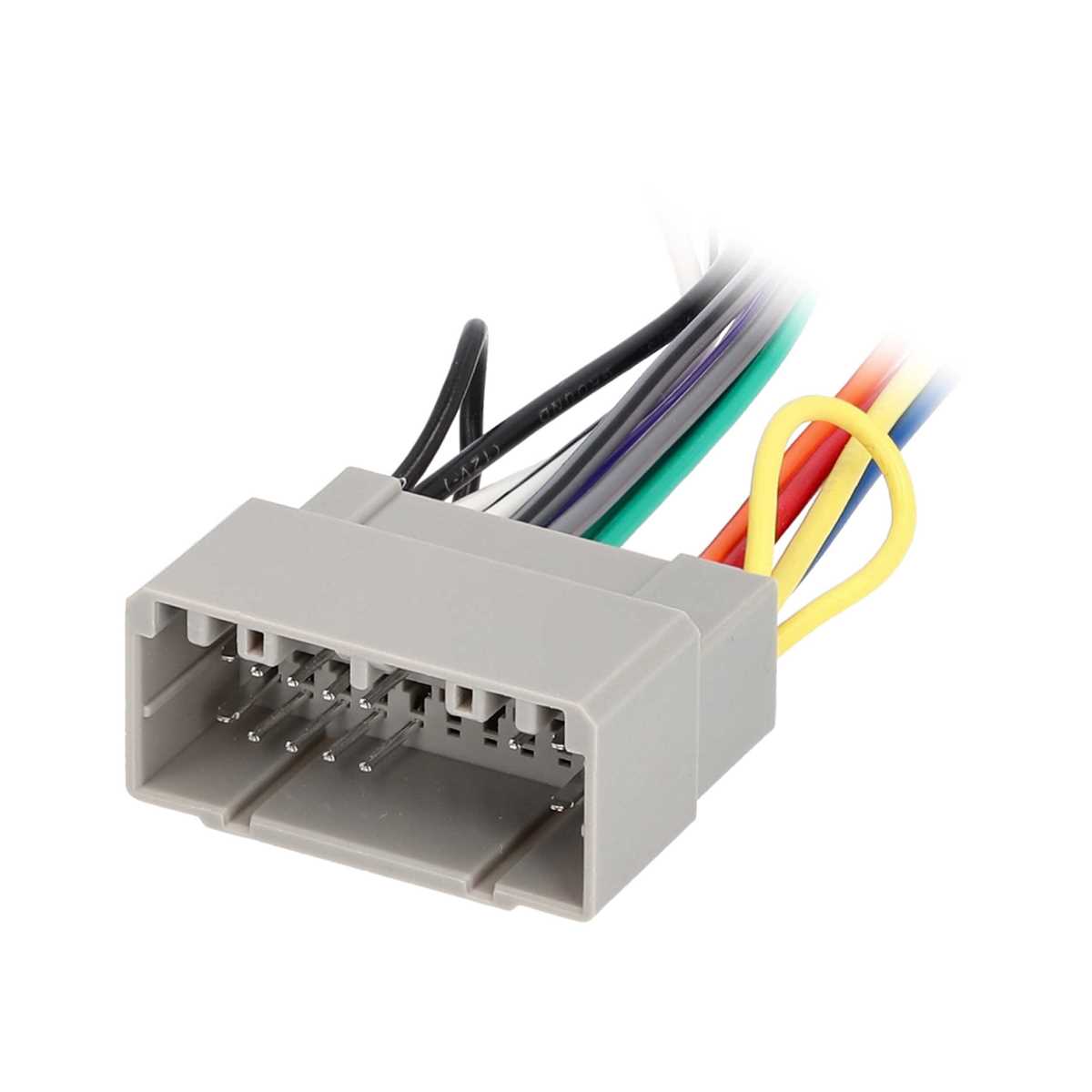

Connect the aftermarket harness to the vehicle’s factory plug using the following wire-color conventions for common brands:
| Function | Ford (Standard) | Toyota | Honda | GM |
|---|---|---|---|---|
| Constant 12V | Yellow | White/Red | Yellow/Black | Orange |
| Switched 12V | Red | Red | Red | Yellow |
| Ground | Black | Black | Black | Black |
| Front Left (+) | White | Blue | Gray | Light Green |
| Front Left (-) | White/Brown | Blue/White | Gray/Black | Dark Green |
| Antenna Trigger | Blue | Pink | Blue | Pink |
For vehicles with amplifier turn-on circuits, verify whether the factory harness supplies a dedicated signal (e.g., Ford’s “AMP REM” on Blue/White) or requires relay activation. Omission leads to silent outputs or distorted audio. Solder all joints and insulate with adhesive-lined heat shrink to prevent corrosion–twist-and-tape methods degrade over time.
Install a 10A fuse within 18 inches of the battery on the 12V constant line to protect against shorts. Skip this step only if the vehicle’s fuse box already includes an accessible circuit breaker for the audio system, but confirm its rating matches the new hardware’s requirements (typically 7.5A–15A).
Test speaker polarity by playing a mono-frequency tone (e.g., 400Hz) through each channel. Reverse polarity flips phase, resulting in weak bass response and canceled midrange. Verify using an oscilloscope or invert the leads temporarily to check for sound improvement.
Troubleshooting Signal Interference
Shield RCA cables with braided copper if routing near power wires–separate audio and power runs by at least 6 inches. For persistent hiss, install a ground loop isolator on the line-level outputs; ferrite beads suppress radio-frequency interference on speaker wires. Note that passive isolators may attenuate high frequencies by 1–2dB; opt for active models in premium setups.

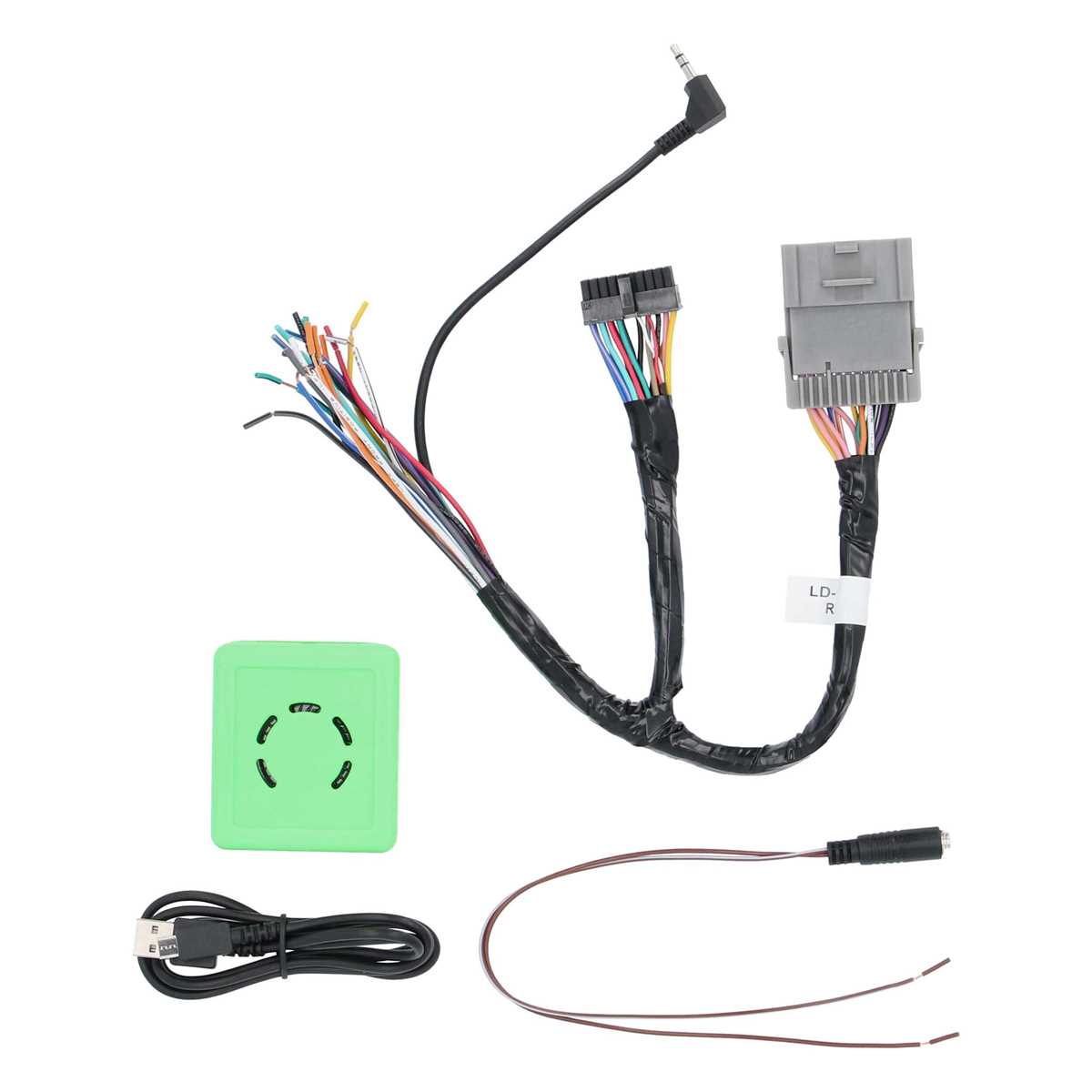

When integrating steering wheel controls, ensure the adapter module matches the vehicle’s communication protocol (CAN bus, LIN bus, or resistor-network encoded signals). Check compatibility lists before purchasing–mismatched modules either ignore buttons or trigger erratic behavior like volume spikes. For resistor-based systems, measure button resistance values (typically 0Ω–5kΩ) and map them to the aftermarket harness’s expected inputs.
Finalize by securing all connections with nylon zip ties and routing wires through factory grommets to avoid chafing. Reconnect the battery after a 10-minute wait to reset internal electronics, then test all functions (USB charging, backup camera, parking sensors) to confirm retained OEM features.
Critical Connections for Installing a Factory-Replacement Audio System
Begin by identifying the constant 12V power lead–typically a yellow wire–on both the vehicle’s harness and the aftermarket head unit. Connect this directly to the battery’s positive terminal or an existing fused circuit with at least 10A capacity. Skipping this step will result in memory loss, requiring reprogramming of stations and settings each time the ignition is cycled. For vehicles with start-stop technology, verify that the constant power remains active during engine shutdown to avoid resets.
Match the switched 12V accessory wire (red) to the vehicle’s ignition-controlled circuit. Use a multimeter to confirm voltage drops below 11.8V during cranking; if so, tie this lead to an alternative switched source, such as the fuse panel, to prevent audio dropouts. Common misconnections, like pairing it to the constant power, will drain the battery–or worse, overload the head unit’s internal circuitry when the vehicle is off for extended periods.
- Ground (black): Attach to a bare metal chassis point within 18 inches of the head unit’s mounting location. Avoid painted or coated surfaces; sand down to clean metal and secure with a star washer. Poor grounding causes noise, erratic behavior, or complete system failure.
- Speaker outputs: Use a high-quality crimp connector or solder for bullet-proof connections. Verify polarity–positive (typically solid-colored wires) to positive, negative (striped) to negative–to prevent phase cancellation and degraded audio quality.
- Illumination (orange/white): Link to the vehicle’s dash lights circuit to sync dimming with the factory cluster. Omitting this connection leaves the display either excessively bright at night or invisible in daylight.
For vehicles with amplified factory systems, locate the amplifier turn-on lead (blue/white) and connect it to the aftermarket unit’s remote wire. This triggers the external amp–whether built into the head unit or a separate module–to power on simultaneously. Failure to connect this results in silent speakers, regardless of volume settings. In newer models with data buses, an adapter may be required to translate CAN signals into a standard 12V pulse-width trigger.
Troubleshooting Common Pitfalls
- If static or alternator whine persists, check for shared ground paths with high-current devices (e.g., cooling fans). Route dedicated ground cables directly to the battery’s negative terminal.
- For vehicles with steering wheel controls, integrate a dedicated harness adapter between the factory connector and head unit. Avoid splicing into the OEM harness unless absolutely necessary–this risks corrupting factory settings or triggering error codes.
- Verify all connections with a test light or voltmeter before finalizing. Reversing polarity on speaker wires damages tweeters instantly, while incorrect power leads can fry the head unit’s internal amplifier without warning.
Pinout Guide for Aftermarket Head Unit Connectors
Always verify the adapter’s pin layout against the vehicle’s original wiring schematic before making connections. Most harness adapters group pins into three primary categories: power (12V constant, ignition-switched, and ground), speaker outputs (front/rear left/right, including positive and negative leads), and data/signal lines (CAN bus, illumination, antenna control, or amplifier triggers). For Toyota and Subaru models, pin 1 typically delivers constant 12V, while pin 6 or 8 handles ignition power–cross-referencing with the vehicle’s service manual prevents accidental short circuits. BMW and Audi systems often use separate pins for CAN-high (usually 0.5V at idle) and CAN-low (2.5V at idle); swapping these will disable communication with the vehicle’s ECU.
Critical Pin Assignments by Vehicle Brand

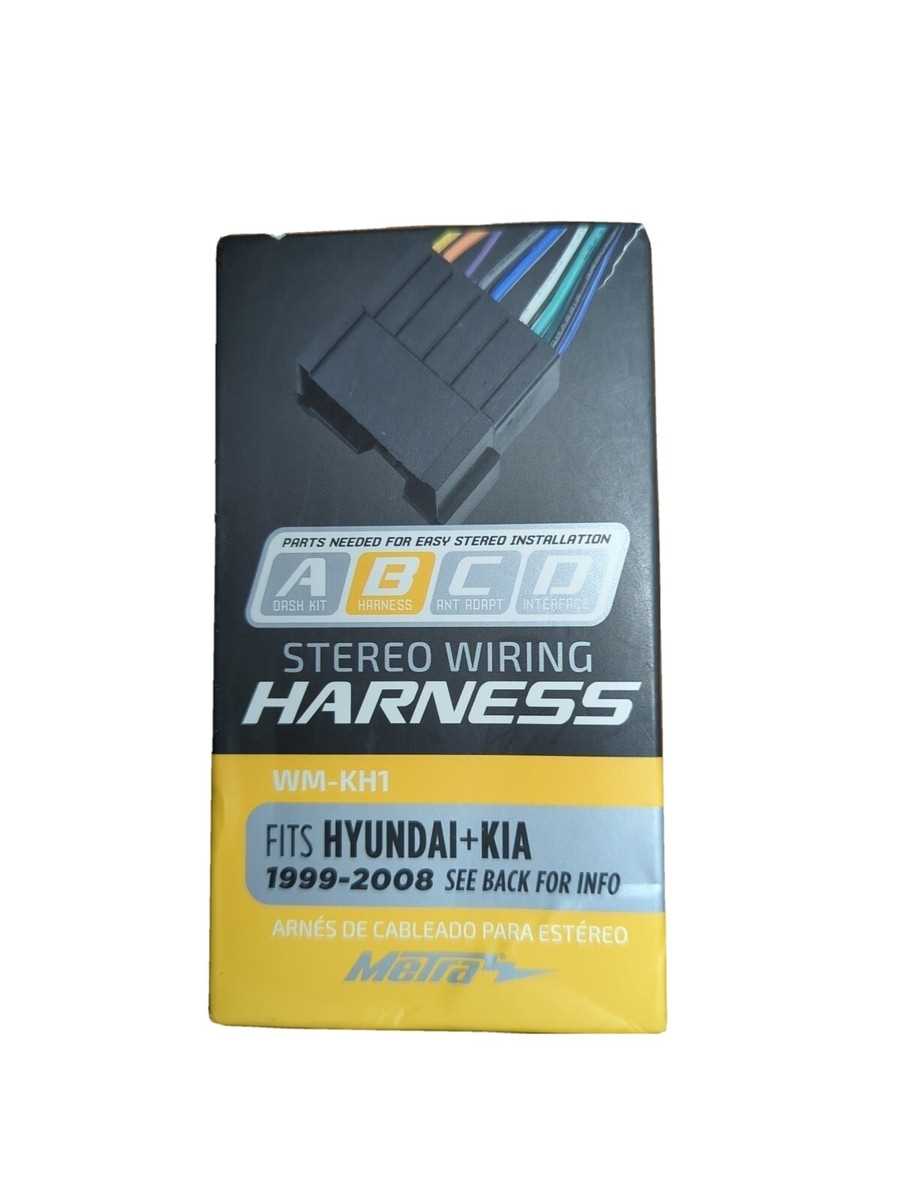

Ford adapters frequently label the illumination wire (for dimming) as pin 12 or 13, requiring a 1kΩ resistor if the aftermarket unit lacks native dimming support. Honda and Acura harnesses split ground leads–pin 14 for chassis ground and pin 15 for signal ground–mixing these can introduce electrical noise. For Nissan and Infiniti, pin 9 often carries the speed signal (pulse-per-mile) for navigation or VSS-based features; ensure the new unit supports this frequency (typically 2.2kHz at 60 mph). Hyundai/Kia adapters may include a pin for the parking brake signal (usually pin 16), which must be grounded to bypass video-in-motion restrictions.
Verify speaker polarity and impedance before finalizing connections–aftermarket units expect 4Ω loads, while OEM systems might use 2Ω or 6Ω. Chrysler and Dodge adapters often include a “data bus” pin (e.g., pin 7) for Uconnect integration; bypassing this may disable steering wheel controls or voice recognition. For vehicles with factory amplifiers (e.g., Mazda, Mitsubishi), locate the amplifier turn-on pin (often pin 3 or 4) and connect it to the aftermarket unit’s remote turn-on lead–failure to do so results in silent speakers. Always use a multimeter to confirm voltage on power pins before plugging in the harness; 12V constant should show battery voltage (±0.5V), while ignition-switched lines should drop to 0V with the key off.
