Build Your Own High-Quality Microphone Preamp Step-by-Step Circuit Guide

Build a discrete signal amplifier for condenser transducer elements using a dual-op-amp configuration with balanced input. The OPA2134 offers 8 nV/√Hz noise density and 10 MHz bandwidth–ideal for 20 Hz to 20 kHz operation. Place a 1 kΩ resistor between the input terminals to prevent high-frequency oscillations while maintaining an input impedance of 1.5 kΩ. This ensures stable operation with 150 pF source capacitance.

Use a +48 V phantom power supply fed through two 6.81 kΩ resistors to each input line. These resistors must be 1% tolerance to maintain symmetry and prevent common-mode distortion. Add a 22 μF electrolytic capacitor between the phantom rail and ground to filter supply ripple below 0.1 mV RMS. Locate this capacitor within 10 mm of the op-amp power pins to suppress transients.

For output buffering, integrate a unity-gain stage with the second OPA2134 amplifier. Insert a 100 Ω resistor in series with the output to prevent capacitive load oscillations. Keep the PCB trace length from the output resistor to the XLR connector under 25 mm to avoid signal degradation. Ground the XLR shell directly to the chassis ground plane, not the signal ground, to prevent ground loops.

Include a 10 kΩ trimmer potentiometer to set the DC offset below 2 mV. Adjust this while measuring at the output with a 1 MΩ load. Expect a total harmonic distortion figure under 0.002% at 1 kHz with a 1 V RMS output. Test frequency response flatness within ±0.1 dB from 20 Hz to 20 kHz using an audio analyzer with a 1 kΩ source impedance.

High-Gain Audio Interface Circuit Layout

Select an operational amplifier with ultra-low input noise (10MΩ input impedance.

Component	Value	Purpose	Tolerance
Input coupling capacitor	1µF polypropylene	Blocks DC, passes 20Hz-20kHz	±5%
Feedback resistor	20kΩ	Sets gain to 20dB with 2kΩ input resistor	±1%
Power supply cap	220µF electrolytic + 100nF ceramic	Decouples ±15V rails, reduces ripple	±20%
Ground plane	1oz copper pour	Star topology around op-amp ground pin	N/A

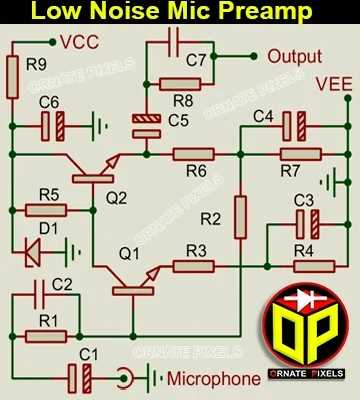

Route traces for 48V phantom power on a dedicated polygon layer separated by ≥1.5mm from signal paths to prevent capacitive coupling. For discrete transistor front ends, implement a bootstrap circuit with a 1µF capacitor from the collector to base of the second stage (e.g., BC549C) to increase input impedance beyond 1GΩ. Test harmonic distortion with a 1kHz sine wave at 1Vpp: THD+N should measure ≤0.005% on an Audio Precision analyzer before PCB etching.

Basic Components of a Simple Audio Signal Booster Layout

Select an operational amplifier like the NE5532 or TL072 for core voltage gain–these ICs provide low noise (5 V/µs) for voice frequencies. Pair the op-amp with a bipolar power supply (±12V to ±18V) to avoid clipping in symmetric waveforms; a single-rail setup (e.g., +24V) requires a virtual ground network using two 10 kΩ resistors and a 10 µF capacitor to stabilize midpoint voltage at 12V. Input impedance should match the source: a 1 kΩ resistor in series with a 100 nF coupling capacitor isolates DC while preserving 20 Hz–20 kHz bandwidth; values can shift to 2.2 kΩ and 220 nF for instruments with lower output.

Power Supply and Filtering

Decouple each power rail with a 10 µF electrolytic capacitor in parallel with a 100 nF ceramic capacitor positioned

Step-by-Step Guide to Designing an Audio Signal Booster Circuit Layout

Begin by selecting a low-noise operational amplifier (op-amp) as the core component. Prioritize models with a noise floor below 1.5 nV/√Hz and a gain-bandwidth product exceeding 5 MHz, such as the NE5532, OPA134, or LM4562. Avoid generic op-amps–their performance in high-impedance applications suffers from excessive hiss and distortion. Sketch the op-amp’s pin configuration first, labeling inputs (non-inverting, inverting), output, power rails (±15V or ±12V), and ground.

Integrate a dual-rail power supply early in the layout. Use two 9V batteries or a regulated ±15V DC source with decoupling capacitors (10µF electrolytic in parallel with 0.1µF ceramic) placed within 5mm of the op-amp’s power pins. This prevents high-frequency instability and power-line noise from contaminating the signal path. Draw the power lines thicker than other traces to handle current demands without voltage drop.

Input Stage Optimization

Connect the source to the op-amp via a high-pass filter with a 2.2µF coupling capacitor and a 1kΩ resistor to ground, setting a -3dB cutoff at ~70Hz. This blocks DC offset while preserving bass response. For phantom power (48V), add a 6.8kΩ resistor between the input and the capacitor, and a 680pF capacitor across the resistor to shunt RF interference. Label these components clearly–errors here cause hum or phantom power failure.

Add a 10kΩ potentiometer between the op-amp’s output and the inverting input for adjustable gain. Include a 10pF compensation capacitor across the feedback resistor (100kΩ) to stabilize the stage at unity gain and higher settings. Without this, the circuit may oscillate at 50kHz–500kHz, audible as a high-pitched whine. Test stability with a square wave at 1kHz–ringing indicates insufficient compensation.

Include a 10Ω–100Ω resistor in series with the output to isolate capacitive loads (e.g., long cables). terminate the output stage with a 1nF capacitor to ground to suppress high-frequency noise above 100kHz. For balanced outputs, split the signal post-op-amp into two paths: invert one leg with a unity-gain inverting amplifier (using another op-amp section or a transformer) and combine both legs at the output via XLR pins 2 (+) and 3 (–).

PCB Layout Criticals

Route signal traces on the top layer only, keeping them as short as possible–lengths over 30mm introduce parasitic capacitance, degrading high-frequency response. Separate analog and power traces by at least 5mm to prevent crosstalk. Ground the chassis and circuit ground at a single point near the power input to avoid ground loops. Use a star-ground topology for sensitive nodes (e.g., op-amp inputs, input capacitor ground).

Print the draft on grid paper (0.1″ pitch) and verify all connections with a multimeter in continuity mode before transferring to a PCB. For DIY perfboard construction, trim leads to 2mm above the board to minimize stray inductance. Test the completed unit with a 1kHz sine wave at -40dBu–distortion should remain below 0.05% THD, and noise should measure below -90dBu (A-weighted) with no input signal.

Common Op-Amp Configurations for Audio Signal Conditioning

For low-noise amplification, the non-inverting configuration with a FET-input operational amplifier like the TL072 or OPA1642 delivers superior performance. Set the resistor values to achieve a gain of 20–50 dB while keeping input impedance above 1 MΩ to avoid loading effects. Use a 10 kΩ feedback resistor with a 200–500 Ω series resistor to stabilize the circuit and prevent oscillations at high frequencies.

The inverting topology is ideal when phase inversion is acceptable or required. Pair it with a dual-supply op-amp (e.g., NE5532) and a gain ratio of -Rf/Rin, where Rf ranges from 10 kΩ to 100 kΩ. Ensure the inverting input sees a virtual ground to minimize distortion. This setup excels in applications demanding precise gain control, such as balanced input stages.

• Use a 10–100 nF decoupling capacitor on the op-amp’s power rails to filter noise.
• Avoid ceramic capacitors in the signal path; polypropylene or film types maintain linearity.
• For phantom power compatibility, include 6.8 kΩ resistors in series with each input leg.

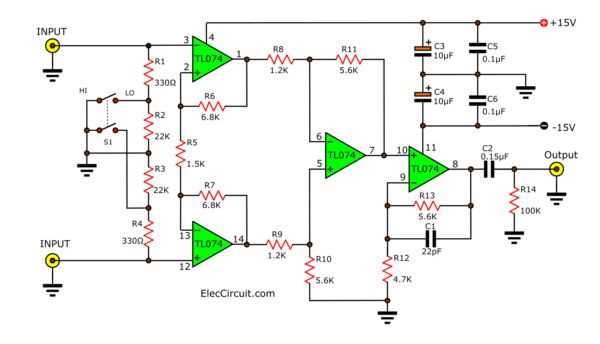

Differential amplifiers reject common-mode noise effectively. Deploy two op-amps in a balanced configuration with matched resistors (tolerance ≤0.1%)–e.g., 10 kΩ for both input and feedback paths. This arrangement suits transformerless designs where interference suppression is critical. The output impedance remains low, typically under 100 Ω.

For high-impedance sources, the voltage-follower (unity-gain buffer) preserves signal integrity. Choose a JFET op-amp (e.g., LF356) to handle input currents below 1 pA. Place a 10–100 MΩ resistor from the input to ground to prevent DC drift. This configuration is essential when interfacing with electrostatic transducers.

Combining gain stages with RC networks enables adjustable high-pass filtering. Insert a 1–10 µF electrolytic capacitor in series with a 100 kΩ resistor at the input to block DC offsets while passing audio. The cutoff frequency (f = 1/(2πRC)) should be ≤20 Hz for full-bandwidth capture. Polarized capacitors must face the correct polarity; reverse voltages cause leakage or failure.

For variable gain, the instrumentation amplifier offers precise control. Use three op-amps with a shared feedback network (e.g., INA128). Configure gain via a single resistor (Rg), where gain = 1 + (50 kΩ/Rg). This topology reduces drift and improves CMRR, making it suitable for dual-channel systems requiring synchronization.

Output stages benefit from a class-A emitter-follower or a discrete transistor buffer. A BC550C pair, biased at 5–10 mA, drives 600 Ω loads without clipping. Ensure the op-amp’s output current limit (≥20 mA) isn’t exceeded. For long cable runs, add a 47–100 Ω series resistor at the output to dampen reflections.

How to Choose Resistors and Capacitors for Optimal Signal Amplification

Select resistors with tolerance ratings of 1% or better (e.g., metal film types) for gain-critical stages. Values between 10kΩ and 100kΩ strike the best balance between noise performance and input impedance–avoid carbon composition resistors, which introduce excess thermal noise (typically 0.5–5µV/√Hz at audio frequencies). For low-gain designs, prioritize lower resistance values (22kΩ–47kΩ) to minimize Johnson-Nyquist noise, while high-gain stages benefit from higher resistances (68kΩ–100kΩ) to reduce current consumption without sacrificing stability.

Capacitor Dielectric and Frequency Response

Use polypropylene or polystyrene capacitors (1% tolerance) for coupling and bypass applications under 1µF. These exhibit near-ideal dielectric absorption (

Match resistor power ratings to peak voltages–0.25W types suffice for most line-level applications, but stage cascades with >15V rails require 0.5W or higher to prevent drift from self-heating. For RF rejection, place 100pF–1nF C0G/NP0 capacitors across gain-setting resistors, positioning them within 5mm of the resistor body to suppress parasitic oscillations. Test impedance sweeps with a network analyzer to confirm flat response (±0.1dB) across the target bandwidth.

Impedance Interaction and Stability

Pair high-value resistors (e.g., 470kΩ feedback) with low-leakage film capacitors (≤1nA at 25°C) to prevent offset voltages from thermal runaway. For phantom-powered stages, use 6.3V-rated electrolytics to handle transient spikes while maintaining longevity–verify ESR values below 0.5Ω at 1kHz. Tantalum capacitors, though compact, introduce microphonic noise; replace them with stacked-film or MLCC types in sensitive front-end circuits.

Optimal gain bandwidth balances resistor noise and capacitor reactance. For a 40dB stage, a 47kΩ resistor with a 2.2µF polypropylene capacitor yields a 1.6Hz cutoff–substituting a 10kΩ resistor would require a 10µF unit to maintain the same f₀, increasing both cost and physical size. Measure group delay with a square-wave test: overshoot or ringing indicates mismatched RC time constants. Prioritize component placement–route traces to minimize loop area between resistor leads and ground returns to reduce EMI pickup.

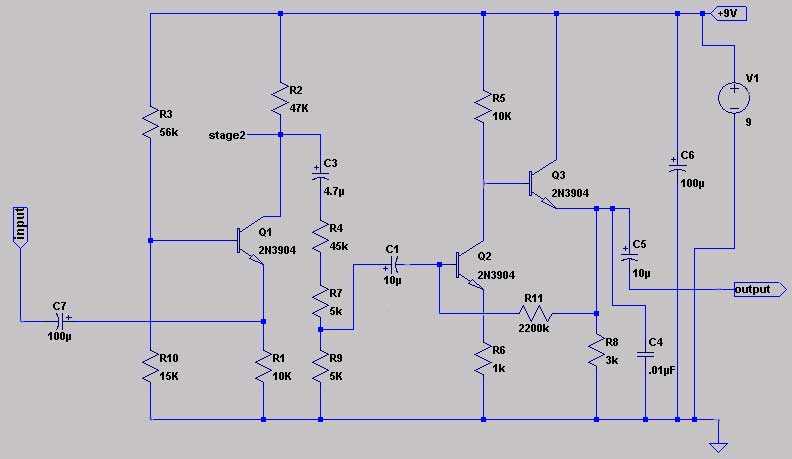

For discrete transistor circuits, bypass each emitter resistor with a 100µF–470µF electrolytic to stabilize gain across temperature swings: a 5°C rise can shift β by 10%, altering stage behavior. Verify AC performance with a spectrum analyzer; second-harmonic distortion should remain below -80dB for resistances under 100kΩ. Replace through-hole components with surface-mount equivalents in high-frequency designs to eliminate lead inductance (>5nH/cm), which degrades phase margin.

Calibrate final gain using a precision multimeter–expect
