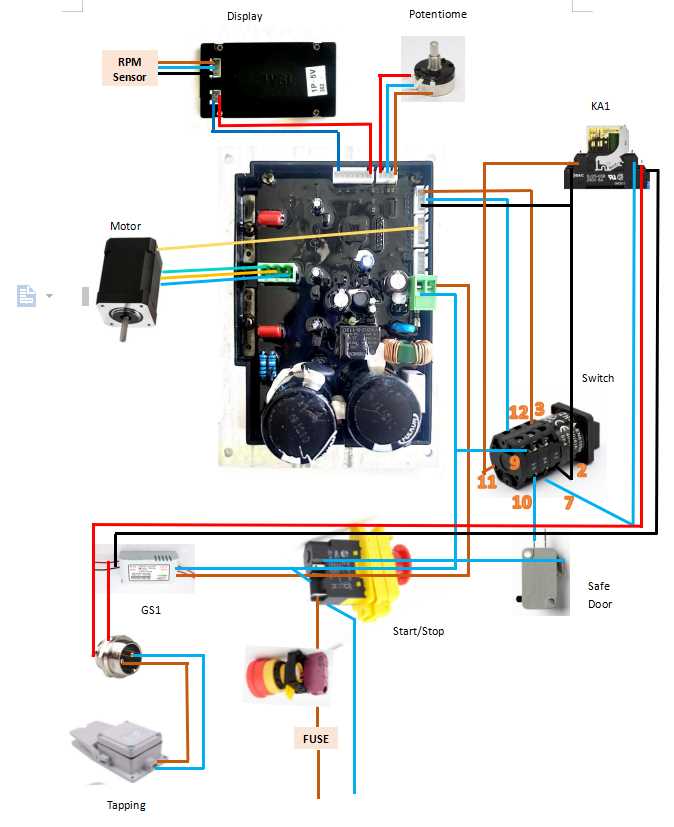

Understanding Electrical Wiring Schematics for MultiAxis Milling Machines
Begin by isolating the primary power source–ensure it matches the operational voltage of your setup, typically 380V or 220V for three-phase systems. Connect the main switch directly to a thermal overload relay rated 10-15% above the motor’s full-load current to prevent burnout. Use 12-14 AWG copper wiring for all high-current paths to minimize voltage drop.
Integrate a start-stop pushbutton station with a hold-in contact to maintain circuit continuity after initial activation. Place a fuse or circuit breaker immediately after the relay, sized at 120-150% of the motor’s rated current. For variable speed operations, incorporate a VFD (Variable Frequency Drive) with parameters set to 0-10V or 4-20mA control signals–avoid exceeding the drive’s maximum frequency limit (usually 50-60Hz).
Ground all metallic enclosures and motor frames using 6 AWG bare copper wire connected to a dedicated earth rod with resistance below 5 ohms. Label every wire with heat-shrink tubing or numbered sleeves: L1, L2, L3 for power lines, U, V, W for motor terminals, and N for neutral where applicable. Test continuity with a multimeter before energizing–resistance between phases should read infinite, and between phase and ground, <1 ohm.
For auxiliary components like coolant pumps or lubrication systems, use a separate 24V DC control circuit powered by a step-down transformer. Add a pilot light (green for “power on,” red for “fault”) to provide immediate visual feedback. If noise suppression is required, install RC snubbers (0.1μF + 100Ω) across contactor coils and ferrite cores on signal cables.
Store spare parts–contactors, relays, and start capacitors–on-site for quick replacement. Keep a digital copy of the schematic in vector format (e.g., .DXF or .SVG) for precise scaling and future modifications. Before making alterations, lock out power with a padlock and tag following OSHA 1910.147 standards.
Blueprint for Precision Equipment Electrical Layouts
Ensure all power lines in your setup follow a hierarchical routing system to minimize interference. Use 4 AWG copper cables for primary feeds to the spindle drive–this gauge handles currents up to 85 A without excessive voltage drop, critical for maintaining torque consistency. Shielded twisted pairs (STP) should connect feedback sensors (resolvers or encoders) to the control unit, reducing noise that skews positioning accuracy. Ground loops can be avoided by isolating sensor shields at a single point, preferably near the driver’s earth terminal.
Component placement dictates performance. Position the variable frequency drive (VFD) and servo amplifiers within 1 meter of the motor to curb inductive losses. For high-speed spindles (24,000 RPM+), integrate a reactive power compensation capacitor bank directly on the drive output–values between 10–30 µF per kW prevent premature bearing wear from current leakage. Below are optimal capacitance ratings for common spindle power ranges:
| Motor Power (kW) | Recommended Capacitance (µF) | Voltage Rating (VAC) |
|---|---|---|
| 1.5 | 12 | 400 |
| 3.7 | 22 | 400 |
| 7.5 | 47 | 480 |
| 15 | 80 | 600 |
Fuse selection must align with inrush current spikes, not just steady-state loads. For a 5 kW VFD, specify 40 A fast-acting fuses (IEC 60269 type gG) to protect semiconductors during acceleration; slower fuses risk damaging IGBT modules. Terminal blocks feeding auxiliary devices (coolant pumps, tool changers) should use DIN rail-mounted units rated for 600 V and 35 A, with finger-safe IP20 enclosures to prevent accidental shorts.
Control Signal Isolation
Optocouplers are non-negotiable between logic controllers and high-power stages. Use devices with a minimum 5 kV isolation rating (e.g., Avago HCPL-4504) for step/direction signals to steppers. For analog velocity commands (±10 V), deploy instrumentation amplifiers (INA125) to reject common-mode noise–this preserves resolution in closed-loop systems, where even 20 mV deviations cause overshoot. Below is a reference for analog signal conditioning:
| Signal Type | Amplifier Gain | Filter Corner (Hz) | Input Impedance (kΩ) |
|---|---|---|---|
| Velocity (±10 V) | 2 | 100 | 10 |
| Torque (4–20 mA) | 250 | 30 | 250 |
Power distribution must account for transient suppression. Install metal oxide varistors (MOVs) across every inductive load–clamp voltage should be 20% above the supply rail (e.g., 820 V MOV for 600 VAC systems). For DC buses, add snubber circuits (0.1 µF + 10 Ω in series) across relay coils to suppress arcs that degrade contacts. Avoid aluminum electrolytics on the DC link; film capacitors (polypropylene) offer lower ESR and longer lifespan under pulse-width modulation stresses.
Field-Wiring Best Practices
Conduit runs must segregate motor power from control wiring–maintain a 30 cm separation or use grounded steel conduit as a Faraday cage. Cable glands at enclosure entry points should be rated IP67; nylon glands crack under vibration, allowing moisture ingress that causes oxidation on terminal screws. Label every conductor with heat-shrink tubing (not adhesive stickers) to withstand cutting-fluid exposure–use the following color-coding:
| Conductor Function | Color (IEC 60446) | Alternative (NEMA) |
|---|---|---|
| Phase L1 | Brown | Black |
| Phase L2 | Black | Red |
| Neutral | Blue | White |
| Protective Earth | Green/Yellow | Green |
| Analog + | Violet | Orange |
Termination torque specifications are often overlooked. Copper lugs feeding 4 AWG cables require 4.5 Nm of torque on M8 bolts–under-tightening causes hotspots, while over-tightening strips threads. Use a calibrated torque screwdriver and re-check connections after 24 hours of operation; thermal cycling loosens bolts even after initial tightening. Finally, apply dielectric grease to all high-voltage connections to prevent corrosion that increases contact resistance–and heat–over time.
Essential Elements of a Precision Fabrication Tool Electrical Layout
Start by ensuring the main power supply delivers 380V AC (three-phase) or 220V AC (single-phase) with a dedicated 20A breaker per axis–unbalanced loads degrade servo responsiveness. A 48V DC bus powers control relays and limit switches, reducing interference from high-voltage spikes that can reset PLCs mid-operation. Install surge protectors with a clamping voltage of 1.5× nominal to shield stepper drivers, particularly for closed-loop models like the Leadshine ESS series where back EMF exceeds 100V.
Safety and Feedback Integration
Use dual-contact NC (normally closed) emergency stop buttons wired in series to cut drive enable signals within 20ms of activation–test latency with an oscilloscope. Shielded twisted-pair cabling (AWG 18 or thicker) reduces capacitive coupling between encoder signals and spindle PWM, critical for 1-μm repeatability in linear scales like Heidenhain LS 406. For spindle drives, opt for 20 kHz PWM frequency to minimize acoustic noise and harmonic distortion, verified via a spectrum analyzer showing
Step-by-Step Wiring Guide for a Basic Workshop Equipment Motor
Disconnect the power source before touching any conductors. Use a multimeter to confirm zero voltage across all terminals–even residual current can cause injury. Label wires with masking tape during disassembly to avoid confusion during reassembly. For a single-phase 230V AC motor, identify the following components: main windings, auxiliary windings, start capacitor (typically 10–100 µF), and a centrifugal switch or relay.
Safety and Component Check
- Inspect the motor housing for cracks or exposed wiring–replace damaged parts immediately.
- Verify the capacitor’s capacitance and voltage rating match the motor’s requirements (e.g., 25 µF, 370V for a 1 HP setup).
- Check the centrifugal switch’s operation by manually spinning the rotor–it should click at ~75% of full speed.
- Ensure the overload protector (thermal or bimetallic) is rated for the motor’s amperage (e.g., 10A for 1.5 kW).
Connect the main winding between L1 (live) and N (neutral). Attach the auxiliary winding in parallel, but route it through the start capacitor. For a reversible setup, add a double-pole double-throw (DPDT) switch to swap the auxiliary winding’s polarity. Wire the centrifugal switch or solid-state relay in series with the capacitor to disengage it once the motor reaches operational speed (usually 80–90% of rated RPM).
- Strip 8–10 mm of insulation from each wire end, twist tightly, and crimp with a ring terminal (size 10–12 AWG).
- Secure connections with a torque screwdriver (e.g., 1.2 Nm for M4 screws).
- Wrap terminal blocks in self-fusing silicone tape to prevent short circuits.
- Test rotation direction by briefly powering the device–reverse connections if needed.
- Activate the overload protector and confirm it trips within 15–30 seconds under locked-rotor conditions.
Typical Electrical Failures in CNC Milling Systems and Troubleshooting Techniques
Start by verifying the main power contactor for signs of pitting or uneven wear on its contacts, as even a 0.2mm disparity can cause intermittent voltage drops triggering false alarms on the control unit. Use a precision multimeter set to milliohm range to measure contact resistance–values above 0.1Ω indicate imminent failure requiring replacement or sanding with 600-grit abrasive.
Spindle drive faults often manifest as erratic rotation speeds or sudden shut-offs. Check the inverter’s DC bus voltage with an oscilloscope; fluctuations exceeding ±5% of the nominal 325V suggest capacitor degradation in the rectifier stage. Replace electrolytic capacitors showing bulging tops or exceeding leakage current of 0.01CV (capacitance × voltage rating in μA). Inspect the motor’s encoder wiring for partial shorts–resistance below 1MΩ between phases confirms insulation breakdown.
Coolant pump malfunctions frequently stem from corroded relay contacts or thermal overload tripping. Test relays by manually actuating them while monitoring voltage across the coil–consistent 24VDC with no drop indicates healthy operation, while erratic readings point to a failing power supply. For thermal overloads, measure the bimetallic strip’s resistance at room temperature (typically 0.3–0.8Ω); deviations suggest calibration drift requiring unit recalibration or replacement.
Feed axis instability commonly arises from worn servo amplifier MOSFETs or feedback errors in linear scales. Swap suspect amplifiers between axes to isolate faults–persistent issues on one axis confirm a defective drive. Clean linear scales with isopropyl alcohol and a lint-free cloth; accumulate debris thicker than 0.1mm introduces position errors up to ±0.05mm. Verify encoder cables for crosstalk by measuring capacitance between signal pairs–values above 120pF per meter necessitate shielded replacements.
Advanced Diagnostic Tools for Rapid Identification
Use a thermal imaging camera to scan control cabinets–temperature gradients exceeding 15°C between adjacent components (e.g., IGBT vs. adjacent busbar) reveal overheating drivers or insufficient airflow. For logic errors, employ a logic analyzer to compare control signals against the PLC’s ladder diagram; timing mismatches below 2μs often resolve after firmware updates or replacing quartz oscillators with ±50ppm stability. When replacing fuses, select slow-blow types with a rating 130% of nominal current to prevent nuisance tripping during transient spikes.
