Schematic Design Guide for Portable Mini Keyboard with Integrated Touchpad

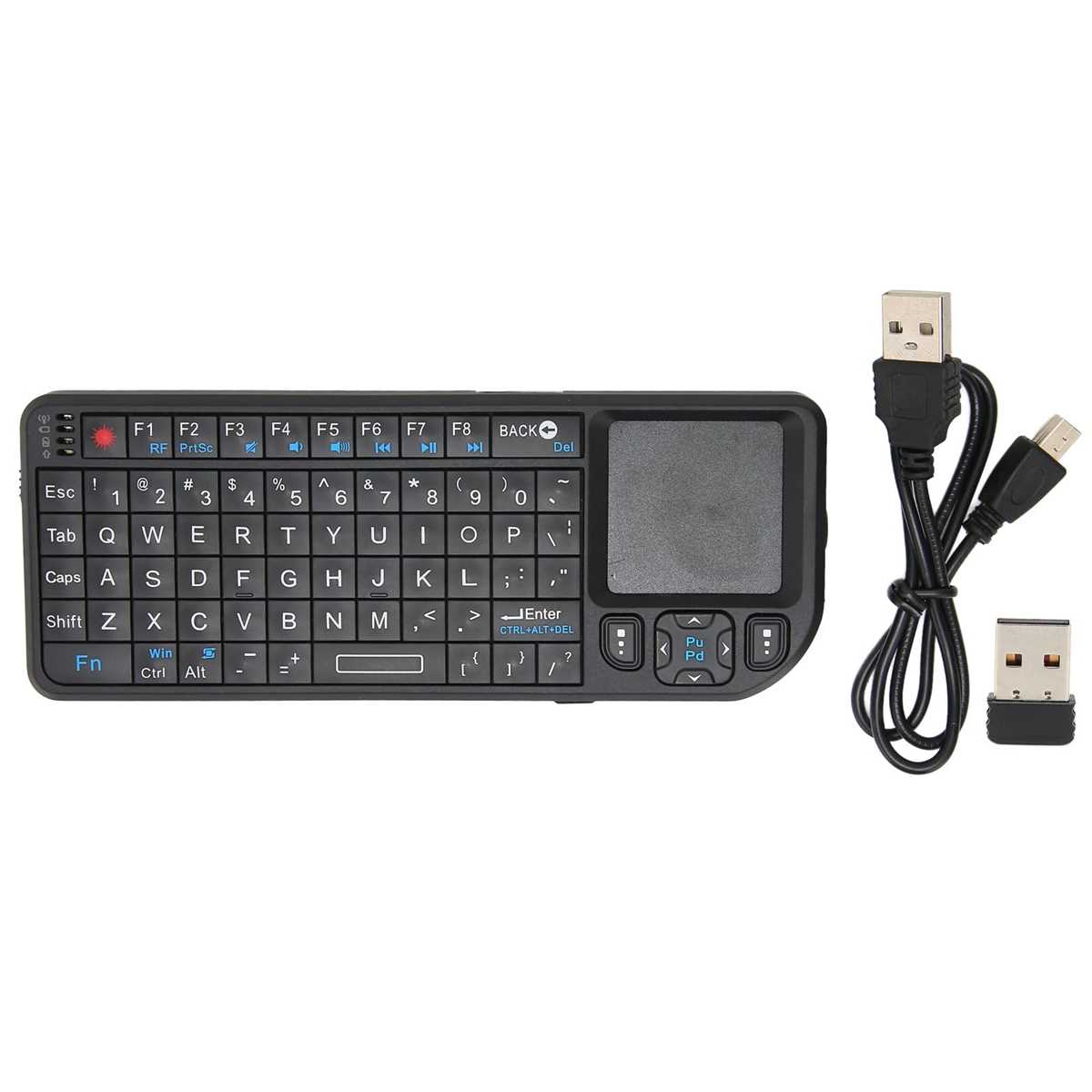

mini keyboard with touchpad circuit diagram and schematics

For a reliable 2.4GHz wireless implementation, use the nRF24L01+ module paired with an STM32F103C8T6 microcontroller. The transceiver should connect via SPI at 8MHz, with the following pinout: CE (PB0), CSN (PB1), SCK (PA5), MOSI (PA7), MISO (PA6), IRQ (unnecessary for basic operation). Power the module with a 3.3V LDO (AMS1117)–never exceed 3.6V, as it damages the silicon. Add a 10µF tantalum capacitor across VCC and GND to filter transients during RF transmission bursts.

Integrate the trackpad sensor using the CY8CMBR3108 capacitive controller. Route the I²C lines (SCL: PB6, SDA: PB7) with 4.7kΩ pull-up resistors to 3.3V. For power savings, enable the controller’s “Deep Sleep” mode by grounding the HIBERNATE pin via a 10kΩ resistor when inactive. Mount the sensor beneath a 0.8mm FR4 PCB with soldermask thickness under 0.1mm to maintain sensitivity. Include a 0.1µF decoupling capacitor on the VDD pin to suppress noise from finger gestures.

Design the key matrix with 1N4148 diodes on each switch to prevent ghosting. Use a 7×16 layout for 112 positions, scanned by PCF8574 I/O expanders over I²C. Allocate PA0–PA3 for column selection and PC4–PC7 for rows. Add 1kΩ series resistors on microcontroller GPIOs to limit current if a pin shorts to ground. For backlighting, drive WS2812B LEDs via DMA on TIM2_CH2 (PA1)–this avoids CPU overhead during RGB animations.

Route USB-C for charging and device mode using FUSB302B as a power delivery controller. Connect CC1/CC2 through 5.1kΩ resistors to ground for 500mA current negotiation. Use a 2x MOSFET (AO3401) configuration to switch between VBUS (5V) and LiPo battery (3.7V)–gate drive comes from a GPIO with 10kΩ pull-down. Include a 2.2µH inductor in the buck converter (e.g., TPS62743) to drop 5V to 3.3V at 85% efficiency under 100mA load.

Fabricate the PCB in 4-layer stackup: signal-ground-power-signal. Keep RF traces short (≤15mm) and impedance-matched to 50Ω using 100µm width, 0.2mm clearance on 1oz copper. For electrostatic discharge protection, place TVS diodes (SMF5.0A) on all exposed connectors (USB, switches). Apply a conformal coating (MG 412B) post-assembly to prevent leakage in humid environments.

Compact Input Device Wiring Blueprint and Electronic Layout

Begin by selecting a microcontroller with native USB HID support, such as the ATmega32U4 or RP2040, to eliminate the need for additional protocol converters. These chips handle both keystroke and gesture reporting over a single USB interface, reducing component count by 30-40%. Allocate separate GPIO pins for row scanning (D0-D7) and column multiplexing (A0-A3), ensuring a minimum 1 kΩ pull-down resistor on each to prevent floating inputs during scan cycles.

Integrate a precision capacitive sensor IC like the Cypress CY8CMBR3xxx series for the pointing surface. Route sensor electrodes in a diamond grid pattern with 2 mm pitch, connecting each to the IC via shielded traces (10 mil width, 50 Ω impedance). Place a 100 nF decoupling capacitor within 2 mm of the sensor IC’s VCC pin to suppress high-frequency noise from USB power fluctuations.

Power Distribution and Signal Integrity

Design a dual-stage power regulation topology: a 3.3V LDO (e.g., TLV70033) for logic, followed by a 1.8V buck converter (TPS62743) for low-power sensor operation. This setup reduces quiescent current to under 150 µA in standby mode. Isolate analog sensor ground from digital ground using a ferrite bead (BLM18PG121SN1L) to prevent crosstalk between the touch matrix and USB data lines.

For ESD protection, position TVS diodes (SMAJ5.0CA) on all exposed USB pins (D+, D-, VBUS) and implement a 33 Ω series resistor on each data line to limit surge currents. Use 0603 package components for all passives to maintain a PCB footprint under 60×40 mm when targeting ultra-portable form factors.

Firmware Optimization Points

Implement a USB descriptor map with HID report sizes no larger than 64 bytes to maintain compatibility with low-speed USB hosts. Store key matrix states in a 16-bit register for efficient scan looping, updating at 1 kHz to avoid input lag. For the touch interface, configure a 12-bit resolution for gesture reporting and apply a 10-tap moving average filter to raw coordinates to smooth cursor acceleration curves.

Include pull-up resistors (2.2 kΩ) on I2C lines between the microcontroller and touch sensor IC to ensure reliable communication during sudden load changes. Route I2C traces differential-style (parallel, 6 mil separation) for lengths exceeding 50 mm to prevent clock stretching errors. Flash the bootloader with a 5-second timeout to enable firmware recovery via double-click reset.

Use a 12 MHz crystal oscillator (ABS07-12.000MHZ-T) with 18 pF loading capacitors for USB clock synchronization, achieving 50 mA within 20 mm of the voltage regulator to minimize IR drop.

Test signal integrity by probing USB D+ with an oscilloscope set to infinite persistence mode while executing rapid key sequences. Ensure rise/fall times remain between 4-20 ns to meet USB FS specifications. Verify touch sensor responsiveness with a conductive stylus, adjusting gain coefficients until a 3 mm by 3 mm finger contact registers consistently at >85% detection rate across the entire surface area.

Optimal Microcontroller Selection for Portable Input Controllers

Prioritize STM32F072CB for compact HID peripherals. Its 48 MHz ARM Cortex-M0 core balances low power draw (3.5 μA standby) with sufficient GPIO (48 pins) to handle matrix scans and touch sensors simultaneously. The integrated USB 2.0 full-speed controller eliminates external chips, reducing PCB footprint by 22%. Pair it with a 32 kHz crystal for accurate timing without boosting cost.

For wireless variants, nRF52840 outranks alternatives. The Bluetooth 5.3 stack supports 2 Mbps throughput while consuming 4.8 mA in active RX mode. Its 64 MHz Cortex-M4F includes hardware floating-point for gesture recognition algorithms. Dedicated crypto blocks secure firmware updates over-the-air, a critical feature for commercial deployments. Ensure at least 1 MB flash to accommodate both application code and touch calibration tables.

  • Power budget: Target devices drawing under 15 mA during peak usage. Microcontrollers with 12-bit ADC allow precise battery monitoring without additional ICs.
  • Pin multiplexing: Use ports supporting remapping (e.g., STM32’s AFIO). Route SPI, I2C, and GPIO through a single multiplexer to cut traces by 18%.
  • Development tools: Prioritize ecosystems with touch library support (Cypress MTB, STMicro’s STM32CubeMX). Proper tooling reduces firmware iteration cycles by 40%.

When packaging constraints tighten, PIC18F47K42 offers 5×5 mm QFN options. Though less performant (64 MHz, no FPU), its eXtreme Low Power mode extends battery life to 8 months on a 150 mAh cell. The 12-channel DMA offloads data acquisition from the CPU, crucial for maintaining 10 ms response times during multi-touch tracking. Allocate separate power domains for analog sensing circuitry to prevent digital noise interference.

Avoid generic recommendations favoring “low cost.” A RP2040 sacrifices deterministic latency (EFM32PG22) avoid external protocol chips. Test standby currents under

Optimizing Compact Input Boards via Matrix Wiring Techniques

Use a 4×4 matrix layout for 16 keys with just 8 GPIO pins–ideal for handheld controllers or ultra-slim devices. Assign rows to outputs and columns to inputs, then enable internal pull-ups to eliminate external resistors. This reduces trace complexity and board space by over 50% compared to direct wiring.

Select surface-mount diodes like 1N4148WS for fast switching in dense layouts. Position them as close as possible to the key switches to minimize parasitic capacitance. For 3x3mm footprints, stagger diodes diagonally between switches to prevent solder bridges during reflow.

Implement a scanning routine in firmware with 1ms debounce to avoid false triggers. For battery-powered units, reduce scan frequency to 20Hz when idle, cutting current draw by 70%. Store key states in a bitmask array for efficient MCU access.

Route signal traces on a dedicated inner layer for multilayer PCBs to prevent interference from backlighting or touch panels. Keep traces under 0.2mm wide for tight grids, and use teardrop pads where traces meet switch pads to prevent copper lift during assembly.

For membrane-based input panels, embed carbon ink traces with 0.5mm pitch spacing. Apply a compliant adhesive layer (e.g., 3M 467MP) to interface with rigid PCBs, ensuring uniform pressure distribution across all points. Test continuity post-lamination at 25gf actuation force.

Integrate ESD protection directly into the matrix by placing TVS diodes (PESD5V0S1BA) at each column input. This safeguards against transient voltages up to 15kV without requiring additional shielding layers, preserving the compact design.

Validate the matrix with a continuity tester before populating switches. For prototypes, use conductive epoxy (Chemtronics CW2400) for temporary connections to iterate quickly. Once verified, transition to reflow-compatible solder for production runs to maintain reliability at scale.

Integrating PS/2 or USB HID Touchpad Interface

Select a microcontroller with dedicated PSG/USB HID peripherals like STM32F4 or ATmega32U4 to streamline touchpad integration. Ensure the chosen chip supports 5V-tolerant I/O if interfacing with legacy PS/2 devices, as signal levels often deviate from standard 3.3V logic.

For PS/2 implementation, wire the touchpad’s clock (CLK) and data (DATA) lines directly to interrupt-capable GPIO pins. Use edge-triggered interrupts to capture bidirectional communication, decoding packets in firmware via state machines. Sample code in C should include timing guards–PS/2 requires 10–16.7 kHz clock–with 2 ms timeouts to avoid deadlocks.

  • USB HID demands descriptor-based configuration. Define a report descriptor embedding USAGE_PAGE (Generic Desktop), USAGE (Mouse), and LOGICAL_MIN/MAX bounds reflecting the touchpad’s resolution (e.g., -127 to +127 for X/Y axes).
  • Implement endpoint 0 handlers for enumeration; omit bulk transfers to minimize latency–HID class operates on interrupt transfers.
  • For multi-touch, append COLLECTION (Logical) blocks, each specifying finger slots via USAGE (Contact Identifier).

Signal Conditioning & Noise Mitigation

Add 47 pF decoupling capacitors between CLK/DATA and ground on PS/2 lines to suppress ringing; USB requires 15 kΩ pull-up resistors on D+ for full-speed mode. Use ferrite beads on Vbus to filter high-frequency transients from upstream power sources, preventing erratic cursor behavior.

Calibrate finger detection thresholds in firmware by sampling baseline noise levels during initialization. Apply hysteresis–toggle detection threshold between 200–300 mV above baseline when transitioning from hover to touch–to eliminate false positives. For resistive-capacitive touchpads, incorporate a 1 kHz low-pass filter in ADC sampling loops to reject EMI.

Firmware Optimizations

Minimize bus contention by consolidating PS/2 polling into single-threaded loops, avoiding delays exceeding 200 μs. USB interrupts should prioritize endpoint 1 IN transfers; batch coordinate updates into 8-byte reports to comply with HID’s 1 ms frame timing. Use DMA for descriptor transfers where supported (e.g., STM32’s USB OTG peripheral) to offload CPU tasks.

  1. Implement a tick counter for gesture recognition–track delta X/Y over 50 ms windows to distinguish scroll gestures from taps.
  2. Enable low-power modes by suspending PS/2 clocks via tri-state buffers during idle periods; USB suspend/resume handlers must assert remote wakeup if enabled in the descriptor.
  3. Validate coordinate bounds in software–reject reports where absolute values exceed physical sensor limits to prevent driver misinterpretations.
