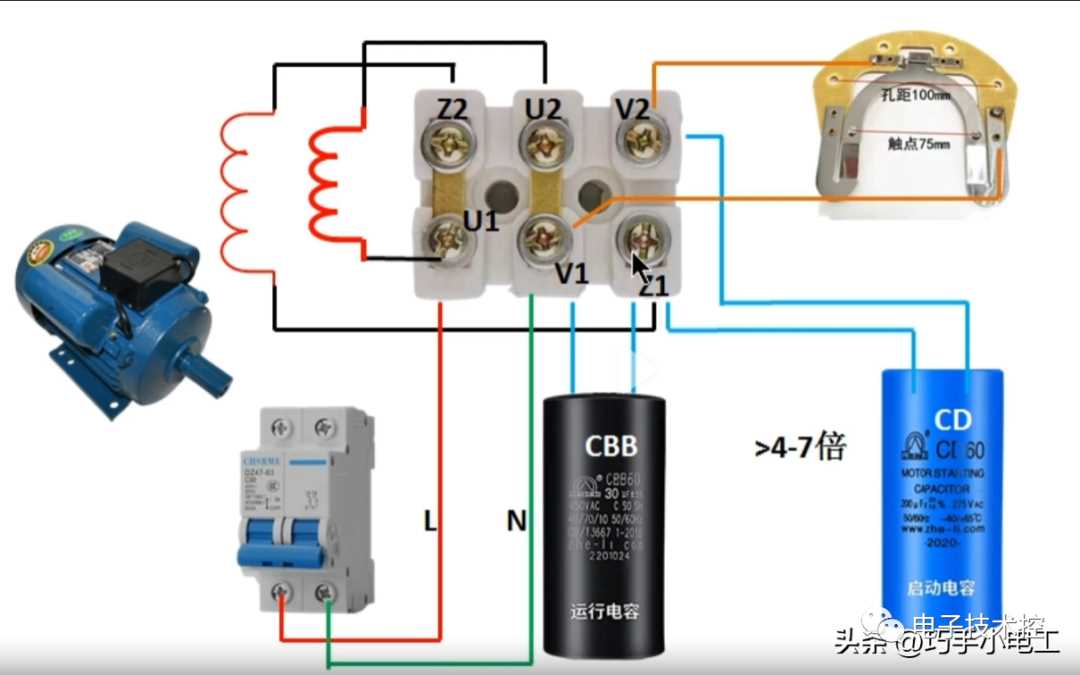

Single Phase Motor Capacitor Wiring Guide with Diagrams and Steps

Use a 25–40 μF start capacitor for units under 1 HP with centrifugal switch circuits. For continuous-run setups, select a 4–10 μF oil-filled capacitor rated for 370–440 VAC to maintain phase shift without excessive heating. Avoid electrolytic capacitors–they fail within weeks under continuous load.

Connect the main winding to L1 and neutral; the auxiliary winding goes to L2 via the capacitor. For reversible rotation, swap the auxiliary winding leads. Use 14 AWG copper wire for currents under 15 A; 12 AWG for 15–20 A loads to prevent voltage drop across longer runs (>3 m).

Install a 10 A circuit breaker or fuse within 30 cm of the unit. Overload protection should trip at 120% of full-load current–check nameplate data (typically 8–12 A for 1 HP units). For hermetic compressors, derate capacitor values by 10–15% due to ambient heat.

Test phase shift with a clamp meter: apply 115 VAC, measure auxiliary winding current (target: 60–80% of main winding value). If current exceeds 90%, reduce capacitor size to avoid winding burnout. For dual-voltage units (115/230 V), reconfigure jumpers per manufacturer schematic–incorrect wiring damages the run capacitor within minutes.

Mount capacitors in a ventilated enclosure, away from motor housing. Use spade connectors crimped with 12 AWG terminals; solder joints fail under vibration. Secure all leads with zip ties every 20 cm to prevent insulation chafing. Replace capacitors every 5 years regardless of condition–age degrades dielectric strength.

Connecting an AC Induction Device Using Auxiliary Energy Storage

Ensure the power source matches the equipment’s voltage rating–typically 110V, 220V, or 230V–before making any connections. Misalignment can damage internal components or reduce efficiency. Verify the nameplate specifications for exact requirements.

Split-start electric drives require an auxiliary winding and an energy storage element to generate phase shift. Use a non-polarized electrolytic type rated for continuous duty, not exceeding the drive’s specified microfarad value. Over-sizing risks overheating the start coil, while under-sizing results in poor torque.

The auxiliary winding connects in parallel with the primary coil, but the energy storage element bridges the auxiliary before the centrifugal switch or current relay. Common configurations include:

Configuration	Connection Method	Voltage Applied	Typical Use Case
Permanent Split	Storage across aux coil	Main + aux phases	Fans, blowers
Capacitor Start	Storage in series with switch	Main phase only	Compressors, pumps
Start-Run	Dual storage–one for start, one for run	Main + aux phases	Heavy loads, conveyors

Label each conductor before disconnecting–L1 (hot), N (neutral), and Ux (auxiliary)–to avoid miswiring. Use a multimeter to confirm the primary coil resistances (typically 3–15 ohms) and auxiliary coil resistances (higher, around 10–50 ohms). A burnt odor or discoloration indicates failed insulation.

Secure all connections with crimp terminals or solder, then insulate with heat-shrink tubing. Loose or bare conductors increase arcing risk. After assembly, test rotation direction by briefly energizing–reverse L1 and N if incorrect. Monitor current draw with a clamp meter during startup; excessive amperage suggests incorrect storage sizing or mechanical binding.

Install a thermal overload protector rated for the drive’s full-load current if not already present. Mount it adjacent to the stator to sense overheating promptly. Avoid placing the storage element near heat sources, as high temperatures reduce capacitance over time. For frequent duty cycles, consider an oil-filled type for longer lifespan.

Periodically inspect for dust accumulation on the stator or moisture ingress, especially in humid environments. Both conditions degrade performance and shorten component life. Clean with dry compressed air, never liquid cleaners. Replace the storage element if capacitance drops below 90% of the rated value or if physical bulging is observed.

How to Pinpoint Auxiliary and Operational Capacitor Leads in AC Induction Drives

Examine the capacitor casing first–manufacturers stamp both terminals with distinct markings: “H” for the starting lead and “C” or “R” for the permanent connection. If labels are absent, check for a ridge or groove on the starting terminal side; this physical cue distinguishes it from the smoother operational contact.

For hermetic compressors and shaded-pole devices, the starting capacitor often sports a bleed resistor across its posts, visible as a small component bridging both terminals. Trace resistance with a multimeter–values between 10–20 kΩ confirm the auxiliary lead, while the operational side shows infinite resistance or near-zero if discharging.

Permanent split-capacitor drives integrate both functions in one unit, splitting the case into unequal sections. The larger side houses the run element (typically ≥15 µF), while the smaller compartment (≤50 µF) contains the start segment. Terminal spacing also varies–run contacts sit wider apart, while auxiliary leads are closely paired.

Replace suspect capacitors only with exact replacements–tolerance deviations above 5% cause overheating. Test suspect units by charging them at rated voltage for 10 seconds, then shorting terminals–operational capacitors hold charge longer (visible spark), whereas faulty start capacitors discharge instantly or unevenly.

For potted sealed assemblies, use an ESR meter–start elements generally measure below 0.5 ohms ESR, while run capacitors exceed 5 ohms. Reject any unit whose readings deviate from manufacturer specs by more than ±1.5 ohms on either side.

When markings are obliterated, apply a 12V pulse across unknown terminals–observing rotor jerk indicates the starting lead. Confirm by reversing polarity; consistent torque direction reveals the permanent connection. Record findings directly on the casing with an indelible marker to prevent future identification errors.

Step-by-Step Assembly for Capacitor-Assisted Split-Pole Drives

Secure the auxiliary coil lead to the capacitor’s terminal using a ring crimp connector, ensuring a torque of 0.8 Nm to prevent vibrations loosening the joint. Cut excess wire length to 3 cm beyond the connection to minimize stray capacitance build-up. Label both leads with heat-shrink tubing–red for the start winding, blue for the run–to eliminate cross-wiring errors during reassembly.

Integrating the Switching Mechanism

Position the centrifugal switch contacts within 2 mm clearance of the rotor’s pawl to guarantee disengagement at 75% of synchronous speed. Verify spring tension by compressing the actuator arm fully; it must snap back within 0.2 seconds. Solder the switch’s common terminal to the main winding tap using 60/40 rosin-core solder to avoid cold joints under load.

Attach the power feed through a 10 A snap-action breaker, sized per the drive’s nameplate (e.g., 230 V × 1.2 FLA = 276 VA). Route the neutral line directly to the main coil’s neutral point without splicing, preventing leakage current paths that degrade efficiency. Test insulation resistance between all coil circuits and the housing–minimum 5 MΩ at 500 VDC before energizing.

Selecting the Right Capacitor Size for Equipment Power Output

For a 1/4 HP drive, use a 5–7.5 µF capacitor; 1/3 HP requires 7.5–10 µF, while 1/2 HP needs 12.5–16 µF. Units rated at 3/4 HP demand 18–25 µF, and full 1 HP should be paired with 25–30 µF. Values above 30 µF risk excessive current, leading to overheating and premature coil failure.

Check the manufacturer’s label–some auxiliary windings specify exact capacitance within ±5%. If unavailable, multiply the horsepower by 25 for permanent-split configurations or by 20 for start-run types to estimate µF. For example, a 0.6 HP apparatus typically aligns with 15 µF in permanent-split mode, whereas a start-run variant may need 12 µF. Always verify with an LCR meter if windings show signs of discoloration or burning.

Ambient temperature affects capacitor performance–reduce nominal values by 10% for environments consistently above 40°C. Prolonged operation at incorrect ratings shortens lifespan: a 20% increase in capacitance raises current draw by ~15%, while a 20% decrease drops torque by ~25%. Replace electrolytic capacitors every 5 years, even if no visible degradation exists, to prevent internal dielectric breakdown.

Critical Errors in AC Power Unit Installation

Ignore capacitor voltage ratings and you risk immediate failure. A 250V capacitor won’t survive a 370V supply even briefly–thermal runaway destroys it within seconds. Always verify system voltage against component specs, including start/run splits where split-phase designs apply 125V to auxiliary windings. Check labels for “AC” or “DC” markings; confusion here guarantees irreversible damage.

• Swap polarity on reversible machines without verifying rotation direction first. Many pumps and fans cannot handle reverse operation, causing bearing seizures within minutes. Mark terminals before disconnecting–L1/L2 reversal flips torque instantly, which isn’t always safe.
• Avoid torque calculations when selecting auxiliary components. A 10µF capacitor suited for a 1HP load becomes fire hazard on a 1.5HP unit; current overloads internal plates, melting insulation and generating 300°C+ temperatures.
• Overlook ambient temperature limits. A 60°C-rated device derates 50% at 75°C–prolonged operation here reduces lifespan from 10 years to 6 months. Measure enclosure temperature immediately after installation; if exceeding 40°C, upsize the unit or add ventilation.

Disregard thermal protection settings invites coil burnout. Default 105°C cut-offs ignore harmonic loads; a 1.2 overload factor triggers early tripping, while 1.4 stresses winding enamel beyond Class B limits (130°C). Use PTC thermistors rated for the specific insulation class–mistakes here void manufacturer warranties immediately.

Component Pairing Pitfalls

Combine incompatible centrifugal switches with permanent-split designs. A 16AMP switch fails on a 20AMP circuit within 48 hours; arc flash welds contacts shut, causing continuous auxiliary winding engagement. Replace with solid-state relays rated 25% above peak load if running variable-frequency drives.

1. Assume identical auxiliary windings across brands. A generic “universal” wiring schematic ignores impedance variations–one model’s 7.2Ω coil might match another’s 4.8Ω, causing overcurrent spikes that trip breakers 15° before expected synchronization.
2. Misalign start/run sequences on dual-value capacitor units. Energizing the start circuit beyond 3 seconds damages dielectric film permanently; most designs tolerate only 1-2 starts per minute. Use a phase-angle meter during commissioning–incorrect sequencing shows erratic torque curves on the scope.
3. Neglect grounding studs on frames. A floating chassis caps voltage leakage at 3kV–human contact during maintenance delivers 20mA shocks. Bond to earth ground with 8AWG copper; verify continuity at
