Understanding Moulded Case Circuit Breaker Internal Wiring and Functionality
Start by identifying the fixed trip unit, typically marked near the incoming terminals on the device’s left side–this is critical for overload protection calibration. Modern thermal-magnetic variants split function zones: the upper section handles instantaneous trips via solenoid action, while the lower thermal bimetal strip manages delayed overload responses. Label all contact points (L1/L2/L3 for line inputs, T1/T2/T3 for load outputs) before referencing any schematic, as misalignment here causes misinterpretation.
For accurate voltage ratings, verify the nameplate (e.g., 400V AC, 3-pole); exceeding these values by even 10% risks arc flash. In three-phase setups, neutral conductors attach to the dedicated N-terminal, though many designs omit this for delta configurations. Always cross-check the trip curve (IEC 60947-2 standards) against your load’s startup transient–motor applications often require class 10A curves, while general purpose uses class 10.
Mechanical interlocking, if present, appears as a lever linkage between poles; ensure its movement aligns with the schematic’s “ON/OFF/TRIP” position markers. Auxiliary contacts (NO/NC) connect to alarm circuits–wire these to a 24V DC control bus for remote monitoring. When testing, use a secondary injection tester at 80% of the trip unit’s threshold to confirm calibration without risking overload.
For fault isolation, trace the arc chute path in the schematic–its chambers should match the physical device’s compartment count. Undervoltage releases integrate via a shunt trip coil (UVR); verify its coil resistance (typically 50–200Ω) to avoid nuisance trips. Never assume a 40kA interrupting rating applies universally–some models derate to 10kA at 690V. Document all adjustments in a lockout-tagout (LOTO) log to comply with NFPA 70E Article 110.
Understanding the Structure of Industrial Protective Switches
Always reference the internal schematic of an enclosed safety device when performing maintenance or troubleshooting. The primary components–thermal overload relay, electromagnetic trip coil, and arc extinguisher–are typically arranged in a linear layout. The relay triggers at 120-140% of rated current within 10-20 seconds, while the coil reacts instantaneously at 8-12 times the nominal load. Disconnect power before inspection, as residual voltage may persist in capacitors for up to 5 minutes.
- Terminal connections: Standard configurations include line (top) and load (bottom) terminals. Verify torque specifications–typically 2.5-3.5 Nm for copper conductors–to prevent overheating.
- Trip indicator: A mechanical flag or LED signals activation. Reset only after cooling (minimum 2-minute delay for thermal elements).
- Arc chute: Positioned above contacts, it consists of insulated steel plates spaced 1.5-3 mm apart to dissipate energy during interruption.
For precise interpretation, cross-reference the manufacturer’s legend. ABB’s Tmax series labels include: “O” (open position), “I” (closed), and “T” (tripped). Schneider Electric’s Compact NSX uses color-coded bands–red (short-circuit) and blue (overload). Misalignment between the handle mechanism and internal contacts often indicates mechanical failure; replace the unit if deviation exceeds 2 mm.
Key Components Illustrated in an MCCB Schematic
Inspect the thermal-magnetic trip unit first, as it dictates overload and short-circuit protection. The bimetallic strip, calibrated to specific current ratings, flexes under sustained overcurrent, triggering the release mechanism. Matched with an electromagnetic coil, this unit reacts instantaneously to faults exceeding 10x the rated current–verify the coil’s turns ratio aligns with the frame size to avoid nuisance tripping.
Arc Chutes and Contact Assembly
Locate the arc chutes positioned above the fixed and moving contacts. These segmented metal plates cool and extinguish arcs by stretching them into elongated paths–ensure they’re free of carbon deposits, which reduce dielectric strength by up to 30%. The silver-alloy contacts must exhibit minimal pitting; replace if wear exceeds 1mm to maintain conductivity and prevent welding. Check spring tension in the toggle mechanism; a force of 8–12 N is typical for 100–250A frames.

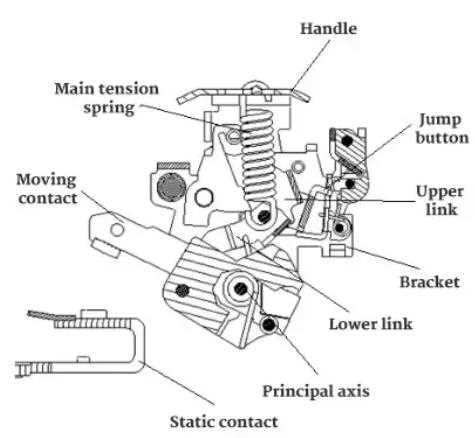

Examine the trip bar and latch assembly, where mechanical linkages translate electrical faults into physical separation. The latch’s surface hardness should resist deformation–look for cracks or galling, which indicate fatigue. Lubricate pivot points with molybdenum disulfide grease to reduce friction; avoid petroleum-based products that degrade under thermal cycling. Test adjustability of the trip settings; misalignment here can delay response times beyond 200ms, violating IEC 60947-2 standards.
The auxiliary switches and undervoltage release (UVR) coil warrant close scrutiny. For the UVR, confirm the coil’s voltage tolerance (±10% of nominal) and test its dropout voltage–typically 35–70% of rated voltage. Auxiliary contacts must switch reliably at 5A resistive loads; monitor for bounce durations under 6ms to prevent false signals in PLC-controlled systems. Label all terminals clearly, as reversed polarity in shunt trips can render protection ineffective.
Step-by-Step Wiring Layout for Protective Switchgear Connections
Start by positioning the switchgear with the terminals facing upward or sideways, depending on the enclosure design, to ensure cables align naturally without bending. Measure cable lengths from the power source to each terminal, adding 15% extra for slack and adjustments–avoid tight routing to prevent strain on lugs during thermal expansion.
Use the following wire gauges for common frame ratings:
| Frame Rating (A) | Minimum Wire Gauge (AWG) | Recommended Lug Type |
|---|---|---|
| 100 | 2 | Compression (CU) |
| 250 | 4/0 | Mechanical (AL/CU) |
| 600 | 400 kcmil | Bolt-on (CU) |
| 1200 | 600 kcmil | Welded (CU) |
Strip cables to expose 1.5x the lug barrel length–insufficient stripping leads to poor contact and overheating. Clean exposed strands with a wire brush to remove oxidation, especially for aluminum conductors. Apply antioxidant paste to all aluminum connections before securing lugs.
Secure the upper terminals first, torqueing bolts in a star pattern to manufacturer specifications–typically 20-25 Nm for copper and 30-35 Nm for aluminum. Use a calibrated torque wrench to avoid over-tightening, which can warp busbars or crack insulation. For dual-rated devices, connect theLine side to the utility feed and the Load side to downstream panels or equipment, ensuring correct phase sequencing (L1-L2-L3) across multi-pole units.
Ground the enclosure separately using a dedicated 8 AWG or larger conductor, bonded to the neutral bus at the main service only. Route control wires (if present) through a segregated conduit to avoid electromagnetic interference–keep them at least 30 cm from power conductors carrying over 50A. Label all cables at both ends with heat-shrink sleeves or numbered tags matching the single-line schematics.
After installation, perform a 500V megohmmeter test between each phase and ground, targeting >100MΩ resistance. Energize the system at 10% of rated current, checking for abnormal heating with a thermal camera–hotspots above 60°C indicate loose connections or undersized conductors. Document the wiring layout with photographs and phase rotation tested using a meter to verify proper direction of motor loads.
For fault current coordination, ensure the device’s interrupting rating exceeds the available short-circuit current at the point of installation–consult the local utility for prospective fault values or use a network analysis tool like ETAP. Schedule annual inspections focusing on torque verification, lug oxidation, and thermal scans to preempt failures before they disrupt operations.
Common Symbols and Notations in Protective Switch Schematic Designs
Use standardized IEC or ANSI symbols for clarity–always verify the legend before interpreting schematics. The most frequent element is the thermal-magnetic trip unit, shown as a rectangular block with a diagonal line or zigzag for bimetallic/coil components. Attach labels like “L” (line) and “T” (terminal) directly to terminals to avoid miswiring during installation.
For overload protection, denote the bimetal strip with a curved line inside the block, often paired with an arrow pointing to the trip threshold value (e.g., “1.25 × In”). Replace generic trip curves with specific IEC 60947-2 classes (B, C, D) where applicable–include these in a corner of the schematic for quick reference during maintenance checks.
Key Auxiliary Contact Symbols
Auxiliary NO (normally open) contacts appear as two parallel lines with an intersecting slanted line; NC (normally closed) contacts mirror this but add a perpendicular slash. Label each contact with its designated function (e.g., “AUX NO 14” or “S/D NC 95-96”) to ensure compatibility with relay logic or PLC inputs. For shunt trips, use a rectangle with an “S” inside and a dashed arrow pointing toward the coil–connect this to the voltage source (e.g., 24V DC).
Instantaneous magnetic trips require a circle with a capital “M” and an adjacent lightning bolt–indicate the trip range (e.g., “10 × In”) beneath the symbol. When documenting arc chute assemblies, use three parallel wavy lines enclosed in an oval, specifying material (e.g., “Cu-alloy”) if critical for performance. For earth leakage modules, add a triangle with an “E” and a numeric threshold (e.g., “30mA”).
Wiring and Terminal Codes
Adopt consistent terminal numbering: input terminals (1, 3, 5) align top-left, output (2, 4, 6) bottom-right. Cross-reference these with color codes (e.g., “Black = L1,” “Blue = N”) in a separate legend to prevent phase mismatches. For neutral links, draw a square with an “N” and a dotted connection line–highlight if removable for isolated testing.
Include a small table in the schematic margin listing IP ratings, short-circuit capacities (e.g., “36kA @ 415V”), and trip unit adjustments (e.g., “thermal: 0.8–1.0 × In”). For digital trip units, add a hexagon with an “E” and list programmable settings (e.g., “LTD: 0.4–1.0s”). Never omit calibration dates–embed these below the device symbol with “Cal: 2024-Q2” for traceability.
