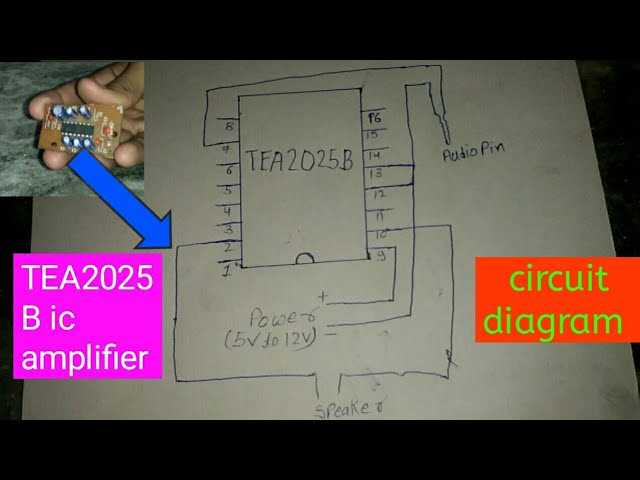

Complete Tea2025b Integrated Circuit Schematic Guide for Engineers

Locate pin 1 (input decoupling) on the TEA2025 variant by identifying the small indent or dot on the package’s upper-left corner–this marks the reference point for all mappings. Pinouts follow a counter-clockwise sequence: 1 to 7 (left channel) and 8 to 14 (right channel), with power and ground occupying fixed positions at 5 and 10, respectively. Verify connections using a multimeter in continuity mode; stray resistance above 0.5 ohms between pins 5 and ground indicates flawed soldering or trace damage.

Critical traces to prioritize during reverse-engineering include:

• Pins 2 and 12 (left/right amplifier outputs) – Thick 2 oz copper traces must extend directly to output coupling capacitors (470 µF nominal; 25 V minimum rating); deviations risk thermal runway.
• Pins 4 and 11 (bootstrap feedback) – Connect to capacitors (47 µF) tied to pin 7 (14) taps; failure reduces output swing by 3 dB.
• Pin 6 (voltage reference) – Bypass to ground via 0.1 µF ceramic capacitor; omittance introduces 1/f noise peaking at 120 Hz.

For troubleshooting, inject a 1 kHz sine wave (0.3 Vpp) into either channel input (pins 3/13) while probing the output (pins 2/12) with an oscilloscope–clipping thresholds should occur symmetrically at ±3.5 V (±6 dB headroom). If asymmetry exceeds 0.2 V, replace the chip; thermal cycling accelerates oxide breakdown in this series, manifesting as progressive gain compression.

Replace power supply traces with 2 mm wide paths if PCB etching permits; stock single-sided designs suffer voltage drops exceeding 0.7 V under 1 A load, necessitating 10 µF tantalum caps at pins 5 and 10. Document deviations from the reference schematic; undefined behavioral variants exist, differing in bootstrap network resistors (10 kΩ vs. 22 kΩ) and stand-by current draw (8 mA nominal; outlier units leak 25 mA).

Practical Guide to the TEA2025B Audio Amplifier Layout

Connect the audio input pins (1 and 9) directly to a 10µF coupling capacitor to block DC offset while allowing AC signals through. Bypass these pins with a 0.1µF ceramic capacitor to ground to suppress high-frequency noise–place it within 2mm of the pin for maximum effectiveness. For stereo configurations, ensure both channels mirror this setup precisely to avoid phase mismatches.

Power supply decoupling demands a 1000µF electrolytic capacitor across the VCC (pin 6) and ground, supplemented by a 0.1µF ceramic capacitor in parallel. This combination stabilizes voltage during transient loads, critical for preventing distortion at higher volumes. Keep trace lengths under 10mm between the power pin and capacitors to minimize inductance.

Grounding and Thermal Management

Use a star grounding topology, routing all ground returns to a single point near the IC’s thermal pad (pin 4). This prevents ground loops and crosstalk between channels. For heatsinking, attach a 25x25mm copper pad to the thermal pad, extending the PCB’s copper pour for passive cooling. If ambient temperatures exceed 50°C, add a 10°C/W heatsink or ventilate the enclosure.

Output filtering requires a 220µF electrolytic capacitor on each output (pins 5 and 12) to smooth low-frequency response, followed by a 0.47Ω resistor in series to dampen oscillations. For speakers below 4Ω, reduce the resistor to 0.22Ω to maintain power delivery without clipping. Always verify impedance matching with an oscilloscope to confirm clean waveforms at the target load.

Adjust gain by modifying the feedback network: replace the default 47kΩ resistor (pins 2–3 and 10–11) with values between 22kΩ and 100kΩ for higher or lower sensitivity. Higher resistance increases gain but may introduce noise; balance this against source signal strength. Test with a 1kHz sine wave at 1Vpp to observe distortion levels–keep THD below 0.5% at half-power.

For board layout, prioritize symmetrical traces for both channels, keeping high-current paths (power and output) at least 2.5mm wide to handle 1.5A peaks. Route input traces perpendicular to output traces to minimize electromagnetic interference. Use a ground plane on the bottom layer, interrupted only by vias for signal transitions, to reduce noise pickup.

How to Identify Pin Configuration on the TDA2025 Audio Amplifier

Begin by locating the flat side or notch on the chip’s plastic casing–this identifies pin 1. On most dual-in-line packages, pin numbering progresses counterclockwise from this marker when viewing the component from above. Confirm this orientation using a datasheet or manufacturer’s markings; incorrect alignment risks shorting power rails to input/output stages.

Measure continuity with a multimeter set to diode mode between adjacent pins to map internal connections. The outer pins often correspond to power supply rails (VCC and ground), while middle segments handle input signals, bootstrapping capacitors, or feedback loops. Expect low resistance readings (~0.5Ω) on ground paths and higher impedance on signal lines due to internal transistor junctions.

Cross-reference observed measurements with the functional block layout: left channel input typically occupies pins 2-3, right channel pins 5-6, and output stages cluster near pins 8-9 (left) and 11-12 (right). Filter capacitors attach externally but tie to specific internal nodes–trace these to identify NFB (negative feedback) and decoupling points.

Testing Voltage Levels for Pin Validation

Apply a regulated 9V-12V DC supply while monitoring static voltages. Ground references should read 0V, VCC pins near supply voltage, and input/output stages at approximately half-rail (4.5V-6V) if biased correctly. Deviations suggest swapped or damaged traces; recheck solder joints if readings drift.

Avoid relying solely on board silkscreen–manufacturers occasionally mirror layouts between revisions. Use an oscilloscope to verify signal paths: inject a 1kHz sine wave at line-level amplitude (~1Vpp) and observe output symmetry on both channels. Clipping or asymmetry indicates misconfigured gain stages or faulty internal op-amp blocks.

Wiring Your Dual-Channel Sound Module: A Practical Guide

Start with a 100kΩ potentiometer for volume control on each channel. Solder the outer pins to the audio input (L/R) and ground. The center pin connects directly to pin 2 (left) and pin 15 (right) of the IC, ensuring signal clarity before amplification. Avoid exceeding 1V RMS input to prevent clipping; test with a 1kHz sine wave at 0.7V for optimal settings.

Use a 4.7µF electrolytic capacitor between the input signal and the module’s input pins (pins 2 and 15). This blocks DC offset while allowing AC audio signals to pass. For power, a 9V alkaline battery or regulated DC supply delivers stable performance. Add a 1000µF smoothing capacitor across the power rails (pins 9 and 4) to minimize ripple–critical for eliminating hum in high-gain setups.

• Ground the module’s pin 5 (common return) to your project’s main ground plane.
• Solder 0.1µF ceramic capacitors from pins 8 and 12 to ground to suppress high-frequency noise.
• For output coupling, use 470µF electrolytic capacitors on pins 7 (left) and 10 (right), bridging to 8Ω speakers.
• Include a 10kΩ resistor in parallel with each output capacitor to discharge residual charge when power is removed.

Heat management is non-negotiable: attach a small heatsink to the chip’s thermal pad (pin 6) if driving loads below 16Ω or at volumes above 70% for extended periods. Verify wiring with a multimeter–check for shorts between power and ground, and confirm continuity from input to output paths before powering on. A 10Ω resistor in series with the power supply limits current during initial tests, protecting against mistakes.

For stereo separation, keep left and right signal traces at least 5mm apart on your PCB. If wiring by hand, twist the left and right input cables to reduce crosstalk. Test each channel independently with a mono audio source, adjusting the potentiometers to match gain levels (±1dB tolerance). Once verified, power both channels simultaneously–distortion below 0.5% at 1W output indicates correct implementation.

Required Components and Values for Stereo Amplifier Board Assembly

Begin with two 10 μF electrolytic capacitors for input coupling (C1, C2). Position them near the signal source to block DC while allowing AC audio frequencies to pass. Use radial-leaded types rated for 25 V or higher to handle transient voltage spikes without failure. Verify polarity markings before soldering–negative terminals should face the signal path’s ground reference.

Select a pair of 220 μF electrolytic capacitors (C3, C4) for power supply decoupling. Mount them directly between the positive rail and ground at the closest point to the power pins. These values prevent voltage sag during high-current audio peaks while reducing ripple. Opt for low-ESR models if driving 8 Ω loads at 5 W or above, as standard capacitors may introduce audible distortion under load.

Resistor Selection for Stability and Gain

Reference	Value	Power Rating	Purpose
R1, R2	22 kΩ	1/8 W	Input biasing, sets DC offset
R3, R4	100 kΩ	1/8 W	Feedback loop, determines gain ratio
R5, R6	4.7 Ω	1/4 W	Output Zobel network stability

Match resistor pairs within 1% tolerance to maintain channel balance. For R5 and R6, use metal-film types to minimize thermal noise–carbon-film resistors may drift under prolonged high-current conditions. If board space allows, place R3 and R4 slightly elevated for improved heat dissipation when operating near maximum supply voltage (12 V).

Incorporate ceramic capacitors (C5–C8) at 100 nF for high-frequency noise suppression. Place them adjacent to each power pin, ensuring leads are as short as possible to maximize effectiveness. Multilayer ceramics with X7R dielectric offer the best stability across temperature fluctuations, though Z5U types may suffice for cost-sensitive builds. Avoid Y5V–its capacitance drops sharply at operating voltages above 6 V.

Additional Passive and Active Elements

Two 10 Ω resistors (R7, R8) form the series component of the output Zobel network. Combine each with a 100 nF polyester film capacitor (C9, C10) to suppress high-frequency oscillations that can damage speakers. Film capacitors excel here due to their low dielectric absorption, unlike electrolytics which may introduce phase shifts at crossover frequencies.

For the power supply, use a bridge rectifier capable of 1 A continuous current. Pair it with a 1000 μF smoothing capacitor (25 V minimum) to maintain clean DC under load. If using a transformer, select one with dual 9 V secondaries to avoid exceeding the amplifier’s 12 V absolute maximum rating. Include a 1 A fuse in the primary circuit to protect against short circuits during initial testing.
