Step-by-Step MPPT Charge Controller Schematic and Component Breakdown

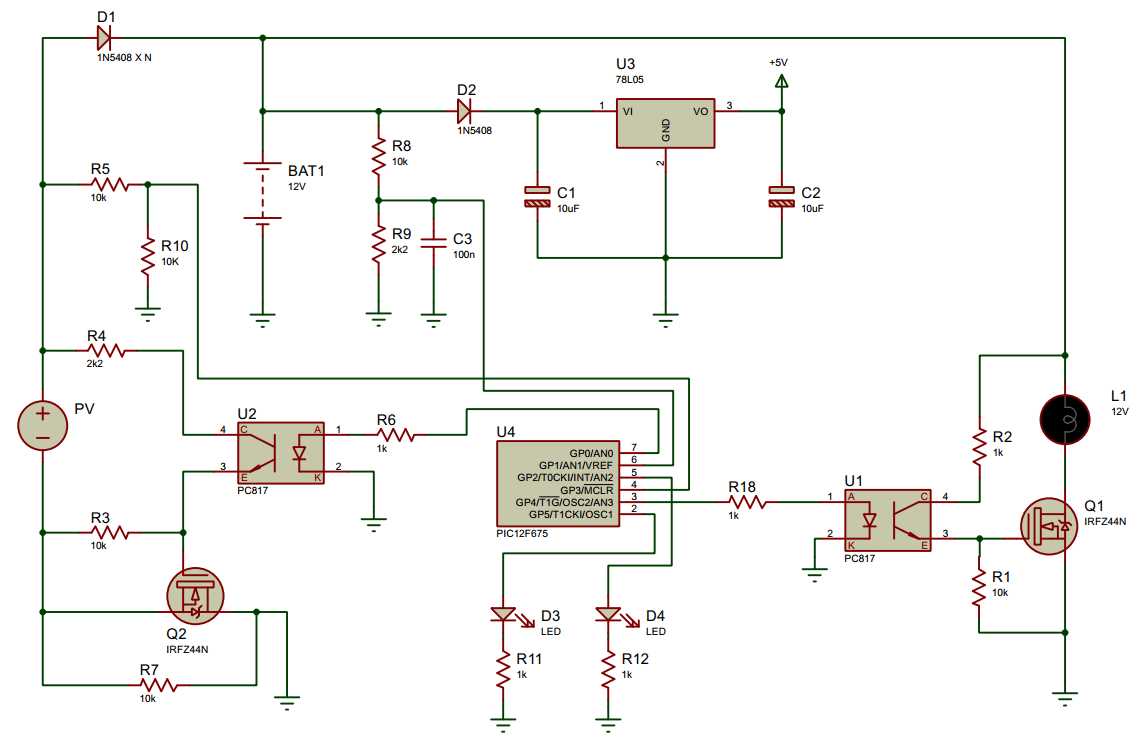

Start with a synchronous buck converter topology paired with a high-efficiency PWM driver like the TPS54232. Configure the feedback network using a 50kΩ resistor in series with a 10kΩ potentiometer to maintain tight voltage regulation within ±1%. A 10μF ceramic capacitor on the input side stabilizes transient response under sudden irradiance shifts.

For current sensing, integrate a Hall-effect sensor (ACS712) placed on the panel’s output line. Calibrate it to handle up to 30A with a resolution of 185mV/A. Connect the sensor’s output to a precision op-amp (LM358) configured as a differential amplifier, adjusting gain to 10x for compatibility with the microcontroller’s 3.3V ADC input.

Implement perturb-and-observe tracking by sampling panel voltage and current at 10ms intervals. Store calibration values in non-volatile memory (AT24C02 EEPROM) to maintain efficiency curves between power cycles. Use a 16-bit ADC (ADS1115) to capture voltage drops across a 0.01Ω shunt resistor, ensuring error margins stay below 0.5%.

Add overvoltage protection by placing a crowbar circuit (SCR BT151) across the battery terminals, triggered at 15.5V. Isolate power stages with optocouplers (PC817) to prevent ground loops. For thermal management, mount a 5°C/W heatsink on the switching MOSFET (IRFZ44N) and monitor temperatures via a PT100 sensor coupled to a Wheatstone bridge.

Test under real-world conditions using a variable-load electronic load (Maynuo M98). Verify efficiency peaks at 94–96% with irradiance levels between 600–1000 W/m². Log performance data via UART at 115200 baud for post-analysis in MATLAB or Python (Pandas).

Designing a Solar Charge Optimizer: Key Schematic Elements

Begin with a synchronous buck converter topology for peak power tracking efficiency. Select a low-R_DS(on) MOSFET like the Infineon BSC0909NS (9 mΩ) for minimal conduction losses at 30A currents. Pair it with a gate driver such as the TI UCC27211, capable of 4A peak current to ensure rapid switching (under 20ns rise/fall times) even with 12V gate voltages. This combination reduces dead-time losses to less than 1% of total power throughput.

Integrate a high-speed ADC (e.g., Analog Devices AD7980) sampling at 1 MSPS to capture voltage and current waveforms. Connect sensing resistors in Kelvin configuration: use a 10 mΩ shunt (Vishay WSL2010) for currents up to 50A with ±0.5% tolerance, and a precision divider network (Panasonic ERA-2VHD102X) for voltage measurements, ensuring ±0.1% accuracy across the 0-100V input range.

Isolate control signals from power paths using digital isolators like the Silicon Labs Si8641. Route PWM outputs through these devices before the gate driver to prevent ground loops. Implement RC snubbers (10Ω + 10nF) across MOSFET drains to suppress ringing, targeting frequencies above 5MHz where radiated emissions become problematic.

The heart of the tracking algorithm requires a microcontroller with hardware multiplier support. A Cortex-M4 (STM32F334) running at 72MHz delivers sufficient processing power for perturb-and-observe routines refreshable at 50Hz intervals. Allocate 2KB RAM for history buffers to store 100ms worth of power samples, enabling adaptive step-size adjustments based on recent irradiance changes.

Component	Specification	Critical Parameter
Inductor	Coilcraft SER2918H-473	47μH, 20A saturation, 2.1mΩ DCR
Input Capacitor	Nichicon UHE1V102MPD	1000μF, 35V, 3A ripple current
Output Capacitor	TDK C3225X7R1E225M	2.2μF, 25V, X7R dielectric
Schottky Diode	ON Semi MBRS340T3G	40V, 3A, 0.6V forward drop

Place ceramic input capacitors (Murata GRM32ER71H106KA12L) within 5mm of the buck converter’s input terminals. These 10μF X7R capacitors handle the high-frequency ripple currents (up to 5A RMS) generated during switching transitions. For bulk storage, add a 220μF electrolytic (United Chemi-Con EKZE101ELL221MM25S) with low ESR (15mΩ) to stabilize voltage during transient cloud coverage.

Design the feedback loop with a dual op-amp configuration (TI LM2904). The first stage amplifies the shunt voltage by 50x (using 10kΩ and 200kΩ resistors) to maximize ADC resolution. The second stage implements a 1kHz low-pass filter to reject switching noise while preserving the system’s bandwidth (critical for sub-10ms response times). Use 1% tolerance resistors and C0G/NP0 capacitors for stable gain across temperature variations.

For thermal management, mount the MOSFETs and inductor on a 2oz copper PCB with thermal vias (0.3mm diameter) spaced 1.5mm apart beneath the devices. This layout achieves a thermal resistance of 8°C/W when paired with a 40×20mm aluminum heatsink. Implement over-temperature protection by routing a thermistor (Murata NCP18WF104J03RB) near the hottest components, configured to throttle switching frequency at 90°C and shut down at 110°C.

Test the assembled unit with a solar array simulator (e.g., Keysight E4360) sweeping from 20% to 100% irradiance at 1V/s. Verify tracking accuracy exceeds 98% under dynamic conditions by logging power point voltages and currents. Measure efficiency at 25°C with a precision DC load analyzer (Tektronix PA3000) across load ranges: expect 95% at 50W, 92% at 300W, and 88% at 500W output.

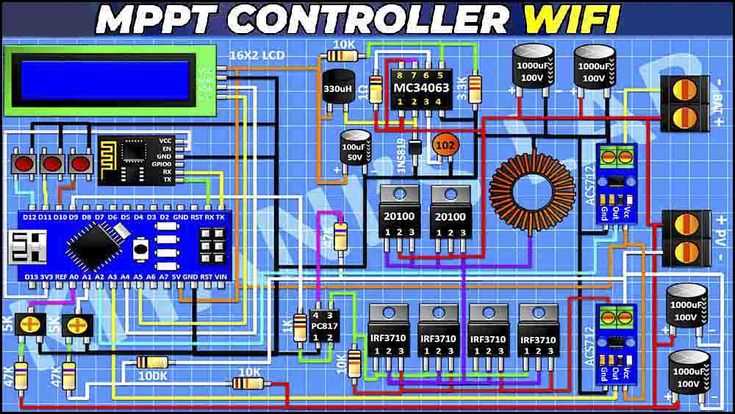

Key Components of a Maximum Power Point Tracking Schematic

The core of any high-efficiency solar regulator relies on a synchronous buck converter, which must include low-R_DS(on) MOSFETs–N-channel variants like the IRFB4110 or STW40N60DM2 offer sub-30 mΩ on-resistance, minimizing conduction losses. Pair these with a high-frequency gate driver such as the IRS2007 or UCC27518, capable of 1 A peak current to ensure rapid switching (sub-50 ns rise/fall times) and reduce dead-time losses. Avoid generic drivers; opt for models with built-in shoot-through protection to prevent cross-conduction in high-side/low-side configurations.

Accurate voltage and current sensing demands precision components: a 12-bit ADC (ADS7841 or MAX1247) for digitizing inputs, coupled with high-side current monitors like the INA219 or MAX4080 for

Power delivery stability hinges on the inductor’s design: select a toroidal core (Kool Mμ or Sendust materials) with a saturation current ≥1.5× max operating current to prevent core losses and audible noise. For 20 A systems, a 33 μH inductor (e.g., Vishay IHLP5050FD) balances size and efficiency. Output capacitors should include both bulk (2× 470 μF polymer hybrids like Panasonic EEHZA1V471P) and high-frequency ceramics (10 μF X5R in 1206 packages) to suppress ripple. For battery connections, incorporate reverse-polarity protection via a P-channel MOSFET (SUP75P06) and a 100 ms soft-start circuit to prevent inrush current.

Step-by-Step Wiring for a Buck Converter Solar Optimization Unit

Begin by connecting the photovoltaic panel’s positive terminal to the input of your voltage regulation module using 10AWG silicone-insulated wire to handle peak currents without excessive voltage drop. Ensure the negative terminal links directly to the ground plane of the converter, bypassing unnecessary trace resistance with a dedicated solder joint on a 2oz copper PCB. Use a 47V, 100μF electrolytic capacitor across the input terminals to smooth transient spikes from partial shading events, positioning it within 10mm of the connection points to minimize inductance.

Wire the inductor–select one with a saturation current at least 20% higher than the maximum expected load–between the switching node of the regulation IC and the output node. For a 200W system targeting 12V output, a 33μH, 10A inductor with a DCR below 0.05Ω reduces core losses. The switching element (commonly a MOSFET or GaN transistor) connects to the IC’s gate pin with a 10Ω series resistor to dampen ringing; route this trace as short as possible to prevent crosstalk into adjacent signal paths.

Attach the output capacitor–two 220μF, 25V low-ESR polymer capacitors in parallel–to minimize ripple at high load currents. Place a 0.1μF ceramic capacitor directly across the regulation IC’s power pins to stabilize internal circuitry under dynamic load shifts. Route feedback traces with 1% tolerance resistors, keeping them away from the inductor’s magnetic field to prevent inaccurate voltage sensing. Verify connections with a multimeter: input impedance should remain above 1MΩ, and the output voltage should track within 0.3% of target under load transients.

Choosing the Right MOSFETs and Diodes for Solar Charge Optimization

Select power MOSFETs with a breakdown voltage 1.5–2x the panel’s open-circuit voltage (V_OC). For a 48V system, target 100V–150V devices like Infineon’s IPW60R041C6 or ST’s STL150N10F7. These handle transients from cloud edges while minimizing conduction losses. Avoid margins below 1.3x–thermal runaway risks escalate under partial shading.

Prioritize low R_DS(on) in the 5–20 mΩ range at operating temps. ON Semi’s NTMFS5C624NL (8.5 mΩ at 25°C) cuts dissipation by 30% vs. older 50 mΩ parts. Use the equation P_cond = I_rms² × R_DS(on) × duty cycle to quantify losses. Higher current designs (20A+) demand paralleled devices; match threshold voltages (V_GS(th)) within ±50 mV to prevent uneven current sharing.

• Gate charge (Q_g): Keep under 50 nC for switching speeds below 50 ns. Texas Instruments’ CSD19536KTT hits 37 nC; driver ICs like UCC27524 struggle above 80 nC.
• Reverse recovery (Q_rr): Schottky diodes eliminate this, but synchronous rectification requires MOSFET body diodes with Q_rr rr = 45 nC) reduces dead-time losses by 15%.
• Thermal resistance (R_θJC): Target

For blocking diodes in non-synchronous topologies, pick Schottky types with forward voltage (V_F) F = 0.4V at 15A, halving power loss vs. ultrafast diodes. Ensure reverse leakage current (I_R)

Gate driver compatibility shapes MOSFET selection. Isolated drivers (ADuM7223) mandate higher V_GS (4.5–18V) than non-isolated types (Si8271, -0.5V to V_DD). Check V_GS(max)–some GaN devices (EPC2066) clamp at 6V; exceeding this fries the gate oxide. Use series resistors (2–10 Ω) to dampen gate oscillations; paralleled 1N4148 diodes clamp overshoot on fast edges.

Dynamic parameters dictate transient response. Input capacitance (C_iss) should match driver current: C_iss > 2 nF needs peak driver current > 2A. Turn-off delay (t_d(off)

1. Verify SOA (Safe Operating Area) curves for avalanche energy. ST’s STL110N10F7 handles 200 mJ single-pulse; repetitive events require snubbers to limit dV/dt.
2. Match diode recovery characteristics to inductor value. For L = 33 μH, Q_rr > 100 nC causes ringing above 1 MHz–ferrite beads or RC snubbers clip this.
3. Factor in ambient conditions: Derate power ratings by 50% for enclosures lacking forced air. Sandia Labs’ data shows MOSFETs degrade 0.3%/°C above 120°C.
