MSD RPM Activated Switch Wiring Schematic Guide for Racing Ignition Systems

For optimal performance at specific engine speeds, integrate a relay-based trigger into your electronic timing system. Use a normally open microswitch rated for at least 5A at 14V DC, mounted on the firewall or a dedicated bracket near the distributor. Connect the switch output to terminal 85 of a 5-pin SPDT automotive relay (Bosch 0 332 014 153 or equivalent), with terminal 86 grounded. The relay’s common terminal (30) should feed the ignition box’s auxiliary input port, while terminal 87 ties to a fused 12V source–not the ignition coil positive.

Wire gauge selection is critical: use 18 AWG for signal paths (switch to relay), 14 AWG for power feeds (battery to relay), and 16 AWG for ground returns. Route all conductors away from high-current alternator leads and ignition wires to prevent induced voltage spikes. Splice connections with heat-shrink solder splices (not crimp terminals) and secure with split loom tubing where exposed to heat or abrasion. Label each wire at both ends with heat-resistant sleeves for troubleshooting.

Configure the cutoff threshold via a linear potentiometer (10K ohms) between the tach signal source and the control module’s adjustment input. Calibrate the resistor value to match the desired rotational speed threshold, typically between 4,500 and 6,000 RPM for naturally aspirated engines. Test activation under load using a tachometer simulator or dyno pull–verify the relay engages and disengages within a 100 RPM tolerance to prevent on/off cycling.

Grounding strategy separates signal returns from power grounds: run a dedicated 12 AWG braided cable from the ignition box’s ground terminal directly to the battery negative post–never to the engine block or chassis. For forced-induction applications, add a 0.1µF ceramic capacitor across the switch contacts to suppress arcing. Seal all connections with dielectric grease and protect the relay with a waterproof relay socket (Tyco 1432697-1 or similar).

Connecting Your High-Performance Ignition Control Module

Start by locating the trigger input terminal on your ignition control unit–typically marked “Trigger” or “Input Signal.” Splice the purple wire from your inductive pickup or tach output directly into this terminal, ensuring a secure crimp connection with heat-shrink tubing to prevent moisture intrusion. Avoid twisting wires together without solder; vibration from high-RPM operation can degrade loose connections within hours.

Ground the module’s black wire to the engine block, not the chassis. Use a dedicated star washer and a 10mm bolt torqued to 18-22 ft-lbs. Paint or corrosion on the block surface will increase resistance, causing erratic activation thresholds. Verify ground continuity with a multimeter before finalizing; readings should not exceed 0.2 ohms.

Trigger Source Selection and Calibration

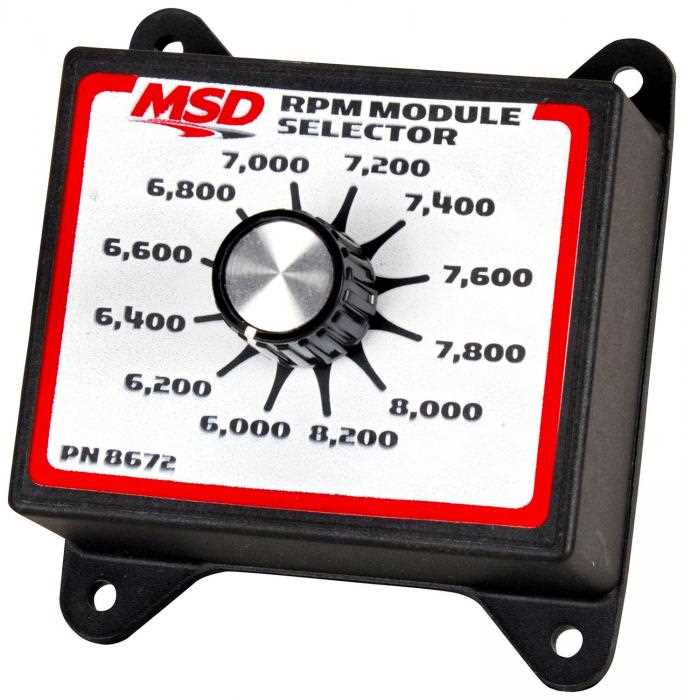

For distributor-based engines, link the signal source to the negative coil terminal. On coil-on-plug setups, tap into the first cylinder’s ignition wire or use the ECM’s tach output if available. Set the activation threshold via the adjustable dial or rotary switch–start at 3,500 RPM for naturally aspirated engines and 5,000 RPM for forced induction. Factory-recommended settings often vary: consult the specific model’s resistance table to match the dial position to your target range.

Install a 1μF capacitor between the trigger input and ground to filter electrical noise from alternators or fuel pumps. Omit this step only if your wiring harness runs shielded cable or is routed separately from high-current paths. Noise spikes above 200mV can cause false activation, particularly during aggressive shifts or deceleration.

Output Configuration and Testing

Route the green output wire to the device you intend to control–a solenoid, nitrous relay, or shift light. On most units, this output sinks to ground when active; confirm compatibility with your load’s voltage requirements (typically 12V). For solenoids exceeding 1A, use a relay with a 30A fuse in-line to protect the module’s internal circuitry. Test operation by temporarily connecting a 12V LED across the output; it should illuminate when revving past the set threshold.

Adjust the hysteresis setting via the yellow wire if present. A 200-300 RPM hysteresis prevents rapid cycling during transient conditions like gear shifts. Connect this wire to a 1kΩ potentiometer, then to chassis ground–turning clockwise increases hysteresis. Without this, minor RPM fluctuations can trigger repeated activations, leading to component fatigue.

Finalize installation by verifying all connections with a dwell meter or oscilloscope. Trigger signals should show clean, consistent waveforms without clipping or dropout. If irregularities appear, re-route wires away from ignition coils, ECU harnesses, or high-voltage sources. Seal terminals with dielectric grease for humidity-prone environments, particularly near intercoolers or exhaust manifolds.

Integrating a Performance Threshold Controller with Ignition Triggers

Connect the trigger output from the performance limiter directly to the ignition pickup–either the distributor’s magnetic sensor or a crankshaft position sender. Ensure the signal wire (typically pink or violet on OEM systems) from the controller attaches to the same terminal as the ignition module’s primary input. Polarity matters: reverse connections will fail to trigger, causing erratic timing or no spark at all. Use a multimeter to confirm sensor voltage; expect 200–400 mV AC at idle from a distributor reluctor and 1–3 V AC from a crankshaft pickup.

ForHEI or points-style distributors, splice the limiter’s input into the negative coil terminal using a T-tap or solder joint. Avoid using vampire clamps–corrosion introduces resistance, degrading signal integrity. If tapping a crankshaft sender, prioritize the 36-tooth reluctor wheel signals over 60-minus-2 patterns; the latter requires additional signal conditioning to prevent false threshold activation. Ground the limiter’s chassis to the engine block with a dedicated 12-gauge wire, not through bolt threads.

Critical Signal Path Considerations

• Verify voltage drop across connections: aim for
• Shield signal wires with tinned copper braid if routing near alternators or ignition coils.
• Use shrink tubing with adhesive lining on all splices to prevent moisture ingress.
• Bypass capacitors (0.1 µF) at the sensor input suppress noise from high-energy coils.

Test functionality with a timing light: advance should remain stable until the pre-set threshold engages, instantly retarding ignition by 10–14 degrees. If erratic behavior occurs, recheck sensor alignment–misaligned reluctors introduce harmonic distortion. For crank-trigger applications, ensure the limiter’s software recognizes the sensor’s rising edge to avoid half-moon advance errors. Calibrate the system under load (not idle) to accurately reflect real-world conditions.

Step-by-Step Connection Instructions for Standard Ignition Configurations

Disconnect the battery’s negative terminal before handling any electrical components to prevent short circuits or accidental triggering. For a basic capacitive discharge setup, attach the primary trigger wire (typically white or violet) to the ignition coil’s negative terminal, ensuring a clean, secure crimp or solder joint to avoid resistance buildup. Route the ground lead (black) to the engine block or chassis, avoiding painted or coated surfaces–bare metal contact is critical for low-impedance grounding. If integrating a rev-limiting module, splice the signal input (usually pink or green) into the tachometer circuit or coil trigger wire, confirming polarity with a multimeter (should register ~12V with key on); reverse polarity risks damaging the control unit. Verify all connections with a continuity test before powering up.

For multispark configurations, connect the auxiliary output (often yellow) to the coil’s positive terminal if using a high-energy system, but omit this step in standard single-spark setups to prevent backfeeding. When interfacing with OEM systems, bypass factory resistors by locating the ballast resistor wire (resistance wire or bypass link) and removing it–this ensures full voltage to the coil. For engines with distributor-based timing, ensure the magnetic pickup (hall-effect sensor or points) is aligned with the reluctor wheel gap (0.030″–0.060″ clearance); misalignment causes erratic firing or no spark. Post-installation, crank the engine while monitoring spark output with a timing light–adjust initial advance to 10°–12° BTDC unless manufacturer specifications dictate otherwise.

Identifying Correct Wire Colors and Terminals for MSD 8910E Ignition Control

Locate the red wire on the 8910E unit–this serves as the primary positive lead. Connect it directly to the ignition circuit’s switched 12V source, ensuring compatibility with a 10A fuse. Avoid splices near high-current components like starter motors to prevent voltage drop. The black wire functions as the ground; terminate it to a clean, unpainted chassis point or the engine block, verifying resistance below 0.5 ohms for optimal performance.

For the tachometer input, use the violet wire. Attach it to the negative terminal of the coil (distributor-side) or the ECU’s designated tach signal pin if configured for sequential injection. Confirm the signal’s integrity by checking for a clean, square waveform between 0.5V to 3V peak-to-peak at idle; deviations indicate faulty connections or interference. The orange wire carries the trigger output–route it to the ignition box’s input terminal, avoiding proximity to high-voltage cables (>20kV) to prevent cross-talk.

Wire Color	Function	Connection Point	Voltage/Resistance Check
Red	Switched +12V	Ignition circuit (fused)	12V DC,
Black	Ground	Chassis/engine block
Violet	Tach signal	Coil (-) or ECU pin	0.5–3V P-P square wave
Orange	Trigger output	Ignition box input	5V–12V pulsed

Gray wires (two) are reserved for multi-spark outputs; pair them to the ignition coil’s primary terminals. Use 18-gauge wire for runs under 18 inches and upgrade to 16-gauge for lengths exceeding 24 inches to reduce voltage loss. For late-model engines with waste spark or coil-on-plug setups, consult the factory service manual to identify the correct trigger coil–secondary cylinders may invert polarity, requiring a 1kΩ resistor in-line with the violet wire. Test all connections under load: verify the red lead maintains 11.5V–14.2V across 3,000–7,000 RPM ranges.
