Step-by-Step NEMA 6-50 Outlet Wiring Guide with Diagram
For a secure installation of the 50-amp, 250-volt outlet, use 10 AWG copper wire for the conductors. Ensure the circuit breaker matches the plug’s rating–50 amps for continuous loads–to prevent overheating or fire hazards. Grounding is non-negotiable: connect the green or bare wire to the ground terminal on both the outlet and panel.
Step 1: Strip 3/4 inch of insulation from each conductor. Insert the black and red wires into the brass terminals (L1 and L2), tightening screws to 12 in-lbs torque. The white wire attaches to the silver terminal (neutral), though it’s often unused in 240-volt setups–verify local codes before leaving it disconnected.
Step 2: Verify polarity with a multimeter after installation. Readings should show 240V between hot wires (black-red) and 120V between each hot and neutral if the neutral is connected. Miswiring risks damaging appliances or creating shock hazards. Label the breaker “50A Outlet” in the panel to avoid accidental trips during maintenance.
Avoid using aluminum wire for this setup; its thermal expansion can loosen connections over time. If the run exceeds 100 feet, upsize to 8 AWG to compensate for voltage drop. Always test continuity on the ground path–resistance should measure less than 1 ohm from outlet ground to the panel’s ground bus.
For outlets exposed to moisture, use a weatherproof enclosure rated for outdoor use. Seal all cable entries with silicon-based caulk to prevent water ingress. If splicing wires beyond the junction box, use UL-listed wire nuts and wrap connections with electrical tape for added moisture protection.
Practical Installation Guide for 250V, 50A Receptacle
Start by verifying the circuit breaker matches the 50-amp capacity of the outlet. A mismatch risks overheating or equipment failure. Use a double-pole breaker rated for 50 amps, installed in a 240V configuration. Check local electrical codes–some jurisdictions require a dedicated circuit for high-draw appliances like welders, EV chargers, or large kilns.
Gather these materials before proceeding:
- 6 AWG copper wire (minimum gauge for 50-amp circuits, though 4 AWG is preferred for longer runs)
- Grounding wire (green or bare copper, same gauge as hot wires)
- Torque screwdriver (set to manufacturer specs to avoid loose connections)
- Outlet box rated for 60°C minimum, preferably 75°C for durability
- Ring terminals (if connecting to screw terminals for added security)
Strip ¾ inch of insulation from each conductor, ensuring no nicked strands–that weakens current capacity. Insert the wires into the outlet terminals in this order: the two hot wires (typically red and black) connect to the brass screws (L-shaped or straight slots), while the neutral (white) goes unused in this configuration. The ground wire (green/bare) attaches to the green screw, bonded to the metal box if metallic.
Tighten all terminal screws to 15 inch-pounds using a calibrated torque driver. Loose connections generate heat and increase resistance, which can melt insulation over time. For added reliability, crimp ring terminals onto the wire ends before securing them under the screws–this prevents wire strands from splaying and ensures a solid connection.
Test the circuit with a multimeter before energizing:
- Set the breaker to “OFF” and measure continuity between each hot wire and ground (should read infinite ohms).
- Turn the breaker on and check voltage: each hot wire should read 240V relative to ground and 120V to neutral (if present).
- Verify the outlet’s polarity–miswired outlets can damage connected equipment.
Enclose the outlet in a weatherproof cover if installed outdoors or in damp locations. For workshops or garages, consider a hinged box with a gasket to prevent dust and moisture ingress. Avoid using temporary fixes like tape or silicone over exposed terminals–these degrade quickly under load.
Avoid These Mistakes:
Skipping the torque specification risks arcing, especially under heavy loads (40+ amps). Even a slightly loose screw can overheat. Never splice wires inside the outlet box–use a junction box upstream if extending the circuit. Finally, confirm the appliance’s plug matches the outlet. Adapters or mismatched connectors create fire hazards by defeating the grounding path.
Essential Gear for Installing a Heavy-Duty 240V Outlet
Start with a UL-listed 6 AWG copper cable–three conductors (two hot, one ground)–rated for 60°C minimum, though 75°C or higher ensures margin for motor loads. Pair it with a 50-amp double-pole circuit breaker, matched to your panel’s brand to prevent nuisance trips. A torque screwdriver (30–60 in-lbs range) verifies terminal tightness; NEC 110.14(D) mandates manufacturer-specified torque values. Include a non-contact voltage tester, insulation-stripping tool calibrated for 6 AWG, and fish tape if running conduit over 6 feet. Romex staples or EMT straps secure cables every 4.5 feet; use plastic bushings on metal conduit to prevent abrasion.
A 4×4 deep junction box (minimum 21 cubic inches) accommodates the receptacle’s bulk; verify depth with a tape measure to ensure full conductor slack. Wire nuts or lever connectors rated for 6 AWG handle pigtailing if splitting the circuit. Keep a heat-shrink kit for ground connections in damp locations–standard electrical tape degrades under HVAC cycles. Safety gear: class 00 rubber gloves (rated 500V), arc-flash face shield, and a multimeter (600V CAT III) to confirm no back-feed before touching live terminals.
Electrical Connection Guide: 3-Prong 250V Outlet Assembly
Shut off power at the circuit breaker before handling any conductors. Use a non-contact voltage tester to confirm the absence of current in the cables feeding the outlet. Failure to verify this step risks severe injury or fatal shock.
Identify the three wires: two hot wires carrying 125V each (combining to 250V) and one ground wire. Hot wires are typically black and red, while the ground is green or bare copper. Strip 0.75 inches of insulation from each wire using wire strippers, ensuring no nicks or cuts remain on the conductors.
Insert the hot wires into the brass-colored terminals–black to the top brass screw, red to the bottom brass screw. Loop each wire clockwise around its terminal screw, tightening with a screwdriver until snug. The ground wire connects to the green terminal; bend the end into a U-shape for a secure fit.
For receptacle installation, secure the outlet into an approved electrical box with mounting screws. Ensure the ground screw makes solid contact with the metal box if using one. Tighten all screws evenly to prevent misalignment or loose connections.
Before energizing the circuit, inspect all connections for stray strands, exposed insulation near terminals, or reversed polarity. Use a multimeter set to AC voltage to measure 250V between the two hot terminals and 125V from each hot to ground after restoring power.

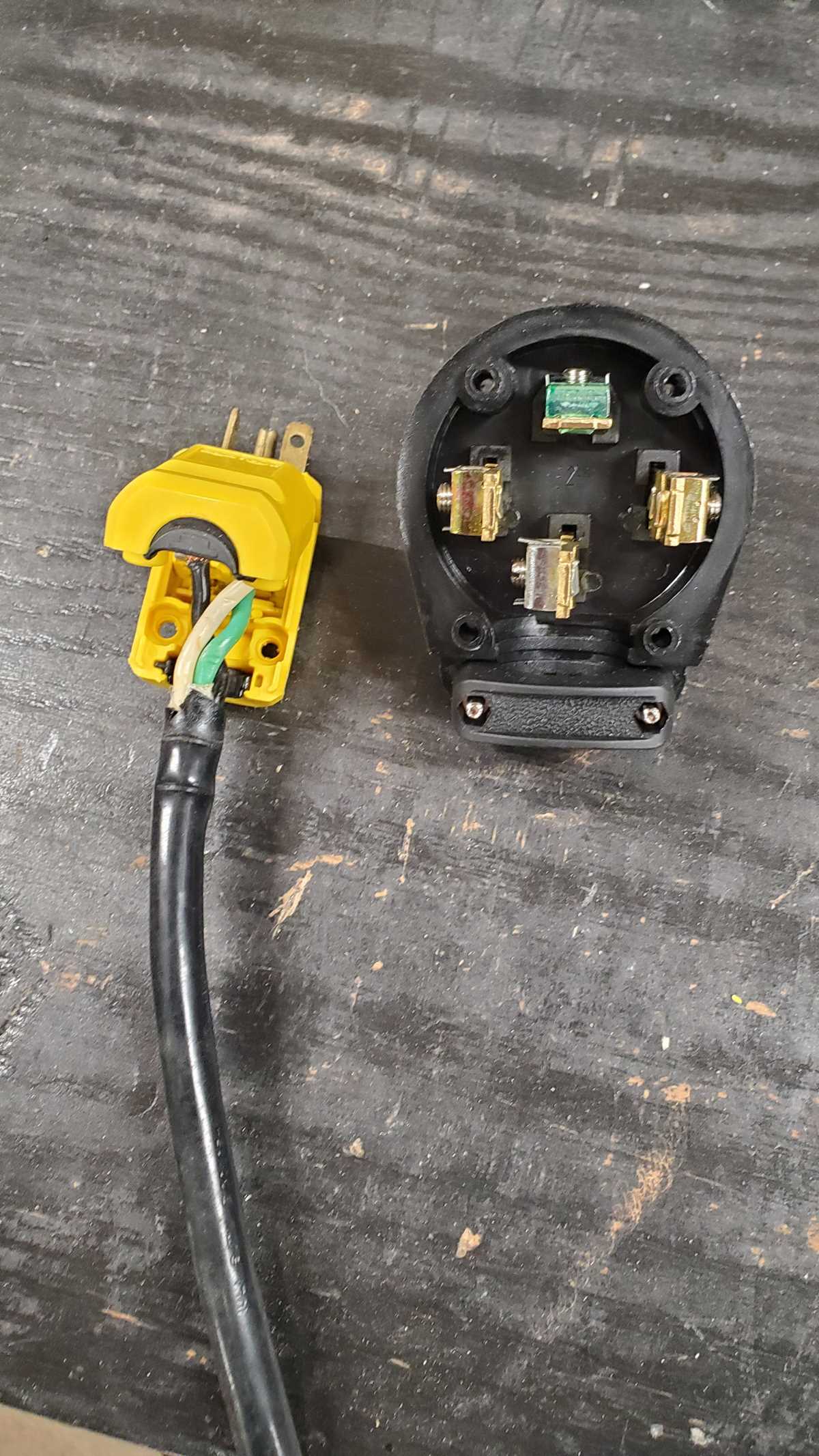

If installing a plug, match wire colors to terminal slots: black to one hot blade, red to the other, and green to the grounding prong. Crimp or solder connectors if required by the plug design, then assemble the housing tightly to avoid moisture ingress.
Label the circuit at the breaker panel to indicate its purpose. Store extra wire inside the box, coiled neatly to prevent stress on connections. For repeated use, consider adding a strain relief clamp where the cable enters the device housing.
Color Coding and Terminal Connections for 240V Heavy-Duty Outlet Configuration
For a 240V industrial-grade plug setup, terminate the hot conductors to the brass-colored screws labeled X and Y on the receptacle–use black for X and red for Y as per NEC standards. The equipment grounding conductor (EGC) must connect to the green screw, stripped to expose 6–8 mm of bare copper or green-insulated wire. Verify torque specifications: 18 in-lbs for #6 AWG, 25 in-lbs for #4 AWG, using a calibrated screwdriver. Omit white or gray wires; this setup lacks a neutral path.
Permitted Conductor Gauges and Torque Values
| Wire Size (AWG) | Minimum Torque (in-lbs) | Maximum Current (A) |
|---|---|---|
| #8 | 16 | 40 |
| #6 | 18 | 50 |
| #4 | 25 | 70 |
Strip insulation precisely: 12 mm for #6/#4 AWG; longer exposures risk shorts against the metal enclosure. Label the circuit breaker “240V Load – No Neutral” to prevent misapplication of future modifications. Test continuity between X/Y terminals and ground–expect OL on a multimeter in ohmmeter mode. If using conduit, ensure the conduit itself isn’t relied upon as the sole EGC without bonding jumper.
Safety Precautions When Working with High-Amperage Outlets
Shut off power at the circuit breaker before handling any connections. A 50-amp receptacle delivers enough current to cause fatal electrocution if mishandled. Verify absence of voltage using a non-contact tester or multimeter set to AC voltage mode–probe both hot terminals and the ground to confirm zero reading. A single oversight here risks instant, severe injury.
Use wire strippers calibrated for 6 AWG copper conductors, not generic tools. Improper stripping damages strands, increasing resistance and heat buildup under load. Secure connections with torque-rated screwdrivers–tighten terminal screws to 18 lb-in as specified by UL standards. Loose connections arc, melt insulation, and ignite adjacent materials within minutes.
Ensure receptacle boxes are rated for high-current applications. Plastic enclosures degrade under sustained 125°F thermal cycling, while metal boxes dissipate heat effectively. Mount outlets with captive screws to prevent vibration loosening in shop environments. Replace any outlet showing discoloration–carbonized plastic indicates past arcing and imminent failure.
Inspect cords for abrasions before each use. Exposed copper on flexible cables corrodes rapidly, especially near strain reliefs. Twist-lock adapters prevent accidental disconnections under load, eliminating dangerous sparking when unplugging equipment drawing near-peak current. Never daisy-chain power strips–parallel 50-amp loads exceed circuit protection thresholds, bypassing trip mechanisms entirely.
Wear arc-flash-rated gloves and face shields when servicing live panels. Fault currents in 240V circuits surpass 10 kA, generating temperatures hotter than molten lava. Keep a Class C fire extinguisher within arm’s reach–water conducts current, turning minor incidents into fatal electrocutions. Test GFI protection monthly; high-current faults may not trigger standard breakers before insulation failure.
