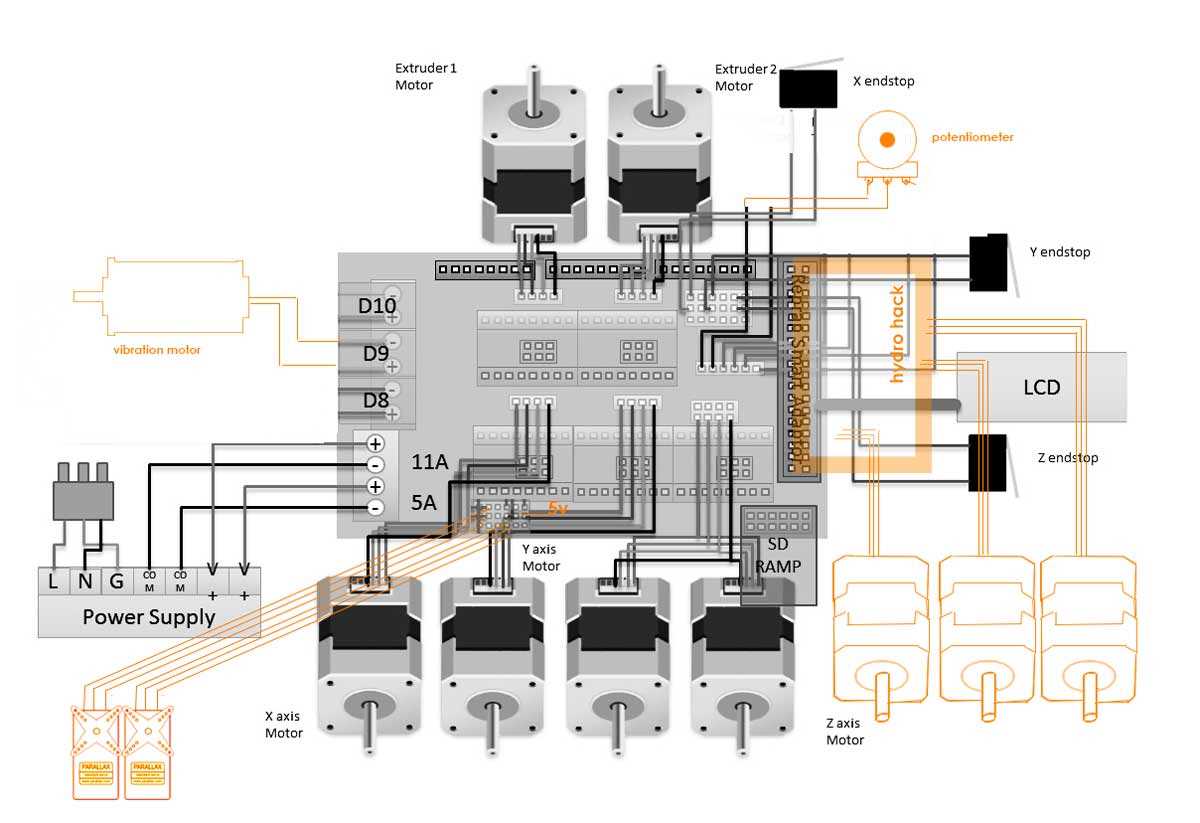

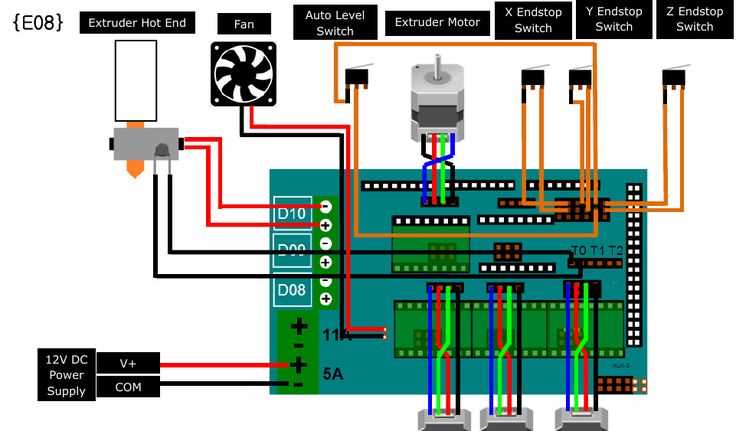

Complete RAMPS 14 Wiring Guide and Schematic Breakdown for 3D Printers
Begin by tracing power flow from the 12V/24V input through the polyfuses before examining the MOSFETs driving heated components–these handle up to 11A for the bed and 5A for extruders. Verify fuse ratings: 5A for general circuits, 11A for the heated bed, and 15A automotive fuses for high-current paths. A single faulty fuse disrupts entire sub-systems.
Check TMC2130/DRV8825 stepper drivers next. Their VREF voltage directly controls current–0.8V to 1.2V yields 1.0A to 1.5A RMS per coil. Exceeding 1.7A risks overheating; thermal throttling kicks in at 125°C. Resistors R47, R48, R49, and R50 dictate microstepping–replace with 10kΩ for 1/16 steps or 20kΩ for 1/32 precision. Incorrect values skew layer alignment by ±0.05mm.
Inspect SMD capacitors near power regulators–22µF 35V types filtering noise. Bulging or leaking indicates degradation; replace only with X5R/X7R dielectric to maintain ±10% tolerance under 120°C. The ATMEGA2560 MCU interfaces via SPI, UART, and I²C–corrupted firmware manifests as missing endstops or unresponsive thermistors. Flash using Arduino IDE with optiboot bootloader.
Thermistors TH1 (bed) and TH2 (extruder) use 100kΩ NTC variants with β=4092–skewed readings result from incorrect pull-up resistors (4.7kΩ). Validate connections to ADC6/ADC7 on the MCU; loose headers introduce ±5°C hysteresis. For dual extrusion, MOSFET Q3 handles the second hotend–ensure P-channel type (IRF9Z34N) and 10kΩ gate resistor prevent false triggering.
Endstop switches connect to X_MIN/Y_MIN/Z_MIN–use mechanical types for reliability or optical sensors for non-contact precision. The D8 diode near the bed heater prevents backfeed–omitting it risks frying the 5V regulator during PWM. For silent operation, replace standard fans with 4-wire PWM units (24V 0.2A), driven directly from the board’s D9/D10 outputs.
Parsing the Schematic of the Popular 3D Printer Control Board
Begin by tracing the stepper driver sockets: these are labeled X, Y, Z, E0, and E1. Each socket accepts a modular driver (e.g., A4988 or DRV8825) and demands precise power input–12V or 24V–fed through the adjacent VMOT and GND terminals. Verify jumper placement beneath each socket; absent jumpers halve microstepping, leading to coarse prints. MOSFET outputs (D8, D9, D10) handle extruder heaters and heated beds–ensure the flyback diode (typically a 1N4007) is soldered at D8’s cathode to suppress voltage spikes when the bed disengages.
Power delivery splits into two rails: VCC (logic, 5V) and VIN (motor/heater voltage). The barrel jack routes VIN through a Schottky diode (SS34) to prevent reverse polarity; bypassing this risks frying the Arduino Mega-derived MCU. Polyfuses (e.g., 5A for the bed) act as sacrificial protection–replace immediately if tripped. Thermistor inputs (T0, T1, T2) connect to analog pins A13-A15; use a 4.7kΩ pull-up resistor to stabilize readings in open-circuit scenarios. For endstops, opt for mechanical switches over optical types unless noise filtering (100nF capacitor across signal/GND) is added–false triggers skew homing.
Key Components and Their Connections on the Control Board
Begin by identifying the ATmega2560 microcontroller–this acts as the central processing unit, interfacing with all peripherals. Solder joints for D10, D8, and D9 (PWM outputs) must be verified for cold soldering, as these directly drive heated beds and extruder heaters at 12V/24V. Polarity matters: connect the positive terminal of the power input to the V_in screw terminal, ensuring the negative aligns with the adjacent ground. Use 16 AWG or thicker wire for power inputs to prevent voltage drops under load–current peaks can exceed 15A during bed heating.
Connect stepper drivers like DRV8825 or TMC2208 to the X, Y, Z, E0, and E1 sockets, matching pinouts: VMOT (motor voltage) and GND on the outer pins; A1, A2, B1, B2 toward the board’s interior. Jumper MS1-MS3 under drivers to configure microstepping–remove all jumpers for full-step, add one for 1/16th. For endstops, use MIN (X, Y, Z) for homing; wire NC (normally closed) to S and – to ensure failsafe operation. Verify thermistors on T0 and T1 read 100kΩ at room temperature–deviation signals faulty wiring or shorts. Shield motor cables with twisted pairs and ground the shield at the controller end to reduce EMI affecting nearby sensors.
Stepper Motor Driver Wiring and Polarity
Connect stepper driver voltage inputs directly to the power supply terminals–no intermediate components should interrupt the main current path. Verify polarity by aligning the red (+) wire to the positive terminal and the black (–) wire to the negative terminal on the driver’s power block. Reversing these connections will damage the driver instantly; verify twice before applying power. For NEMA 17 motors, most drivers tolerate 12–24V, but check the driver’s datasheet for maximum ratings–exceeding this threshold fries internal MOSFETs within seconds.
Stepper motor coils require precise phase wiring to ensure proper rotation. Locate the motor’s coil pairs by measuring resistance with a multimeter: each pair registers 2–5Ω, while leads from opposing coils show open circuit. Connect the first coil’s wires to A+ and A–, the second to B+ and B–, ensuring the sequence matches the driver’s pinout. Swapping A+ with A– or B+ with B– inverts rotation; if the motor turns opposite the intended direction, flip one pair’s connections. Avoid loose strands–even a single stray wire can short and destroy the driver.
Common Wiring Errors and Fixes
Loose connectors under load generate back EMF spikes, degrading driver performance or causing erratic motion. Crimp ferrules onto stripped ends and secure them with the terminal screw, clamping the insulation–not just the copper–to prevent fatigue. If microstepping glitches occur, check that the driver’s microstep jumpers align with firmware settings; mismatched microstepping creates skipped steps and stalling. For TMC2209 drivers, enable UART only if firmware supports sensorless homing; omitting this causes unresponsive motors.
Test motor wiring with a single-axis move before multi-axis operation. Jog the motor in 1-mm increments and listen for grinding–this indicates coil miswiring or reversed polarity. If the motor vibrates without movement, decrease current via the driver’s potentiometer until smooth operation resumes. For external drivers, route motor wires away from power cables to minimize EMI-induced false steps. Shielded cable isn’t necessary unless cable runs exceed 50 cm–otherwise, twist pairs tightly and avoid parallel routing alongside power lines.
Power Supply Requirements and Voltage Regulation
Use a 12V DC power source with a minimum capacity of 20A for stable operation under load. Higher currents (25-30A) prevent voltage sag during simultaneous motor, heater, and fan usage. Ensure the supply has over-current protection to avoid damage from short circuits.
Linear or switching regulators are acceptable, but switching regulators (e.g., LM2596) reduce heat dissipation. For 12V systems, a buck converter with 90%+ efficiency maintains consistent output under variable loads. Avoid cheap no-name regulators–they often fail under prolonged use.
Voltage ripple above 100mV peak-to-peak can cause erratic stepper motor behavior. Use low-ESR capacitors (1000µF minimum at input, 100µF at output) to filter noise. Place capacitors as close as possible to the regulator’s input/output pins to minimize trace inductance.
Replace generic barrel connectors with terminal blocks or XT60 plugs for reliable high-current connections. Loose connections cause resistive heating and voltage drops. Inspect solder joints for cold solder–reflow if necessary to prevent intermittent failures.
Voltage Regulation Components
| Component | Specification | Purpose |
|---|---|---|
| Buck Converter | 12V to 5V, 3A | Logic supply for MCU |
| Schottky Diode | 30V, 5A (e.g., 1N5822) | Reverse polarity protection |
| Fuse | 20A slow-blow | Over-current protection |
| Ferrite Bead | 1kΩ @ 100MHz | EMI suppression |
Test the system with an oscilloscope to verify regulation before connecting sensitive components. Programmed voltages (e.g., PID-controlled heaters) should not deviate by more than ±2%. If deviation exceeds limits, recalibrate the feedback loop or check for loose connections.
For dual-power inputs (e.g., separate logic and motor supplies), isolate grounds to avoid ground loops. Use a common ground star point near the control board to reduce noise coupling. Measure ground offsets with a multimeter–differences above 50mV indicate improper grounding.
Avoid powering high-load devices (e.g., heated beds) from the same rail as logic components. Distribute load across multiple rails or use separate supplies. Monitor temperature–excessive heat (>60°C at the regulator) indicates undersized components or poor thermal dissipation.
Endstop Switches Setup and Signal Path
Connect endstop switches to the dedicated MIN/MAX pins on your controller board using shielded twisted-pair cables (24 AWG or thicker). Wire the common (COM) terminal to ground, the normally closed (NC) terminal to the signal pin, and leave the normally open (NO) terminal disconnected. This configuration ensures fail-safe operation: if wiring fails or a switch malfunctions, the signal defaults to triggered, immediately halting motion. Avoid using 5V as a pull-up source–rely on the onboard 4.7kΩ resistors instead to prevent noise-induced false triggers.
- Signal flow: When the switch triggers, it grounds the signal line, pulling it from HIGH (3.3V–5V) to LOW (0V).
- Noise filtering: Add a 0.1µF ceramic capacitor between the signal pin and ground at the switch end for mechanical switches; optical/ Hall-effect sensors require no filtering.
- Pin assignments (default):
- X-MIN: D3
- X-MAX: D2
- Y-MIN: D14
- Y-MAX: D15
- Z-MIN: D18
- Z-MAX: D19
- Firmware: Configure
ENDSTOP_INVERTINGandMIN_SOFTWARE_ENDSTOPSin Marlin/Claww to match your switch type (true for NC, false for NO).
Test each switch individually by manually triggering it while monitoring the signal voltage with a multimeter or serial console output. Ensure the signal transitions sharply from 4.8–5.2V to 1Ω across terminals–these degrade signal integrity over time.
