How to Build a Neopixel LED Circuit With Wiring Schematics

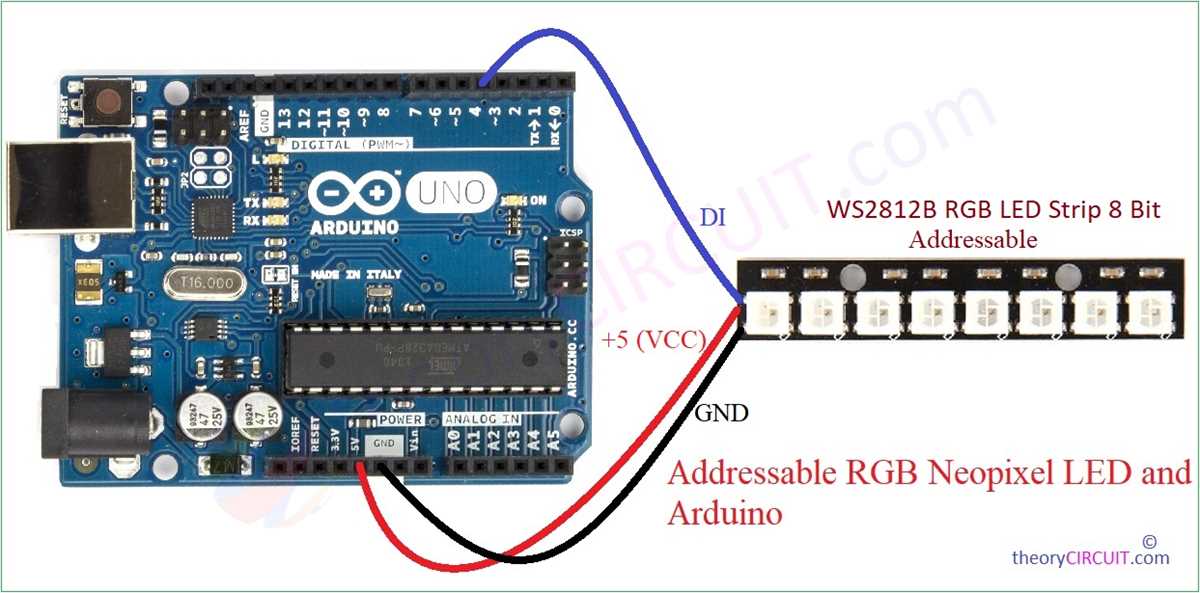

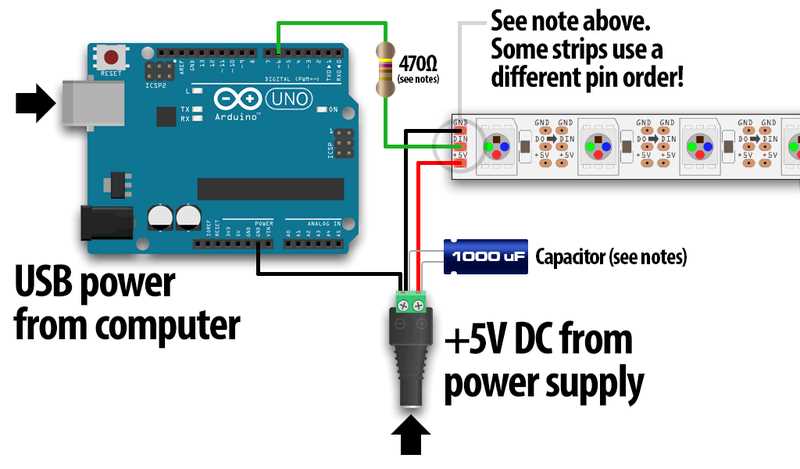

Start with a 5V power supply capable of delivering at least 3A per meter of LED strip to prevent voltage drops. Connect the positive terminal directly to the strip’s power input and the ground to both the strip and microcontroller–avoid sharing grounds with other high-current devices to minimize interference. For Arduino-based projects, use a 300–500Ω resistor between the data pin and the first LED’s DIN pad to protect the signal integrity. Skip capacitors if the power supply is stable, but add a 1000µF electrolytic capacitor across the power rails for strips longer than 2 meters to smooth transient current spikes.
Route data lines away from PWM-controlled motors, servos, or switching regulators. If signal degradation occurs, insert a SN74AHCT125 level shifter when driving strips from a 3.3V controller like ESP8266 or Raspberry Pi–this maintains clean 5V logic levels. For power injection on extended runs, splice the +5V and GND wires every 2–3 meters, ensuring thick gauge (18–22 AWG) to handle current draw without overheating. Avoid daisy-chaining multiple strips from a single data pin–use separate pins or a dedicated LED driver IC like WS2812B-compatible shift registers for parallel control.
Test small segments first: upload a basic pulse sketch to verify color consistency before scaling up. If LEDs flicker at full brightness, check for loose connections or insufficient power–common culprits include undersized wires or shared power rails with other components. For battery-powered setups, use a LiPo pack with a 3.7V-to-5V boost converter and monitor voltage levels to prevent brownouts during animations. Always isolate the LED ground from USB ground to avoid ground loops when debugging.
Designing LED Strip Control Layouts: Key Connections
Always begin by placing a 1000µF capacitor between the power supply’s positive and negative terminals to suppress voltage spikes. This prevents flickering and premature LED failure. Avoid cheaper capacitors under 63V rating–opt for 100V models for reliable performance.
Power lines should use 22 AWG or thicker wire for strips up to 5 meters; longer runs demand 18 AWG to prevent voltage drop. Branching from a single supply to multiple strips? Split power at the source, not downstream, to maintain consistent brightness.
Logic-level signals require a separate data wire–typically 26–28 AWG–connected directly to the microcontroller’s PWM pin. Keep this wire under 30cm from the first LED to avoid signal degradation. For longer distances, insert a 300–500Ω resistor at the data input of the first LED.
Ground connections must converge at a single point near the power supply. Avoid daisy-chaining grounds between strips–this creates noise loops. Instead, run individual ground wires from each strip back to the supply’s negative terminal.
WS2812B-based strips draw 60mA per LED at full brightness/white. A 1-meter strip (60 LEDs) needs 3.6A; plan power supplies with at least 20% overhead. Use thermal adhesive to attach strips to aluminum channels–excess heat degrades color accuracy.
For outdoor installations, seal connections with dielectric grease and heat-shrink tubing rated for UV exposure. Solder joints should be reinforced with 3mm silicone tubing before shrinking to prevent moisture ingress.
Microcontroller selection matters: ESP32 handles 800Hz refresh rates for smooth animations, while Arduino Nano tops out at 400Hz. Use FastLED or Adafruit_NeoPixel libraries–avoid generic GPIO toggling, which lacks timing precision.
Before finalizing a layout, prototype critical sections on a breadboard. Test with shorted data lines and reverse polarity to confirm fail-safes. A multimeter in continuity mode verifies all connections, while an oscilloscope checks for signal integrity on the data line.

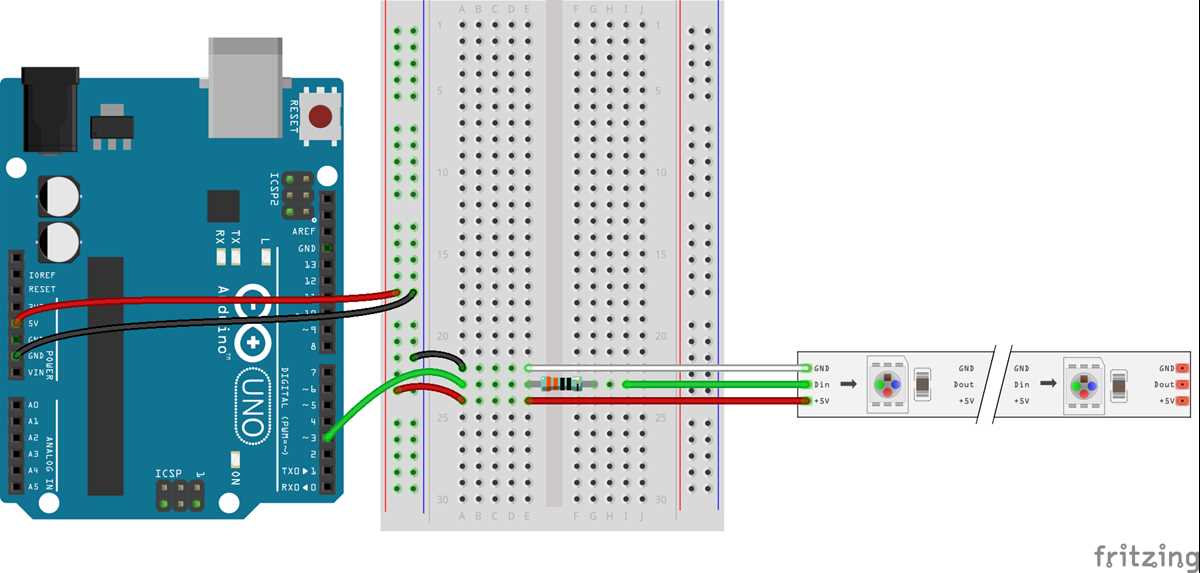

Basic Wiring Guide for Addressable LED Strips
Connect the 5V power supply directly to the strip’s input pads–avoid daisy-chaining power through multiple segments if the total length exceeds 2 meters. For longer runs, inject power every 2 meters using separate wires from the source to prevent voltage drop and color inconsistency at the far end.
Use 18 AWG or thicker wire for power and ground connections to minimize resistance. Signal wire (data) can be 22 AWG but should not exceed 3 meters without a level shifter or repeater to maintain signal integrity. Twist the data and ground wires together to reduce noise interference.
- Solder joints should be coated with heat-shrink tubing or silicone sealant to prevent oxidation, especially in humid environments.
- For outdoor installations, use waterproof strips (IP65 or higher) and a sealed power supply rated for environmental exposure.
- Avoid powering the controller from the same line as the LEDs if the current draw exceeds 2A–use a separate regulator.
Ground the microcontroller and LED strip at a single common point to prevent ground loops. If the data signal degrades, add a 300–500 ohm resistor between the microcontroller’s data output and the strip’s input pad to dampen reflections.
Test each segment before final installation by running a simple color-changing sequence. If flickering occurs, check for loose connections or adjacent high-frequency noise sources (motors, switching power supplies). Move the strip’s data line away from AC wires if interference persists.
When cutting the strip to length, use sharp scissors or a hobby knife and solder new connectors at the cut point. Pre-tinned pads on both sides of the cut ensure faster, more reliable joints. For temporary setups, use male/female JST connectors to avoid soldering.
For battery-powered projects, a 3.7V LiPo can drive short strips (under 30 LEDs) directly, but a buck converter is necessary for longer runs to maintain 5V. Always add a fuse (1–3A) between the battery and the strip to prevent overheating during short circuits.
Power Supply Requirements and Voltage Drop Calculations
Use a power source rated for at least 1.2x the total current draw of the LED array. For a 5-meter strip with 60 LEDs per meter at full white brightness (60 mA per LED), the math is simple: 300 LEDs × 0.06 A = 18 A. Add a 20% safety margin–target 22 A. A 5V 25A supply (125W) is ideal; anything below risks flicker or color shifts under load.
Voltage sag worsens with cable length and resistance. For AWG 22 wire (53 mΩ/m), a 5-meter run at 18 A drops 4.77V–nearly the entire supply voltage. Replace AWG 22 with AWG 14 (8.2 mΩ/m), and the drop reduces to 0.74V, preserving color accuracy. The table below benchmarks acceptable sag limits for stable operation:
| LED Quantity | Max Allowable Sag (5V) | Recommended Wire Gauge |
|---|---|---|
| ≤ 100 | 0.3V | AWG 20 |
| 101–300 | 0.2V | AWG 18 |
| 301–600 | 0.15V | AWG 16 (dual run) |
| 600+ | 0.1V | AWG 14 (inject power every 2m) |
Inject power at both ends if the strip length exceeds 3 meters. For single-ended setups, calculate sag using Ohm’s law: *Vdrop = I × R × L*, where *I* is current, *R* is wire resistance (Ω/m), and *L* is length (m). Example: 4m AWG 16 wire (13 mΩ/m) at 6A drops 0.31V–acceptable for most applications but avoid pushing to full brightness.
Decoupling Capacitors Eliminate Noise
Install a 1000 µF electrolytic capacitor across the power rails at each injection point to suppress voltage spikes. Smaller 0.1 µF ceramic capacitors placed every 0.5m filter high-frequency noise, critical for steady color reproduction. Skip this step, and you risk premature LED degradation or flickering during transitions.
Test voltage at the farthest LED with a multimeter under full load. If readings dip below 4.5V, increase wire gauge, shorten runs, or add a second power source. Never assume labels–measure to confirm. For permanent installations, use a dedicated PCB bus bar distributing power via parallel paths to mitigate cumulative sag.

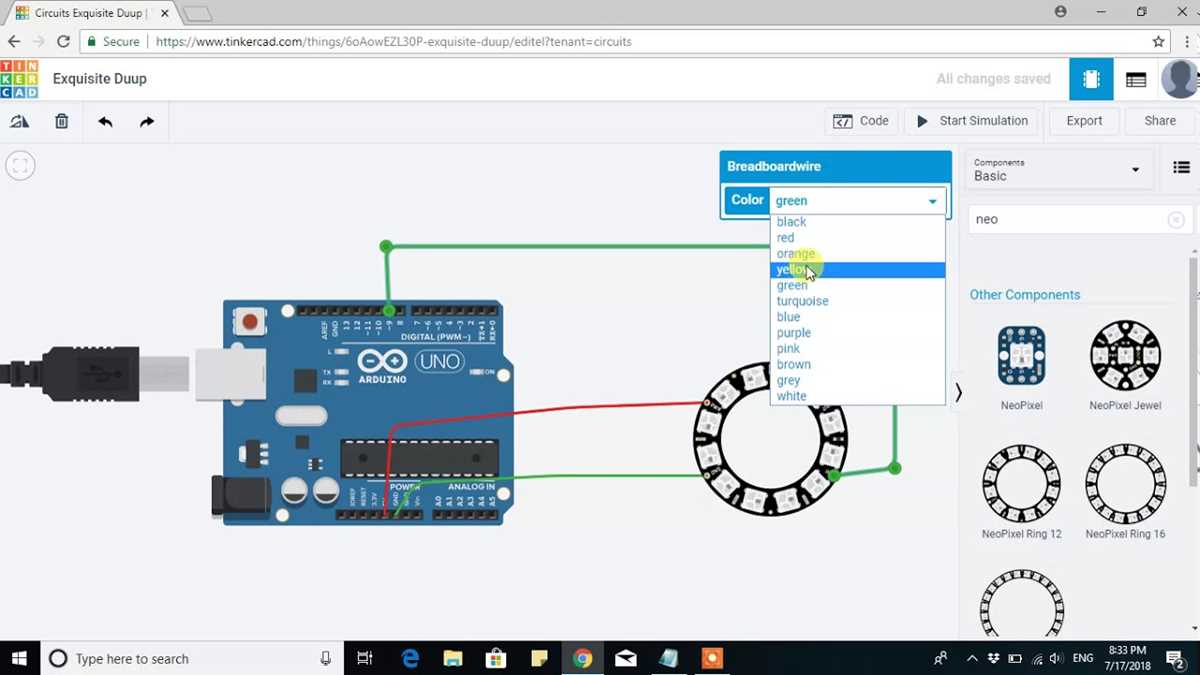

Microcontroller Connections for Addressable LED Control
Connect the data input pin of the LED strip to a GPIO pin on the MCU with a 300–500Ω resistor in series. This dampens signal reflections and prevents data corruption at higher refresh rates. For lengths exceeding 5 meters, reduce resistance to 220Ω but avoid bypassing it entirely–undershoot or overshoot voltages may damage the first LED segment.
Power the MCU and LEDs separately if total current consumption exceeds 1 A. A common pitfall is sharing the same 5 V rail; voltage drops across the MCU’s poor regulation introduce flicker or color inaccuracies. Use a dedicated 5 V, 2 A power supply for the LEDs and a separate 3.3 V or 5 V regulator for the microcontroller.
Ground the MCU and LED ground planes together at a single point to minimize noise coupling. Large current spikes from LED transitions can induce ground bounce, causing erratic MCU behavior. Keep traces short; if using a breadboard, insert a 10 µF capacitor across the LED power pins as close to the strip as possible.
Select a 16–48 MHz MCU clock speed for stable PWM generation. Slower clocks may miss timing windows, resulting in partial LED updates. STM32, ESP32, and ATmega328P recommend 800 kHz data rates for WS2812B variants. Verify the MCU’s rise/fall times meet the LED protocol’s 60 ns tolerance–some 3.3 V MCUs require a level shifter for reliable 5 V logic.
Signal Integrity Adjustments
Add a 100 nF capacitor between the MCU’s power pins if the firmware resets during LED updates. Sudden load changes can trigger brownout conditions. For battery-powered designs, a Schottky diode (e.g., 1N5817) in parallel with the LED power feed prevents reverse current from draining the MCU.
Avoid PWM channels on the MCU’s data output pin–interference from adjacent high-speed signals degrades color precision. If multiplexing is unavoidable, use a timer-based output compare mode with DMA for deterministic timing. ESP8266’s limited RAM restricts strip lengths; offload buffering to an external SRAM or shift to an ESP32.
Test connections with a logic analyzer. A single corrupted bit shifts the entire color pattern. For debugging, drive a single LED at half brightness–this verified signal integrity without overwhelming the supply. If colors appear inverted, confirm the LED protocol’s color order (GRB vs. RGB) matches the MCU’s library configuration.
