Complete Nest Thermostat Wiring Guide for Home Installation

Before touching any terminals, verify the system type on your existing control unit–heat-only, cooling-only, or combined HVAC–and confirm voltage (typically 24V, but check the label). Mismatches cause immediate irreparable damage. Use a multimeter in AC mode to confirm the Rh (heating power) and Rc (cooling power) wires carry live current; readings should match within ±2V of the expected voltage. Non-compliance indicates a blown fuse or transformer issue–rectify before proceeding.

Label every conductor at both ends with color-coded tags matching the included quick-reference chart. Standard colors vary: red (power), white (heat), yellow (cool), green (fan), blue (common). Deviations exist; a brown wire might denote emergency heat, purple could signal a humidifier lead. Cross-reference against the physical terminal block to avoid assumptions.

Step-by-step attachment:

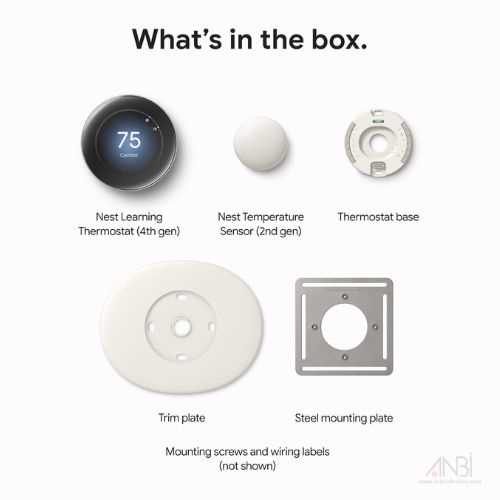

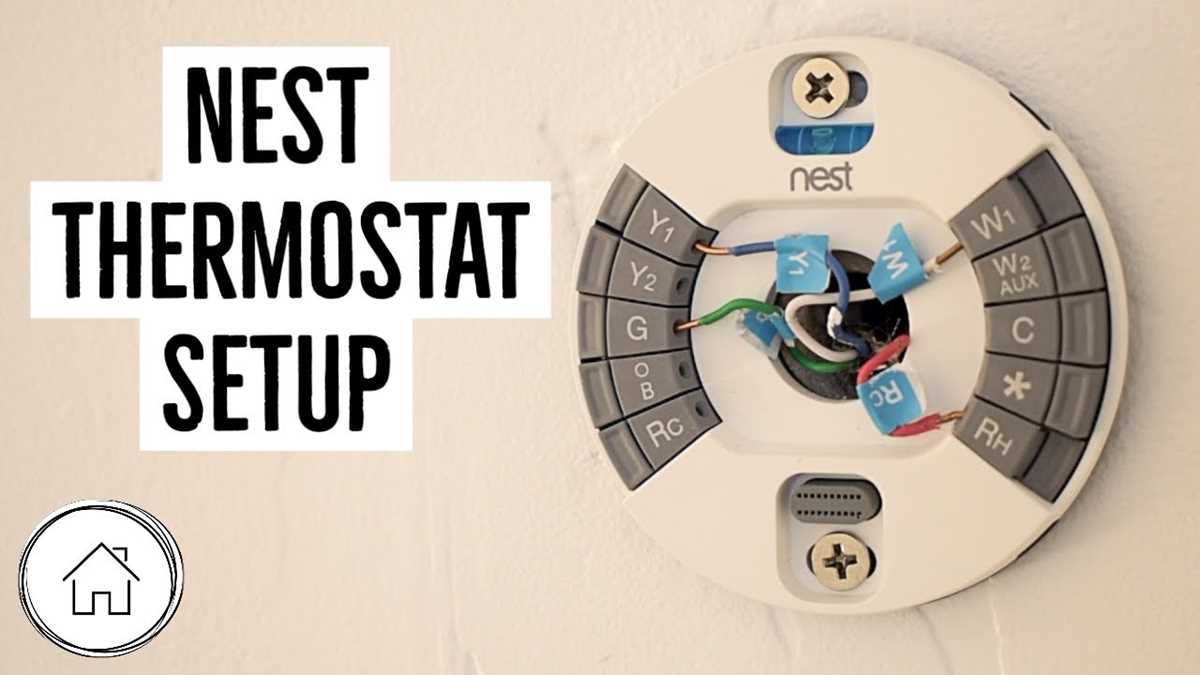

Disconnect power at the breaker. Remove the control faceplate and, using needle-nose pliers, detach wires one by one, securing each to a non-conductive surface. Connect the base plate firmly to the wall with included screws; uneven mounting strains terminals. Insert the red conductor into the R terminal, ensuring no copper strand escapes–shorts are catastrophic. Route remaining wires strictly per configuration: white to W, yellow to Y, green to G, blue to C. Double-check tightness; a loose screw raises resistance, overheating components.

Reapply power and monitor the startup screen. If an E74 error appears, the C wire is absent or improperly seated–reevaluate. For dual transformer systems (furnace + AC), separate Rh and Rc connections with a jumper only if the existing setup allows; otherwise, wire directly. Advanced systems with auxiliary equipment (humidifiers, ERVs) require additional terminals–consult installation manual section 4B for auxiliary mappings.

Understanding Your Smart Climate Controller Connections

Disconnect power at the circuit breaker before handling any wires to prevent electrical shock or damage to the device. Verify the breaker is off by testing voltage with a non-contact tester–no reading confirms safety.

Identify the labeled terminals on your existing control panel: R (power), C (common), W (heat), Y (cooling), and G (fan). Match each wire to the corresponding port on your new unit, ensuring correct polarity–reversing wires can cause system failure or overheating.

Systems with dual-transformer setups require additional steps. Locate the Rh (heating power) and Rc (cooling power) terminals. If your setup lacks a C wire, a compatible adapter or power extender kit may be necessary to ensure stable operation and avoid battery drainage.

For heat pumps, note the O/B terminal–this controls the reversing valve. Improper connection here can cause the system to run in the wrong mode, leading to inefficient heating or cooling. Refer to the manufacturer’s system specifications if unsure, as valve behavior varies between brands.

If your system includes emergency heat (often labeled E), connect this separately. Skipping this step may result in the auxiliary heat not activating when needed, reducing performance during extreme temperatures. Use a multimeter to test continuity if wires appear damaged or corroded.

After securing all connections, restore power and observe the display. A blank screen or error code indicates a wiring issue–recheck each terminal for loose or incorrect connections. Run a test cycle to verify heating, cooling, and fan functions operate independently without delay.

Document your configuration with clear photos or notes. Future troubleshooting becomes significantly easier when the original setup is recorded, preventing unnecessary guesswork during maintenance or replacement.

Determining Your Existing Climate Control System Layout

Before modifying connections, shut off power at the circuit breaker to avoid electrical hazards. Remove the wall plate of your current control unit to expose the terminals–most systems use labeled screws or push-in connectors like R, C, W, Y, G, and O/B. Take a clear photograph of the existing setup or sketch it on paper, noting each wire’s color and terminal position. Single-stage heating and cooling systems typically have 2–5 leads, while multi-stage or heat pump configurations may include up to 8 distinct conductors.

Use a multimeter to verify voltage between the power supply (R) and common (C) terminals–it should read 24V AC. If C is absent, the system lacks a dedicated neutral, which may require an external power adapter for compatibility. Heat pumps often feature O/B terminals; check for a jumper between them–if present, note whether it’s connected to O or B to determine reversing valve behavior (cooling vs. heating activation). Absence of a Y terminal suggests no central cooling, while missing W indicates no auxiliary heating.

Key Indicators of System Type

• Heating-only: R, W, and possibly C terminals.
• Cooling-only: R, Y, G, and possibly C.
• Heat pump: R, C, Y, G, O/B, and often auxiliary heat (W2, E).
• Multi-stage: Multiple Rc/Rh, Y1/Y2, W1/W2, G.

Label every detached lead with masking tape to prevent misplacement during reattachment. If wires appear frayed or corroded, strip ¼ inch of insulation and re-crimp with a wire nut to ensure reliable contact.

How to Clearly Mark Your Climate Control System Cables Before Installation

Begin by shutting off power at the circuit breaker to prevent electric shock or damage to the device. Use a non-contact voltage tester to confirm no current remains in the low-voltage lines–these typically carry 24V and pose no immediate danger but require caution. Label each wire as you disconnect it from the existing control unit, using narrow strips of adhesive tape or pre-printed tags from the manufacturer’s kit. Avoid masking tape or paper labels; opt for polyester or vinyl markers resistant to smudging, heat, and moisture.

Identify the cable functions by referencing the old controller’s terminal designations or a standard R-G-Y-W-C-OB color scheme chart. The power line (common 24V) is often red, while cooling, heating, fan, and auxiliary signals follow distinct hues–verify each against the setup manual. If colors deviate due to regional standards or brand variations, measure voltage between pairs with a multimeter: 24V between power (R) and common (C) confirms correct pairing. Mark both ends of every cable before detaching from the wall plate.

For systems with dual transformers or zoned setups, differentiate cables by adding suffixes like “R1/C1” for first zone, “R2/C2” for second–confusion during reconnection risks short circuits or erratic behavior. If the original device lacks clear terminals, trace cables back to the air handler or furnace control board and label them there. Use a fine-tip permanent marker to write directly on the wire insulation if tags aren’t feasible, ensuring legibility from multiple angles.

Bundle cables with twist ties or spiral wrap, grouping related functions (e.g., heating and auxiliary) to simplify routing. Snap a photo of the labeled connections before removing the old control unit–this serves as a backup reference if discrepancies arise later. For integrated humidistat or dehumidistat lines, note additional terminals (often labeled “H” or “D”) and mark these separately. If wires are too short for clear labeling, carefully extend them using butt splice connectors crimped and sealed with heat-shrink tubing.

Cross-check labeled cables against the new device’s terminal diagram, ensuring compatibility–most modern smart controllers support single-stage, multi-stage, or heat-pump configurations. If the system includes emergency heat (E), it typically uses a separate relay; confirm this line carries voltage only when the primary heat source fails. For installations with powered accessories (like smart vents or sensors), isolate these cables and mark them “ACCESSORY” to prevent misconnection to low-voltage circuits.

Before finalizing, verify each label aligns with the new device’s port assignments. Reconnect cables one at a time, securing them with terminal screws tightened to 0.5-0.7 Nm to avoid loosening. Restore power and test sequences–heating, cooling, fan modes–while monitoring for abnormal delays or error codes. If discrepancies persist, re-examine labeled cables for swapped functions or damaged insulation, especially at the wall entry point where sharp edges may fray wires.

Preventing Installation Errors in Climate Control Systems

Label every conductor before disconnecting the old control unit. Use masking tape or a permanent marker to note voltage levels, terminal positions, and wire functions–especially for configurations like heat pumps or multi-stage systems. Mislabeling a single 24V common wire can force the entire system into failure mode, triggering error codes like E23 or disrupting power cycles. Store labels in a secure location until reconnection is complete.

Test circuit integrity with a multimeter before finalizing connections. A reading below 23V or above 28V on the R and C terminals indicates potential transformer issues or short circuits in the wiring harness. Verify continuity on all low-voltage circuits; a broken conductor masked by insulation may cause intermittent faults difficult to diagnose later. Replace any wires showing signs of corrosion, fraying, or oxidation–even minor damage increases resistance and compromises performance.

Critical Connection Pitfalls

Mistake	Symptoms	Solution
Swapped R and W terminals	Heating fails to activate, compressor shorts, error E72	Cross-reference with OEM manual; R delivers power, W initiates heat
O terminal wired to B instead of O/B	Reversing valve malfunctions, cooling cycles erratically	Confirm heat pump specs; O/B toggles valve state during cooling
Missing G wire for fan control	Fan runs continuously, airflow restricted, error E79	Route G from HVAC board to control terminal; jumper only if manual fan override exists

Secure all terminal screws with a torque of 0.5 Nm–loose connections generate heat, oxidize contacts, and cause voltage drops. Use terminal blocks or ferrule connectors for stranded wires to prevent fraying. For systems with emergency heat, ensure auxiliary power wires (often labeled E or AUX) carry the correct amperage; exceeding 1A trips internal fuses on most models.

Recheck polarity on all dual-voltage inputs. A phase reversal on the 120V/240V supply–common in combined heating/cooling units–can damage the control board’s rectifier circuit. Use a non-contact voltage tester to confirm power is fully disconnected before handling conductors. After installation, run a system test for at least 20 minutes; monitor for abnormal clicking, delayed responses, or inconsistent temperature swings, which indicate wiring errors.
