Practical NTC Thermistor Circuit Schematics and Connection Guide
For accurate temperature monitoring in low-power applications, connect a negative coefficient resistor directly to a microcontroller’s analog input with a 10 kΩ pull-up to VCC (3.3V or 5V). Ensure the sensing element’s resistance range (typically 1 kΩ to 100 kΩ) aligns with the ADC’s input impedance–less than 1 MΩ–to avoid reading errors. Bypass capacitors (0.1 µF ceramic) near the power pins stabilize measurements.
Calibration requires measuring resistance at two known temperatures (e.g., ice water: 0°C, boiling water: 100°C) and plotting a linear approximation. Use the Steinhart-Hart equation for higher precision, but a two-point method suffices for ±1°C accuracy in most cases. Avoid self-heating by limiting current to 1 mA; calculations show a 10 kΩ element will drift 0.5°C at 2 mA.
Use 1% tolerance resistors in voltage dividers to minimize error propagation. For cold-weather applications, pair the element with a 4.7 kΩ series resistor to extend the operational range below -20°C. Shield cables longer than 10 cm with twisted pairs and ground the shield at one end to reduce noise.
In battery-powered systems, power the sensing network only during sampling to conserve energy. A P-channel MOSFET (e.g., IRLML6401) can gate power, reducing standby current to nA levels. For industrial environments, add a zener diode (5.1V) across the input to clamp transients–surge tests confirm this prevents ADC damage from 24V spikes.
Test the setup with a variable resistor (e.g., 10 kΩ potentiometer) to simulate temperature changes before deployment. Log output voltages at 25°C increments to verify the curve matches manufacturer datasheets. Discrepancies often trace to incorrect pull-up values or ground loops.

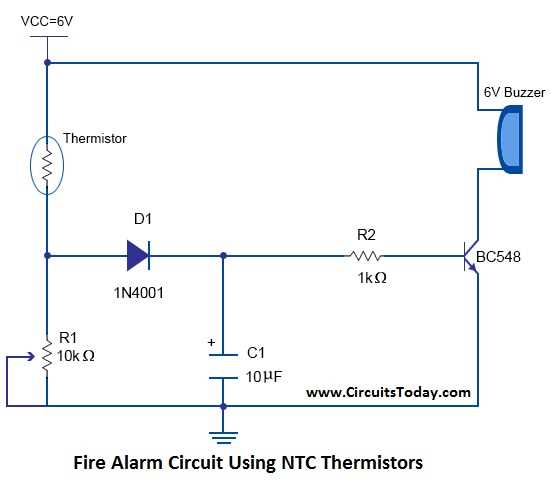

Building a Temperature-Sensing Schematic with Negative Coefficient Components
Start by pairing the sensing element with a 10kΩ resistor in a voltage divider to maximize sensitivity around 25°C. Apply a stable 5V supply–fluctuations above ±2% distort readings. For microcontroller integration, connect the midpoint to an ADC pin (e.g., Arduino A0 or ESP32 GPIO34) and use this formula to convert raw ADC values to temperature:

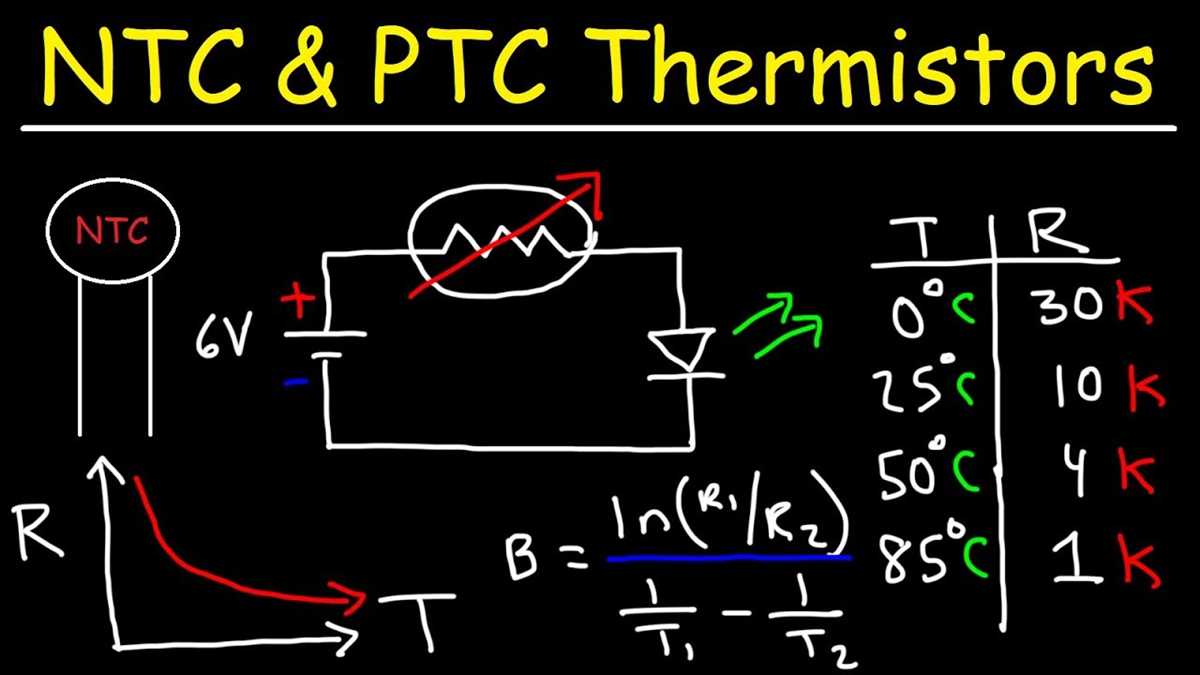

T(°C) = 1 / (ln(R / R₀) / B + 1 / T₀) - 273.15- Where
R₀= reference resistance atT₀(e.g., 10kΩ at 25°C) B= material constant (typically 3435K for common probes)R= computed resistance fromR = R_series * (V_in / V_out - 1)
For noise reduction, solder a 0.1µF ceramic capacitor between the sensor’s legs and ground–this filters high-frequency spikes without affecting response time. Test the setup by immersing the probe in icy water (0°C) and boiling water (100°C); deviations exceeding ±1.5°C indicate a faulty component or incorrect B-value. Calibrate by adjusting the series resistor (try 4.7kΩ–47kΩ) until readings align with a trusted mercury thermometer in a stirred ice-water bath.

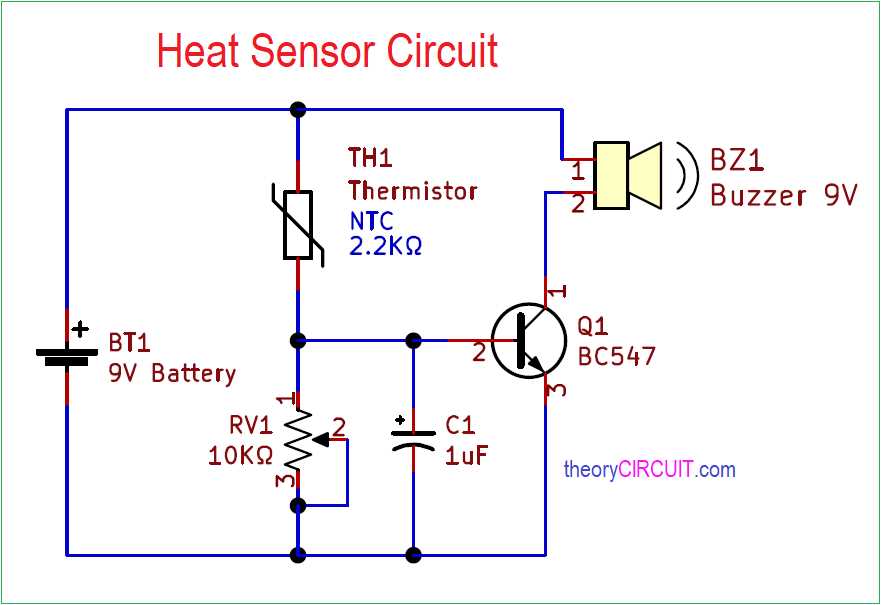

Basic Negative Coefficient Resistor Voltage Splitter Setup
For a stable temperature-dependent output, pair the sensing element with a fixed-value resistor (Rfixed) in series. Select Rfixed ≈ R25 (the sensor’s nominal resistance at 25°C) to maximize sensitivity across typical operating ranges. For example, a 10kΩ sensor at 25°C should use a 10kΩ resistor for ±2% accuracy between 0°C and 50°C, while a 5kΩ resistor shifts precision to -10°C to 30°C.
| Sensor Nominal @ 25°C (Ω) | Optimal Rfixed (Ω) | Effective Range (°C) | Output Swing (Vout at 5V input) |
|---|---|---|---|
| 1k | 1k | -20 to 40 | 0.5V to 4.2V |
| 5k | 5k | -10 to 60 | 0.7V to 3.9V |
| 10k | 10k | 0 to 70 | 0.8V to 3.8V |
Connect the voltage reference (Vref) to the series node and ground one end of Rfixed for a pull-down arrangement. Use a bypass capacitor (0.1µF ceramic) across the sensor to suppress high-frequency noise, especially in noisy environments like motor controllers. For microcontroller interfacing, buffer the output with an op-amp (e.g., LM358) if the ADC input impedance exceeds 100kΩ or risk loading errors distorting readings by >5%.
Selecting Current Control Components for Temperature-Dependent Sensors
Begin with a series element rated at 1.5 to 2 times the sensor’s self-heating threshold. For a 10kΩ bead operating at 3.3V, a 15kΩ to 20kΩ resistor limits initial surge to 165–220µA, preventing false readings during cold starts. Verify the bead’s data sheet for the dissipation constant (typically 1–5mW/°C) and adjust the series value to keep power below 30% of this limit.
For pulse-width modulation applications, pair the series element with a 10nF ceramic capacitor. The RC time constant should match the sampling interval; a 20kΩ resistor and 10nF capacitor yield 200µs, suitable for 1kHz sensing cycles. Ensure the capacitor’s voltage rating exceeds the supply by at least 25% to avoid dielectric stress under transient spikes.
Inrush conditions require a shunt bypass element. A 1N4148 diode across the series resistor clamps voltage overshoot during power-up, reducing sensor stress. The diode’s reverse leakage (typically 25nA at 25°C) introduces negligible error for most 0.1% tolerance beads, but replace it with a 10MΩ resistor if leakage affects low-power designs.
Thermal gradients demand dynamic balancing. A parallel 100kΩ resistor stabilizes the sensor’s mid-range response, flattening the exponential curve. For a 5V supply, this configuration biases the sensor at ~2.5V, optimizing resolution around 25°C. Measure the parallel combination’s temperature coefficient; values above ±200ppm/°C may require compensation with a matched fixed resistor.
High-frequency noise suppression calls for a ferrite bead in series. Choose a bead with impedance >1kΩ at 10MHz and DC resistance
Battery-powered systems benefit from a low-leakage MOSFET switch. A Toshiba SSM3K7002 stabilizes the series element’s impedance during sleep cycles, cutting quiescent current to GS(th) (typically 1–2V) aligns with the microcontroller’s logic levels to prevent partial conduction.
Avoid carbon film resistors for the series element; their TCR (±300ppm/°C) introduces drift. Use thin-film resistors with ±50ppm/°C TCR or better. Panasonic ERJ-6ENF series (0402 package) provides ±0.1% tolerance and low inductance, critical for accurate transient response. For cost-sensitive designs, a single 0.5% tolerance metal film resistor outperforms two 1% resistors in series, eliminating tolerance stacking errors.
Wheatstone Bridge Configuration with Negative Coefficient Sensors
Start by selecting resistors with a temperature coefficient below 50 ppm/°C to minimize drift in balance conditions. Pair the sensing element with a precision resistor of equal nominal value–for example, match a 10 kΩ sensor with a 10 kΩ metal-film resistor rated at 1%. This symmetry ensures the bridge null voltage remains near zero at the reference temperature, typically 25°C.
Use a stable excitation voltage between 1.2 V and 5 V; voltages above this range risk self-heating. Measure the bridge output differentially with an instrumentation amplifier set to a gain of 100–500 to capture millivolt changes accurately. Connect the amplifier’s output to an ADC with at least 16-bit resolution to resolve temperature shifts as small as 0.02°C.
Component Arrangement
- Place the sensing element on one side of the bridge, directly opposite the precision resistor.
- Add a 100 kΩ potentiometer in series with a fixed resistor on the adjacent arm for fine null adjustments.
- Keep lead lengths under 5 cm to reduce parasitic capacitance and inductive coupling.
- Shield the entire assembly with a grounded metal enclosure to block RF interference.
For calibration, immerse the sensing element in a temperature-controlled bath at three points: 0°C, 25°C, and 50°C. Record the bridge output voltage at each point; these values form the basis for a third-order polynomial fit. Software algorithms can then interpolate intermediate temperatures with an error margin under 0.1°C.
Operational Considerations
- Ensure the excitation current does not exceed 100 µA to prevent self-heating errors.
- Apply a thin layer of thermally conductive epoxy between the sensing element and the target surface for response times below 5 seconds.
- Use shielded twisted-pair wiring for all signal connections to reject common-mode noise.
For high-precision applications, replace fixed resistors with additional sensors in a dual-bridge layout. This configuration cancels first-order drift and doubles the sensitivity. The output differential voltage then reflects the average temperature of both targets, reducing errors from asymmetrical thermal gradients.
Temperature Compensation Techniques Using Negative Coefficient Probes
Start with a voltage divider configuration employing a pull-up resistor matched to the sensor’s nominal resistance at 25°C. For a 10 kΩ bead, select a 10 kΩ resistor; this centers the output swing, minimizing nonlinearity while keeping sensitivity within ±2% per °C near room temperature.
Implement a two-stage compensation network for wide-range stability. First, place a small capacitor (10–100 nF) across the sensing element to filter high-frequency noise. Second, append a low-value resistor (500 Ω–1 kΩ) in series to dampen self-heating errors, reducing drift by up to 30% in fast-transient environments.
For ratiometric systems like ADC front-ends, wire the probe as the lower leg of a bridge, using a precision thin-film resistor as the upper leg. Trim the upper resistor to 9.76 kΩ if the bead is rated at 10 kΩ; this adjustment aligns the bridge’s zero-crossing point at 50°C, simplifying digital linearization steps.
Use lookup tables populated with Steinhart-Hart coefficients for algebraic conversion, eliminating iterative computation. For a typical epoxy-coated element with β ≈ 3950 K, pre-calculate 256-entry tables covering −40°C to 125°C; this cuts CPU load by 85% compared to solving the equation in real time.
Offset compensation via software blend avoids hardware redundancy. Sample ambient readings from a second identical bead placed proximal to critical components, then subtract its output from the primary signal. This cancels common-mode errors, lowering thermal coupling drift to under 0.1°C over a 0–70°C span.
Choose polymer-based elements for high-humidity environments, as their resistance remains stable within 0.5% when RH exceeds 85%. Pair them with a 100 nF X7R ceramic capacitor directly on the leads; the dielectric’s voltage coefficient keeps parasitic capacitance below 2 pF, preserving fast settling times.
In battery-powered devices, employ a single-point calibration at two known temperatures (e.g., ice-water slurry and boiling water) instead of multi-point curves. Measure resistance values, then compute two coefficients via direct substitution, achieving accuracy of ±0.3°C without additional hardware or trimming.
For high-current paths prone to self-heating, mount the bead with a thermally conductive but electrically insulating pad. Arctic Silver epoxy adhesive yields a thermal resistance below 0.5°C/W; this allows continuous monitoring of 5 W loads without resistive shift errors exceeding 1%.
