Complete OBD2 Port Pinout and Wiring Guide for Vehicle Diagnostics

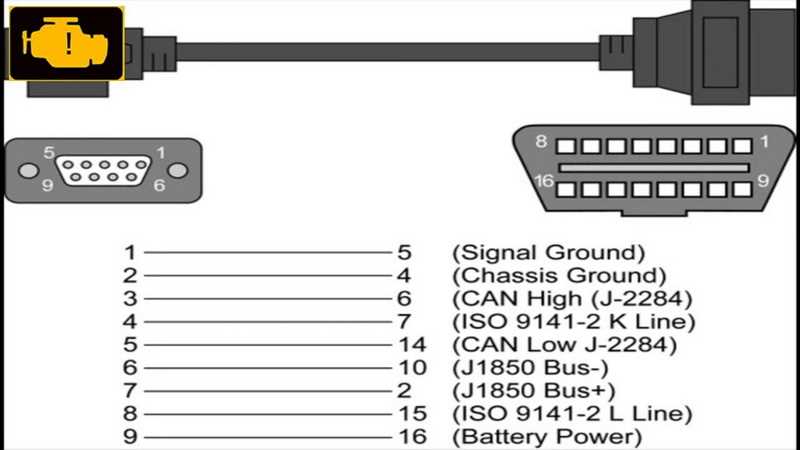

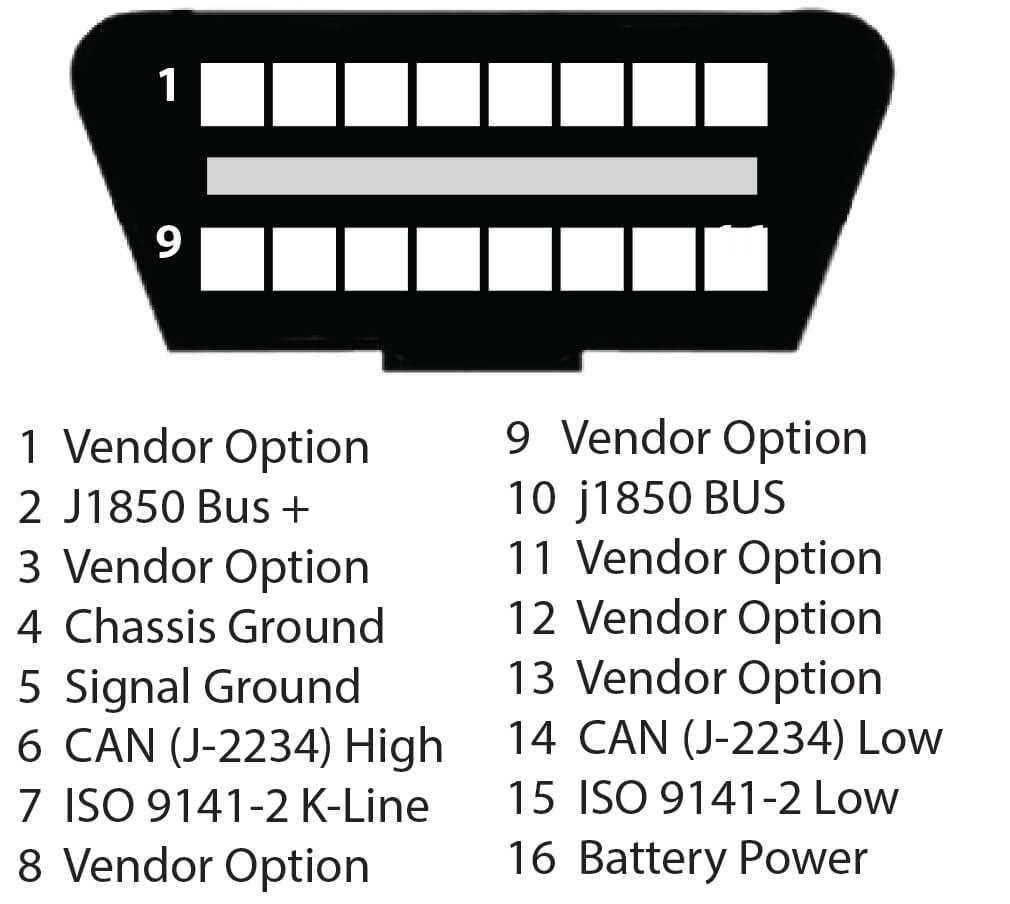

Start by identifying pinout layouts for common protocols–CAN (ISO 1939), KWP2000 (ISO 9141), and J1850. The standard 16-pin interface splits signals across designated terminals: power (+12V) at pin 16, ground at 4 and 5, CAN high/low at 6 and 14, K-line at 7, and L-line (if used) at 15. Verify these assignments with a multimeter before connecting any diagnostic tool–incorrect polarity can damage control modules.
For aftermarket installations, use shielded twisted pair cables for CAN bus lines to reduce electromagnetic interference. Keep wire runs under 5 meters; longer distances require signal repeaters or termination resistors (120Ω between CAN high and low). When splicing into factory harnesses, crimp connectors instead of soldering to maintain harness flexibility and prevent brittle joints in high-vibration environments.
Always cross-reference vehicle-specific documentation–many manufacturers repurpose pins 1, 9, 12, or 13 for proprietary functions like chassis ground, illuminated entry controls, or direct battery feeds. Dodge, for example, routes the PCM wake-up signal through pin 1; Ford often uses pin 9 for the PATS transponder interface. Skipping this step risks triggering error codes or disabling critical systems.
For hybrid and electric vehicles, isolate high-voltage circuits (often shielded in orange) from low-voltage diagnostic lines. Use an insulation resistance tester to confirm no leakage between power systems and the diagnostic port–anything below 1MΩ indicates a fault requiring immediate attention.
Practical Connector Pinout Reference for Vehicle Diagnostics
Begin by locating pin 16 on the diagnostic port–this supplies constant 12V power directly from the battery, bypassing ignition circuits. Verify voltage with a multimeter before connecting any aftermarket tools; fluctuations above 14.5V indicate alternator faults requiring inspection. Pins 4 and 5 (ground) must maintain continuity to the chassis–resistance exceeding 0.5 ohms suggests corroded terminals or frayed cables, particularly in older vehicles.
CAN bus communication relies on pins 6 (high) and 14 (low), which operate at 2.5V differential voltage. Use an oscilloscope to check signal integrity: sharp transitions without noise confirm proper operation, while jagged waveforms reveal interference from poorly shielded wiring. For non-CAN protocols like K-line (ISO 9141), pin 7 carries bidirectional data at 10.4 kbit/s–confirm with a logic analyzer set to 5V TTL levels.
Troubleshooting Hidden Connection Issues
DTCs pointing to “lost communication” often stem from broken strands beneath insulation–strip back the cable sheath 3 inches from the connector to inspect for green oxidation or blackened strands. Replace the entire cable section if damage exceeds 20% of copper cross-section. Pin 2 (SAE J1850) uses pulse-width modulation; voltage drops below 7V during active messaging indicate excessive wire gauge resistance–upgrade to 18 AWG minimum.
For OEM-specific add-ons like Ford’s MS-CAN (pins 3 and 11), ensure the network terminating resistor (typically 120Ω) is intact. Measure between the two bus pins with the ignition off–readings below 100Ω suggest a missing resistor, while readings above 130Ω indicate an open circuit. Mitsubishi’s pin 8 carries a proprietary ISO 14230 signal requiring a 1.2kΩ pull-up to 12V; omit this component and the module defaults to silent mode.
Adapting Schematics for Aftermarket Devices
When installing telematics units, tap into pin 15 (ISO L-line) only if the vehicle supports initialization via this channel–most post-2008 models ignore it, relying solely on CAN. For VW/Audi groups, connect aftermarket dongles to pin 12 (K-line) through a 470Ω series resistor to prevent ECU lockouts during frequent query bursts. Toyota’s extended pins 1 and 9 (for GND and backup power) frequently lack proper crimping–reinforce with soldered joints to avoid voltage dips during cranking.
Chrysler’s SCI protocol uses pin 3 for bidirectional data at 62.5 kbit/s; verify with a scope by triggering on the 12.8 μs start bit duration. Mercedes’ early ISO 9141 implementations require a 510Ω pull-up on pin 7–redundant in later models but critical for pre-2005 E-Class. Always cross-reference factory service bulletins for late revisions; Ford’s 2013 Focus introduced reversed CAN pin assignments that brick third-party tools if misconnected.
Identifying Vehicle Diagnostic Port Pin Layout for Accurate Troubleshooting
Locate pin *16* first–it supplies battery voltage (12V) from the main power source, critical for powering diagnostic tools. Verify this connection with a multimeter; a reading below 11V indicates a faulty alternator, weak battery, or corroded wiring. Pin configurations vary by manufacturer, but this power feed remains constant across 95% of passenger vehicles post-1996.
Pins *4* (chassis ground) and *5* (signal ground) must show zero resistance between them and the vehicle’s negative terminal. A resistance over 0.5 ohms suggests poor grounding, leading to erratic readings or tool communication failures. For diesel engines or hybrid systems, check pin *1* (manufacturer-specific) for additional power needs–some European models route auxiliary functions here.
Key Pins for Communication Protocols
ISO 9141-2 and KWP2000 protocols rely on pin *7* (K-line) for bidirectional data. Measure 5V DC between this pin and ground; lower voltages often trace to a damaged ECU or short circuit. CAN bus vehicles use pins *6* (CAN High) and *14* (CAN Low)–expect 2.5V to 3.5V differential when active. A missing voltage here points to an open circuit in the twisted pair wiring or a disabled CAN module.
Asian and domestic vehicles frequently repurpose pin *2* (J1850 PWM) or *10* (J1850 VPW) for secondary networks. Test these with an oscilloscope: PWM generates square waves (41.6 kHz), while VPW produces variable pulse-width signals. Absence of signal necessitates tracing the harness back to the onboard computer or checking for blown fuses in the diagnostic circuit.
For pre-2008 models with infrequent updates, consult manufacturer service bulletins–some GM trucks route Class 2 serial data through pin *1* instead of *2*. Always cross-reference live data with a known-good vehicle; pinouts may shift due to mid-model-year revisions or regional market variations.
Building a Custom Connector Assembly for Vehicle Diagnostic Interfaces
Start by selecting a 16-pin DLC (Data Link Connector) shell with a latching mechanism to ensure stable contact. Use a high-quality thermoplastic material rated for automotive temperatures (-40°C to 125°C). Avoid generic plastic housings–they warp under prolonged heat.
Prepare the following conductor sets: 22 AWG stranded copper for signal paths (pins 6, 14) and 18 AWG for power (pins 16, 4, 5). Strip insulation precisely to 5mm–excessive length increases resistance, while too short risks poor termination.
| Pin | Function | Conductor | Termination Method |
|---|---|---|---|
| 16 | Battery Voltage (+12V) | 18 AWG tinned copper | Crimp + solder |
| 4 | Chassis Ground | 18 AWG bare copper | Crimp only |
| 5 | Signal Ground | 22 AWG silver-plated | Crimp + heat-shrink |
| 6 | CAN High | 22 AWG twisted pair | Solder + shielding |
| 14 | CAN Low | 22 AWG twisted pair | Solder + shielding |
For CAN bus lines (pins 6 and 14), twist the pair at 18 turns per meter and apply a foil shield grounded at one end only. Ungrounded shields act as antennas–capacitive coupling degrades signal integrity. Use MIL-spec heat-shrink tubing over the shield to prevent abrasion.
Terminate power lines (pins 16, 4) with ring terminals sized for M4 screws. Solder joints at the connector must fully encapsulate the conductor–partial coverage creates microfractures under vibration. Apply rosin flux before soldering to prevent oxidation; avoid acid-core flux–it corrodes copper.
Test continuity with a multimeter set to 200Ω range. Target resistance: <0.5Ω for power lines, <2Ω for signal paths. Measure across the entire harness, not just at the connector. A 5Ω spike indicates a cold solder joint–reflow with proper wetting.
Secure the assembly with nylon cable ties every 10cm. Tension should be snug but not compressing conductors–excessive force crushes insulation, leading to intermittent shorts. Route away from sharp edges or moving parts–abrasion failures occur silently under 1,000+ miles of use.
Connect to a known-good interface and verify communication with a protocol analyzer. CAN bus errors (error frames) often trace to reversed polarity or poor ground–swap pins 6 and 14 if necessary. K-line (pin 7) requires 12V pull-up; omit this and the adapter falls back to slower protocols.
Finalize with conformal coating spray (acrylic-based) for humidity resistance. Leave the connector face exposed–coating degrades contact surface. Store unused assemblies in ESD bags; static discharge fries microcontrollers in unshielded adapters.
Standard Vehicle Diagnostic Link Connector Pinout and Color Codes
Always verify connector pin assignments with a multimeter before interfacing–manufacturer deviations occur, especially in Asian and European models. Below are the most consistent signal line colors and their roles across passenger vehicles built after 1996:
- CAN High (PIN 6): Orange or yellow stripe; differential pair carrying ECU broadcast at 500 kbps; resistance between CAN High & Low should measure 60 ohms ±10%.
- CAN Low (PIN 14): Brown or orange stripe mirroring CAN High; shorts or open circuits here trigger U0100 communication errors.
- K-Line (PIN 7): Pink, purple, or black stripe; bidirectional 10.4 kbps ISO 9141-2 serial link common in OEM diagnostic tools; requires 12V pull-up.
- L-Line (PIN 15): Less frequent, white, green, or blue stripe; initialization line for older ISO systems; if unused, check for chassis ground via 1K resistor.
- Battery Power (PIN 16): Red, solid; fused 12V constant; draw exceeding 0.5A suggests parasitic drain or mis-terminated device.
- Chassis Ground (PIN 4, PIN 5): Black, sometimes brown; resistance under 1 ohm to negative terminal; corrosion here causes intermittent dropouts.
- Ignition Voltage (PIN 9): Purple, red stripe, or grey; switched 12V present when key is ON; verify with scope for noise exceeding 200 mVpp.
Group color pairs by protocol: high-speed CAN (orange/yellow + brown), single-wire CAN (green, PIN 1), and ISO (pink/purple/black). Asian manufacturers often invert pin numbering–use a connector map overlay for accurate tracing. Avoid splicing into high-impedance lines like CAN without proper termination; reflections above 500 mV corrupt data frames. For aftermarket devices, prioritize twisted shielded cable (AWG 24-22) for CAN lines to suppress EMI, especially near ignition coils or alternator brackets.
