DIY Obstacle Detection Robot Circuit Design and Wiring Guide

Begin with an HC-SR04 ultrasonic sensor paired with an Arduino Uno for reliable distance detection. Connect the sensor’s VCC to the 5V pin, GND to ground, Trig to digital pin 9, and Echo to digital pin 10. Use a 1kΩ resistor between the sensor’s Echo and Arduino to prevent signal noise. For obstacle range thresholds, set triggers at 20cm; anything below forces a course correction.

Power the L298N motor driver with a 9V battery fed through its +12V terminal. Wire the driver’s IN1 and IN2 to Arduino pins 5 and 6 for left motor control, IN3 and IN4 to pins 3 and 4 for right. Ground the driver’s GND to the Arduino’s ground rail. Ensure motor voltage matches the driver’s specifications–adjust PWM values (0–255) to regulate speed without overheating.

Integrate a 100µF capacitor across the motor driver’s power input to smooth voltage drops during pivot maneuvers. For redundancy, add micro limit switches at the front corners, wiring their NO terminals to digital pins 2 and 8 with internal pull-ups enabled. When activated, force a 180° rotation. Avoid breadboards for permanent builds–solder connections directly to perfboard to eliminate loose contacts.

Upload a pre-tested sketch using NewPing.h for the HC-SR04, omitting delays in the main loop to maintain responsiveness. Calibrate rotation angles by timing motor activation: 500ms yields ~45°. Document all pin mappings in code comments to simplify troubleshooting. Test the device in an enclosed space at low speed first–observe sensor readings and motor behavior before full deployment.

For extended runtime, swap AA batteries for a 2200mAh LiPo pack with a charging module. Secure all components with rubber mounts to dampen vibrations, which can skew sensor accuracy. If false detections occur, lower the sensor’s detection threshold to 15cm or introduce a 50ms pause between readings to filter anomalies.

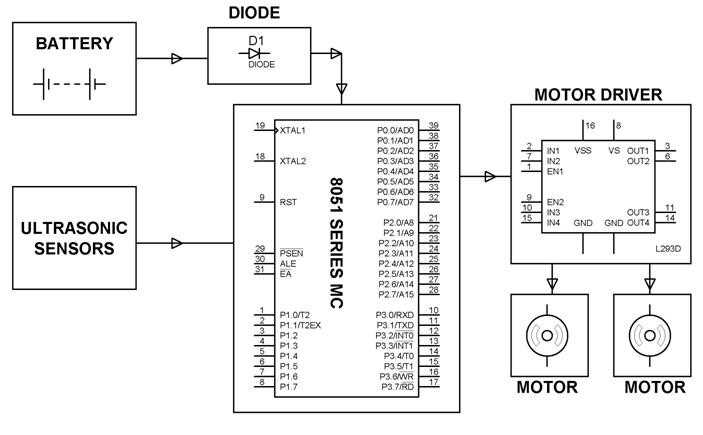

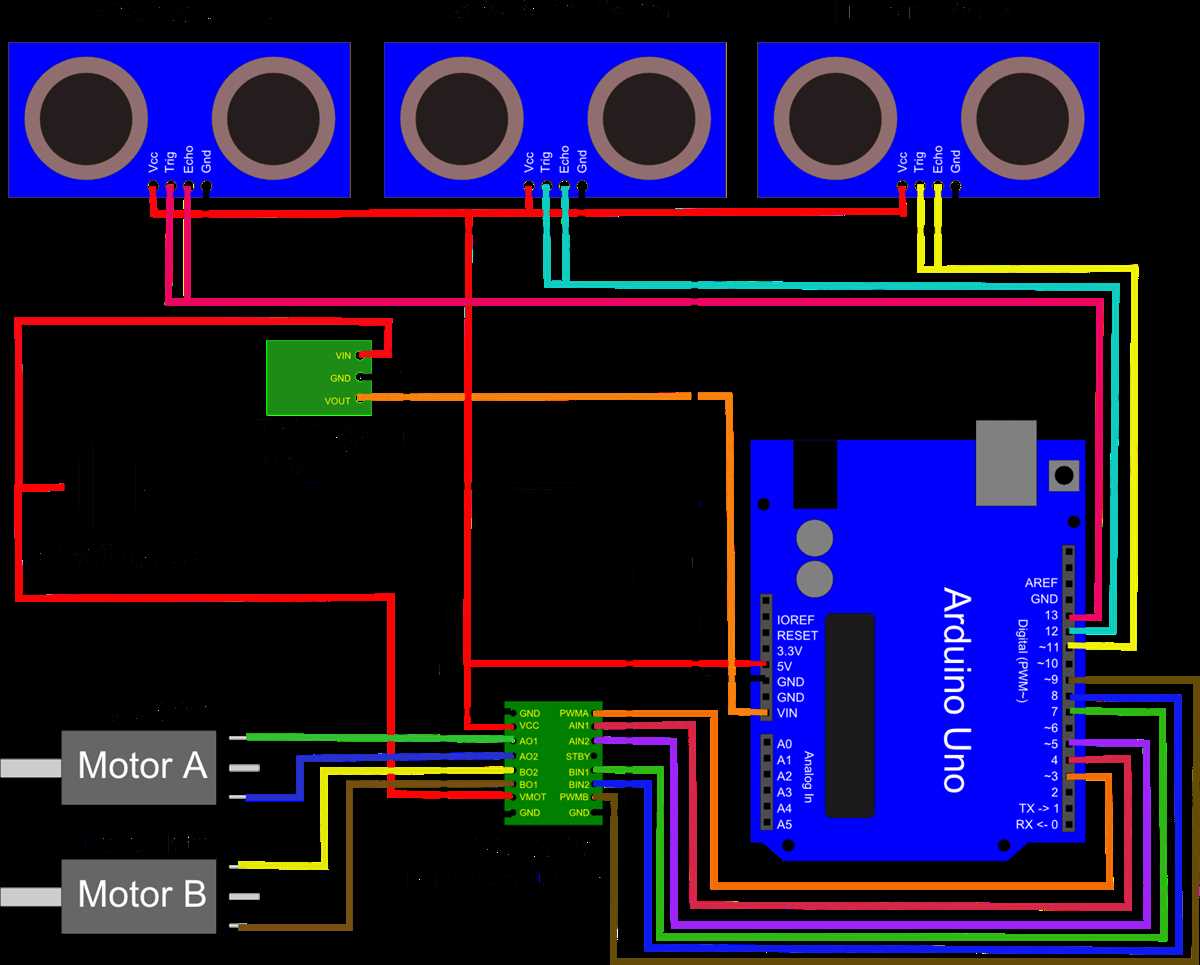

Autonomous Navigation Bot Electrical Layout

Select HC-SR04 ultrasonic sensors for precise distance measurement–mount them at 30° angles on the front chassis to cover a 180° detection arc. Wire each sensor’s VCC and GND pins to a regulated 5V supply, ensuring stable voltage; use decoupling capacitors (10µF) near power inputs to filter noise. Trigger and echo pins connect directly to Arduino’s digital I/O, with 330Ω resistors inline to echo pins to protect microcontroller inputs from voltage spikes.

For motor control, pair an L298N driver module with two 12V DC gear motors. Link the module’s ENA and ENB pins to PWM-capable Arduino outputs for speed regulation. The IN1–IN4 pins dictate direction; a truth table simplifies logic for forward, reverse, and pivoting. Power motors separately from a 11.1V LiPo battery, with the L298N’s onboard 5V regulator supplying logic voltage–disable this regulator if using an external Buck converter for cleaner power.

Add TCRT5000 infrared reflectance sensors on the underside, spaced 5 cm apart, to detect surface edges. Calibrate them by reading raw analog values before deployment; set thresholds 20% above baseline to ignore minor irregularities. Connect sensors to analog inputs, using a voltage divider (10kΩ resistor) to scale readings to 0–5V. Test on varied surfaces (e.g., black tape, wood) to refine calibration.

Implement a circular PCB layout for compact integration. Route high-current traces (battery to motors) at least 80 mils wide to handle 2A peaks. Place sensors 2 cm above ground to avoid false positives from debris; angle ultrasonic transducers 10° downward to improve floor detection. Include a 16 MHz crystal oscillator on the Arduino Nano for consistent timing, critical for ultrasonic pulse timing accuracy.

Power Distribution Strategy

Use a 3S LiPo battery (1200mAh) for density, with a 5A fuse inline to prevent overcurrent. Split power: one 2A Buck converter steps down to 5V for logic, while another 3A converter supplies 6V to servos if present. Ground all subsystems to a single star point to minimize interference. Add a Schottky diode between battery and Buck inputs to prevent reverse polarity damage.

For emergency stops, wire a tactile switch to Arduino’s reset pin via a 10kΩ pull-down resistor. Program the bot to halt motors if the switch is pressed or if the ultrasonic sensors report values below 8 cm for over 500 ms, indicating an imminent collision. Debug using serial monitor at 115200 baud; log sensor readings and motor states every 100 ms to isolate errors.

Minimize wire gauge by using ribbon cables for low-current signals and silicone-coated 18 AWG for motors. Color-code all connections: red (power), black (ground), yellow (signal). Label each wire at both ends with heat-shrink tubing for maintenance. During assembly, secure sensor cables away from moving parts (wheels, servos) to prevent abrasion.

Test voltage drops under load–simulate movement by manually spinning wheels while monitoring Buck converter outputs with a multimeter. Expect less than 0.2V drop at full load (2A). For extended runtime, add a battery monitoring IC (e.g., MAX17043) to track charge level; connect via I2C to Arduino and trigger a low-power mode at 10% capacity to preserve functionality.

Selecting Core Sensors for Collision Prevention

Prioritize ultrasonic rangefinders for short to medium distances (2 cm–4 m) due to their sub-10° beam angle and ±1% accuracy in static environments. HC-SR04 variants operate at 40 kHz with a 15° detection cone, while JSN-SR04T extends range to 6 m but introduces ±5% error under 1 m. Pair them with a 10–20 Hz sampling rate to filter false positives from acoustic reflections. Avoid plastic housings near vibrating actuators–they induce parasitic noise peaks above 8 kHz.

Infrared proximity modules excel at detecting objects sub-5 mm precision, but their effectiveness diminishes with translucent or highly reflective surfaces. GP2Y0A21YK0F delivers analog voltage inversely proportional to distance (0.3–1.2 m), requiring an 8-bit ADC with

Key Trade-offs by Sensor Type

• Ultrasonic: Temperature-dependent (±0.17% per °C), fails on foam/soft materials
• Infrared: Calibration drift under 1 lux illumination, sensitive to surface color (black = -40% range)
• LiDAR: TFMini-S resolves 0.1° angular resolution but maxes at 12 m indoors; costs 5–10× ultrasonic
• Time-of-Flight (ToF): VL53L0X achieves ±5% precision at 1.2 m, struggles >2 m with oblique angles >15°

For dynamic environments, combine a forward-facing 360° 2D LiDAR (e.g., RPLIDAR S1) with edge-mounted IR sensors. RPLIDAR’s 5–20 Hz scan rate provides 0.3 cm resolution at 8 m, but requires 3.3 V/600 mA power and a slip ring for continuous rotation. Implement a Kalman filter to merge LiDAR’s 3° angular uncertainty with IR’s high-frequency data, reducing latency to

Bump switches serve as redundant fail-safes with 5 N activation force. Place them at 10 cm intervals at chassis height to detect contact before primary sensors. Use microswitches with roller levers for uneven terrain; bare switches suffice for flat surfaces. Wire them in series with an interrupt-driven MCU pin to override other inputs upon collision. Test switches with

Optimizing the H-Bridge Power Stage Configuration

Position the MOSFET pairs (e.g., IRF540N/IRF9540N) on a single PCB layer with minimal trace length between gates and drivers to reduce inductive spikes. Use a 4-layer board: top layer for signal routing, inner planes for power (12V) and ground, bottom layer for thermal dissipation via exposed copper pours under heat-generating components. Apply 100nF ceramic capacitors in parallel with 22µF electrolytic caps at the motor supply input, placed within 5mm of each MOSFET drain. Isolate high-side and low-side driver signals with optocouplers (e.g., PC817) or isolated gate drivers (DRV8305) to prevent ground loops; maintain 3kV isolation gap between primary and secondary circuits.

• Route gate drive traces with 0.5mm width and 0.5mm spacing to minimize crosstalk; angle 45° when changing direction.
• Implement Schottky diodes (1N5822) across motor terminals with anode to ground to clamp back-EMF; position them within 10mm of motor connectors.
• Use 0.35mm copper weight for power traces carrying >2A; reinforce with solder mask-defined vias (0.8mm diameter, 6/6 mils) to inner planes.
• Add 10kΩ pull-down resistors on gate inputs to prevent floating states during startup; terminate resistor networks within 2mm of MCU pins.
• Thermal vias (0.3mm diameter, 1mm pitch) under MOSFETs should connect to a dedicated ground plane; fill with solder to improve heat transfer.

Integrating Microcontroller with Sensor Inputs

Select an 8-bit or 32-bit MCU with at least two hardware interrupts and an ADC resolution of 10 bits or higher for precise sensor readings. For ultrasonic range detectors, prioritize MCUs with dedicated timer modules (e.g., AVR’s Timer1 or STM32’s TIM) to simplify pulse-width measurements without software delays. Use the following pin mapping for ultrasonic sensors: VCC → 5V, GND → GND, Trigger → Digital Output, Echo → Digital Input with pull-down resistor (1kΩ). IR proximity detectors require analog outputs; connect their output to an ADC pin and configure a threshold value (typically 2.5V for 5V logic) to differentiate between clear paths and obstacles. For I2C-based sensors (e.g., LiDAR-lite), ensure the MCU’s I2C clock speed is set to 100kHz or 400kHz to match the sensor’s specifications.

Implement a circular buffer for sensor data to avoid real-time processing bottlenecks. For a 16MHz MCU, dedicate a 64-byte buffer for ultrasonic sensor readings–store timestamps alongside distance values to filter noise. Apply a median filter (3–5 samples) to raw ADC inputs from IR sensors to eliminate spikes caused by ambient light interference. Configure interrupts for rising and falling edges of the ultrasonic echo pulse; calculate distance using distance = (pulse_width * 0.0343) / 2, where pulse_width is in microseconds. For MCUs without floating-point units (e.g., ATmega328P), use integer arithmetic with fixed-point scaling to maintain accuracy while saving computational resources.

Sensor-MCU Compatibility Matrix

Sensor Type	MCU Requirements	Critical Configuration	Power Draw (mA)
Ultrasonic (HC-SR04)	1× Timer Module, 2× GPIO	Interrupt-driven echo timing, 10μs trigger pulse	15–20
IR Proximity (Sharp GP2Y0A21)	1× ADC (10-bit min), 50Hz sampling	Voltage divider for 3.3V MCUs, 4–20cm range limit	30–35
I2C LiDAR (TF-Luna)	I2C @ 400kHz, 2× GPIO (SDA/SCL)	Device address 0x10, 10Hz update rate max	80–100

Optimize sensor fusion by assigning priority levels: ultrasonic for long-range (20–400cm), IR for short-range (4–80cm), and LiDAR for mid-range (0–8m). Use a state machine with three states–SCAN, VALIDATE, and ACT–where VALIDATE discards outliers (e.g., readings differing by >20% from the median). For battery-powered designs, gate sensor power via MOSFETs and toggle them only during active scans, reducing current consumption by up to 70%. Log raw sensor data to EEPROM or serial flash for post-mission analysis, using a lossless compression algorithm (e.g., LZ77) to maximize storage efficiency.
