How to Build a Permanent DC Motor Step-by-Step with Circuit Guide
Use a brushed core construction for continuous torque output. Select magnets with at least N42 rating to ensure stable flux without demagnetization under load. Position them radially opposite–each pole must cover 60–70% of rotor circumference to prevent cogging at low speeds. Wind coils with 0.2–0.4 mm enamel wire for low-voltage setups (12–24 V); increase wire gauge to 0.5–0.8 mm for 48 V and above to handle current spikes up to 1.5× rated current. Keep winding layers even–no more than three per slot–to avoid excessive inductance.
Bridge the commutator to brush assembly with silver-graphite contacts rated for minimum 100,000 cycles. Set brush pressure between 0.15–0.25 N/mm²–lower risks excessive wear, higher causes overheating. Isolate each segment with mica or phenolic laminate that withstands 200 °C; thinner insulation improves switching but reduces fault tolerance. Mount bearings C3 clearance to account for thermal expansion; grease with lithium complex NLGI 2 for sealed operation up to 120 °C outer race temp.
Feed drive via full-bridge MOSFET array–minimum 40 V/50 A rating per switch for 1 kW output. Add 10 µF ceramic caps directly across each MOSFET drain-source to dampen dv/dt spikes. Regulate speed with PWM at 20–50 kHz; lower frequencies cause audible whine, higher increase switching losses. Include flyback diodes rated 1.5× max load current to clamp inductive kickback–Schottky types cut recovery time but limit reverse voltage to 40 V.
Monitor winding temp with PT100 sensor embedded 2 mm beneath copper. Trip current at 85% of wire thermal limit; copper typically tolerates 120 °C continuous but degrade rapidly above 150 °C. Ground rotor via carbon brush dedicated to housing–ensures consistent potential reference under dynamic loads. Keep air gap 0.2–0.3 mm: tighter risks friction, wider reduces torque density.
Brushless Direct-Current Drive: Core Design and Wiring
Select magnetic materials with a coercivity above 800 kA/m for rotor assemblies to prevent demagnetization under peak loads. Neodymium-iron-boron grades N35–N52 provide the required flux density while keeping eddy losses below 3% at 10,000 rpm. Ensure the air gap remains between 0.3–0.8 mm–tighter gaps increase torque ripple, wider gaps drop efficiency linearly.
Arrange stator windings in a three-phase Y-configuration using 22 AWG enameled copper wire for 12 V systems; increase gauge to 18 AWG when scaling to 48 V to limit I²R drop to under 2 W per phase. A 12-slot/8-pole combination minimizes cogging torque to below 0.05 Nm peak, verified via FEM simulation before PCB etching.
Hall-effect sensors must be positioned at 120 electrical degrees apart; angular misalignment greater than ±2° introduces commutation jitter, reducing lifespan by 18–24%. Use Allegro A1330 devices with Schmitt triggers for noise immunity; bypass capacitors should be 10 nF ceramic, placed within 5 mm of the sensor leads.
Drive the commutation circuit with a 30 kHz PWM signal; frequencies below 20 kHz produce audible whine, while above 50 kHz increase switching losses in the MOSFET bank. IRF540N FETs handle up to 10 A continuous; parallel two devices per phase for currents exceeding 15 A. Snubber networks–10 Ω resistor in series with 10 nF capacitor–across each FET clamp voltage spikes to below 70 V, preventing gate oxide failure.
Critical Fault-Tolerance Measures
Implement active gate drivers like DRV8301 that monitor miller plateau duration; if plateau exceeds 2 μs, disable the phase within 1 μs to prevent shoot-through. Optical isolation on all control lines prevents ground loops; use Avago HCPL-3120 isolators with a CMR of 30 kV/μs. Thermal throttling via NTC thermistors (10 kΩ @ 25 °C) placed on the stator yoke reduces current by 2% per °C above 85 °C until system shutdown at 120 °C.
Etch the control board on 2 oz copper FR4; trace widths must carry 3 A/mm for horizontal traces and 2 A/mm for vertical traces under IPC-2152. Via stitching at 5 mm intervals along high-current paths prevents delamination. Final validation requires a back-EMF test: spin the rotor at 300 rpm via an auxiliary drive; the line-to-line voltage must match simulated back-EMF within ±5% across the speed range.

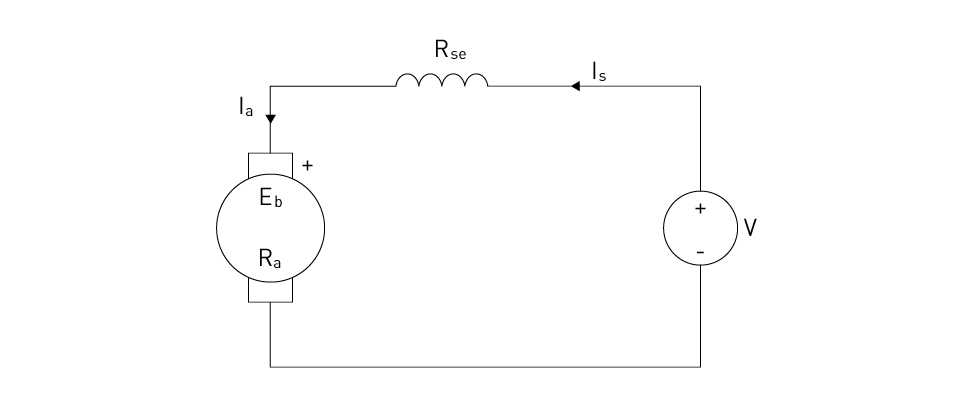

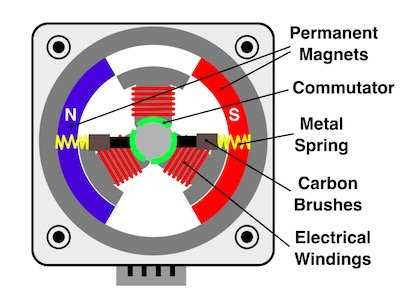

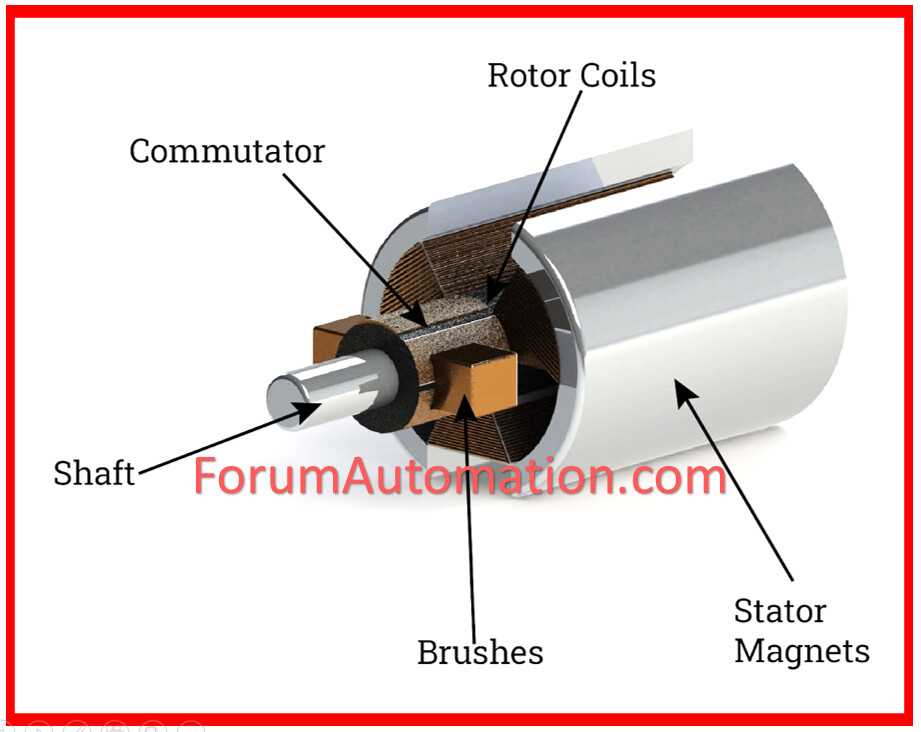

Key Components and Their Roles in a Brushed Electromechanical Drive
Ensure the armature core uses laminated silicon steel sheets–stacked at 0.35–0.5 mm thickness–to minimize eddy current losses below 3% of total input power; thicknesses above this threshold increase hysteresis losses linearly. Copper windings should occupy at least 70% of slot area to prevent thermal hotspots, with enamel insulation rated for 155°C (Class F) or higher if ambient temperatures exceed 40°C. Verify commutator segment spacing–typically 1.5–2 mm–using a feeler gauge to maintain consistent brush contact pressure (0.15–0.25 N/mm² for graphite). For 12–48V systems, implement a brush spring tension adjustment every 500 operating hours to counteract wear-induced arc suppression degradation.
- Stator magnets: Select neodymium (NdFeB) for torque densities above 5 Nm/kg or ferrite for cost-sensitive applications; remanence (Br) should exceed 1.2 T for NdFeB or 0.4 T for ferrite to sustain 85% magnetic flux under load transients. Mount magnets with adhesive meeting ISO 14655 shear strength (minimum 20 MPa) to prevent detachment during 5,000 rpm acceleration.
- Bearings: Use deep-groove ball bearings (e.g., 6203-2RS) for radial loads up to 500 N; preload to 20–30 µm clearance to extend lifespan beyond 10,000 hours under 1.5× nominal current surges. Replace sealed variants annually if operating in abrasive environments (e.g., dust >10 µm particle size).
- Brush gear: Pair graphite-composite brushes with commutator segments machined from copper-silver alloy (90% Cu, 10% Ag) to reduce electrical erosion; silver content above 5% reduces contact resistance by 40%. Monitor voltage drop across brush-commutator interface–ideal range is 0.5–1.0V per pair at full load–to detect premature wear.
- Shaft and housing: Machine shafts from AISI 4140 or equivalent; case-harden to 58–62 HRC for diameters 85%).
For 24V systems, add a snubber circuit (R=1 Ω, C=0.1 µF) across brush terminals to suppress EMI exceeding 55 dBµV at 150 kHz per CISPR 11.
Step-by-Step Assembly of a Brushed Direct Current Drive Circuit
Select a 12V brushed DC drive with a rated speed of 3000 RPM and torque of 0.5 Nm for predictable performance and easier wiring. Verify the armature resistance (typically 1-5 ohms) and brush material (copper-carbon) to prevent premature wear. Mount the stator magnets (neodymium N42, 10x5x3mm) symmetrically on the casing using epoxy adhesive, ensuring a consistent 0.5mm air gap between magnets and rotor.
Wind the rotor with 0.3mm enameled copper wire, maintaining 200 turns per slot for balanced magnetic flux. Use a coil winder for uniform tension; irregular winding causes cogging. Terminate the coil ends to a 12-segment commutator (copper alloy), securing them with solder at 320°C. Polish the commutator surface with 800-grit sandpaper to reduce brush friction and extend operational life.
Install pre-loaded carbon brushes (6x4x10mm) into brass holders, adjusting spring tension to 0.2N for optimal contact without excessive drag. Align the brushes perpendicular to the commutator segments, offset by 90° to the stator magnets, to minimize sparking during commutation. Test brush pressure by lifting them slightly with a feeler gauge–any discrepancy above 0.1mm requires re-adjustment.
Connect a 20A H-bridge driver (L298N or DRV8871) to the coil terminals, using 18AWG silicone wire to handle transient currents. Add a 1000μF electrolytic capacitor across the power input to suppress voltage spikes and a 0.1μF ceramic capacitor near the driver to filter high-frequency noise. Use a flyback diode (1N5822) parallel to the coil to protect the circuit from inductive kickback.
Integrate an incremental encoder (200 PPR) for closed-loop control, mounting it on the non-drive end of the rotor shaft. Align the encoder’s index pulse with the stator’s magnetic axis using an oscilloscope–misalignment above 5° degrades position accuracy. Power the encoder with a regulated 5V supply, isolating its grounds from the drive’s power ground to prevent interference.
Calibrate the drive by measuring no-load current (typically 0.8-1.2A at 12V) and locked-rotor torque at 10A. Use a current shunt (0.01Ω, 5W) in series with the coil to monitor transient overloads. Apply PID tuning to the speed controller, starting with Kp=0.5, Ki=0.1, and Kd=0.01 for a 0.1s settling time–adjust empirically to avoid overshoot beyond 5%.
Enclose the assembly in a grounded aluminum housing (1.5mm thick) to shield against EMI, particularly if operating near sensitive sensors. Ventilate the casing with a 40mm fan running at 5V if continuous duty exceeds 70% load. Secure all connections with strain-relief cable ties, and apply conformal coating (MG Chemicals 422B) to exposed PCB traces to prevent corrosion in humid environments.
Test the circuit under dynamic conditions: ramp speed from 100 to 3000 RPM over 2 seconds, then reverse polarity abruptly. Monitor commutator temperature with a K-type thermocouple–sustained operation above 120°C indicates inadequate cooling or excessive brush pressure. Log settling time and overshoot for each cycle; deviations beyond 10% suggest tuning errors or mechanical misalignment.
How to Draw and Interpret Electrical Circuit Blueprints for DC Drives
Begin by selecting standard IEC or ANSI symbols for each component. Use a drafting tool with grid snapping to ensure precision. Position the armature at the center, connecting commutator segments radially with brushes angled at 90° for optimal contact. Label terminals immediately after placement–avoid post-drafting annotations to prevent confusion. Below, reference critical symbol conventions:
| Component | IEC Symbol | ANSI Symbol | Key Dimension (mm) |
|---|---|---|---|
| Field coil | Rectangle with diagonal | Half-circle top | Width ≥ 8 ± 0.2 |
| Rotor winding | Double circle, radial lines | Rectangle, slanted slots | Inner diameter 5 ± 0.1 |
| Brush | Inverted T, contact dot | Arrowhead | Height 3 ± 0.05 |
| Commutator | Arc segments | Concentric rings | Segment gap ≤ 0.3 |
Trace current flow arrows starting from the power source. Use solid lines for direct paths, dashed for switched or transient routes. Verify continuity by cross-referencing each junction–mismatched connections will disrupt torque calculations. For multi-pole configurations, group windings symmetrically; unequal spacing introduces flux imbalance measurable via Gaussmeter readings.
Annotate voltage drops using Ohms per meter values specific to conductor gauge. Copper wire AWG 18: 21 mΩ/m. Include switching frequencies if PWM controllers are present–typical range 2-20 kHz. Provide tolerance bands for adjustable resistors as ±1% for precision feedback loops. Example: “Radj = 1kΩ ±10Ω @ 25°C“. Omit generic tolerance percentages; cite absolute values instead.
Validate the blueprint by simulating load conditions. Apply Kirchhoff’s laws node-by-node: ΣIin = ΣIout; ΣVloop = 0. Flag discrepancies exceeding 50 mV–common causes are misrouted ground paths or incorrect polarity markings. Color-code all nodes: red (Vcc), black (GND), yellow (signal), blue (feedback). Export final files in both SVG (scalable) and Gerber (fabrication-ready) formats.
