How to Build a pH Sensor Circuit Step-by-Step Guide with Diagram

Start with an operational amplifier like the TL072 or LM358–these components handle the weak signals from electrochemical probes without distortion. A high-impedance input (≥10¹² ohms) is critical; failing this, probe readings drift or become erratic within hours. Include a temperature compensation network–a precision thermistor like the Vishay NTCLE100 or a dedicated PT100–since pH shifts 0.003 units per °C at 25°C.

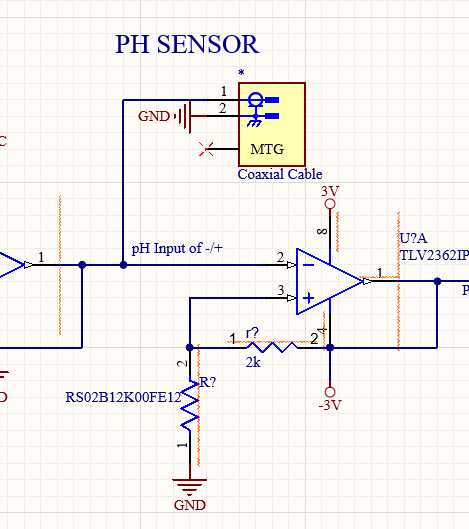

Wire a dual op-amp stage: the first stage buffers the probe voltage (reference electrode to working electrode), while the second stage scales the output to a usable range (0–5 V for most microcontrollers). Use a low-pass RC filter (cutoff ≤10 Hz) to reject mains noise and sudden transients from pumps or motors. A voltage divider with 1% tolerance resistors ensures stable calibration points–typically 4.01 pH (1.65 V) and 6.86 pH (2.05 V) for standard calibration solutions.

Power the arrangement from a low-noise linear regulator (e.g., LT1086 or LM317) instead of switching supplies to avoid ripple. Ground all signal paths at a single point–star grounding–prevents ground loops that skew readings by ±0.2 pH. Shield the probe cable with grounded braid; even minor capacitive coupling induces errors visible on an oscilloscope as 50/60 Hz noise.

For field use, add a watchdog circuit: a low-power comparator (e.g., LM393) that triggers an alert if the voltage exceeds pH 0–14 bounds or if the probe impedance spikes–signaling electrode failure. Store calibration offsets in EEPROM (e.g., 24LC16B) to avoid recalibration after power cycles. Test the layout with pH 4, 7, and 10 buffers; readings should stabilize within 30 seconds and hold ±0.05 pH over 24 hours.

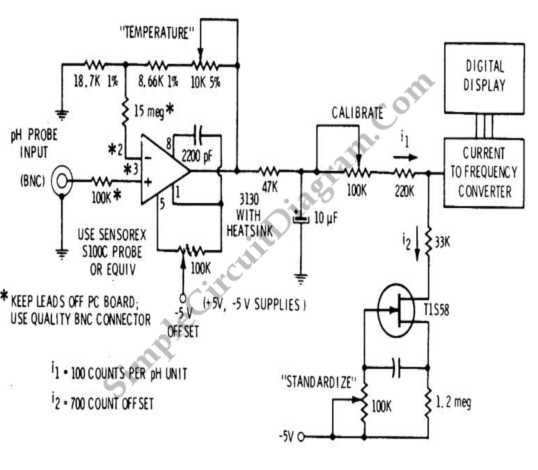

Verify signal integrity with an oscilloscope: probe voltages should appear as clean DC levels, not jagged waveforms. If noise persists, reduce trace lengths between the probe and op-amp, or add a guard ring around the input traces on the PCB. For high-precision setups, use glass electrodes with a double-junction reference to prevent KCl contamination–contaminated references drift 0.1 pH/day in aggressive solutions like hydrochloric acid or sodium hydroxide.

Key Components for Accurate pH Measurement Setup

Begin with a high-impedance operational amplifier like the TL072 or OP07, configured as a voltage follower to prevent signal degradation. The probe’s output ranges from -414 mV to +414 mV for pH 0 to 14, requiring an amplifier with a gain of 1 to avoid distortion. For stability, use a 10 kΩ resistor between the probe’s reference and the amplifier’s inverting input, paired with a 0.1 µF bypass capacitor to ground.

Calibration demands precise buffer solutions at known values–pH 4.00, 7.00, and 10.00–with temperature compensation if ambient conditions vary. A typical adjustment sequence involves immersing the probe in pH 7.00 buffer, setting the offset potentiometer to 0 mV, then switching to pH 4.00 or 10.00 buffers to adjust the slope potentiometer for accurate span. Store probes in 3 M KCl when idle to maintain electrode integrity.

Component	Specification	Purpose
Probe	Combined glass electrode, 0-14 pH range	Generates millivolt signal proportional to hydrogen ion activity
Operational Amplifier	TL072, input impedance ≥10¹² Ω	Isolates probe signal from ADC loading effects
Analog-to-Digital Converter	ADS1115 (16-bit), ±0.256 V range	Converts amplified signal with sufficient resolution
Temperature Compensation	NTC thermistor, 10 kΩ at 25°C	Adjusts readings for thermal drift (0.03 pH/°C)

Signal conditioning must account for the probe’s high output impedance (typically 10^8 Ω). Use shielded cables with grounded shielding to minimize noise, and place a 1 kΩ resistor in series with the probe’s output to dampen RF interference. For microcontroller integration, ensure the ADC’s input impedance exceeds 1 GΩ to prevent signal attenuation. Common pitfalls include neglecting ground loops–separate analog and digital grounds, connecting them at a single star point near the power supply.

Key Components Needed for a PH Measuring Setup

Begin with a high-impedance operational amplifier like the TL072 or CA3140, as pH probes generate microvolt-level signals (59.16 mV/pH at 25°C) requiring amplification with minimal noise and drift–input impedance must exceed 10¹² Ω to avoid loading the electrode. Pair it with a precision voltage reference such as the LM4040 (1.225V) or REF3030 (3.0V) to stabilize readings; drift below ±0.1%/°C is non-negotiable for consistent calibration. Include a temperature compensation network–a 10kΩ NTC thermistor or PT1000–since pH values shift ~0.003 pH/°C; mount it adjacent to the probe’s glass bulb to track thermal gradients in real time.

Select a pH electrode with a double-junction reference (Ag/AgCl) to prevent silver chloride contamination, especially in alkaline or high-sodium samples (>pH 10), where single-junction types fail within weeks. For prolonged use in aggressive solutions (e.g., hypochlorite, strong acids), opt for pH-resistant glass membranes (e.g., Schott BlueLine 31 Rx with HF resistance) or ISFET probes (e.g., Honeywell DuraFET) for environments where traditional glass proves fragile. Add a low-leakage analog switch (MAX4544) to multiplex between the probe and calibration points without introducing offset errors above 0.5 μV.

Use a 16-bit ADC (ADS1115) with programmable gain (PGA) to resolve signals below 1 μV; typical pH ranges (±400 mV) require at least ±2.048V input span with 1 LSB = 62.5 μV for ±0.01 pH precision. Implement a software-based nulling routine during startup to subtract the probe’s zero-offset (typically 0–14 mV), compensating for manufacturing variances. Store calibration data in a non-volatile memory (e.g., 24LC16B EEPROM) to retain slope and offset coefficients across power cycles, reducing manual recalibration to intervals of 7–30 days depending on probe degradation rate.

Step-by-Step Wiring Guide for a PH Probe Interface

Connect the pH electrode’s BNC connector to a high-impedance operational amplifier like the TL072 or AD820. These components isolate the weak signal (typically 59 mV per pH unit) from environmental noise, ensuring stable readings. Use a shielded coaxial cable between the probe and amplifier–ground the shield at the amplifier’s input to prevent interference from adjacent wires or power sources.

Power the amplifier with a dual ±5V supply for accurate signal conditioning. For single-supply setups, add a virtual ground at half the supply voltage (e.g., 2.5V for a 5V rail) using a voltage divider with 10 kΩ resistors. This prevents signal clipping at the amplifier’s output, which must swing both above and below the reference voltage. Decouple power rails close to the IC pins with 0.1 µF ceramic capacitors to filter high-frequency noise.

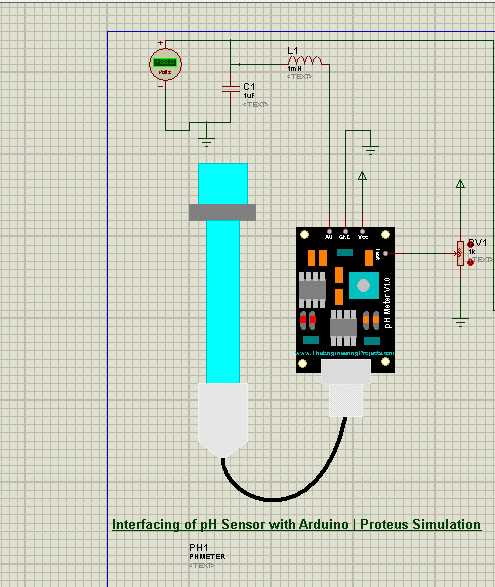

Feed the amplified output into an analog-to-digital converter (ADC) with at least 12-bit resolution. For an Arduino or similar microcontroller, configure the ADC’s reference voltage to match the amplifier’s full-scale output (e.g., 0–5V). Calibrate the system using pH 4.0 and 7.0 buffer solutions: adjust a trimpot in the feedback loop of the amplifier to match the expected voltage-to-pH slope, typically 0.177 V/pH at 25°C.

Implement temperature compensation if meter accuracy beyond ±0.1 pH is required. Add a 10 kΩ NTC thermistor or a dedicated temperature module (like the DS18B20) in the probe’s vicinity. Use the Steinhart-Hart equation in firmware to adjust readings dynamically: R = R₀ × exp(β × (1/T – 1/T₀)), where R₀ is 10 kΩ at 25°C (298.15 K) and β ≈ 3950. Store calibration constants in EEPROM to avoid repeated buffering.

Route signal lines away from switching regulators, relays, or motors–even a 1 cm proximity can introduce 50 Hz/60 Hz hum. For long cable runs (>1 m), add a unity-gain buffer at the probe end to drive the signal without degradation. Test the setup by submerging the probe in distilled water: stable readings should settle within 30 seconds; erratic values indicate improper grounding or a damaged electrode.

Calibrating Your PH Meter for Precise Measurements

Begin calibration by preparing three buffer solutions with known pH values: 4.00, 7.00, and 10.01. Store these in sealed containers at room temperature (20–25°C) to minimize evaporation or contamination. Rinse the probe with distilled water before and after submersion in each buffer to prevent cross-contamination. Allow the probe to stabilize for at least 30 seconds in each solution–longer for probes with slower response times.

Key Adjustments for Reliable Data

Use a multimeter in parallel with your measurement device to verify voltage output during calibration. At pH 7.00, the voltage should read near 0 mV (or specified midpoint for your instrument). For pH 4.00, expect +177 mV (+/- 5 mV); for pH 10.01, -177 mV (+/- 5 mV). If readings deviate, adjust the offset or slope controls on your analyzer until outputs match these values. Record the adjustment settings for future reference.

Calibration frequency depends on usage and environment. For continuous monitoring, recalibrate every 24 hours. For intermittent use, check before each critical measurement. If the probe sits idle for over a week, soak it in pH 4 buffer for 2–4 hours to rehydrate the glass membrane. Never store probes in distilled water–it accelerates aging and reduces sensitivity.

• Never touch the glass membrane with bare hands–oils from skin disrupt readings.
• Avoid abrasive cleaning; use mild detergent or 0.1M HCl for stubborn deposits.
• Replace probes if drift exceeds 0.05 pH/day or response time surpasses 60 seconds.
• Temperature compensation is critical: errors increase by 0.03 pH/°C above or below 25°C.

For field applications, use freshly prepared buffers and verify electrode performance with a fourth solution–e.g., tap water at pH 8.1–8.5. Errors above 0.1 pH indicate probe degradation or fouling. In such cases, recalibrate or replace the probe immediately. High-alkaline or high-acid samples may require specialized probes with reinforced membranes to withstand corrosion.
