Complete Guide to Pioneer AVH-521EX Wiring Diagram Installation Steps
Start with the vehicle’s ground connection–attach the black wire (labeled GND) to a bare metal surface under the dashboard using a 10mm bolt. Avoid paint or corrosion; clean the mounting point thoroughly before securing. For power, link the yellow (B+) cable to the car’s battery positive terminal with an inline fuse (20A). The red (ACC) wire connects to the ignition switch ACC circuit to enable power only when the key is turned. Confirm voltage with a multimeter: 12.2–14.4V on B+, 0V when off, and 12V+ on ACC when the key is in the accessory position.
Speaker outputs follow a standard color code: white/white-black (front left), gray/gray-black (front right), green/green-black (rear left), purple/purple-black (rear right). Strip 6mm of insulation, twist strands, and crimp to the corresponding speaker leads using butt connectors (16–18 AWG). Avoid soldering near door panels–vibration loosens joints over time. For amplifier turn-on, splice the blue/white remote wire to the factory amp’s trigger or a dedicated 12V source. Test continuity before finalizing connections; a dead speaker channel often traces to reversed polarity (+/− mix-ups).
The parking brake wire (light brown) requires grounding through a switch to unlock video functionality. Fabricate a bypass only if permitted by local regulations–some regions mandate active brake engagement for safety. For steering wheel controls, use an aftermarket interface (ASWC-1, iDatalink Maestro) pre-configured for your vehicle model. Connect the pink (reverse signal) wire to the back-up light circuit to enable rear camera activation; verify the image flips when shifting into reverse. If the screen remains blank, check the camera’s power feed (typically red (camera+) and black (GND)). Secure all loose wires with zip ties to prevent interference with pedals or HVAC vents.
USB and auxiliary inputs require specific adapters: the purple RCA outputs to an external amp, while the orange illumination wire ties into the vehicle’s dimmer circuit. For microSD slots, ensure Class 10 cards are formatted in FAT32 for compatibility. Bluetooth pairing codes (default 0000) reset via the settings menu if authentication fails. If static persists in FM reception, relocate the gray antenna lead away from power cables–silicone dielectric grease prevents signal degradation. Final step: double-check all connections against the manufacturer’s schematic–mistakes in the orange/white (+12V memory) line cause resets on startup.
Connecting Your In-Dash Multimedia System: A Field-Tested Approach

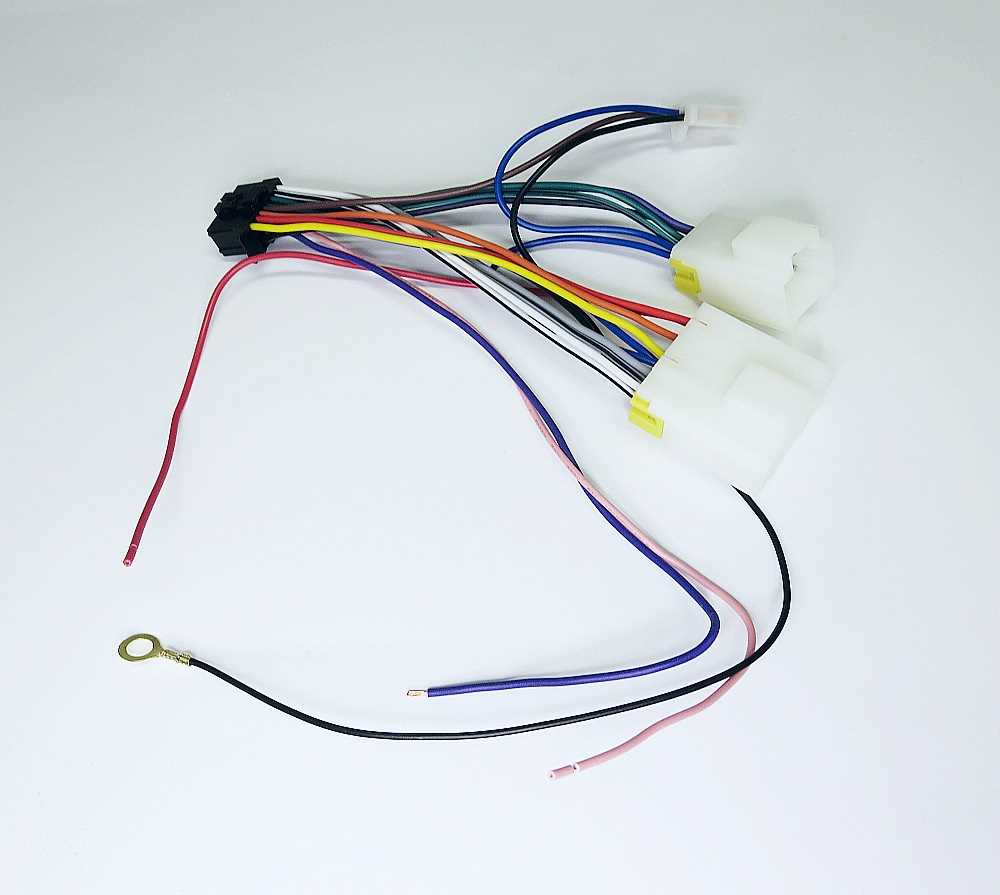

Start by locating the harness adapter matching your vehicle’s make and year–OEM harnesses from Metra or Scosche save hours of splicing. The yellow power lead must connect to a 12V source switched via ignition, not directly to the battery, to prevent parasitic drain. Confirm the fuse rating matches the head unit’s specified 10A requirement; undersized fuses risk overheating the circuit.
Ground the black wire to bare metal near the mounting location, not to painted surfaces or factory bolts shared with other components. Use a crimp connector and heat-shrink tubing instead of tape–vibration loosens tape over time, causing intermittent faults. For RCA signal cables, route them away from power wires and OEM GPS modules to avoid alternator whine; cross them perpendicularly if unavoidable.
Handling Speaker Outputs Without Damaging Hardware
Label each speaker wire pair before disconnecting the factory harness to prevent channel mismatches. The purple/gray pair (rear right positive) and purple pair (rear right negative) must avoid contact with chassis grounds–shorting these will fry the internal amplifier instantly. Test speaker impedance with a multimeter first; factory 2-ohm systems require bridging two 4-ohm outputs carefully per the service manual’s chart.
Use butt connectors rated for 16-18 AWG wired; crimp once, then solder and insulate with adhesive-lined shrink tubing. Piggybacking onto factory amplified systems demands a line-level converter–skipping this step introduces clipping distortion even at low volumes. Verify phase alignment after installation by playing a mono test tone; inverted polarity flattens bass response across all door speakers.
Configuring Power and Parking Brake Safety
Override the parking brake wire (solid blue) only if integrating a rear-view camera; splice it to the brake pedal switch to maintain legal compliance. The solid orange wire (illumination) must tap into the vehicle’s dimmer circuit–connecting it to a constant 12V source leaves dash lights permanently bright. For vehicles with ISO multiplexing, add a bypass module rather than cutting steering wheel control wires; improper splicing triggers OBD-II error codes.
After securing all connections, bench-test the unit outside the vehicle by powering up with the harness adapter plugged in. Verify touchscreen calibration, Bluetooth pairing, and backup camera feed before reinstalling the dash. Hide excess wire lengths behind the climate controls using split loom tubing–neat routing prevents pinching under mounting brackets or interfering with HVAC vent linkages.
Critical Power and Ground Terminals for AV Navigation System
Begin by locating the red (switched 12V) and yellow (constant 12V) harness pins on the rear interface–these terminate at the vehicle’s fuse box via a minimum 16-gauge cable. The red lead must connect to a switched circuit (e.g., ignition or accessory wire) to prevent parasitic drain, while the yellow requires direct battery power through a 15A fuse for memory retention. Verify polarity with a multimeter before securing connections to avoid damaging the internal voltage regulator. Ground the black (chassis) wire to a bare metal surface within 18 inches of the unit, scraping away paint or undercoating to ensure a low-resistance path; a 10-gauge wire is recommended for high-current systems.
Troubleshooting Signal Integrity
If the display flickers or audio cuts out, inspect the purple (illumination) and orange (dimmer) wires–these must link to the vehicle’s lighting circuit (typically a 2-5V PWM signal). Use a test lamp to confirm voltage consistency; variations above 6V may trigger shutdown protocols. For amplified setups, route the blue/white (remote turn-on) wire separately from power cables, twisting it with the RCA shield to minimize interference. Ground loops often manifest as a low-frequency hum–combat this by isolating the head unit’s ground from the amplifier’s using a distributed grounding block mounted near the battery.
Step-by-Step Harness Integration for OEM and Upgraded Audio Systems
Begin by identifying the color-coded leads on both the vehicle’s original connector and the aftermarket adapter. Match the constant 12V power (typically yellow) directly to the corresponding input on the new interface–skipping any intermediary relays unless the factory setup includes constant-load modules (e.g., memory retention for electric seats). For switched power (red), confirm whether the vehicle’s ignition circuit is fused at 10A or requires a supplementary inline fuse rated at 15A to prevent voltage drops during peak demand. Ground connections (black) should terminate at a bare metal chassis point within 18 inches of the head unit’s mount, avoiding painted or coated surfaces to eliminate signal noise.
Pair speaker outputs using the manufacturer’s standardized wire gauge: 16AWG for door units under 50W RMS, 14AWG for component tweeters or subwoofer channels exceeding 100W. Cross-reference the adapter’s pinout with the vehicle’s service manual–some European models split rear fill across separate midrange and bass channels, requiring a bridging Y-splitter to maintain phase alignment. For amplified systems with factory crossovers, bypass the inline capacitors on non-tweeter outputs to prevent high-frequency roll-off, but retain any inductors on bass channels to protect aftermarket woofers from DC offset. Use crimp connectors for solid joints, then heat-shrink each connection to 8mm diameter for water resistance, especially in convertible or off-road applications.
Test each channel before final installation: set the head unit’s fader to center, play a 1kHz sine wave at 75% volume, and verify uniform output using a multimeter on AC voltage mode (expect 4–6V on undistorted tweeters, 8–12V on subwoofer terminals). If distortion occurs below 90% volume, recheck amplifier gain settings–factory systems rarely exceed 0.5V preamp output, so aftermarket units may need attenuation via a 3.5mm line-level converter. For vehicles with CAN bus interfaces, integrate a load resistor (1–2.2kΩ, 1/4W) across the data line to prevent “no communication” errors on instrument clusters.
Integrating Safety and Utility Signals for Seamless Operation
Locate the parking brake engagement lead–typically a single green or pink wire–on the harness connector. This conductor must connect to the vehicle’s parking brake switch circuit, ensuring the multimedia interface enables full video playback only when the brake is engaged. For most late-model vehicles, splice this wire into the brake light signal wire at the switch assembly under the dashboard. Verify compatibility by testing: the system should allow touchscreen access only when the pedal is depressed.
The reverse signal trigger (often purple or light purple with a stripe) activates the camera feed when shifting into reverse. Connect this directly to the vehicle’s reverse light circuit–either at the tail light cluster or the transmission control module. For vehicles with automatic transmissions, identify the correct wire using a multimeter: probe the connector while an assistant shifts into reverse; voltage (10–14V) confirms the correct conductor. Avoid splicing into third-party backup camera modules, as this can introduce latency or erroneous triggers.
Common Vehicle-Specific Connection Points
| Manufacturer | Parking Brake Source | Reverse Signal Source | Notes |
|---|---|---|---|
| Ford | Brake switch above pedal (orange/light blue) | Transmission module (gray/black at 12-pin C1352 connector) | 2008+ models require CAN bus checks for interference |
| Toyota | Combination meter (green/white at A7 connector) | Tail light cluster (purple at T6 connector) | Prius models need relay bypass for hybrid systems |
| GM | Under-dash fuse box (tan/black at X2 connector) | Transmission range sensor (pink at X1 connector) | Avoid splicing into OnStar wiring |
For vehicles with manual transmissions, the reverse signal wire may require tapping into the gearbox’s neutral safety switch. Use a T-tap connector for solderless, secure attachment–avoid twist-and-tape methods, which degrade over time. Check for false triggers by monitoring the camera feed while cycling through gears; ghosting or delayed activation suggests a weak connection or voltage drop. A 12V relay can isolate the signal if the vehicle’s circuit lacks sufficient current capacity.
Ground both the parking brake and reverse wires at a common chassis point, preferably the factory stereo’s ground location. This prevents ground loops that can cause intermittent failures. After connecting, test under varying conditions: idling, driving at highway speeds, and with headlights/AC on to ensure no electrical interference disrupts functionality. If the screen dims or flickers, add a 10A fuse inline with each signal wire to protect against power surges.
Troubleshooting Signal Integration
Symptom: Camera remains dark when shifting into reverse.
Solution: Verify reverse light bulb illumination; if lit, inspect for broken wires at the tail light connector. Use a test light to confirm 12V presence at the harness input while in gear.
Symptom: Touchscreen locks randomly.
Solution: Check parking brake wire for partial grounding. Disconnect and retest; if free of issues, the switch assembly may need cleaning/replacement.
