Step-by-Step Guide to Drawing a Fan Wiring Schematic Chart

Start by identifying the primary components in any airflow system layout: the motor, capacitor, and rotational blades. A typical wiring plan for a ceiling-mounted cooling unit includes two winding circuits–start and run–connected via a capacitor. The start winding initiates motion, while the run winding sustains operation. Locate these on the blueprint first, as they dictate the entire flow of current.

Verify voltage requirements before tracing connections. Most residential systems operate on 120V or 240V AC, but industrial models may use three-phase 380V. Check the label on the motor housing–this specifies exact power needs. Wrong voltage will either fail to activate the unit or cause immediate overheating. Always cross-reference the blueprint with this data.

Capacitors in these systems serve two distinct roles: starting torque (electrolytic) and continuous phase shift (metalized polypropylene). On the plan, electrolytic capacitors appear as cylindrical components with high microfarad ratings (100–400μF). Polypropylene types show lower ratings (10–50μF) but endure sustained operation. Swapping these components without consulting the wiring guide risks motor burn-out.

Safety switches or thermal protectors appear near the motor windings. These cut power if temperatures exceed 130°C. On the schematic, they resemble small circular or rectangular elements with two terminals. Ensure these align with the correct winding connections–start-to-start and run-to-run terminals must pair correctly to prevent short-circuits.

For precision, label each wire during disassembly. Use colored tape matching the blueprint: red for live, black for neutral, green (or bare) for ground. Industrial-grade models may include additional color codes–blue or brown for secondary phase lines. Consistent labeling prevents miswiring, which can void warranties or damage control modules.

Test continuity with a multimeter before final assembly. Probe across capacitor terminals–the resistance should start high (near infinity) then gradually decrease as it charges. If readings remain at zero, the capacitor is faulty. For motors, expect 2–10 ohms across the run winding and slightly higher (10–30 ohms) across the start winding. Deviations indicate internal faults requiring replacement.

Understanding Electrical Layouts for Airflow Devices

Start by mapping the power input–typically a 12V or 24V DC supply for small units or 110-240V AC for industrial models. Identify the motor type: brushless DC (BLDC) for efficiency or shaded-pole AC for simplicity. Label each component: capacitor (for phase shift in AC motors), resistor (if speed control is present), and thermal fuse (critical for safety). Use a multimeter to verify voltage at key points: between the supply and motor terminals, across the capacitor, and at the speed controller output. For PWM-controlled units, check the signal wire frequency (usually 20-100 kHz) with an oscilloscope to confirm proper modulation.

Critical Circuit Paths and Troubleshooting

• Power path: Trace wiring from mains entry (or battery) to the motor, noting switches, fuses, and relays. A 0.5A fuse may blow due to shorted windings–test windings with a megohmmeter (resistance should exceed 10MΩ).

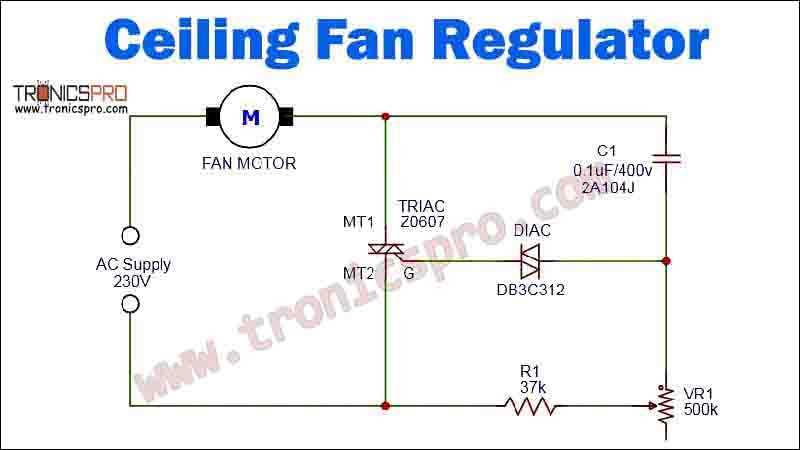

• Speed control: For triac-based regulators, verify the gate trigger voltage (typically 1-3V AC). Replace faulty potentiometers if wiper resistance fluctuates out of spec (check manufacturer datasheets).
• Safety circuits: Ensure the thermal cutoff activates below 120°C. Test by heating the sensor with a hairdryer and monitoring continuity. Missing continuity indicates failure.

For EC motors (electronically commutated), probe the hall sensor outputs: they should cycle high/low (0V/5V) as the rotor turns. Absent or stuck signals point to sensor failure. Log component values (e.g., capacitor μF rating) for consistent replacement. Cross-reference with OEM documentation–even minor deviations (e.g., ±5% on resistor values) can cause overheating.

Key Electrical Components in a Ventilation Unit Circuit

Select a capacitor rated between 1.5–4 µF for single-phase motors in air circulators, ensuring it matches the motor’s start-up requirements without exceeding its maximum voltage tolerance (typically 250–450V AC). Overrating by 10–15% prevents premature failure due to voltage spikes, while underrating leads to insufficient torque and overheating. Verify capacitance values against manufacturer specifications–deviations beyond ±5% may cause erratic operation.

The run capacitor must be non-polarized, metallized polypropylene (MPP), as electrolytic types degrade under continuous AC load. Check ESR (Equivalent Series Resistance) values; ideal ranges fall below 30 mΩ for 2 µF units, rising proportionally with capacitance. Replace capacitors exhibiting bulging, leaks, or ESR readings above 100 mΩ–these indicate imminent failure and risk motor burnout. Test with an LCR meter at 1 kHz for accurate readings.

Component	Typical Rating	Critical Parameters	Failure Symptoms
Start Capacitor	2–4 µF, 250–450V AC	MPP type, ESR <50 mΩ, ±5% tolerance	Motor hums but doesn’t spin; hot housing
Thermal Protector	105–130°C bi-metallic	Trip time <10s at 150°C, reset >5s	Intermittent cycling; motor cuts out under load
Speed Control Resistor	1–5 kΩ, 5W wirewound	Power dissipation ≥80% of rating, tolerance ±1%	Unstable RPM; overheating at slow speeds

Thermal overload protectors require careful sizing–opt for bi-metallic types with a trip rating 10–20°C above the motor’s normal operating temperature (typically 80–90°C for axial blowers). Resettable protectors must cool within 30 seconds to avoid nuisance tripping; non-resettable types demand replacement if tripped. Test by applying heat directly with a hairdryer–proper units should open within 8–12 seconds at 150°C.

Speed regulation in multi-tap units relies on precision wirewound resistors. Choose values based on desired RPM reduction: 1 kΩ typically reduces speed by 30%, while 3 kΩ achieves 50% reduction. Ensure resistors handle at least 5W continuous load, with derating factors applied for ambient temperatures above 40°C. Measure voltage drops across resistors in-circuit–deviations beyond ±2% indicate drift or damage.

Brushless DC units integrate Hall-effect sensors for commutation. Mount sensors with precise 120° spacing (for 3-phase motors) relative to rotor magnets, using adhesive-backed thermal pads to prevent vibration-induced misalignment. Mispositioned sensors cause cogging or stalling; verify with an oscilloscope–each sensor should output a clean 5V square wave with

Wiring gauge must match current draw–use 18 AWG for currents up to 7A, 16 AWG for 7–10A, and 14 AWG for higher loads. Twisted pairs reduce electromagnetic interference in PWM-controlled units; shielded cables are mandatory for sensor lines in BLDC implementations. Inspect insulation for brittleness or cracking–replace wires if outer jackets exhibit resistance below 1 MΩ when probed with a megohmmeter.

For variable-frequency drives (VFDs), ensure the rectifier bridge supports the motor’s peak current (typically 1.5× rated load). Snubber capacitors (0.1–1 µF, 630V) across bridge outputs suppress voltage transients; omit these and risk IGBT failure during switching. Program VFDs with ramp-up times ≥3 seconds to limit inrush current–shorter durations stress capacitors and windings. Log diagnostic outputs: excessive DC bus voltage ripples (>5%) often indicate faulty smoothing capacitors.

Troubleshooting Flow for Common Failures

1. Motor fails to start: Measure capacitor ESR first; if within spec, test run winding resistance (typically 2–10 Ω for shaded-pole units). Resistance >20 Ω suggests open winding.

2. Excessive heat/noise: Check bearing preload by spinning the shaft–grinding indicates worn bearings; axial play >1.5 mm requires replacement.

3. Intermittent operation: Probe thermal protector–consistent trips indicate insufficient airflow or undersized protector. Confirm ambient temperature; overheating units may need downgauged motors.

Step-by-Step Wiring Layout for Single-Speed Airflow Units

Start by identifying the supply voltage of the cooling device–typically 120VAC or 240VAC for residential models. Verify this on the motor’s nameplate, as incorrect wiring may cause overheating or failure. Use a multimeter to confirm voltage at the circuit before connecting any wires.

Locate the capacitor, usually a cylindrical or oval component near the motor housing. Its role is to provide the initial torque for blade rotation. Ensure the capacitor’s microfarad (µF) rating matches the motor’s requirements; a mismatch can lead to slow startup or humming without operation.

Connect the line (hot) wire to the motor’s common terminal, often marked “C” or left unlabeled. This wire carries incoming current directly from the circuit breaker. Use a wire nut to secure the splice, ensuring no exposed copper remains visible to prevent short circuits.

Attach the start wire to the capacitor’s first terminal, then run a jumper from the capacitor’s second terminal to the motor’s start terminal, typically marked “S.” This temporary path enables the rotor to begin spinning. For permanent split-capacitor (PSC) motors, this connection remains stationary.

Link the run wire to the capacitor’s second terminal if the motor uses a start/run capacitor. For single-capacitor models, the run wire connects directly to the motor’s run terminal, labeled “R.” Double-check polarity if the motor specifies a directional rotation; reversing these wires may spin blades backward, reducing airflow efficiency.

Secure the neutral wire to the remaining motor terminal or a dedicated neutral post. In 120V configurations, this completes the circuit back to the breaker panel. For 240V setups, both wires carry live current–label them clearly to avoid confusion during future maintenance.

Ground the assembly by attaching a bare or green wire to the motor’s grounding screw, usually green-colored or marked with a ground symbol. Connect this to the system’s grounding bus bar in the electrical panel. Omitting this step risks electrical shock or damage to sensitive components during power surges.

Test the setup by powering the circuit. Listen for smooth, consistent blade movement–any grinding or rattling indicates misaligned wiring or internal obstruction. If the device fails to start, recheck capacitor connections and ensure the motor’s thermal overload protector hasn’t tripped. For persistent issues, measure winding resistance with a multimeter; values outside 5–15 ohms suggest motor failure.
