Complete Wiring Guide for Pioneer DEH-S4220BT Car Stereo System
Start by locating the 16-pin harness connector on the back of your receiver–this is where all primary connections terminate. The color-coded wires follow an industry-standard pinout: yellow (constant 12V), red (switched 12V), black (ground), blue/white (power antenna/amp trigger), and purple/green/white for rear speaker outputs. Cross-reference these with your vehicle’s harness adapter before soldering or crimping to prevent short circuits or audio distortion.
For optimal signal clarity, route the RCA cables away from power wires and ignition coils to minimize interference. If your model includes a built-in amplifier, ensure the blue/white remote turn-on wire connects to an external amp’s trigger terminal–failure to do so may result in no sound or premature battery drain. Verify ground integrity by testing continuity between the black wire and bare metal chassis; poor grounding causes humming or erratic volume fluctuations.
When troubleshooting, use a multimeter to confirm voltage at the yellow and red wires with the ignition on (expect 12V DC). If rear speakers produce no sound, check the purple/green pair for continuity–common failure points include corroded connectors or incorrect polarity. For steering wheel control compatibility, match the grey and grey/black wires to your vehicle’s interface module, adhering strictly to the manufacturer’s pin assignments.
Connecting Your Audio Head Unit: Step-by-Step Electrical Layout
Begin by identifying the vehicle’s power sources. The yellow cable (constant 12V) must connect directly to the battery terminal, bypassing ignition switches. Secure it with a 20-amp fuse within 18 inches of the battery to prevent fire hazards. The red wire (switched 12V) links to the ignition or accessory circuit–verify voltage with a multimeter before joining to avoid draining the battery.
Ground the black lead to a bare metal surface near the installation point. Scrape off paint, rust, or corrosion from the chassis to ensure conductivity. A poor ground causes static, distorted sound, or unit resets. Use star washers or a dedicated grounding block if the car’s frame is aluminum or coated.
Speaker outputs require correct polarity matching. Each pair (front/rear) splits into positive (striped) and negative (solid) wires. Mismatching causes phase cancellation, weakening bass and stereo imaging. Test each channel with a 1.5V AA battery–speakers should push outward on contact. If they pull inward, reverse the wires at the amp or head unit.
For amplified setups, the blue/white remote turn-on wire triggers external amps. Route this to the amp’s remote input, not the power antenna output (blue wire). Omitting this step leaves amps inactive, silencing the system. Confirm continuity with a test light if the system powers on but remains muted.
Integrating Bluetooth and Auxiliary Inputs
USB and auxiliary outputs demand shielded cables to block interference. Route them away from power wires and ignition coils. The USB port (white connector) supports iOS/Android charging–use an OEM-style harness or solder joints to prevent voltage drops. Aux-in cables should terminate in a 3.5mm jack, grounded independently to avoid ground loops.

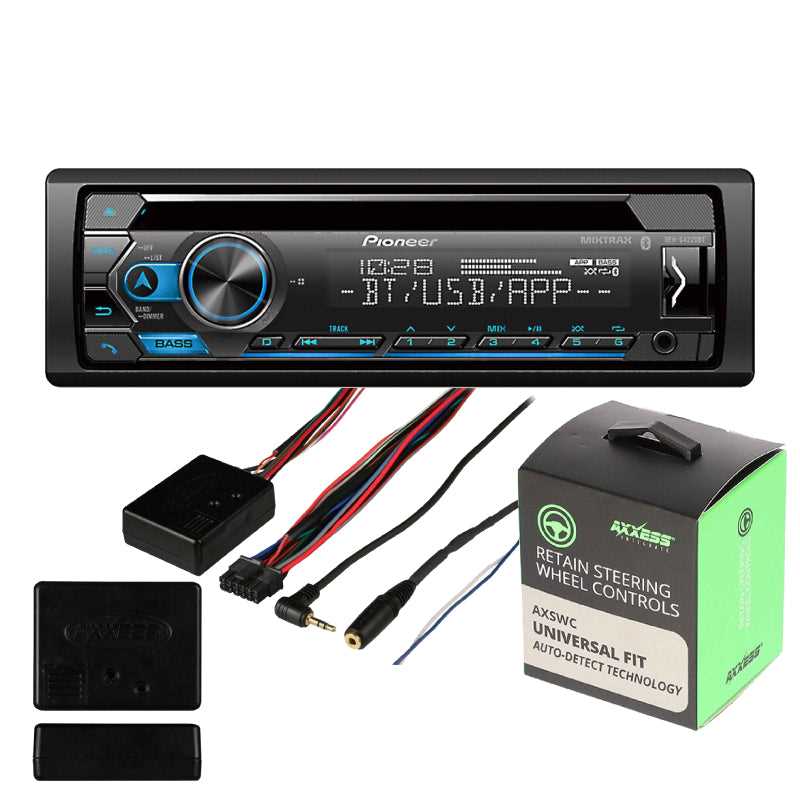

Factory steering controls or hands-free mics need adapter harnesses (Metra ASWC-1, iDatalink Maestro). Follow the harness pinout precisely–crossing wires disables buttons or locks the unit in safe mode. Test each function before finalizing panel assemblies to save rework.
- Check harness compatibility–aftermarket units often use ISO connectors; adapters may be needed for GM, Ford, or Toyota.
- Avoid splicing into OEM navigation or backup camera feeds without a bypass module–voltage surges can fry circuit boards.
- Parking brake wire (pink) must be grounded for video playback in regions with legal restrictions.
Final Verification and Troubleshooting
Recheck all connections before powering on. A loose wire or reversed polarity trips the head unit’s protection circuit, causing a reboot loop. If the display flashes but the radio stays cold, inspect the yellow/red power leads–one may lack voltage. Static from speakers often traces to unshielded RCA cables or poor grounding.
- Power cycle the unit: Disconnect the battery for 10 minutes to reset error codes.
- Measure voltage at the harness with the ignition off and on (yellow should read 12V both times, red only when on).
- Use dielectric grease on connector pins to prevent corrosion in humid climates.
Secure excess wiring with zip ties, avoiding sharp edges or moving parts. Tuck bundles behind dash panels, ensuring no strain on connectors. Reassemble trim panels incrementally, testing functionality after each step. A properly routed harness prevents rattles and signal degradation over time.
Identifying Power and Ground Connections for the DEH-S4200BT Head Unit
Locate the yellow 12V constant power lead first–this wire retains memory settings and must connect directly to the battery’s positive terminal to avoid voltage drops; bypassing the ignition switch ensures uninterrupted operation. Secure a 10A fuse within 15cm of the battery to prevent short circuits.
The red accessory wire requires connection to a switched power source, typically the ignition or ACC terminal. Verify voltage with a multimeter: 11.5V minimum when the ignition is on. If voltage dips below this threshold, power-saving modes may activate unexpectedly. Avoid splicing into dashboard lighting circuits, as their voltage fluctuates with brightness adjustments.
Grounding demands equal precision. Use a solid, unpainted metal surface near the head unit’s mounting location–factory grounding points are ideal. Scrape away paint to expose bare metal, then secure the black ground wire with a M6 bolt (torque to 8-10 Nm). Poor grounding causes noise, signal interference, or erratic behavior. For vehicles with aluminum or composite bodies, run a dedicated ground wire to the battery’s negative terminal.
Test connections with the engine off, then idling. Voltage readings should remain stable (
| Wire Color | Function | Target Connection | Voltage (Ignition On) |
|---|---|---|---|
| Yellow | Constant 12V | Battery (+) | 11.5–14.4V |
| Red | Switched 12V | Ignition/ACC | 11.5–14.4V |
| Black | Ground | Chassis/Battery (–) | 0–0.5V |
For aftermarket amplifiers, the blue/white remote turn-on lead must connect to a 12V trigger–either the head unit’s dedicated output or a relay controlled by the accessory wire. This wire draws minimal current (≤200mA), but improper sizing or sharing with high-current devices risks voltage sag. Dedicated relays prevent backfeeding, especially in setups using external processors.
Troubleshooting Common Issues
If the unit powers off when cranking the engine, the constant power lead lacks sufficient amperage. Add a capacitor (47,000µF/25V) across the yellow and ground wires to stabilize voltage during cranking. For intermittent shutdowns, measure resistance between the ground wire and chassis–values above 0.1Ω indicate corrosion; clean connections with electrical contact cleaner.
Avoid using the antenna motor’s power lead (typically pink) as a substitute for constant 12V–this wire supplies voltage only when the tuner is active and may cause resets. Always cross-reference factory harness pins with a multimeter; aftermarket harnesses occasionally mislabel wires. For OEM integration adapters, confirm compatibility via the adapter’s pinout chart–adapters often reroute power and ground to different pins.
Connecting Audio Channels to Aftermarket Speakers: A Precise Guide
Locate the rear panel’s white (front left +), gray (front right +), green (rear left +) and purple (rear right +) harness connectors–match each color-coded lead to the corresponding speaker terminal, ensuring the (+) wire aligns with the amplifier’s positive post and the (-) striped companion meets the negative terminal. For 4-ohm factory replacements, crimp spade connectors directly onto each lead; for 2-ohm systems, solder and shrink-tube the joints to prevent resistance-induced distortion. Verify polarity with a multimeter before securing connections–reversed polarity on a single channel can cancel mid-range frequencies and reduce stereo separation by up to 40%.
Strip no more than 4 mm of insulation from each wire, twist strands clockwise, and fold once to prevent fraying; insert into the speaker terminal’s spring-loaded clip or binding post, tightening until no slack remains–loose connections introduce 1–3 dB of signal loss per interface. Route cables away from power wires and ignition leads, maintaining a 6 cm minimum clearance to avoid electromagnetic interference; bundle runs with nylon sleeves or split loom for durability and heat dissipation. Test each pairing individually using a 1 kHz sine wave at -10 dBV–distortion above 0.1% indicates a faulty joint or incompatible speaker impedance.
Proper Bluetooth and USB Integration for Your Car Audio System
Start by pairing the device using the default PIN 0000. Hold the voice command button on the receiver’s front panel for three seconds to activate Bluetooth discovery mode. Ensure no other active connections exist–older pairings may interfere with signal stability. Check the manual for compatibility; some Android devices require “media audio” mode enabled separately to stream music.
For USB connections, use a shielded cable rated for data transfer (AWG 24 or thicker). Avoid charging-only cables–verify the connector pins support simultaneous power and data. Connect directly to the unit’s port rather than through hubs for consistent power delivery. Format flash drives in FAT32 with cluster sizes under 32KB to prevent buffering during playback of high-bitrate files (320kbps+ MP3/FLAC).
Troubleshooting Common Issues
If Bluetooth drops, restart both the receiver and phone, then delete the pairing record. Reset the unit by holding the SRC button for 5 seconds–this clears corrupted pairing data. USB problems often stem from insufficient power: test with a powered hub if devices disconnect during play. For iPhone users, disable “USB Accessories” in Settings if the device prompts for a passcode when connected.
Adjust the receiver’s BT Name to a unique identifier to avoid confusion with other nearby devices. Update firmware via USB using the latest version from the manufacturer’s site–bug fixes frequently resolve intermittent streaming issues. Store cables away from engine components; electromagnetic interference can distort audio. Label connections to simplify future diagnostics.
