Complete Pioneer Car Stereo Wiring Diagram Guide for Installation

Before connecting any components, verify voltage compatibility across all terminals. Most 12V car stereos–including legacy and modern units–operate on a standardized color-coded harness: red for constant power, yellow for battery memory, black for ground, and blue for amplifier triggers. Deviations exist; consult the specific model’s technical manual for exact pinouts. Skipping this step risks damaging the head unit or fuses.

Trace the factory harness layout before splicing. Many vehicles retain original connectors; use a digital multimeter to confirm wire functions, especially in models with integrated CAN bus or steering wheel controls. Mismatched connections can lead to erratic behavior, including power drain or intermittent signal loss. For OEM-specific integration, aftermarket adapter harnesses reduce complexity and preserve factory systems.

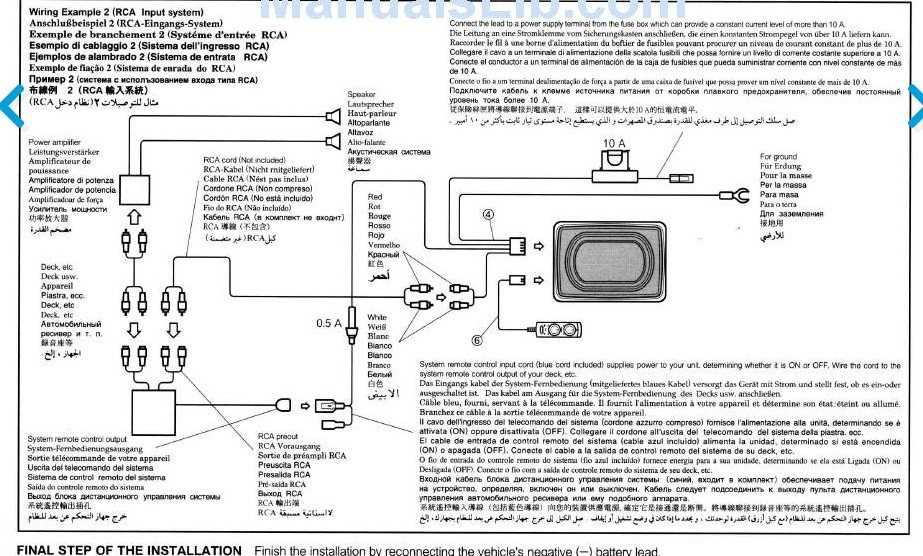

Connect RCA cables directly to amplifier inputs, avoiding signal degradation from excessive cable runs or proximity to power wires. Use shielded twisted-pair cables for preamp outputs, grounding the shield at one end only. For systems with equalizers or DSPs, follow the recommended input/output impedance specifications–typically 1kΩ to 10kΩ–to prevent signal clipping or noise induction.

Test speaker wiring polarity with a 9V battery before final installation. Attach positive and negative leads briefly to each speaker; correct polarity produces outward cone movement. Reversed polarity reduces sound quality and may damage components in bridged configurations. For subs, confirm enclosure impedance matches amplifier capabilities–most aftermarket amplifiers tolerate 2Ω to 4Ω loads; exceeding this triggers thermal shutdown.

Secure all connections with solder and heat-shrink tubing, not crimp connectors. Vibration-resistant installations require adhesive-lined tubing and looming to prevent short circuits. Route power cables away from signal wires and fuel lines, maintaining at least 8 inches of separation. Ground points should be bare metal, free of paint or corrosion, to ensure consistent current flow.

Understanding Vehicle Audio Integration Schematics

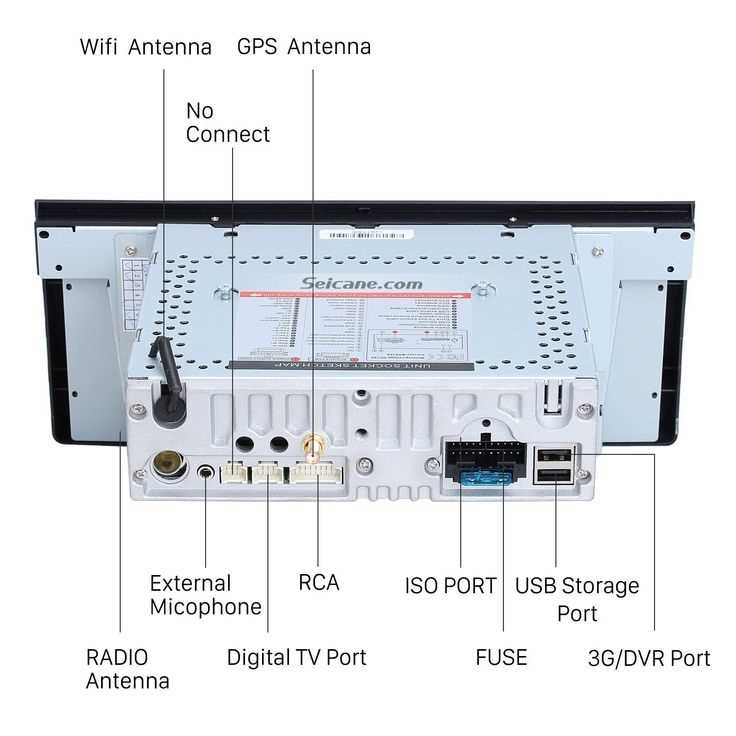

Begin by locating the head unit’s connector pinout in the manufacturer’s installation manual–most aftermarket systems use a 16-pin harness adapter. Verify the following critical connections:

• Power (+12V constant): Connect to the battery’s positive terminal via a 10-15A fuse, positioned no farther than 12 inches from the terminal to prevent voltage drop.
• Ignition-switched (+12V): Attach to a fuse tap linked to the ACC circuit (e.g., cigarette lighter or radio fuse); confirm voltage using a multimeter to avoid draining the battery.
• Ground: Secure to a bare metal chassis point, sanding paint or rust for optimal conductivity. Avoid proximity to fuel lines or moving components.
• Speaker outputs: Match polarity (+/-) precisely–reversing causes phase cancellation, degrading sound quality. Test each channel with a 1kHz tone before finalizing.

Avoid splicing directly into factory harnesses unless using a T-harness or adapter designed for the vehicle’s make/model. For OEM steering wheel controls, pair the unit with a compatible interface (e.g., iDatalink Maestro) and program using the manufacturer’s software. Double-check all connections with a continuity tester–faulty installations risk short circuits, amplifier damage, or fire hazards.

For amplifiers, route 4-gauge power cables separately from signal wires to minimize interference. Use a relay for high-current circuits, and ensure the ground path equals or exceeds the power cable’s gauge. Capacitors (farad rating = amplifier wattage ÷ 100) stabilize voltage during peak demand but require periodic maintenance. Label all cables clearly for future troubleshooting.

Refer to the ASWC-1 or Metra AX-TOY41 compatibility charts if integrating with factory systems. Test audio outputs at 75% volume before closing the dashboard–distortion at this stage indicates incorrect impedance matching or faulty speakers. Store unused harness wires in a sealed plastic bag to prevent corrosion.

Finding the Right Connection Guide for Your Vehicle’s Audio System

Check the manufacturer’s official documentation first–many head unit brands provide model-specific schematics on their support sites. Search using your vehicle’s make, year, and trim, as well as the radio part number printed on the unit’s housing or packaging. If the brand website lacks details, use third-party databases like Crutchfield’s Car Selector tool, which cross-references OEM harnesses with aftermarket compatibility.

• Remove the dash panel to access the factory radio–most models have a unique connector pin layout that differs even within the same manufacturer. Note the color codes on the existing harness; these rarely change across model years but may vary between base and premium trim levels.
• Compare the existing plug configuration with online schematics labeled by vehicle platform (e.g., Toyota Tundra 2014-2018 uses a 24-pin connector, while the Camry 2012-2017 uses a 16-pin).
• If discrepancies exist, consult forums specific to your vehicle model–enthusiast groups often share reverse-engineered diagrams for rare or modified systems.

Verify the schematic by testing continuity between the harness and the new unit using a multimeter–set to ohms, check each wire against the diagram, ensuring no splices or damaged insulation interfere. Some vehicles integrate steering wheel controls or factory amplifiers, which require additional adapters not covered in basic schematics; Metra and Scosche sell harnesses with detailed pinouts for these cases.

1. Download schematics from at least two independent sources to confirm accuracy–errors in color coding or pin assignments can damage the unit or vehicle electronics.
2. For European or luxury models, refer to ISO 10487 standards, which define connector types A, B, and C; some brands deviate slightly, so cross-check with VIN-specific diagrams.
3. If the system includes fiber-optic inputs (common in BMW or Audi), avoid using grainy or low-resolution images–opt for vector-based PDFs or manufacturer-dealer portals for precise details.

Step-by-Step Guide to Interpreting an Aftermarket Radio Connection Schematic

Locate the color-coded harness layout on the schematic–this is your primary reference. Each wire’s function aligns with a specific shade, matched to the vehicle’s factory connectors. For example, yellow typically denotes constant 12V power, red signals accessory power, and black represents ground. Verify these against the car’s manual to avoid mismatches.

Identify the illumination circuit, often marked in orange or gray. This line synchronizes with the vehicle’s dashboard lights, ensuring the display adjusts brightness automatically. If absent, the head unit may remain dim or overly bright. Check for a fused connection, as this line sometimes shares a fuse with other lighting systems.

Find the speaker outputs, usually grouped in pairs for left and right channels. Each pair includes a positive (striped or solid) and negative (black or white) lead. Cross-reference these with the vehicle’s audio system: front door speakers may differ from rear or tweeter connections. Polarity errors here cause phase cancellation, muffling sound.

Examine the antenna control line, frequently labeled in blue or blue/white. This enables automatic power retraction for motorized antennas. If your vehicle uses a fixed mast, this wire may require splicing to a 12V trigger or grounding to prevent interference. Some schematics omit this detail–consult the head unit’s manual for clarity.

Trace the parking brake detection circuit, usually a pink or brown wire. This safety feature disables video playback unless the brake is engaged. Bypassing it without proper knowledge violates manufacturer guidelines and local regulations. If video functionality isn’t needed, leave this wire disconnected to avoid malfunctions.

Look for steering wheel control inputs, often shown in purple or orange. These wires interface with resistive buttons on the steering wheel, allowing hands-free operation. Use a multimeter to measure resistance values across these leads–mismatched readings indicate compatibility issues with aftermarket adapters.

Confirm the ground connection, typically a black wire. A poor ground causes whining noises, erratic display behavior, or complete failure. Attach this directly to a bare metal chassis point, avoiding painted or coated surfaces. Sanding the contact area ensures a solid connection.

Cross-check the schematic with a pinout diagram of the vehicle’s harness. Many aftermarket units include adapter harnesses pre-wired for common car models–use these to simplify connections. If splicing is unavoidable, solder and heat-shrink each joint to prevent corrosion or short circuits over time.

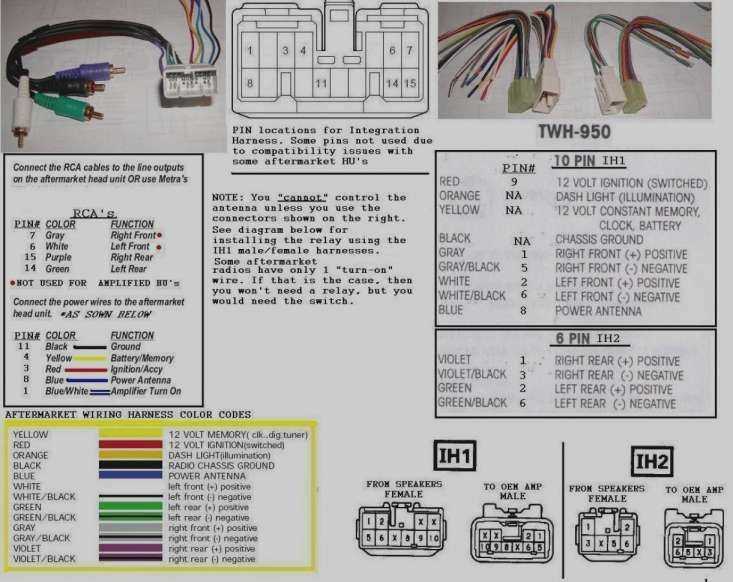

Decoding Standard Connectivity Cable Colors and Purposes

Begin by locating the yellow cable in any standard integration harness–this carries an uninterrupted 12V feed directly from the vehicle’s battery, ensuring memory retention for presets and settings even when the ignition is off.

Next, isolate the red lead, which supplies power exclusively when the ignition is switched on, activating the unit’s primary functions without draining the battery during extended periods of inactivity.

The black ground line is typically thicker; secure it to a clean, bare metal surface on the chassis using a star washer to prevent voltage drops and potential interference.

Speaker outputs follow a consistent pattern: white and white-black for front left, gray and gray-black for front right, green and green-black for rear right, and violet and violet-black for rear left–solid hues denote positive connections, striped variants indicate negative terminals.

For amplifier turn-on detection, trace the blue or blue-white remote lead, which delivers a low-current trigger signal to aftermarket amplifiers or active subwoofers; ensure this wire is insulated from accidental grounding to avoid backfeeding voltage into amplifiers.

Accessory functions like illumination control often use an orange or orange-white cable; connect this to the vehicle’s dimmer circuit to synchronize display brightness with the dashboard lights, adjusting resistance if dimming behaves erratically.
