Complete Pit Bike Wiring Diagram and Electrical System Guide
Begin by disconnecting the battery negative terminal to prevent accidental shorts. Locate the ignition switch harness–typically a 4- to 6-pin connector–and verify power delivery from the stator to the CDI unit using a multimeter. A healthy stator output ranges between 60–150V AC at idle, depending on engine displacement. If values fall below 50V AC, inspect the stator coils for frayed wiring or burnt enamel insulation.
Trace the ground circuits first: the frame-grounded components (regulator-rectifier, coil, ECU if present) must share a single, dedicated grounding point secured by a 10mm bolt with star washers. Avoid daisy-chaining grounds; corrosion at any junction creates voltage drop that can mimic ignition failure. Test continuity between the chassis and negative battery post–resistance should not exceed 0.2 ohms.
Color-code discrepancies exist across models: Japanese makes often use yellow/white for AC stator output, while European brands assign blue/red. Always cross-reference the OEM service manual page–aftermarket schematics may omit critical components like the kill-switch diode or resistor-pack that smooths ecu-controlled dwell time.
For aftermarket upgrades, install a fused relay rated 20–30A to isolate accessory circuits (LED pods, heated grips) from the main harness. Route power wires through angled Deutsch connectors and loom them with 3/8-inch corrugated conduit above suspension linkage pivots where abrasion is inevitable. Label each connector crimp with heat-shrink tubing marked in silver ink for future troubleshooting.
Voltage verification order: battery (12.6V static, >10V cranking) → stator → CDI input → coil primary (~300V DC pulse) → spark plug cap (>15kV). Any deviation pinpoints the fault zone immediately. Replace ignition coils if secondary resistance exceeds 15k ohms or falls below 8k ohms.
Small-Displacement Motorcycle Electrical System Guide
Start by disconnecting the battery’s negative terminal before touching any connections–this prevents accidental shorts that can fry sensors or the CDI unit. Label each wire with masking tape and note its original position; color-coding alone isn’t reliable, as aftermarket harnesses often deviate from OEM standards. Use a multimeter set to continuity mode to verify connections before reassembly, especially for the ignition coil primary circuit, which should show 0.2–0.5 ohms resistance on a healthy system. If readings exceed 2 ohms, replace the coil immediately to avoid misfires under load.
Avoid splicing wires with electrical tape–use heat-shrink butt connectors crimped with a ratcheting tool for gas-tight seals. The stator output (typically three yellow wires) must connect to the regulator/rectifier’s AC terminals; swapping these with the DC side will melt the insulation within minutes. Below is the expected voltage range for key components at 5,000 RPM (12V system):
| Component | Voltage (AC/DC) | Tolerance (±) |
|---|---|---|
| Stator (AC, no load) | 18–24V AC | 1.5V |
| Regulated output (DC) | 13.8–14.4V DC | 0.3V |
| Ignition coil (primary) | ~12V DC (switched) | 0.5V |
| Fuel injector (peak) | 11.5–12.5V DC | 0.2V |
Grounding issues are the leading cause of intermittent faults. Scrape paint off the frame where the engine and battery grounds attach, then apply dielectric grease to prevent corrosion. The kill switch wire (usually black with white stripe) must have a clean, direct path to the CDI box–any resistance above 0.3 ohms here will cause erratic engine cuts. For models with electric start, the starter relay’s trigger wire (often thin purple or pink) should measure 4+ ohms; lower resistance indicates a shorted solenoid that will drain the battery overnight.
Aftermarket tachometers frequently disrupt the CDI signal–connect them to the ignition coil’s secondary circuit (inductive pickup) instead of tapping the CDI’s pulse wire. If the engine stalls when the headlight is turned on, upgrade the stator to a 150W+ unit or add a dedicated battery charger circuit to handle the extra load. Always route wiring away from exhaust pipes and moving parts, securing bundles with nylon zip ties every 10cm; vibration loosens connections faster than heat or moisture.
Core Elements of an Off-Road Miniature Vehicle Electrical Setup
Replace the battery every 12–18 months, even if voltage tests appear stable. A standard 12V sealed lead-acid unit (4–8Ah) loses capacity after 150–200 deep cycles, causing inconsistent spark and sensor dropouts. Verify terminal connections monthly–corrosion increases resistance by up to 30%, directly affecting ignition timing.
Inspect the stator output under load; most aftermarket alternators produce 80–120W, barely sufficient for halogen headlights and a CDI module. Use a multimeter in AC mode–readings below 18V at 3,000 RPM indicate coil degradation. Upgrade to a 150W stator if running auxiliary equipment like heated grips or USB chargers.
Key Circuit Protection
Install fuses rated 5–10% above the maximum circuit draw. A 10A fuse on the main harness prevents melted wires during short circuits, which occur in 12% of older models due to chafed insulation. Label each fuse with its purpose–headlight, ignition, taillight–to simplify troubleshooting.
Ground the CDI and regulator-rectifier directly to the engine block, bypassing frame connections. Paint on contact points acts as an insulator; scrape to bare metal and apply dielectric grease. Without proper grounding, voltage spikes reach 16V, degrading electronic components within 50–100 operational hours.

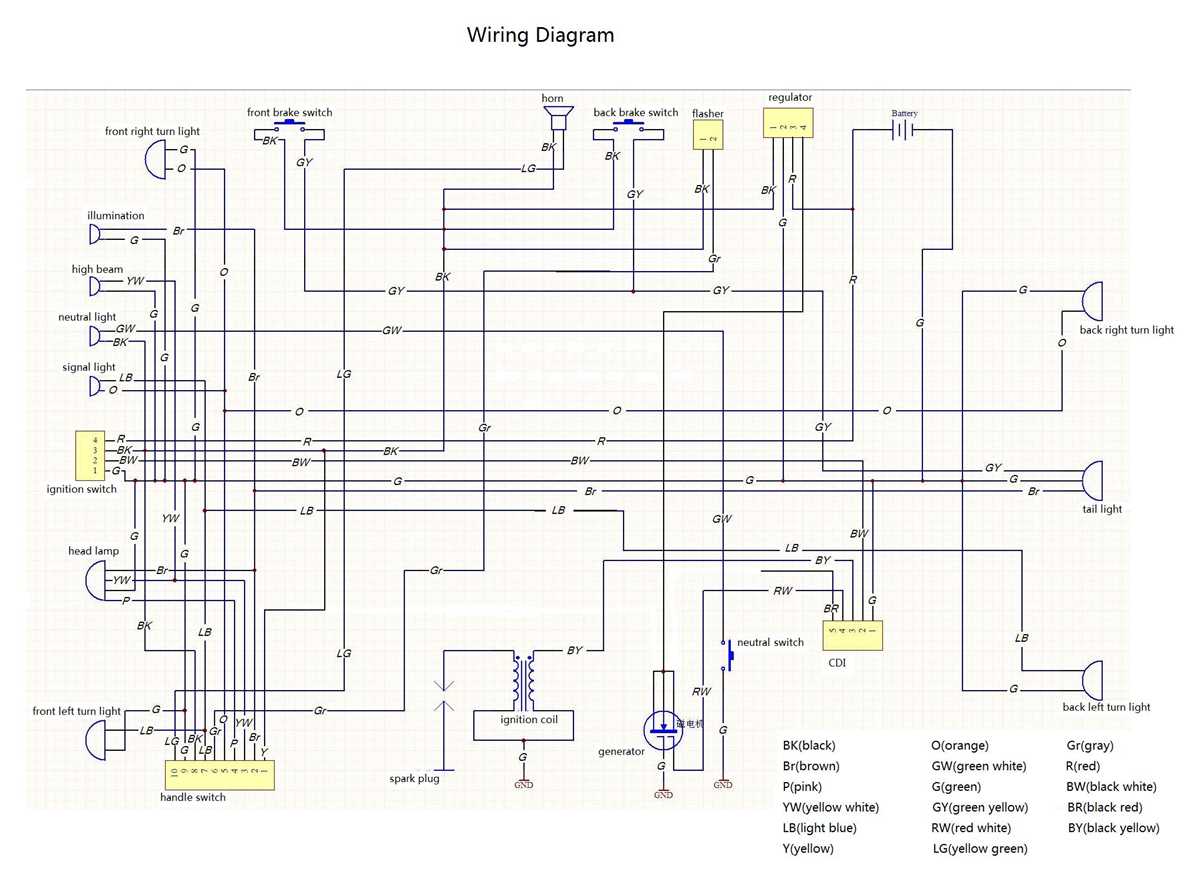

How to Interpret Off-Road Miniature Cycle Electrical Schematics
Identify the main power source first–typically a battery marked with voltage (6V, 12V) and polarity. Trace the positive (red) and negative (black) leads from the battery to the ignition switch, ensuring no corrosion exists at connections. Discolored or swollen terminals indicate heat damage; replace immediately to prevent voltage drops.
Locate the stator coil–usually a circular assembly near the engine’s flywheel–connected via three thin wires (yellow, white, green). The yellow wires carry AC output; white may serve as a lighting circuit, green grounds the system. Test continuity with a multimeter–AC voltage should rise with RPM (e.g., 10-15V at idle, 30-50V at full throttle). No reading? Check flywheel magnets for debris or misalignment.
Deciphering Switches and Relays
Examine the kill switch circuit–a black wire with a colored stripe (often blue or red) interrupts the ignition coil’s ground path. If the engine stalls when activated but fails to start afterward, inspect the switch for internal corrosion. Bypass temporarily by connecting the ignition coil’s ground wire directly to the frame–if the engine starts, replace the switch.
Pro tip: Label each wire’s origin and destination with masking tape before disassembly. Use a repair manual’s color codes (e.g., Honda’s 1989 CRF50 schematic) as reference–aftermarket systems may deviate. For resistive loads like headlights or horns, verify the wire gauge matches the component’s amp draw (e.g., 16 AWG for 5A, 14 AWG for 10A+). Overloaded circuits melt insulation; re-wire with thicker gauge if overheating occurs.
Troubleshooting Non-Functional Components
For inoperative turn signals, test the flasher relay–listen for a clicking sound when activated. No click? Replace the relay or check the bulb filaments for continuity. Faulty filaments appear darkened inside the glass. LED upgrades require a load resistor (4-6 ohms, 5W) to prevent hyper-flashing; omit the resistor, and the relay will cycle erratically.
Measure voltage at the CDI unit–four wires (black/white, blue, red, orange) should show 12V at the red wire with ignition on. A dead CDI often mimics ignition coil failure; swap with a known-good unit to isolate the issue. If the coil’s primary winding (yellow or primary color wire) reads below 3 ohms, it’s shorted–replace the coil assembly. Secondary winding (spark plug cap) should exceed 5k ohms; lower readings indicate moisture ingress.
How to Pinpoint and Follow Conductors in Your Mini-Cycle Electrical Bundle
Label each connection with masking tape and a fine-tip marker before disassembling anything. Record the color, gauge, and termination point–bolt, bullet, or spade–on the tape. Position labels at both ends of a single conductor so you can validate continuity later without relying on memory.
- Solid colors: primary current carriers, typically 14–16 AWG.
- Striped conductors: switched outputs or sensor returns, usually 18–20 AWG.
- Black with yellow tracer: ignition coil primary, 16 AWG.
Use a digital multimeter set to continuity mode. Probe from the connector side, not the wire side, to avoid damaging insulation. If continuity fails, measure resistance–anything above 2 Ω indicates corrosion or a partial break. Partial breaks often show 10–50 kΩ when cold and open-circuit when hot, mimicking a thermal fuse.
Heat shrink tubing color-matched to factory standards helps rebuild a frayed bundle. For a 7-connector Japanese harness, use:
- White/red – 12 V constant
- Black/white – ground
- Red/black – starter solenoid
- Green/white – headlight low beam
- Yellow/red – taillight
- Blue/white – ignition trigger
- Brown – charging coil
This sequence mirrors the OEM layout and keeps voltage drop under 0.4 V across 6 ft of 16 AWG wire.
Trace conductors by injecting a 1 kHz, 2 V p-p signal from a function generator into the bundle. Clip the ground lead to the frame, then move the probe along each path. The faulty conductor will show a sharp amplitude drop–mark that spot with flagging tape. To detect induced noise, shield adjacent conductors with aluminum foil grounded at one end only; noise floor should drop below -60 dBV.
