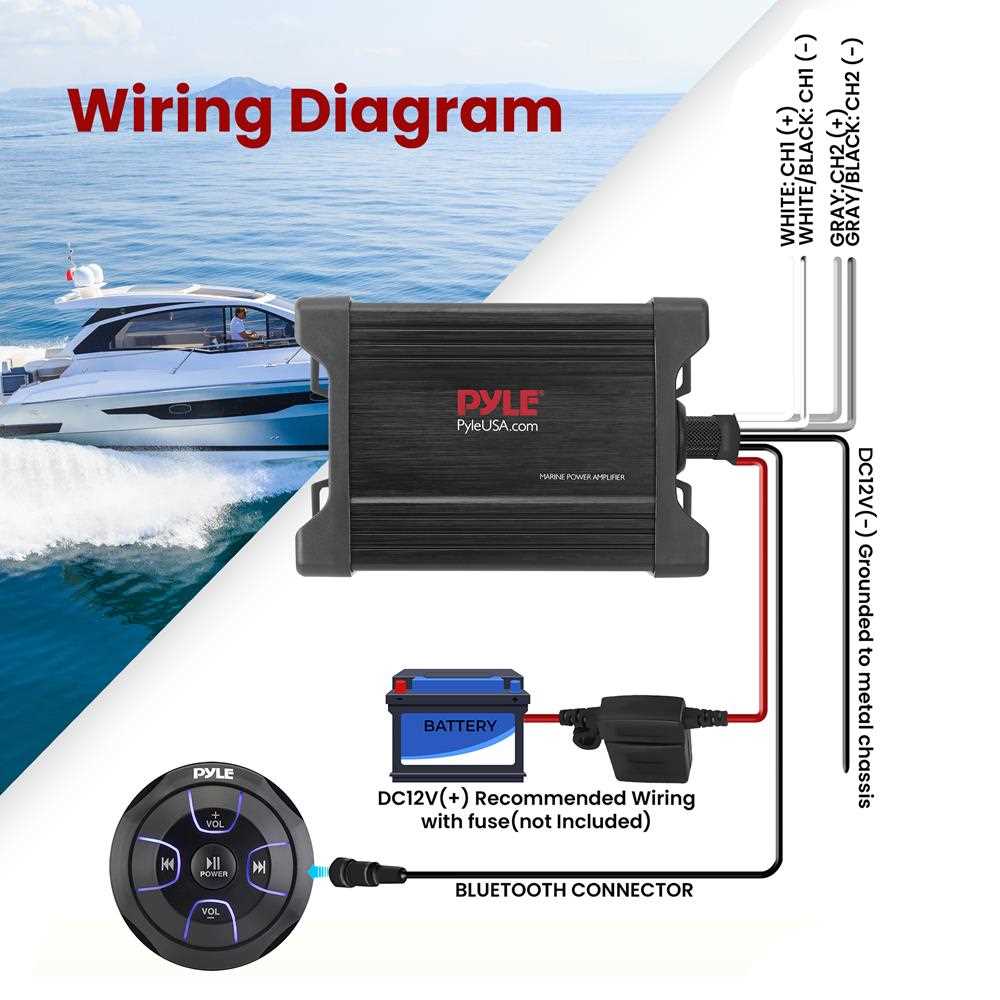

Complete Wiring Guide for Pyle Hydra Marine Amplifier Installation
Begin by identifying the main power input terminals on your device–typically marked with +12V, GND, and REM. Connect the +12V terminal directly to the battery’s positive terminal using 8-gauge or thicker marine-grade wiring, ensuring minimal voltage drop over distances exceeding 10 feet. For installations on fiberglass vessels, route cables through waterproof conduit to prevent corrosion from saltwater exposure.
Ground the unit’s GND terminal to a bare metal surface of the hull, sanded free of paint or oxidation–failure to do so causes engine noise or signal interference. Use a star washer between the terminal and hull for optimal conductivity. The REM (remote turn-on) wire should link to the head unit’s blue/white accessory lead, ensuring the amplifier activates only when the audio system is powered.
For speaker outputs, match impedance ratings (4Ω or 2Ω) between the unit and drivers to prevent overheating. Twist wires every 2–3 inches to reduce electromagnetic interference, and seal all connectors with heat-shrink tubing and dielectric grease. Test connections with a multimeter before finalizing–resistance should read between the amplifier’s ground and hull.
Bridgeable channels require careful pairing: confirm the model supports mono bridging (e.g., 2-OHM stable) and connect Channel A (+) to Channel B (-) for doubled output. Verify fuse size (typically 40–80A) within 7 inches of the battery to protect against shorts. Never daisy-chain multiple high-power units from a single fuse.
Subwoofer preamp outputs demand RCA interconnects with gold-plated connectors–avoid umbilical cables longer than 18 feet to prevent signal degradation. If using a line-level converter, set gain levels equal to the head unit’s output voltage (0.5–2V) to eliminate distortion. High-pass filters (HPF) should cut frequencies for tweeters; low-pass filters (LPF) target >100Hz for subwoofers.
Connecting Your Marine Audio Power Unit: A Practical Guide
Start by identifying the power cables: the thick red wire carries the 12V input from the battery, while the black serves as ground–always route these through a fuse (typically 60-100A) no farther than 18 inches from the battery terminal to prevent short circuits. For speaker connections, use stranded copper wire (12-16 AWG for 50W RMS, 8-10 AWG for 150W+ RMS) and twist each pair tightly before crimping terminals to reduce interference; marine-grade tinned connectors resist corrosion better than bare copper. If integrating a subwoofer, match the impedance (2Ω or 4Ω) to the unit’s capabilities–check the manual for bridged mono output settings, which often double the wattage but require twice the wire gauge (e.g., 4 AWG for 300W at 2Ω).
| Wire Gauge (AWG) | Max Current (A) | Recommended Wattage (4Ω) | Recommended Wattage (2Ω) |
|---|---|---|---|
| 16 | 10 | 40W | 80W |
| 12 | 20 | 80W | 160W |
| 8 | 40 | 160W | 320W |
| 4 | 85 | 340W | 680W |
Ground the device directly to the battery’s negative terminal or a clean, unpainted metal chassis point–never chain grounds, as voltage drops can cause unwanted noise. For remote turn-on, run a 18 AWG wire from the head unit’s blue/white accessory lead to the signal processor’s trigger input, adding a 1A fuse inline to protect the circuit. If the system includes a capacitor (recommended for units above 200W RMS), connect its positive to the power wire post-fuse and ground to the same chassis point as the device to avoid ground loops. Test connections with a multimeter: measure 12-14.4V at the power input and 0Ω continuity between ground and chassis before powering on.
Essential Gear and Supplies for Installing a High-Performance Audio Power Device
Begin with a 10-gauge oxygen-free copper cable for primary power delivery–this gauge handles up to 300 watts RMS without voltage drop, critical for consistent output in challenging environments. Avoid aluminum or coated alternatives; pure copper ensures minimal resistance over extended runs. For dual-battery systems, upgrade to 4-gauge wire, maintaining a strict 1:1 ratio for fuse placement within 7 inches of the battery terminal.
Select a high-quality inline fuse holder with gold-plated contacts; corrosion-resistant designs prevent oxidation even under prolonged exposure to humidity. The fuse rating must match the wire’s ampacity–40A for 10-gauge, 80A for 8-gauge, and 150A for 4-gauge–to safeguard against overheating. Avoid glass fuses in favor of AGU or ANL types; their ceramic bodies dissipate heat more effectively.
Grounding demands equal attention: use a 1/0-gauge cable for the negative return path, terminating at a clean, unpainted chassis point. Sand the surface to bare metal before securing the connection with a stainless-steel bolt and star washer, ensuring full contact. For vehicles with composite bodies, drill a dedicated ground bus bar connected directly to the battery negative terminal.
RCA interconnects should feature 100% copper conductors with double-shielded insulation–foil and braided layers–to block electromagnetic interference. Opt for twisted-pair geometry; this cancels out noise better than parallel configurations. For runs longer than 18 feet, use signal processors with balanced outputs to compensate for high-frequency roll-off.
Speaker wire gauge must match the load: 16-gauge for short runs under 10 feet with 4-ohm loads, 14-gauge for 2-ohm subwoofer setups or distances exceeding 15 feet. Tinned copper wire resists corrosion in damp conditions, though it adds marginal resistance–account for this in impedance-critical applications. Terminate connections with crimp connectors and heat-shrink tubing; solder joints risk embrittlement under thermal cycling.
Toggle switches for power control should be rated at least 20A for 12V circuits, with gold-plated contacts to prevent arcing. Mount them within 12 inches of the device for ergonomic access, using grommets to seal panel cutouts. For remote turn-on circuits, use a relay with a 30A coil rating to handle current spikes from head units with high parasitic draw.
Sound-dampening materials like butyl rubber sheets or closed-cell foam reduce structural vibrations that mask audio clarity. Apply them to door panels, trunks, and enclosure surfaces before finalizing connections. Ensure all adhesive bonds cure for 24 hours under pressure; incomplete curing compromises effectiveness at low frequencies.
Test each connection with a digital multimeter before powering up–measure DC voltage at the device’s terminals (12.6V–14.4V), verify ground impedance (
Step-by-Step Power Connection for Your Audio Signal Booster
Locate the positive and negative terminals on the rear panel–marked with a + and – symbol. Use a multimeter to verify the battery voltage matches the device’s requirements (typically 12V or 24V DC). Mismatched voltage risks damage to internal circuits.
Select power cables with a gauge appropriate for the current draw. For a 100W system, 8-gauge wire suffices; 500W demands 4-gauge. Undersized cables overheat, causing voltage drops or fire hazards. Pre-strip ½ inch of insulation from each end using wire strippers, exposing clean copper strands.
Connect the positive cable first. Attach the stripped end to the + terminal, securing it with a ring terminal crimped tightly using a crimper tool. Avoid stranded ends touching adjacent metal surfaces–short circuits will trip fuses or fry components. Use dielectric grease to prevent corrosion in moist environments.
Ground the negative cable to the chassis or a dedicated grounding point. Ensure the surface is bare metal, free of paint or oxidation. A weak ground introduces noise into the audio signal, manifesting as hiss or interference. Tighten the connection with a wrench; a loose ground vibrates loose over time.
Troubleshooting Common Errors
- No power? Check fuse integrity–replace with the same amperage rating (usually 20-60A).
- Intermittent operation? Test for voltage drops below 11.8V; recharge or replace the battery.
- Overheating? Verify cable gauge matches system load; reroute away from heat sources.
- Audio distortion? Re-secure ground connections, eliminating shared circuits with high-draw devices (e.g., winches).
Finalize by routing cables away from moving parts and sharp edges. Use zip ties to bundle wires every 6 inches, reducing strain on terminals. A clean installation prevents accidental disconnections and prolongs component lifespan. Test with a low-volume signal before full operation to confirm stability.
How to Secure a Reliable Ground Connection for Your Audio Power Unit
Locate the grounding point within 18 inches of the power source’s mounting location. Use a dedicated terminal bolted directly to the vehicle’s chassis or boat’s metal frame–never share this connection with other accessories. Strip ½ inch of insulation from the ground cable, then crimp a ring terminal sized for at least 8 AWG wire. Secure it with a stainless steel bolt, nut, and star washer to prevent loosening from vibrations or corrosion in moist environments.
Test ground integrity with a multimeter before finalizing installation. Set the meter to DC voltage and measure between the negative battery post and the ground terminal–readings above 0.5V indicate resistance; relocate the connection until voltage drops below 0.1V. For saltwater applications, apply dielectric grease to the ring terminal before tightening to block oxidation, rechecking resistance every six months during maintenance.
Route the ground cable in a straight line, avoiding sharp bends or proximity to moving parts. If forced to pass near signal wires, cross at 90-degree angles to minimize interference. Secure the cable with adhesive-lined clamps spaced no more than 12 inches apart. Avoid plastic tie-wraps–they degrade under UV exposure; use nylon-coated metal clamps instead for long-term durability.
