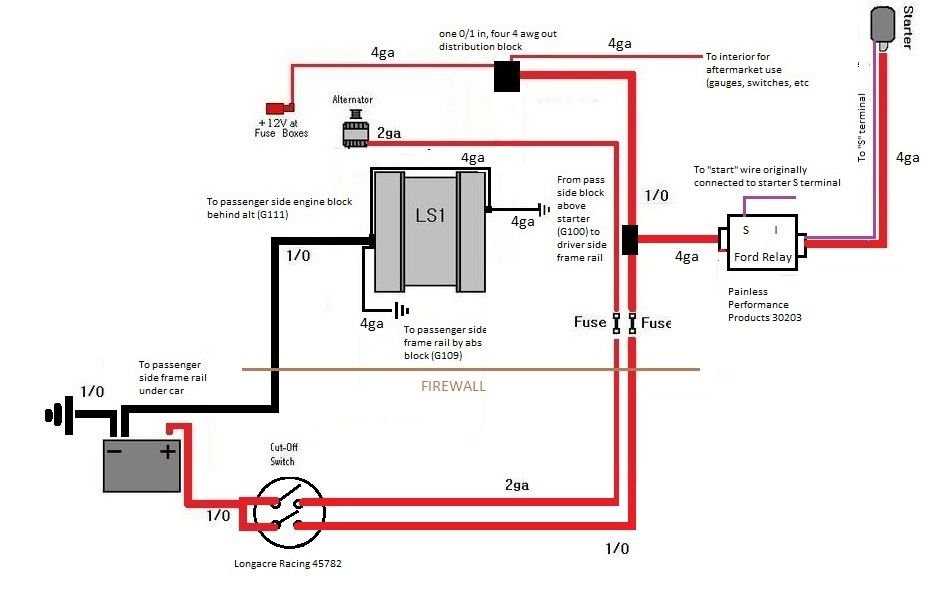

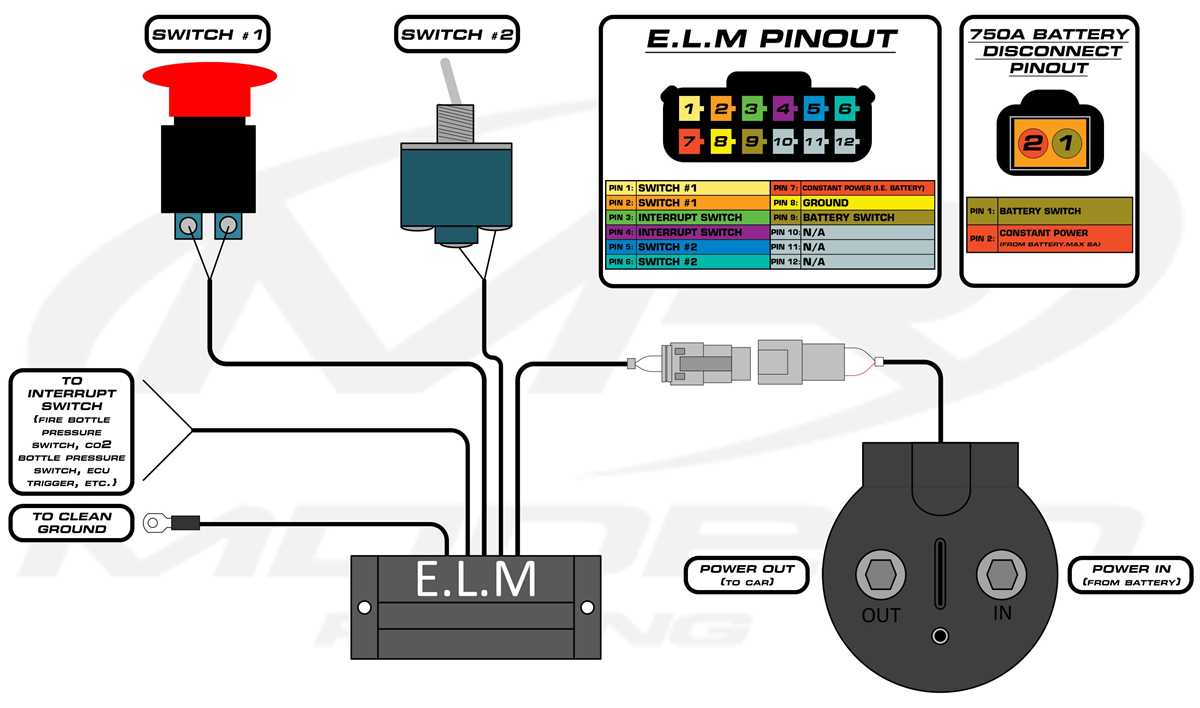

Step-by-Step Race Car Battery Kill Switch Wiring Guide with Diagram
For competitive motorsport applications, install a heavy-duty solenoid rated at 250A continuous with a 1,000A surge capacity. Place it within 12 inches of the power source’s positive terminal, using 2 AWG welding cable for all primary connections. This setup reduces voltage drop to under 0.3V at full load, critical for preserving starting system integrity during repeated high-current draws.
Mount the activation lever on the chassis using a die-cast aluminum bracket, positioned at 45 degrees relative to the firewall for ergonomic operation under racing conditions. Run the control circuit with 16 AWG tinned copper wire, protected by a 20A ATO fuse and a sealed relay with a 150Ω coil resistance to prevent accidental disengagement from vibration.
Avoid standard automotive relays–opt for a military-grade sealed unit with gold-plated contacts. The grounding path must terminate at a dedicated chassis point pre-cleaned with a wire brush and treated with corrosion inhibitor, ensuring less than 0.1Ω resistance. Verify all connections with a digital multimeter set to continuity mode, confirming zero ohms across each joint.

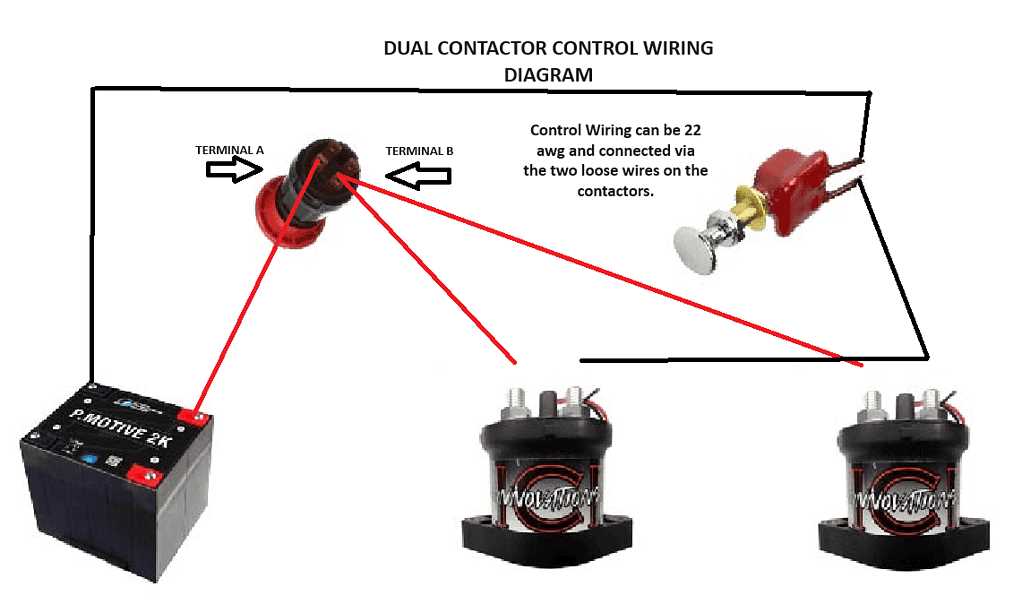

For endurance scenarios, incorporate a dual-pole design with redundant circuits, each capable of handling full system voltage independently. Use heat-shrink tubing with adhesive lining over all soldered joints, followed by a secondary layer of spiral wrap for abrasion resistance. Test the complete setup under load with a carbon-pile load tester, simulating a 600A draw for 30 seconds to confirm thermal stability.
High-Performance Vehicle Master Cutoff Installation Guide

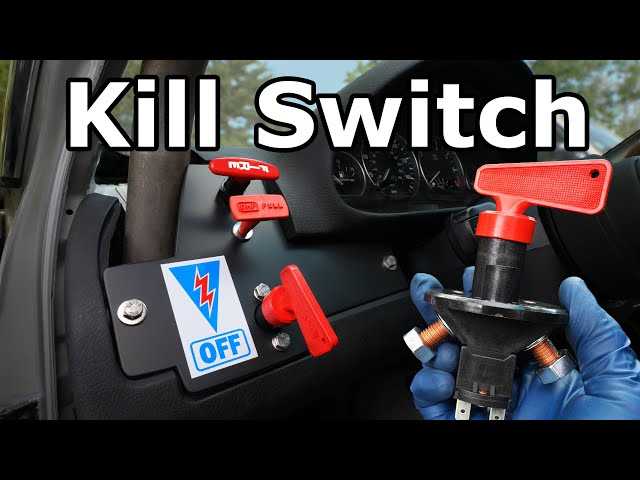

Mount the primary cutoff near the driver’s left knee or center console for immediate access during emergencies. Use a heavy-duty 200-amp toggle or rotary isolator rated for continuous duty cycles–avoid cheap automotive-grade components that overheat under sustained load. Connect the positive terminal directly to the main power distribution block, not the starter solenoid, to prevent voltage spikes from damaging sensitive electronics.
Wire gauge selection depends on the system’s peak current draw. For most competition vehicles, 2/0 AWG copper cable (50mm²) suffices for the main circuit, while 4 AWG (20mm²) works for auxiliary connections. Always use tinned marine-grade wire to resist corrosion from moisture and vibration. Secure all connections with military-spec crimp terminals and heat-shrink tubing–never solder alone, as vibration loosens joints over time.
Critical Circuit Protection
Install a 150-amp ANL fuse within 7 inches of the power source to prevent fire hazards. Bypass the isolator for safety-critical systems: alternator field circuit, fuel pump relay, and ECU power must remain live to prevent fuel system priming issues or data loss. Route these bypass lines through a separate 30-amp fused circuit, clearly labeled to avoid accidental disconnection during maintenance.
| Component | Minimum Rating | Connection Point |
|---|---|---|
| Isolator | 200A | Main power distribution |
| Cable (main) | 2/0 AWG | Battery to isolator |
| Fuse (main circuit) | 150A ANL | Within 18cm of source |
| Alternator bypass | 10A blade | Field terminal |
Grounding strategy requires equal attention–attach the isolator’s negative terminal to a chassis point free of paint or rust, then bond it to the engine block with a dedicated 4 AWG braided strap. Poor grounding causes erratic electrical behavior, especially under high loads. Test all connections with a multimeter: voltage drop across the main circuit should not exceed 0.2V at 100A load.
Remote activation adds redundancy. Wire a secondary push-button momentary switch in parallel, located near the firewall for pit crew access. Use a 12V relay (SPST, 30A) to handle switching currents, as manual switches fail under repeated high-amperage cycles. Label both controls clearly–luminescent paint or reflective tape ensures visibility in low-light conditions.
Post-installation validation includes full-throttle testing with all systems active (lights, ignition, fuel pump). Monitor isolator surface temperature with an infrared thermometer–acceptable range is 25°C to 50°C above ambient. If overheating occurs, downgrade to a 250-amp unit or improve airflow around the device. Document the entire installation with photographs for future troubleshooting.
Selecting the Optimal Safety Disconnect for High-Performance Vehicles
Prioritize a heavy-duty master cutoff rated for continuous currents exceeding 200 amps. Contenders like the Tyco Electronics 1393580-1 or Blue Sea Systems 6006 handle sustained loads without thermal degradation–critical for endurance machines. Verify the switch’s IP67 rating to prevent moisture ingress, especially if mounted externally. Rotary models with sealed enclosures outlast toggle variants in vibration-prone applications.
Mount the disconnect within 24 inches of the power source’s negative terminal for minimal voltage drop. For mid-engine configurations, run 2 AWG welding cable directly from the ground post to avoid resistance-induced failures. Avoid aluminum conductors; tinned copper resists corrosion better in high-humidity environments. Secure connections with crimped ring terminals and heat-shrink tubing, never solder alone–thermal cycling weakens joints.
Choose a disconnect with a removable key for theft deterrence if the vehicle lacks an immobilizer. Dual-pole units isolate both positive and negative leads simultaneously, reducing electrical noise in sensitive electronics like ECUs or data loggers. Test activation speed with an oscilloscope: sub-50ms response time prevents voltage spikes during cutoff. For turbocharged applications, add a snubber circuit to suppress inductive kickback from fuel pumps or ignition coils.
Budget options like the Bussmann AM1-R offer adequate performance for sprint events but lack the sealing of premium units. For ultra-reliable setups, pair the disconnect with an auxiliary 12V latching relay for instantaneous power restoration–a mandatory feature in sanctioned competitions where push-start penalties apply. Always bench-test the assembly under load before installation to confirm arc-free operation.
Step-by-Step Guide to Installing an Electrical Cutoff for High-Performance Vehicles
Select a heavy-duty isolator rated for at least 200% of the vehicle’s peak current draw. For a 12V system with a 100A alternator, use a 200A continuous-duty unit with silver-plated copper terminals. Mount the isolator within 18 inches of the power source’s positive terminal on a non-conductive, vibration-resistant surface, ensuring clearance from moving components and heat sources. Run 2/0 AWG cable directly from the source’s positive post to the isolator’s input stud, securing it with a crimped ring terminal and heat-shrink tubing to prevent oxidation. Connect the output stud to the main power distribution block using identical gauge cable, minimizing bends and maintaining a straight path to reduce voltage drop.
Attach a dedicated 18 AWG control wire from the isolator’s activation post to a momentary pushbutton or keyed toggle installed in the driver’s reach, avoiding dashboard plastics that could melt under prolonged current. Test the circuit with a multimeter set to DC voltage: the isolator should open (no voltage) when engaged and close (full system voltage) when released. Verify the ground path by checking continuity between the chassis and the power source’s negative terminal–resistance should not exceed 0.1 ohms. Secure all connections with adhesive-lined heatshrink and torque terminals to manufacturer specifications (typically 12-15 Nm for M8 studs).
Installing an Inline Fuse and Relay for High-Performance Vehicle Safety
Position the fuse holder within 15 cm of the power source terminal to minimize resistance in the circuit. Use a 4-6 AWG cable for connections rated at 125% of the system’s peak amperage–calculate this using the starter motor’s specifications as the baseline. For a 300A starter, select a 375A fuse (e.g., ANL or Class T) to prevent nuisance blows while ensuring protection.
Wire the relay coil to a secondary control circuit rather than the main power feed. Connect the relay’s 85-terminal to a dedicated toggle or momentary button, then ground the 86-terminal to the chassis using a M6 stainless steel bolt torqued to 8 Nm. The relay’s 30-terminal should link to the main power source via the inline fuse, while the 87-terminal handles the output to the cutoff mechanism.
- Relay selection: Use a 40/30A SPST (single-pole single-throw) relay for low-current applications, or a 70A SPDT (single-pole double-throw) relay for high-load systems (e.g., 600A+ peak demands).
- Fuse holder placement: Mount vertically to prevent moisture accumulation; avoid routing near exhaust manifolds or moving components.
- Crimping: Use a hydraulic crimp tool with insulated terminals (e.g., 3:1 compression ratio) to ensure gas-tight connections. Verify crimps with a pull-test (minimum 20 lbs force).
Grounding and Stress Testing
Route all ground cables to a single point on the chassis–preferably a bare metal surface free of paint, rust, or coatings. Sand the contact area to bare metal, apply dielectric grease, and secure with a star washer. For vehicles subjected to vibrations, use adhesive-lined heat-shrink tubing over crimped connections to prevent chafing. After installation, test the circuit with a multimeter:
- Measure voltage drop across the fuse holder (should not exceed 0.2V under load).
- Verify relay activation by checking for continuity between 30 and 87 terminals when the control circuit is engaged.
- Simulate a short circuit by momentarily bridging the output terminal to ground–confirm the fuse blows within 2 seconds.
For redundancy, install a secondary fuse (20A) in the control circuit to protect the relay coil. Use heat-resistant wiring (e.g., Teflon-coated) for sections near the engine bay, and secure all cables with zip ties spaced at 10 cm intervals. Avoid sharp edges or tight bends (minimum bend radius: 8x cable diameter) to prevent insulation damage over time.
Final Validation Steps
Conduct a cold-start test at ambient temperatures below 10°C (50°F) to verify relay responsiveness. Monitor the system under load (e.g., cranking the engine while auxiliary systems are active) for irregular voltage drops or overheating. Replace any component showing discoloration, swelling, or inconsistent readings. Document fuse ratings, relay specifications, and cable gauges in the vehicle’s service log for future reference.
