DIY Guide to Building a Wireless Remote Light Switch Schematic

Building a wireless toggle mechanism for household electrical devices requires a transceiver pair operating on common frequencies such as 315 MHz or 433 MHz. These modules handle signal transmission with minimal power draw–typically under 50 mW–making them ideal for battery-operated setups. Opt for encoders like the HT12E to pair with PT2262-compatible receivers; this ensures reliable data transmission with up to 4 billion unique address combinations, reducing interference from neighboring systems.

For power regulation, a 5V relay module isolates the low-voltage control side from high-voltage mains. Select relays rated at least 10A/250V AC to safely handle resistive loads like incandescent bulbs or halogen lamps. Solder the relay coil directly to the receiver’s output pin, but add a flyback diode (1N4007) across the coil terminals to clamp inductive voltage spikes–failure to include this can damage the receiver IC over time.

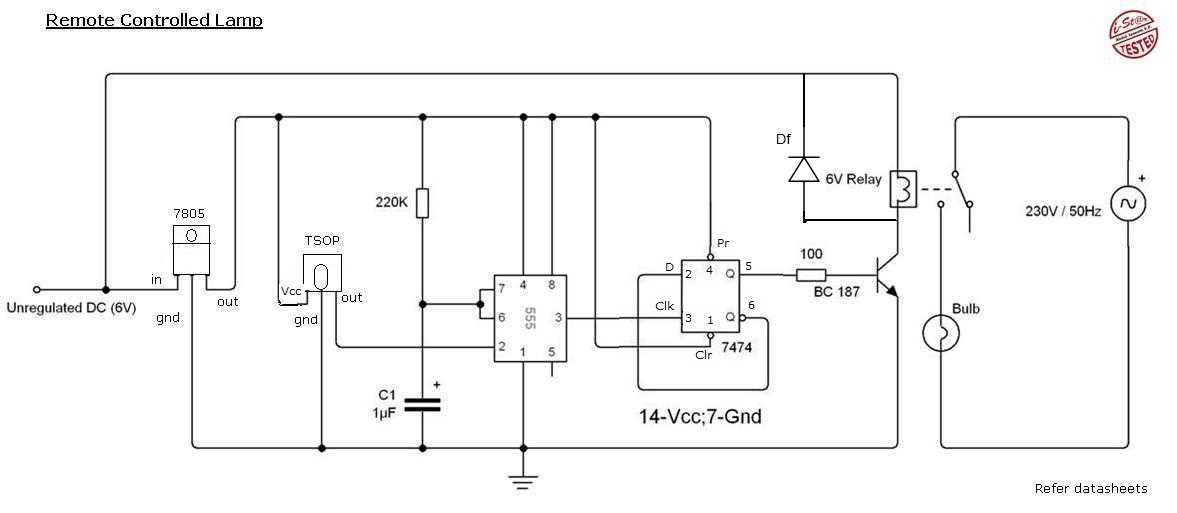

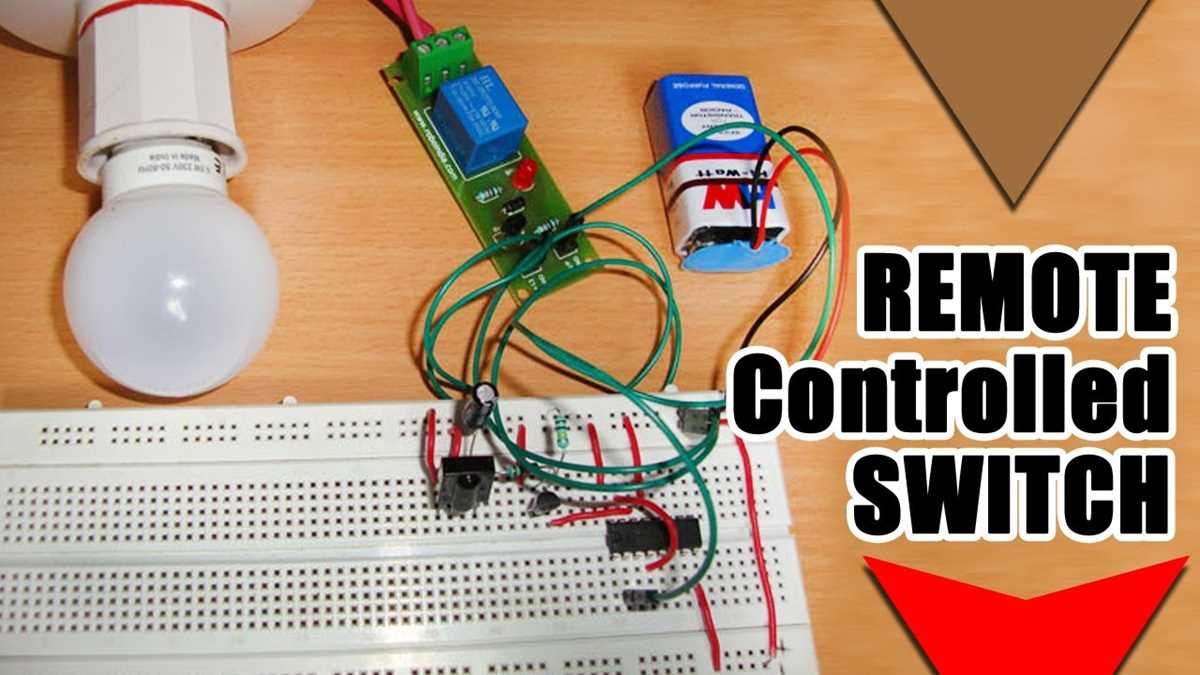

Assemble the transmitter on a prototyping board with a momentary pushbutton or toggle switch to initiate signals. Use a 9V battery with a LM7805 regulator if stable voltage is critical; otherwise, connect directly to the encoder’s power pin. Position the transmitting antenna as a quarter-wave whip (17 cm for 433 MHz) vertically to maximize range–expect reliable operation up to 30 meters indoors with line-of-sight.

On the receiver side, add a 100µF decoupling capacitor across the power input to smooth out voltage fluctuations, particularly when using cheap wall adapters. For dimmable applications, replace the relay with a triac-based optocoupler (MOC3041) and pair it with a zero-crossing detection circuit. Always enclose live components in a fire-retardant ABS box meeting UL94 V-0 standards–exposure can lead to shorts or electric shock hazards.

Test continuity with a multimeter before energizing the setup. If the relay clicks but the load doesn’t activate, verify the relay’s common and normally open contacts are correctly wired to the bulb’s neutral and live terminals. For repeated failures, check the receiver’s antenna length–deviations as small as 2 cm can reduce sensitivity by 40%. Log all modifications for troubleshooting and future upgrades.

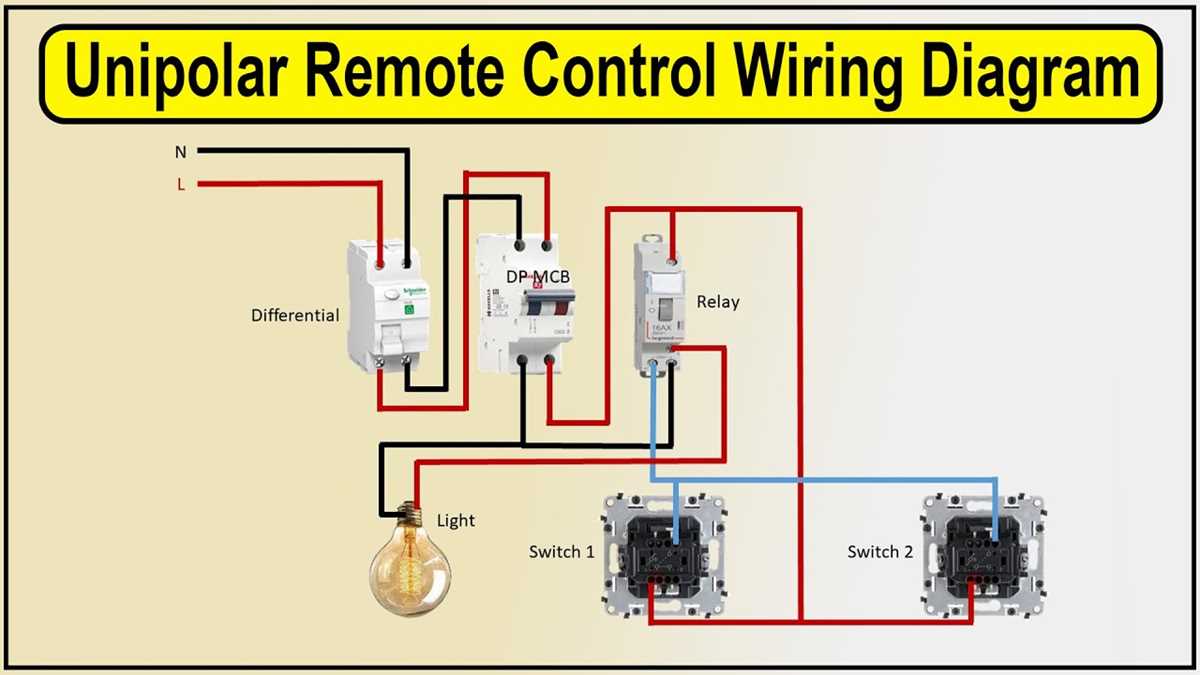

Wireless Signal-Activated Home Illumination Wiring Guide

Select a 433MHz RF transceiver module (e.g., HC-12 or FS1000A) paired with a compatible receiver like XY-MK-5V for stable wireless signal transmission. Position the emitter at least 2 meters from metallic objects to prevent interference, using a 9V battery as a dedicated power source for consistent voltage delivery. For the receiver, solder a 5V relay module (SRD-05VDC-SL-C) directly to the output pins to handle inductive loads–never rely on the transceiver’s onboard transistor, as it lacks sufficient current capacity for standard domestic bulbs.

Component Pairing and Signal Encoding

Encode commands using a PT2262/PT2272 encoder-decoder pair to avoid signal overlap with neighboring devices. Configure unique address bits (e.g., 8-bit A0-A7) and data bits (D0-D3) in the encoder; test conflicts by temporarily altering one bit and verifying the receiver’s response with a logic analyzer or multimeter. If the relay fails to latch, replace the 220Ω resistor on the decoder’s pin 17 with a 470Ω variant–this adjusts the sensitivity threshold for noisy environments.

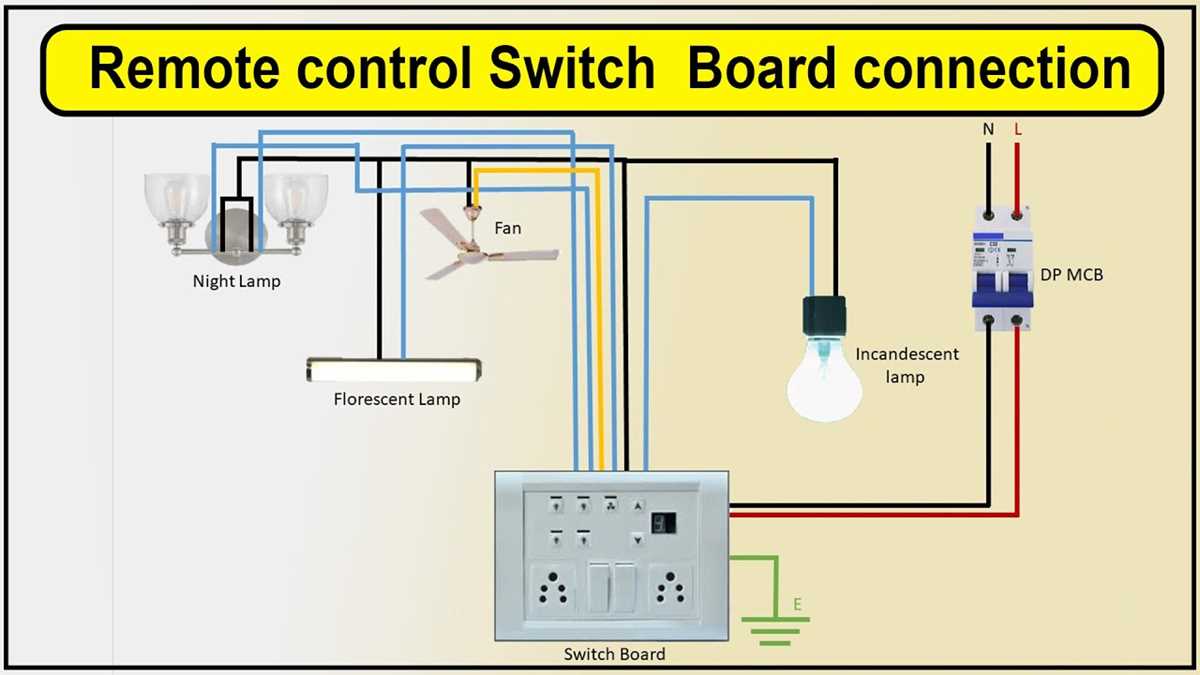

Mount the relay on a heat sink if driving high-wattage fixtures (≥100W) and add a flyback diode (1N4007) across coil terminals to suppress voltage spikes. For AC wiring, use 14-gauge copper wire between the relay and fixture, terminating connections with twist-on wire nuts rated for 600V. Ensure the neutral line bypasses the relay entirely; only the live conductor should be interrupted to prevent residual current hazards.

Calibrate the system by first powering the emitter briefly (≤200ms) while monitoring the receiver’s LED indicator–if it fails to blink once, reduce the relay’s pull-in voltage by swapping its stock 1kΩ resistor for a 680Ω model. Finalize installation by enclosing all exposed contacts in a fire-rated junction box (minimum IP44 for damp areas) and securing loose wires with nylon zip ties spaced ≤15cm apart.

Key Elements Needed for a Wireless Activation Module

Select a transceiver pair operating in the 433 MHz or 2.4 GHz bands–these deliver reliable signal penetration through walls without requiring direct line-of-sight. Brands like HC-12 or NRF24L01 offer integrated antennas and adjustable output power, critical for consistent reach up to 100 meters in open space.

A microcontroller with low power consumption simplifies integration; ESP8266 or ATtiny85 support deep-sleep modes to extend battery life beyond six months. Ensure the model includes UART or SPI for seamless communication with the chosen wireless module and minimizes latency under 50 milliseconds.

Incorporate a solid-state relay rated for your target load–10 A for LED panels, 25 A for resistive heating elements. Optocouplers provide galvanic isolation, protecting logic circuits from voltage spikes common during inductive load switching (e.g., motors). Verify the relay’s turn-on time aligns with your expected responsiveness.

Battery choice dictates longevity; lithium coin cells (CR2032) suffice for low-drain nodes while Li-ion 18650 packs serve continuous-use applications. Add a buck converter (e.g., AMS1117 or MT3608) to maintain stable 3.3 V or 5 V output despite battery depletion curves.

Integrate momentary tactile buttons for manual override, pairing them with pull-down resistors to avoid floating inputs. Debounce readings in firmware–filter contact bounce under 10 ms using simple counters or hardware RC networks–to prevent errant commands during rapid presses.

Signal Redundancy Safeguards

Include CRC checksums in payloads and acknowledge receipt using bidirectional acknowledgment packets. Limit payload size to 32 bytes to reduce collision probability in crowded spectrum. Test reliability outdoors–urban environments introduce interference from Wi-Fi routers, microwaves, or neighboring devices–adjust frequency hopping schemes accordingly.

Firmware Essentials

Prioritize minimalist code: enable watchdog timers at 1.6-second intervals to recover from transient faults. Store channel configuration in non-volatile EEPROM to retain settings across power cycles. Select lightweight libraries (e.g., RadioHead) to sidestep bloat while preserving essential buffer management and retries.

Step-by-Step Wiring for a 2.4GHz Radio Frequency Signal Module

Begin by identifying the transceiver’s voltage requirements–most 2.4GHz units operate at 3.3V or 5V. Locate the power input pins (VCC and GND) on the receiver board and connect them directly to a regulated DC supply matching the device’s rating. For stability, add a 10µF electrolytic capacitor across the power lines, positioned as close to the module as possible to suppress voltage spikes. Verify the antenna connection; if loose, reflow the solder joint or attach a 2.54mm header for a detachable dipole antenna (optimized for 2.4GHz).

Component	Pin Assignment	Wire Gauge	Notes
Relay coil	Receiver OUT1/OUT2	22 AWG	Use flyback diode (1N4007) across coil
Power supply	VCC → 5V/GND → Ground	18 AWG	Linear regulator (LM7805) if input >5V
Load terminal	COM/NO/NC (relay)	Determined by current (≤10A: 14 AWG)	Fuse inline (1.5× max load current)

Route high-current traces (>1A) at least 2mm wide on the PCB; for permanent installations, twist paired wires to minimize interference. Test each connection with a multimeter before applying power–ensure no continuity between live terminals and the chassis. Program the transmitter first (if configurable) by holding the keyfob within 10cm of the receiver and pressing the bind button for 3–5 seconds until confirmation (LED blink or tone). Final validation: trigger the activation at increasing distances (2m, 5m, 10m) while monitoring for signal dropouts.

How to Program a Microcontroller for Infrared Signal Handling

Select an IR receiver module compatible with common protocols like NEC, RC-5, or Sony SIRC. For NEC, use a 38 kHz carrier frequency; verify the module’s datasheet for voltage ranges (typically 3.3V–5V) and pinouts: VCC, GND, and signal output. Connect the output to an interrupt-capable GPIO pin on your microcontroller to minimize latency. Initialize the pin in pull-up or pull-down mode to prevent floating signals.

Decoding Protocol-Specific Timings

Implement a time-based state machine to parse incoming pulses. For NEC:

• Start bit: 9ms high pulse followed by 4.5ms low
• Address/data: 562.5μs pulses with 562.5μs (logic 0) or 1.6875ms (logic 1) gaps
• Repeat code: 9ms pulse, 2.25ms gap, 562.5μs pulse

Use a timer with 50μs resolution to measure intervals. Store durations in an array, then compare against protocol specs. Reject signals outside ±20% tolerance to filter noise. For robust decoding, average multiple readings and discard outliers using a median filter.

Flash compiled code via ISP or bootloader. Test with a known emitter (e.g., TV controller) and validate decoded values against protocol documentation. For bidirectional setups, pair the microcontroller with an IR LED (940nm wavelength, 30–100mW/sr radiant intensity) modulated at the same carrier frequency. Adjust LED current using a transistor or MOSFET to avoid overloading the GPIO pin (max 20mA). Use PWM to modulate the carrier; disable interrupts during transmission to prevent timing conflicts.
