Build a DIY Remote Control Signal Tester with Schematic Guide

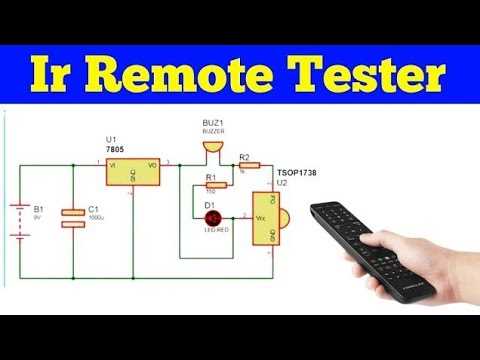

remote control tester circuit diagram

Start with an infrared receiver module like the VS1838B or TSOP382. These components detect modulated beams at 38 kHz, the standard frequency for most handheld transmitters. Connect the module’s output to an LED–preferably a low-current variant such as an 0805 SMD or 3mm red–through a 220-ohm resistor to limit current. Power the setup with a 3V coin cell (CR2032) or two AAA batteries in series for longer operation. Avoid voltage regulators unless you’re testing multiple frequencies, as they introduce unnecessary complexity.

The receiver’s ground pin attaches directly to the negative terminal, while the signal pin routes to the LED’s anode. No microcontroller or additional logic is needed–this barebones configuration instantly flashes when pointed at a working emitter. For broader compatibility, add a 1N4148 diode in parallel with the LED, oriented to protect against reverse polarity if the batteries are inserted incorrectly. Keep traces short and use solid-core wire for prototyping; stranded leads can introduce noise that skews readings.

To diagnose weak or intermittent signals, place the entire assembly inside a small plastic enclosure with a hole drilled above the receiver. Shield the LED with a black shrink tube to prevent ambient light from creating false positives. If the target device uses non-standard frequencies (e.g., 56 kHz for some air conditioners), swap the receiver for a TSOP4856 or TSOP34856, matching the carrier wave precisely. Test by cycling through the transmitter buttons–each press should trigger a consistent blink pattern with no delays.

For advanced troubleshooting, insert an N-channel MOSFET (2N7000) between the receiver and LED, allowing heavier loads like buzzers or relays if additional feedback is desired. Include a 10μF capacitor across the power supply to smooth voltage dips during operation. Calibrate by measuring pulse width with an oscilloscope; expected values range from 600μs to 2ms depending on the protocol (e.g., NEC, RC5). Document the blink duration–repeated short pulses typically indicate a repeat command, while single long flashes signal a button release.

Building a Signal Verifier for Handheld Devices

Assemble this verification tool using a photodiode (BPW34), a 3mm LED, and a 9V battery. Connect the diode’s anode to the battery’s positive terminal via a 220Ω resistor, and ground the cathode directly. Attach the LED’s cathode to the diode’s cathode and its anode through a 1kΩ resistor to the battery’s positive. This setup detects infrared transmissions at distances up to 5 meters with clear line-of-sight.

For broader compatibility, replace the LED with a dual-color variant (red/green). Use a 555 timer in astable mode (R1=1kΩ, R2=10kΩ, C=10µF) to create a pulsing indicator. The red LED flashes for standard NEC protocol signals, while green activates for Sony SIRC or RC-5 formats, eliminating false positives from ambient light.

  • BPW34 photodiode: 0.62V forward voltage, 50nA dark current
  • 220Ω resistor: limits current to 30mA for the diode
  • 1kΩ resistor: protects the LED from overcurrent
  • 9V battery: sufficient for 20+ hours of continuous operation

Calibrate sensitivity by adjusting the resistor values. Lower the 220Ω to 100Ω for detecting weak signals (e.g., from devices older than 10 years), but expect increased false triggers. For robust performance, add a 10µF capacitor between the diode’s cathode and ground to filter noise, especially in environments with fluorescent lighting or other IR interference sources.

To validate the build, point a known-working transmitter at the photodiode from 1 meter away. The LED should illuminate within 100ms. If not, check:

  1. Polarity of the photodiode and LED
  2. Solder joints for cold connections
  3. Battery voltage (must exceed 7V for consistent results)
  4. Ambient IR levels using a smartphone camera as a quick diagnostic

For advanced troubleshooting, pair the circuit with an oscilloscope. Probe the photodiode’s output to observe the pulse train–NEC signals repeat every 110ms with 560µs pulses, while RC-5 uses a bi-phase modulation. If waveforms are distorted, suspect damaged transmitter components or competing IR sources (e.g., plasma TVs, halogen lamps).

Key Components for Building Your Own IR Signal Detector

Select an infrared receiver module with a frequency matching standard handheld transmitters–most operate at 38 kHz. TSOP1738 or VS1838B are reliable choices, offering built-in signal filtering and demodulation. Ensure the module’s pinout supports direct interfacing with microcontrollers: VS1838B uses OUT, GND, and VCC pins, simplifying wiring. Avoid generic IR receivers without datasheet specifications, as inconsistent sensitivity may distort readings.

Pair the IR sensor with an ATtiny85 or Arduino Nano for processing. The ATtiny85 draws minimal power (6 µA in sleep mode), ideal for battery-operated setups, while the Nano provides USB debugging for troubleshooting. Program the microcontroller to decode raw pulses using interrupt-driven routines–avoid polling, which misses rapid signal bursts. Libraries like IRremote (for Arduino) handle protocol parsing (NEC, Sony, RC5), reducing development time.

Add a visible indicator to confirm signal reception. A 5mm red LED with a 220 Ω resistor works for basic setups, blinking on pulse detection. For advanced projects, integrate an OLED display (e.g., SSD1306 128×64) to show decoded data, frequency, or raw pulse timings. Power the assembly with a 9V battery or USB power bank, ensuring stable voltage above 4.5V for consistent IR module performance.

  • Passive components: Use a 10 kΩ resistor for pull-up on the IR sensor’s output pin to prevent floating signals. Include a 100 nF ceramic capacitor near the microcontroller’s power pins to filter noise.
  • Optional enhancements: Solder a momentary push button to trigger signal capture modes or switch protocols. Add a buzzer (piezo or active) for audible feedback during successful detection.
  • Enclosure: Shield the IR sensor with a toilet paper tube cut at a 45-degree angle to focus incoming beams and reduce ambient interference.

For wireless debugging, replace the OLED with an HC-05 Bluetooth module to stream data to a smartphone. Use a serial terminal app (e.g., Serial Bluetooth Terminal) to log captured signals in real time. Alternatively, route data to a PC via FTDI adapter for deeper analysis in Python or MATLAB. Avoid cheap Bluetooth modules with missing level shifters–they risk damaging the microcontroller.

Calibrate the detector by testing against known transmitters. Measure the IR sensor’s range: VS1838B typically detects signals up to 6 meters in direct line-of-sight, dropping to 1.5 meters at a 45-degree angle. Adjust the LED’s resistor value to balance brightness and power draw–470 Ω dims the light but extends battery life. Store field-tested configurations in EEPROM for quick recall, avoiding repeated calibration.

Step-by-Step Assembly of a Simple LED-Based Signal Verifier

Gather a 3mm infrared receiver module (VS1838B or equivalent), a standard 5mm LED, a 220Ω resistor, a 9V battery snap, and a small perfboard. Position the receiver module at the edge of the board to expose its sensor–ensure no obstructions block its front-facing lens. Solder the LED’s anode to the output pin of the receiver, connecting its cathode to one end of the resistor, which then links to the board’s ground plane.

Attach the battery snap’s positive wire to the receiver’s VCC pin, using a 10μF capacitor across VCC and ground to stabilize power delivery–critical for consistent pulse detection. Skip complex wiring by placing components in a linear layout: receiver → resistor → LED → ground. Verify pinouts with the datasheet; misalignment will render the build nonfunctional. Secure all joints with rosin-core solder, avoiding cold joints that introduce intermittent failures.

Component Alignment for Maximum Sensitivity

Angle the LED at a 45-degree offset from the receiver’s sensor axis to prevent false triggers from ambient light. If the LED flickers spontaneously, add a 1kΩ pull-down resistor between the output pin and ground. For enhanced range, replace the standard LED with a high-intensity variant or enclose the assembly in a light-blocking tube–this limits interference to a 10-degree field of view. Test each stage incrementally: apply power first, then simulate signals with a TV clicker before finalizing the enclosure.

Use a multimeter in continuity mode to confirm solder bridges aren’t shorting adjacent traces. Snip excess leads flush to the board to avoid accidental contact, especially near the battery terminals. For portable builds, affix the perfboard to a 9V battery holder with double-sided tape, ensuring the LED remains visible. If the device fails to respond, check for reversed polarity on the receiver module–this is the most common oversight in initial assemblies.

Calibrate sensitivity by adjusting the resistor value: lower resistance (100Ω) increases brightness but may drain the battery faster, while higher values (470Ω) conserve power but dim the visual feedback. For precision, log voltage readings across the LED during operation; a steady drop below 1.8V indicates weak signal capture. Finalize the build by coating exposed connections with conformal spray to guard against corrosion during prolonged field use.

Resolving Frequent Problems in Infrared Signal Analyzer Setups

First, verify the power supply voltage matches the specified range for all components. Most receiver modules require 3.3V–5V; deviations cause erratic readings or complete failure. Measure at the regulator output with a multimeter–do not assume USB or battery voltage persists across connections. Low-cost regulators often suffer from voltage drops under load. Swap in a fresh set of alkaline cells or use a bench supply with stable current limiting.

Signal interference from ambient lighting overwhelms weak transmissions. Block extraneous infrared sources by enclosing the device path in a black foam tube or cardboard shield. Incandescent bulbs emit broadband noise that swamps frequencies near 38kHz. Replace white LEDs in testing environments with red or amber LEDs–they emit negligible infrared content. If readings persist, toggle ambient light off entirely.

Component Failures and Workarounds

TSOP series sensors fail silently when exposed to sustained high-intensity beams. Modify input current by placing a 220Ω resistor in series with the sensor’s signal pin. Test sensor responsiveness by continuously pulsing a known valid command; audible clicks or LED blinks confirm operation. Absence indicates either sensor burnout or incorrect frequency tuning. Swap sensors–TSOP17xx variants differ by only a few kHz.

Decoder modules show false positives if noise thresholds are set too low. Adjust comparator hysteresis by adding 1kΩ feedback resistors between output and input pins. Check decoupling capacitors–10μF and 0.1μF values must be mounted directly across power pins. Skip ceramic capacitors at your peril; tantalum types drift unpredictably under thermal stress.

Connectivity and Software Debugging

Serial monitors misinterpret pulse sequences when baud rates mismatch. Set rates explicitly at 9600 or 115200 and disable hardware handshaking. Ensure ground loops are eliminated–star grounding prevents voltage offsets corrupting signals. If voltage readings jitter, insert 330Ω isolation resistors on data lines. Log raw timestamps rather than reconstructed commands; minute delays expose synchronisation failures.
