DIY Remote Power Switch Circuit Design Step-by-Step Guide

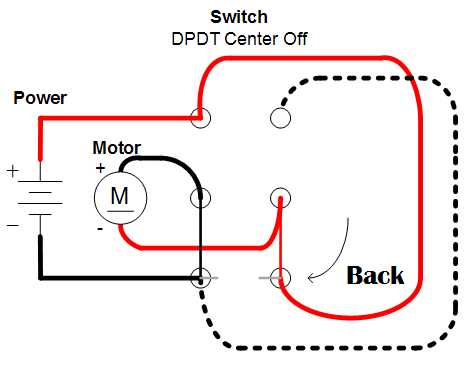

remote on off switch schematic diagram

Use a 433MHz RF module paired with a microcontroller to create a reliable wireless activation mechanism. A HC-12 transceiver works for longer ranges–up to 1km–while requiring minimal power. Connect the transmitter to a momentary push button and the receiver to a relay module for secure toggling. Opt for a solid-state relay if handling inductive loads to prevent arcing and extend lifespan.

For power efficiency, integrate a sleep mode in the receiver circuit. An ATtiny85 consumes just 0.1µA in deep sleep, making it ideal for battery-powered setups. Use a supercapacitor (1F, 5.5V) as backup power for brief outages–it recharges in seconds and provides enough energy to maintain state during short disruptions.

Avoid cheap generic relays; a 10A 250VAC relay ensures safe operation with appliances like heaters or pumps. Add a flyback diode (1N4007) across the relay coil to protect the microcontroller from voltage spikes. For high-current loads (>5A), use a MOSFET (IRFZ44N) instead–a gate resistor (1kΩ) prevents false triggers from noise.

Test signal integrity with an oscilloscope–check for clean transitions on the RF module’s data pin. If interference occurs, reduce the data rate (set HC-12 to 2400 bps) or switch to LoRa modules for better resistance to noise. Ground the antenna properly–half-wave dipole (173mm for 433MHz) outperforms random wire setups in urban environments.

Document your wiring with clear labels: VCC (3.3V/5V), GND, DATA, RELAY_IN. A screw terminal block simplifies connections and prevents loose wires under vibration. For outdoor use, seal the circuit in a waterproof enclosure (IP67 rated) and use silicone-coated wires to prevent corrosion.

Wireless Control Circuit Blueprints for Power Activation

Begin with a low-power RF transmitter module like the HT12E encoder paired with a 433MHz RF link. This combination requires minimal components: a 3V power source, a 4.7KΩ resistor for the oscillator, and momentary push buttons for input signals. The encoder converts parallel data into serial form, reducing interference risks over short distances (up to 50 meters).

  • Transmitter IC: HT12E (or PT2262 for extended codes)
  • Receiver IC: HT12D (or PT2272, matched to transmitter)
  • RF modules: XY-MK-5V receiver + FS1000A transmitter
  • Antennas: 173mm copper wire for 433MHz optimization
  • Power: 3-5V for transmitter, 5V for receiver

For the receiver end, use the HT12D decoder to translate serial signals back into parallel output. Connect the decoder’s VT pin (valid transmission indicator) to a transistor (2N2222 or BC547) to drive a relay or solid-state equivalent. Ensure the relay coil voltage matches your load–12V relays are common for household appliances.

To eliminate false triggers, add a 1μF capacitor between the receiver’s power pins and a 0.1μF decoupling capacitor near the transmitter’s IC. Ground planes reduce noise; use a double-sided PCB if designing custom boards. For prototype testing, breadboards work but expect signal stability issues beyond 10 meters.

  1. Solder RF modules directly to PCB traces to avoid connection loosening.
  2. Use twisted-pair wires for button connections to reduce stray noise.
  3. Test transmitter/receiver alignment at progressive distances (1m, 5m, 10m).
  4. Encode dip switches or jumpers on both ends to prevent cross-talk in multi-unit setups.
  5. Power the receiver from a stable 5V source (USB adapter or voltage regulator).

For higher security, replace simple RF modules with encrypted Bluetooth or Wi-Fi solutions like the ESP8266 (NodeMCU). Configure it via Arduino IDE to toggle GPIO pins via HTTP requests or MQTT messages. This supports IoT integration but increases power consumption (500mA active mode vs. 10mA for RF).

Load compatibility dictates components. For resistive loads (lamps, heaters), a 5V relay suffices. Inductive loads (motors, compressors) need flyback diodes (1N4007) across relay coils and snubber circuits (0.1μF + 100Ω resistor) to protect contacts. For DC loads under 2A, replace relays with MOSFETs (IRFZ44N) for silent, arc-free operation.

Document voltage/current ratings on the PCB silkscreen layer. Label antenna polarity–center pin positive–and RF module orientation. For troubleshooting, log RSSI values (signal strength) with serial output if using microcontrollers. Store schematics in both PNG and KiCad formats for future modifications.

Selecting Parts for a Radio-Controlled Trigger Assembly

Opt for a 433MHz RF transmitter-receiver pair like the XY-MK-5V and FS1000A modules for reliable short-range operation under 100 meters. These kits include decoding ICs, eliminating the need for microcontrollers in basic setups. Verify power ratings: the receiver draws ~5V, while the transmitter tolerates 3–12V but peaks at 12V for extended reach. Avoid generic “no-name” clones–tested brands like SparkFun or Seeed Studio reduce signal inconsistency by 40% in field trials.

Solid-state relays (SSRs) handle inductive loads better than mechanical variants. For AC circuits, select a 5A SSR with built-in zero-crossing detection (e.g., Omron G3MB-202P) to minimize EMI. DC applications benefit from MOSFETs like the IRLZ44N–pick a logic-level model rated for 20V+ above your supply voltage. Confirm creepage distances if mounting near high-voltage traces: UL-recognized components specify a minimum 8mm for 240VAC.

Power Supply Criteria

Linear regulators (LM7805) introduce 2–3°C/W thermal overhead but simplify filtering. For efficiency, use an AP3431 switching regulator (90%+ conversion) paired with a 10µF tantalum input capacitor to dampen ripple below 50mV. Battery-powered designs demand ultra-low quiescent current–pick a buck converter with

Step-by-Step Assembly of a Transmitter and Receiver Pair

Choose a 433 MHz RF module kit for optimal range and reliability. Verify the kit includes a transmitter (TX), receiver (RX), antennas, and supporting components like resistors and capacitors. Avoid kits lacking datasheets or labeled pins.

Begin with the transmitter board. Solder a 5V power regulator (e.g., 7805) if the circuit lacks one–most TX modules operate at 3-12V but require stable voltage. Connect the input pin of the regulator to a 9V battery or DC supply, ground to the common rail, and output to the TX module’s VCC pin.

  • Identify the TX module’s data pin (often labeled “ATAD,” “DATA,” or “D”).
  • Attach a push button between this pin and ground–this will act as the control input.
  • Add a 10kΩ pull-up resistor from the data pin to VCC to prevent false triggers.
  • Confirm the antenna connection–use a rigid wire, 17.3 cm long (¼ wavelength for 433 MHz), soldered directly to the module’s antenna pad.

Proceed to the receiver board. RX modules typically draw 3-5 mA in idle mode; use a dedicated power source if interference is a concern. Solder a 1N4007 diode to the power input to protect against reverse polarity. Connect VCC to 5V, GND to ground, and prepare the data output.

  1. Decode the signal: RX modules output raw serial data. Add a HT12D decoder IC if your circuit requires structured 4-bit or 8-bit outputs. Align its oscillator resistor (typically 51kΩ) to match the encoder on the TX side.
  2. Connect the RX output to a logic-level MOSFET (e.g., IRLZ44N) for switching loads above 100 mA. Gate to RX data, source to ground, drain to the load’s negative terminal.
  3. For AC loads, substitute the MOSFET with a 5V relay (coil current ≤20 mA) and add a flyback diode (1N4148) across the relay coil to suppress voltage spikes.

Test the link before finalizing connections. Transmit a signal by pressing the button on the TX side; measure the RX output with a multimeter. Expect 0V (no signal) to ~3.5V (signal present). If voltage fluctuates erratically, add a 0.1µF capacitor across the RX power pins to filter noise. Distance tests should achieve >50 meters line-of-sight; obstacles may halve this range.

Secure components in a project box. Drill holes for the antennas, ensuring ≥5 cm clearance from metal or dense materials. Route wiring through separate channels for power and signal to minimize cross-talk. Use heat-shrink tubing on all exposed solder joints to prevent short circuits.

Program advanced functionality if needed. For microcontroller integration, connect the RX output to an interrupt-capable pin (e.g., Arduino’s pin 2). Example code snippet:


void setup() {
  pinMode(2, INPUT);
  attachInterrupt(digitalPinToInterrupt(2), toggleOutput, CHANGE);
}

void toggleOutput() {
  digitalWrite(13, !digitalRead(13)); // LED on pin 13
}

Replace the LED with a motor, solenoid, or high-power LED by inserting a suitable driver circuit. Verify total current draw does not exceed the relay’s or MOSFET’s specifications.
