Complete RF Power Meter Circuit Design and Schematic Guide

Start with a logarithmic amplifier IC like the AD8307–its 50–90 dB dynamic range covers most HF/VHF/UHF applications without calibration hassles. Pair it with a MAX4007 or similar op-amp for buffering; its 1.5 GHz bandwidth ensures minimal signal degradation at higher frequencies. Ground the IC’s feedback network directly to the PCB’s ground plane to reduce stray capacitance–keep traces under 5 mm for stability.

For accurate sampling, insert a 1N5711 Schottky diode in the detection stage; its low forward voltage (0.4V) preserves linearity below 1 mW inputs. Couple the diode through a 0.1 µF ceramic capacitor (X7R dielectric) to block DC offsets–position it within 2 mm of the diode leads to prevent phase shifts. Add a 220 pF mica capacitor in parallel for RF bypass; its low ESR (

Calibrate the output using a 10-turn potentiometer (Bourns 3540S-1-103) tied to the amplifier’s reference pin–adjust to 1.5V for a 50 Ω load. For display, use a microvolt-level panel meter (e.g., Simpson 260) or a 12-bit ADC (MCP3204) for digital readouts. Scale the meter’s range with a series resistor–3.3 kΩ for 0–30 dBm, 1 kΩ for 0–10 dBm–to avoid distortion.

Shield the assembly in a zinc-plated steel enclosure with EMI gaskets; ground all seams to a single point to prevent ground loops. Test with a 50 Ω dummy load (Bird 8022) and a signal generator (Rigol DSG815)–verify linearity by stepping inputs from –20 dBm to +20 dBm in 5 dB increments. Log discrepancies >0.5 dB; recalculate the feedback resistor if needed.

For battery operation, use a TPS61094 boost converter (2.5V–5.5V input) with a 100 µF tantalum output capacitor. Add a 0.1 µF decoupling cap near the IC’s power pin–ESL magnetic reed switch (Standex MK24) for low-power standby; current draw should drop below 10 µA when idle.

Building a Reliable RF Signal Strength Indicator

Start with a logarithmic detector IC like the AD8307, covering 1 MHz to 2.7 GHz with 50-70 dB dynamic range. Connect its input directly to an SMA connector via a matched 50Ω transmission line–use RG-316 coaxial cable for frequencies above 500 MHz. Add a 100 nF decoupling capacitor within 5 mm of the IC’s Vcc pin to suppress noise; place a 10 μF tantalum capacitor further away for low-frequency stability. For accurate readings, calibrate using a known signal source: inject a +10 dBm tone at 500 MHz, adjust the output scaling resistors (precision 1% metal film) to map 0-2.5 V across the detection range.

• Use a 2-layer PCB with a continuous ground plane under the detector; stitch vias every 5 mm along signal paths to prevent ground loops.
• Add a 3-pole low-pass filter at the output (cutoff 10 kHz) to reduce HF artifacts before connecting to an ADC.
• For temperature stability, mount the IC on the bottom layer with thermal vias to the top ground plane.
• Test sensitivity with a -60 dBm signal to confirm linear response down to the noise floor.

Selecting Core Components for an RF Energy Measurement Device

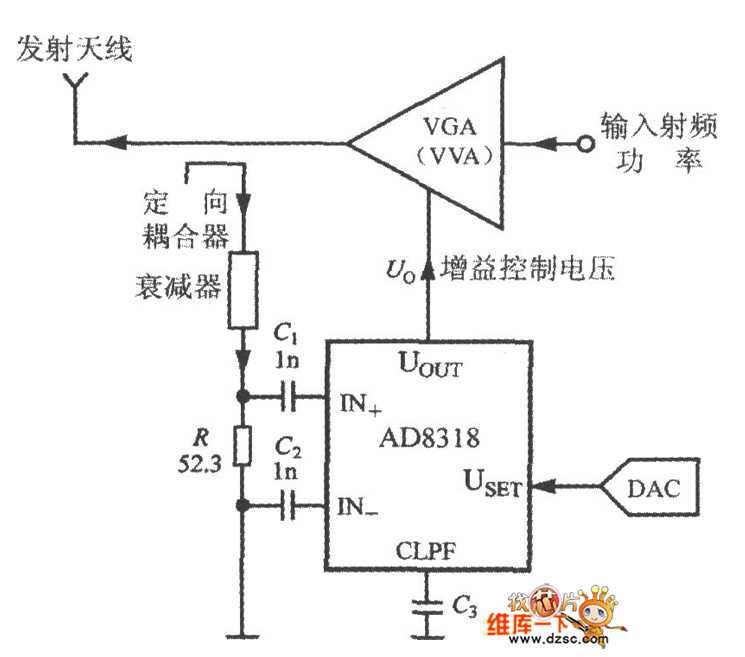

Start with a logarithmic detector IC like the AD8318 or LTC5534. These chips handle 50 MHz to 8 GHz with ±1 dB linearity and output DC voltage proportional to input signal strength in dBm. Pair it with a low-noise amplifier (LNA) such as the MGA-86576, which provides 20 dB gain while keeping noise under 1.5 dB across 0.1–6 GHz. Avoid cheaper LNAs with inconsistent gain slopes–they distort readings.

For precise signal sampling, use a dual-directional coupler like the Anaren BD1020J50200A0HF. It separates incident and reflected energy with 20 dB coupling ±0.5 dB from 1–2 GHz. If bandwidth demands are lower (below 1 GHz), the Mini-Circuits ZX30-12-4-S+ offers tighter ±0.25 dB tracking but limited to 200 MHz–1 GHz. Match coupler impedance to 50 Ω–mismatches above 1.2:1 degrade accuracy.

• Diode detectors: HSMS-2850 series for 10 MHz–5.8 GHz, 40 mV/dB sensitivity. Use two in anti-parallel for full-wave rectification to improve response at low levels.
• Thermal sensors: AD590 for DC calibration, but avoid for RF due to slow settling (500 ms). Prefer RMS-to-DC converters like the AD8361 if envelope tracking is critical.
• Mixers: ADE-35LH+ for 0.5–18 GHz. Ensure LO drive level stays within ±1 dBm of specified value to prevent conversion loss variations.

Select analog-to-digital converters (ADCs) with at least 12-bit resolution–10-bit ADCs introduce ±0.5 dB quantization error. The AD7980 (1 MPPS) suits most setups, but for dynamic ranges above 60 dB, the LTC2387-32 (32-bit, 1 MRPS) eliminates need for programmable gain stages. Sample at 10× the highest RF frequency to satisfy Nyquist; below this, aliasing corrupts envelope data.

Filtering requires sharp cutoff: a 3-pole LC network suppresses harmonics by 40 dB at 2× center frequency. For tunable setups, replace fixed inductors with varactors like the MV209, biased via a DAC such as the MCP4725 (12-bit). Keep trace lengths under λ/10 at max frequency–FR4 introduces 0.1 dB/cm loss at 3 GHz.

Power supply rejection matters: linear regulators (LT1963) outperform switching types (TPS62203) below 2 GHz. Ripple above 10 mVpk-pk on rails distorts detector linearity. Use ferrite beads (BLM18PG121SN1) on supply lines to block RFI–skip them and detector outputs pick up 50 Hz noise.

Calibration standards: include a 50 Ω termination (PE6191), 20 dB attenuator (HAT-20+), and a noise source (NC346B) outputting −174 dBm/Hz. Log detector ICs drift ±0.5 dB over temperature–compensate with a thermistor (NTCLE100) placed adjacent to the RF path. Without compensation, readings wander 1 dB when ambient swings 20°C.

Enclosure choices: machined aluminum boxes with RF gaskets (Spira EMI TG1-50) stop leakage above 1 GHz. Copper-clad boards (Rogers 4350) cut insertion loss by 0.3 dB/cm versus FR4. Mount SMA connectors flat–vertical mounts add 0.1 dB mismatch at 6 GHz. Shield sensitive nodes with via fences spaced λ/20 apart.

Step-by-Step RF Diode Detector Signal Evaluator Assembly

Select a Schottky diode like the 1N5711 or BAT46 for its low forward voltage drop (0.2–0.3V) and fast switching–critical for capturing high-frequency waveforms above 1 MHz. Solder the diode directly to a 50Ω coaxial connector (SMA or BNC) without leads longer than 5mm to prevent parasitic inductance. Ground the diode’s cathode to the connector’s outer shell using a continuous solder joint; avoid standoffs or wire bridges to minimize stray capacitance.

Attach a 100nF ceramic capacitor from the diode’s anode to ground, ensuring its self-resonant frequency exceeds your target band (e.g., 50MHz+). For frequencies below 1GHz, add a 1kΩ resistor in parallel to form a load; this stabilizes output voltage while preventing distortion. Use a surface-mount package (0402 or 0603) for both components to reduce lead length and keep impedance consistent.

Route the output via a shielded cable (RG-174) to a high-impedance buffer amplifier–an op-amp with >10MHz bandwidth (e.g., OPA627) configured as a non-inverting stage with a gain of 2. Place a 1pF feedback capacitor to limit bandwidth and reject noise above 1GHz. Power the amplifier from a clean ±5V supply, bypassing each rail with 0.1µF and 10µF capacitors within 2cm of the IC.

Calibrate the setup using a known signal source (e.g., 50MHz sine wave at -20dBm). Adjust the load resistor if the detected voltage deviates >5% from the expected value (typically 0.2–0.4V DC for RF inputs below 0dBm). Seal all connections with RF gasket material or copper tape to block ambient interference; validate performance across temperature shifts (0–50°C) to ensure drift stays under 2mV/°C.

Calibrating Your RF Measurement Device for Precision

Begin with a known reference signal generator outputting +10 dBm at 100 MHz. Connect it directly to the detector input using high-quality coaxial cables with SMA connectors to minimize insertion loss. If the displayed value deviates by more than ±0.2 dB, adjust the trim potentiometers on the logarithmic amplifier board while monitoring real-time readings via serial output or an oscilloscope. Calibration at this single frequency ensures baseline accuracy before proceeding to broader spectrum checks.

Expand testing to 50 MHz, 500 MHz, and 2.4 GHz using identical +10 dBm signals. At each frequency, note the deviation from the baseline and create a compensation table stored in firmware. For analog designs, use voltage-controlled attenuators before the detector stage to normalize response. Digital implementations should apply frequency-specific scaling factors to raw ADC samples, correcting nonlinearities inherent in diode-based detectors above 1 GHz. Validate each adjustment with a spectrum analyzer to confirm true RMS equivalence.

Introduce a step attenuator between the signal source and detector to verify linearity across dynamic range. Test at -20 dBm, -10 dBm, 0 dBm, and +15 dBm increments, ensuring displayed values track within ±0.3 dB of the actual input. Compensate for temperature drift by placing the assembly in a thermal chamber at 0°C, 25°C, and 50°C, then apply temperature coefficients to the calibration data. Record all measurements in a log file for future reference, including ambient humidity and power supply ripple data, as these factors influence diode detector sensitivity.

Use a directional coupler with known coupling factor (e.g., 20 dB ±0.1 dB) to cross-verify forward and reflected energy readings. Connect the coupled port to the detector and the main line to a load with return loss better than 30 dB. Compare measured versus calculated reflected values; discrepancies exceeding 0.5 dB indicate coupling factor errors or detector mismatch. Recalibrate the coupler if needed, and repeat tests with varying load impedances (25 Ω, 100 Ω, open, short) to ensure consistent readings across all conditions.

Finalize calibration by sweeping the frequency range in 10 MHz steps while maintaining a constant input level of +5 dBm. Export the frequency response data as a CSV file and apply a moving average filter to smooth ripples caused by standing waves in the test setup. Store the filtered response curve in non-volatile memory, then recheck accuracy at three random frequencies monthly using an independent precision reference (e.g., Keysight E4438C). Replace any detector diodes exhibiting more than 5% deviation in forward voltage drop after prolonged use, as aging affects logarithmic compliance.
