Complete Guide to Installing Your Ring Video Doorbell with Proper Wiring Setup

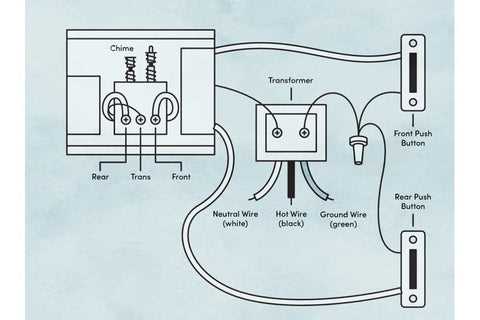

Install a low-voltage transformer rated between 16–24V AC at 10–30VA for optimal performance. Use 18-gauge copper wire or thicker to prevent voltage drop over distances exceeding 40 feet. Verify power requirements for your model–some units draw up to 2A under peak load during video activation. Connect the front terminal to the button wire and the rear terminal to the chime’s bell or trans screw, depending on mechanical or digital chime compatibility.
For battery-powered variants, hardwiring eliminates recharging cycles–use the supplied adapter plate to splice into existing wires. Strip 1/4 inch of insulation, twist strands tightly, and secure with weatherproof wire nuts. Avoid aluminum wiring, which corrodes faster than copper. Test continuity with a multimeter before sealing connections–resistance should read below 5 ohms. If integrating with a pre-existing system, remove the old solenoid or relay to prevent interference.
Place the transformer indoors, ideally within 10 feet of the power source, to minimize signal degradation. For homes with doorbell circuits on a 20V+ legacy system, install a step-down converter or replace the transformer. Label wires at both ends (e.g., R1/R2 for ring terminals, C/F for chime screws) to avoid miswiring. If using a plug-in power adapter, ensure the outlet is on a dedicated circuit to prevent brownouts during heat waves.
Ground the system by attaching the green screw on the mounting bracket to a bare copper wire leading to the house grounding bus. This protects against surges from lightning strikes up to 20,000V. If your chime stops responding after installation, check for shorted wires behind the wall–remove the button, press it, and listen for a click; if absent, the issue lies in the button wiring.
Powering Your Smart Entry Device: Circuit Layout Guide
For consistent operation, connect the transformer directly to a 16-24V AC power source with a minimum 10VA capacity–30VA is optimal for models with enhanced features. Locate the circuit breaker supplying outdoor fixtures and verify voltage with a multimeter before attaching wires; fluctuations beyond ±10% will trigger erratic behavior. Use 18-22 AWG solid copper wiring, stripping 12mm of insulation for clean terminal contact. Twist strands tightly to prevent oxidation, then secure with silicone-filled wire nuts to combat moisture ingress. Route low-voltage cables through conduits where exposed to direct sunlight or foot traffic.
Troubleshooting Common Issues
- No power: Check the chime unit fuse or breaker if using an existing setup; replace 3A fuses with ceramic types to handle startup surges.
- Flickering feed: Test for loose connections at the transformer outputs–tighten screws to 0.5-0.7 Nm torque. Clean terminals with isopropyl alcohol if corrosion is visible.
- Intermittent operation: Measure resistance across the transmission lines; values above 0.5 ohms indicate damaged conductors or poor splices. Replace sections exceeding 1 ohm.
- Overheating transformer: Downgrade to a 16V model or install a heat sink if ambient temperatures exceed 35°C. Ensure vents remain unobstructed.
Label all wires at termination points with heat-shrink tubing or permanent markers for future reference. Avoid daisy-chaining to other low-voltage devices–this degrades performance. For battery-backed units, maintain a dedicated circuit; power sharing causes premature depletion.
Essential Equipment and Supplies for Smart Entry Device Setup
Select a power drill with a 1/8-inch masonry bit for brick or concrete surfaces. Battery-powered models eliminate cord management during outdoor work, while corded options provide steady torque for prolonged use.
Core Hardware Requirements
| Item | Specs | Purpose |
|---|---|---|
| Screwdriver set | Phillips #2 and flathead 3/16″ | Securing mounting bracket screws |
| Voltage tester | Non-contact, 120-240V detection | Verifying safe circuit conditions |
| Wire strippers | 18-22 AWG capacity | Managing low-voltage connections |
| Level | 2-foot magnetic model | Ensuring proper device alignment |
Include waterproof silicone-filled wire connectors (red size) for outdoor electrical junctions. These maintain conductivity despite temperature fluctuations or moisture exposure.
Choose a rechargeable lithium-ion battery pack (20V minimum) if opting for cordless tools. Cold-weather performance degrades below 40°F, so store batteries indoors during winter installations.
Specialized Expendables
Acquire 1-inch weather-resistant anchor bolts for hollow door frames. Steel variants resist shear forces better than plastic alternatives when mounted on siding. Purchase extra mounting screws–thread-cutting types self-tap into vinyl but may strip after multiple adjustments.
Apply dielectric grease to any exposed metal contacts immediately after installation to prevent oxidation. A 0.5-ounce tube covers approximately 12 terminals.
For locations with inconsistent power, add a 10VA plug-in transformer to the shopping list. Select models with interchangeable voltage taps (16V/24V) to accommodate regional electrical standards.
Installation Guide: Powering Your Smart Entry Device
Before handling any electrical components, switch off the circuit breaker controlling the existing chime box. Use a non-contact voltage tester to confirm the wires are dead. Most retrofit kits require a minimum 16V AC transformer, though some newer variants support 24V. Check the label on your current transformer–locate it near the electrical panel or inside the chime housing. Replace if voltage falls below 16V to prevent erratic operation.

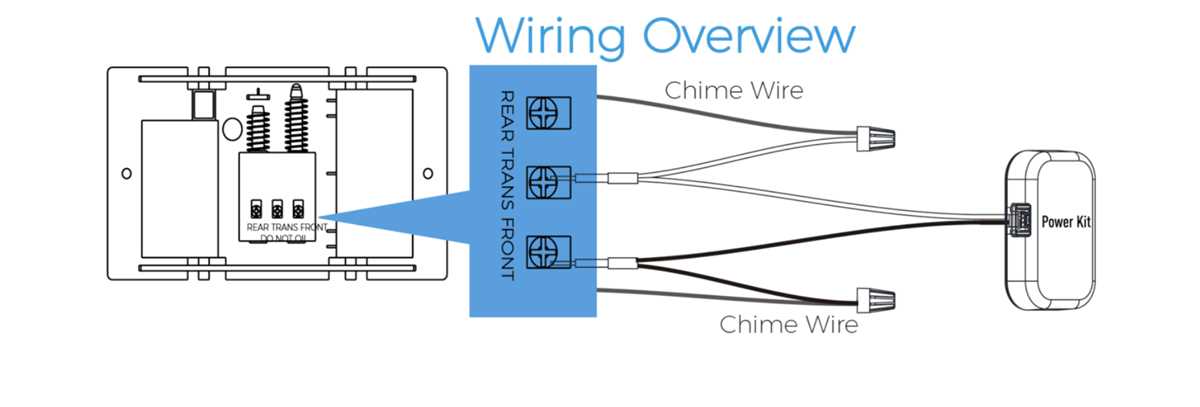

Strip 3/8 inch of insulation from each low-voltage conductor–the front and rear terminals on the original chime will show the pairings. Connect the red feed to the terminal labeled “front” or marked with an “F,” then attach the white neutral to the matching “trans” or “T” post. If retrofitting a battery-powered model, snap the included diode bridge between the same terminals to eliminate chiming while the unit charges.
Run the two conductors from the mounting bracket to the chime box. Fish them through the wall cavity using a flexible drill bit or cable snake, avoiding insulation or drywall screws. Secure the bracket with the supplied star-shaped security screws–regular Phillips drives strip easily and can compromise theft deterrence. If the existing hole is too large, patch it with a paintable plastic riser ring before attaching the backplate.
For poe-based models, ensure the Ethernet cable reaches the nearest switch or injector without sharp bends. Use Cat6 solid-core cable rated for outdoor use–stranded wires fray under constant movement. Terminate both ends with RJ45 connectors crimped according to T568B standard; the injector’s data port typically requires gigabit speeds to stream HDR feeds without buffering.
Hardwired models need constant power. If the transformer is insufficient, install a plug-in adapters rated for outdoor use–mount it inside a weatherproof junction box with a silicone sealant gasket. Thread the wires through a 1/2-inch conduit nipple to prevent moisture ingress. For retrofit applications, splice the new conductor set with gel-filled butt connectors, then wrap each joint twice with self-fusing silicone tape.
Adjust the mounting bracket’s angle screws to ensure the lens covers the approach path. Use a magnetic level to confirm the plate sits flush–excessive tilt distorts motion detection zones. On brick or stucco surfaces, drill pilot holes with a masonry bit, then insert plastic anchors. Metal brackets require stainless steel screws; avoid aluminum as galvanic corrosion occurs within months.
After securing the unit, reconnect the transformer and test for voltage stability. If the device fails to power on, verify the breaker didn’t trip–many circuits share load with outlets or lights. For units with backup batteries, let them charge for 4-6 hours. If the chime fails to sound, check the diode bridge for proper orientation–installing it backward causes silent charging cycles.
Tuck excess cable into the wall cavity or behind the mounting plate, leaving 12 inches of slack for future adjustments. Seal any wall gaps with expanding foam or caulk to block drafts. Finally, snap the faceplate onto the bracket until the latch clicks–loose fits invite tampering and condensation.
Locating and Pairing Your Power Supply for Smart Entry Devices
Check the voltage rating on existing low-voltage transformers near your entryway–most smart chime units require 16–24V AC with a minimum 10VA output. Use a multimeter to test terminals marked C (common) and R (red/fused hot); readings below 15V indicate insufficient power or degraded wiring. If replacing an old transformer, select one with 30VA or higher to handle startup surges common in modern devices, especially when paired with night vision cameras.
Disconnect power at the circuit breaker before attaching wires–connect red to red (powered) and white to white (neutral), securing them with insulated wire nuts or a terminal block rated for outdoor use. Avoid loose connections; strip only 6–8mm of insulation to prevent shorts. For hardwired setups without a chime, bridge the front and transformer wires directly, ensuring polarity matches (red to power source, white to neutral). Verify installation with the multimeter before restoring power.
Resolving Installation Hiccups for Smart Entry Devices
If the device powers on but shows a low-voltage warning, verify the transformer’s output with a multimeter. Most models require 16-24V AC, with at least 10VA capacity. Check for voltage drops at terminals–corrosion or loose connections can reduce readings by 20-30%. Replace any damaged wires; even minor fraying increases resistance.
No response after pressing the button? Remove the faceplate and inspect the terminals for debris. A thin layer of oxidation can block current–clean contacts with a brass brush or fine-grit sandpaper. Reattach wires securely, ensuring no bare copper extends beyond the screw clamp, as this creates intermittent failures. Test continuity with a probe; a single broken strand may cause erratic behavior.
Flickering lights or restarts during usage often stem from inadequate power supply. Sum the wattage of all connected loads–transformers supporting only 15VA may struggle with smart locks or additional LEDs. Upgrade to a 30VA or 40VA model if total demand exceeds 80% of capacity. For solar-assisted setups, confirm panel alignment with direct sunlight; partial shade can halve charging efficiency.
- Unresponsive motion alerts? Reset the device by holding the setup button for 15 seconds until LEDs flash blue. Reconfigure detection zones via the app–narrow fields further if pets trigger false alarms.
- Humming transformers indicate core saturation. Replace units older than 10 years; modern toroidal designs handle inductive loads better.
- Intermittent Wi-Fi? Relocate the router or install a mesh extender within 30 feet. Channels 1, 6, or 11 reduce interference from neighboring networks.
For devices mounted on masonry, ensure anchors penetrate solid material. Plastic expansion plugs in hollow block walls lose grip over time–use stainless-steel toggle bolts or chemical adhesives for permanent fixes. If vibration causes signal loss, add a rubber gasket behind the mounting bracket to dampen movement.
Still no power? Trace the circuit back to the breaker panel. Older homes may have split-phase wiring; confirm both hot wires originate from the same phase. Measure voltage between neutral and ground–readings above 1V suggest improper grounding. Bond the neutral bus to the ground bar if the panel lacks a main bonding jumper, or consult an electrician for upgrades to meet NEC Article 250.
