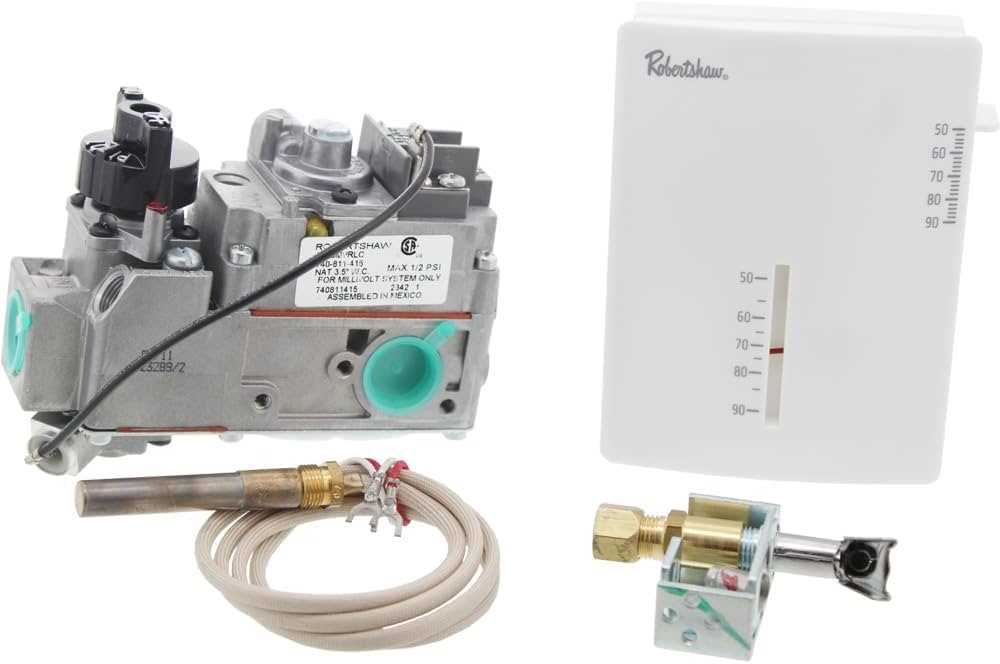

How to Wire a Robertshaw Gas Valve Step-by-Step Diagram Guide
For correct installation, connect the thermostat’s R (red) terminal to the 24V power input on the control unit. The W (white) output should link directly to the call-for-heat relay–ensure no intermediary resistance exceeds 0.5 ohms to prevent voltage drop. If the system includes a fan-assist module, route the G (green) lead to its designated port, bypassing any unnecessary junctions.
Verify polarity before energizing: miswiring risks damaging the solenoid actuator, triggering error code E3 (low voltage lockout). For dual-stage units, the W2 (orange) terminal activates the secondary stage–use 18 AWG wire minimum to handle 3.2A peak current. Ground the chassis separately if the control housing lacks a dedicated earth terminal.
Systems with dual fuel setups require an additional interlock switch: splice the emergency cut-off into the cold start circuit to prevent simultaneous operation. For variable-speed blowers, the Y (yellow) terminal must pulse-width modulate at 12-24V–check the manufacturer’s reference sheet for exact frequency ranges (typically 20-40 Hz). If integrating a smart thermostat, use a common (C) wire from the transformer’s secondary coil to ensure stable power delivery.
Insulate all connections with heat-shrink tubing–avoid electrical tape for high-heat zones (above 60°C) as it degrades over time. Before finalizing, measure continuity across all terminals with a multimeter: resistance should remain under 1 ohm between R and C when the system is powered off. If diagnostics display flame failure, re-check the ignition probe gap (should be 1.8-2.2 mm) and confirm the thermocouple generates ≥20 mV under load.
Understanding Control Circuit Schematics for Appliance Safety Components
Connect the thermostat’s R terminal to the safety switch’s input using 18-gauge solid copper wire, ensuring a secure twist-on connector rated for 221°F maximum exposure. The safety switch’s output terminal routes directly to the ignition control’s TH-W port, bypassing all intermediary relays–this prevents voltage drop across extended runs. Verify continuity with a multimeter set to 200 ohms before powering the system; readings should show 0.2–0.5 ohms for correct operation. Avoid using wire nuts exceeding size #16; oversized connectors risk loosening under thermal cycling.
For millivolt systems, ground the chassis through a dedicated 10-gauge braided strap to a cold water pipe or grounded junction box, never through threaded fittings which corrode and increase resistance. The pilot generator’s white lead attaches to the input of the power unit, while the red lead splices to the safety coil–polarity matters only if marked, otherwise observe flame rod behavior during ignition. Test flame signal strength with a microamp meter at the sensor terminals; readings below 0.4 µA indicate carbon buildup requiring cleaning with 400-grit emery cloth.
Troubleshooting Common Misconfigurations
Check for stray voltage between neutral and chassis ground; a differential exceeding 0.3V suggests a reversed neutral-ground bond, which trips safety lockouts. If the main burner cycles erratically, inspect the high-limit switch for oxidized contacts–clean with non-residue cleaner or replace bellows assemblies older than 10 years. Incorrect thermocouple positioning (greater than 3/8″ from pilot flame) causes premature shutdown; recalibrate using a depth gauge against the manufacturer’s 0.25″ specification.
Use shielded 16-gauge wire for all low-voltage paths adjacent to high-voltage lines, grounding the shield only at the control board end to prevent interference loops. When replacing thermal fuses, match the exact calibrated temperature rating–substituting higher-rated components voids safety certifications. Label all wire runs with heat-resistant tags, noting polarity and function; mislabeled circuits delay diagnostics by 30% during callbacks.
Optimizing System Longevity
Coil terminals should receive a light coating of antioxidative paste after each service interval to prevent pitting from moisture ingress. Tighten terminal screws to 12 in-lbs torque–over-tightening warps brass terminals, causing intermittent failures. Replace pressure regulators every 5,000 cycles; diaphragm fatigue is undetectable without disassembly and leads to inaccurate flow rates. Store spare components in desiccant-sealed bags; exposure to humidity accelerates corrosion on bimetallic contacts.
Identifying Control Module Terminal Connections on Fuel Regulation Units
Locate the identification labels on the baseplate of the regulator housing–each terminal is marked with alphanumeric codes typically ranging from P1 to P6, or T, TH, MV, and PV depending on model year. Verify these markings against the technical bulletin corresponding to your unit’s serial number; mismatches often lead to incorrect voltage readings during troubleshooting.
Use a multimeter set to continuity mode to confirm terminal assignments before disconnecting any leads. Place one probe on the T terminal (common thermostat connection) and the other sequentially on remaining terminals. The MV (main solenoid) terminal should register low resistance, while PV (pilot solenoid) and TH (safety thermostat) will show distinct impedance values–these patterns help isolate faults in solenoid coils.
Check the PV and TH terminals for voltage presence only when the system calls for heat. During normal operation, PV energizes first to establish flame before MV engages. If TH carries voltage while idle, suspect a faulty rollout switch or improperly seated thermal probe triggering false safety shutdowns.
- P1–P3: Typically feed 24V AC from transformer; ensure polarity is consistent.
- MV: Main solenoid–requires 120V on models with integrated relays.
- PV: Pilot solenoid–check for 24V during ignition phase.
- TH: Safety cutoff–no voltage should be present unless tripped.
Examine wire gauge compliance–most control modules require 18 AWG minimum for MV leads to prevent voltage drop under load. Undersized wiring causes intermittent failures, particularly in colder climates where solenoids demand higher current draw.
Inspect terminal screws for corrosion or oxidation–clean contacts with 1200-grit emery cloth and apply dielectric grease before reattaching wires. Loose connections create micro-arcs, degrading performance and shortening component lifespan.
Diagnostic Quick Reference
Follow this sequence to isolate terminal-specific issues:
- Disconnect power at the breaker.
- Label each wire with masking tape.
- Remove terminal cover to expose connections.
- Test continuity between T and MV, T and PV, then T and TH.
- Reconnect wires one at a time, restoring power between each to observe behavior.
- Inspect for erratic relay clicks or failure to maintain flame signal.
Verify ground integrity–some models require a dedicated chassis ground separate from neutral. Missing or shared grounds can cause intermittent lockouts, often misdiagnosed as faulty solenoids. Use a megger test at 500V to confirm insulation resistance exceeds 1 megohm between all terminals and chassis.
Step-by-Step Control Unit Connection Guide for Single-Stage Combustion Regulators
Begin by disconnecting the appliance’s power source at the circuit breaker–this prevents accidental ignition during the procedure. Use a multimeter set to voltage mode (AC 250V+) to verify no current remains at the terminals. If readings exceed 0V, recheck the breaker or main switch before proceeding.
Identify the thermostat’s R (power), W (heat call), and C (common) terminals on the control module. For 24V low-voltage systems, R connects to the transformer’s secondary coil, while W bridges to the actuator’s input relay. Mark each wire with masking tape labeled R, W, or C to avoid misalignment later. For single-stage units, no additional wires (Y, G) are required.
Terminal Pairing and Resistance Verification
| Component Pair | Expected Resistance (Ohms) | Troubleshooting Notes |
|---|---|---|
| R → W (Closed Circuit) | ≤ 0.5Ω | Values >1Ω indicate corroded contacts or loose crimps; replace connectors if necessary. |
| W → C (Open Circuit) | >10kΩ | Readings |
| R → C (Transformer Test) | 20–30Ω | Outside range: faulty transformer (shorted windings) or incorrect tap selection. |
Strip exactly 5/16″ of insulation from each wire–excessive length risks shorting adjacent terminals, while insufficient exposure causes intermittent connections. Twist copper strands clockwise before inserting into terminal screws to prevent fraying. Secure connections with a torque screwdriver set to 8-10 inch-pounds; overtightening strips threads, while undertightening leads to thermal cycling failures.
For systems using flame rectification sensors, locate the sensor’s braided lead (typically blue or purple) on the actuator’s control board. Attach this to the designated “S” terminal–mixing it with W or C voids safety certifications. Verify sensor continuity with the multimeter: resistance should read 400–1400Ω; deviations indicate electrode fouling or cracked ceramic insulators. Clean electrodes with 400-grit emery cloth, avoiding harsh abrasives that degrade platinum coatings.
Final Checks Before Power Restoration
Reconnect power at the breaker and monitor the actuator’s response to a simulated heat call (jumper R to W). The solenoid should audibly click within 3 seconds; delays suggest a defective relay or undersized transformer. Use a manometer to confirm inlet pressure holds at 3.5–7″ WC–pressures outside this range require adjustment via the regulator’s locking screw (turn counterclockwise to increase flow). Document all readings in the appliance’s log: date, resistance values, pressure, and technician initials–this accelerates diagnostics for future service calls.
