How to Design a Functional Robot Circuit Layout Step by Step

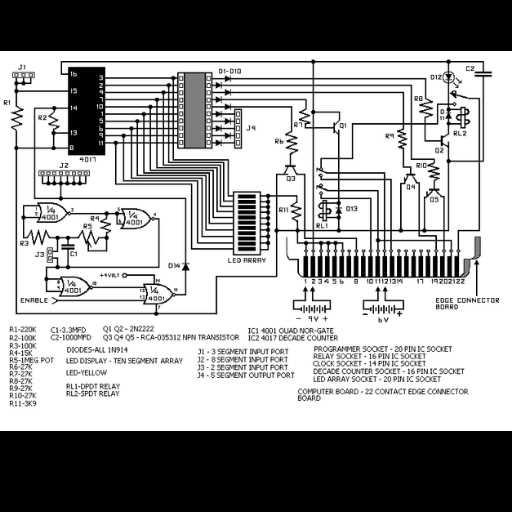

Begin by isolating power distribution blocks–segment high-current feeds for actuators separately from low-voltage sections for microcontrollers. Use DC-DC converters rated at least 30% above peak load to prevent thermal drift in supply rails. Place polyfuses on every branch handling over 2A; omit these only for signal wires below 50mA where resistance isn’t critical.

Map sensor integration with runway spacing–IR rangefinders and LiDAR modules require 2mm ground-plane clearance between traces to avoid crosstalk. Keep analog traces under 8cm when routing to ADCs; exceed this length only if accompanied by a low-pass RC filter within 1cm of the input pin. Label every node with reference designators matching firmware pin assignments; inconsistency here doubles debugging time.

Store motor driver configurations as subcircuits–enable PWM resolution of 12 bits minimum for smooth velocity ramping. Insert flyback diodes across every coil rated at 1.5× the motor’s stall current; under-sizing these leads to controller failure during abrupt reversals. Confirm ground return paths before finalizing silk-screen layers; floating grounds create erratic EMI spikes.

Validate connectivity via netlist simulation–run transient analysis on all GPIO lines toggling at 1kHz to detect latency bottlenecks. Examine rise/fall times; edges slower than 1μs indicate inadequate decoupling or trace inductance exceeding 10nH. Export Gerber files only after confirming DRC rules for your PCB fabricator’s minimum trace width and annular ring tolerances.

Avoid mixing logic families within the same voltage domain–CMOS and TTL thresholds differ by 0.4V, causing intermittent glitches. If mixed signals are unavoidable, insert level shifters with hysteresis above 5μA. Verify every connection manually against the bill of materials; automated netlist checks miss human-readable labels and physical mounting holes.

Key Elements of an Automated System Blueprint

Start by labeling every component with a unique identifier–use alphanumeric codes (e.g., MOT-01 for a drive unit, SEN-03 for a proximity detector). This prevents miscommunication during assembly and troubleshooting. Include a legend in the lower-right corner of your layout with these codes paired to their full technical names.

Group power distribution separately from signal lines to minimize interference. Draw high-current paths (battery to actuators) with thick red lines (2.0mm width) and low-voltage connections (sensor data) in thin blue (0.5mm). Place ground symbols at consistent intervals–every 5cm on the page–to ensure clarity and reduce errors in physical wiring.

Integrate safety cutoffs directly into the power segment. Add a normally-open relay (REL-SF) in series with the main power switch, controlled by an emergency stop button and a watchdog circuit. Specify relay coil voltage (e.g., 12V DC) and contact ratings (e.g., 20A/250V AC) alongside its symbol.

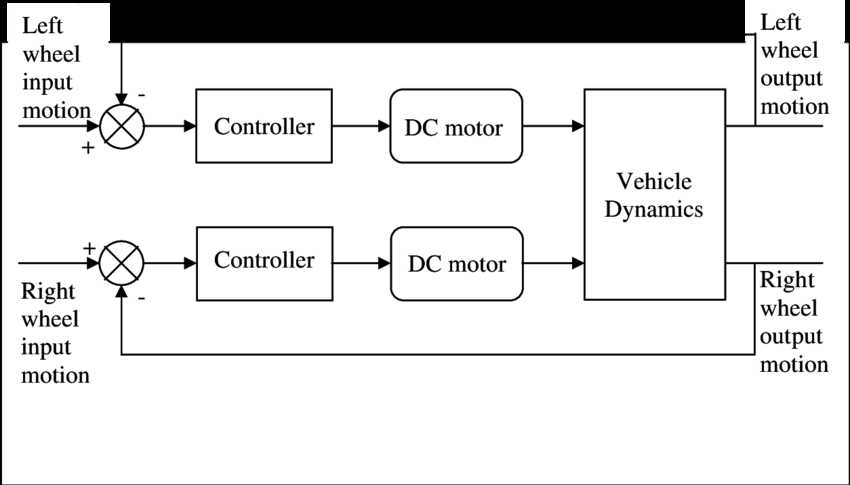

Signal Flow and Feedback Loops

Map sensor inputs to microcontroller pins with precise labels–avoid generic terms like “analog in.” For example: “SONAR-FR (A3)” for a front-facing ultrasonic detector wired to analog pin 3. Indicate pull-up or pull-down resistors (4.7kΩ) next to switch-based inputs to clarify default states.

Isolate high-speed communication (I2C, SPI) from slow digital I/O. Use shielded twisted pairs for SPI lines (MOSI, MISO, SCK) and mark their connectors with polarity symbols. Add decoupling capacitors (0.1µF) between VCC and GND for each IC, positioning them within 2mm of the component on the layout.

Include a simple truth table as an inset for complex logic blocks, like a motor controller with directional control. Example:

| IN1 | IN2 | Outcome       |
|-----|-----|---------------|
| 0   | 0   | Brake         |
| 1   | 0   | Forward       |
| 0   | 1   | Reverse       |
| 1   | 1   | Free wheel    |

Testing and Validation Markers

Add test points (TP-xx) adjacent to critical nodes–input power, motor drivers, and sensor outputs. Use probe-compatible pads (3mm diameter) and label them with expected voltage ranges (e.g., TP-05: 5V ±0.2V). Include jumper pads (JP-01/JP-02) to bypass modular sections during diagnostics.

Annotate firmware-dependent components with version requirements. For instance: “MCU: STM32F405 (FW v1.2.3 or later)” or “OLED: SSD1306 (128×64, I2C address 0x3C).” Store the layout file in KiCad or Altium with an auxiliary README.txt listing tools, libraries, and supplier part numbers (e.g., “MOSFET: IRLML6402PbF-ND”).

Critical Elements for an Automated System Blueprint

Begin with a power distribution network that maps voltage rails, ground planes, and current limits. Specify battery chemistry (LiPo, NiMH), capacity in mAh, and discharge rates (C-rating). Include fuse placements, voltage regulators (LDOs, buck converters), and bulk capacitors (100µF+ per 1A load) to suppress transients. Label wire gauges based on load requirements–AWG 18 for high-current paths, AWG 24 for signal lines. Add test points for multimeter probes near critical junctions to verify supply integrity during debugging.

Define actuator interfaces with precision. For DC motors, note stall current, nominal voltage, and encoder resolution (CPR). Servos require pulse width ranges (e.g., 1000–2000µs) and angular limits. Stepper motors need microstepping settings (1/16, 1/32) and driver chip types (A4988, DRV8825). Include flyback diodes (1N4007) or MOSFET protection for inductive loads. Label control signals–PWM pins, direction inputs, and enable lines–matching the microcontroller’s GPIO capabilities.

Sensor Integration and Signal Conditioning

Optical encoders demand pull-up resistors (10kΩ) and debounce capacitors (0.1µF) if interfacing with interrupts. IMUs (MPU6050, BNO055) need I2C/SPI configuration, clock speeds (400kHz max for I2C), and address selection via jumpers. Ultrasonic sensors (HC-SR04) require precise timing (10µs trigger pulse) and noise filtering if operating near motors. For analog sensors (potentiometers, IR distance), add RC low-pass filters (cutoff ~10Hz) to reduce EMI. Document ADC resolution (10-bit vs. 12-bit) and reference voltages (Vref) for accurate conversions.

Allocate blocks for computational hardware: microcontroller (STM32, ATmega328) with pinouts, clock speed (8MHz–180MHz), and communication protocols (UART, I2C, SPI). Include reset circuitry (RC network for manual reset) and bootloader pins if needed. For embedded Linux (Raspberry Pi, Jetson), note power sequencing (5V/3A) and SD card interfaces. Label JTAG/SWD headers for debugging and ISP programming. Add thermals–heatsinks or fans–for high-TDP components (GPU/SoC modules).

Wireless modules (ESP8266, nRF24L01) require PCB antennas or u.FL connectors, power amps (PA) for extended range, and decoupling capacitors (1µF + 0.1µF) near the VCC pin. Note channel frequencies (2.4GHz ISM band), encryption (AES-128), and baud rates (9600–115200). Include LED indicators (red/green) for status monitoring. For Bluetooth (HC-05), document AT commands and pairing restrictions (PIN 1234). Isolate analog ground planes from digital/RF sections to minimize crosstalk.

Mechanical Interfaces and Fail-Safes

Specify load-bearing connectors–Molex, JST, or screw terminals–rated for current and vibration resistance. Servo horns, gearbox mounts, and end effector attachments need precise hole patterns (M3 bolts) and torque limits (e.g., 1.2Nm max). Add emergency stops: physical buttons with NC contacts, solenoid cutoffs for high-voltage lines, and software overrides (watchdog timers). Include reverse polarity protection (P-channel MOSFET, Schottky diode) and inrush current limiting for capacitor banks. Document weight distribution if stability is critical; center of mass should align with drive wheels.

Finalize with a bill of materials (BoM) cross-referenced to the visual layout. Group passive components (resistors, capacitors) by value and tolerance (%1). List IC part numbers, datasheet links, and vendor sources (Digikey, LCSC). Annotate PCB layers–signal, power, ground–as separate nets with copper pour settings (fill/grid). Add silkscreen labels for assembly (e.g., “U5: Motor Driver”) and maintenance (“JP3: 5V Output”). Include scaling notes–trace widths (10mil for signals, 30mil for power) and clearance rules (8mil min). Export Gerber files with drill charts and IPC-2221 compliance for fabrication.

Key Criteria for Choosing Sensors and Actuators in Automated Designs

Begin by matching sensor precision to the operational range of your mechanism. For distance measurements under 2 meters, infrared (IR) sensors deliver ±1 mm accuracy at 10–50 Hz polling rates, while ultrasonic alternatives cover up to 10 meters but drop to ±5 mm resolution with 5–15 Hz updates. Laser time-of-flight modules stretch to 30 meters with ±2 mm precision at 50 Hz, though ambient light interference requires optical filtering when operating outdoors.

Prioritize interface protocols that align with your microcontroller’s bandwidth. SPI handles data transfers at 10 Mbps, ideal for high-speed encoders or inertial measurement units needing 1 kHz sampling. I2C limits to 400 kHz but supports multiple devices on two wires, sufficient for temperature or humidity sensors polling at 1 Hz. CAN bus excels in distributed systems with 1 Mbps throughput, tolerating noise over cables exceeding 50 meters–critical for industrial actuators like servo motors with 12-bit position feedback.

Sensor Type	Range	Accuracy	Sampling Rate	Interface	Power Draw
IR Proximity	0.1–2 m	±1 mm	10–50 Hz	GPIO	20–50 mA
Ultrasonic	0.2–10 m	±5 mm	5–15 Hz	UART	30–80 mA
Laser ToF	0.2–30 m	±2 mm	50 Hz	I2C/SPI	100–200 mA

Actuator torque requirements dictate gearhead selection. Brushless DC motors paired with planetary gearboxes achieve 90% efficiency at 3000 RPM, but worm gears introduce 30% losses while eliminating backlash. For applications demanding sub-millimeter positioning–such as 3D-printed assemblies–stepper motors with microstepping drivers (1/32 resolution) eliminate encoders but suffer from missed steps under loads exceeding 70% of holding torque. Servo motors integrate PID controllers and absolute encoders, maintaining ±0.1° accuracy across 10–100 kg·cm torque ranges.

Environmental tolerances narrow component options. Hall-effect sensors withstand -40°C to 150°C, whereas MEMS accelerometers degrade below -20°C or above 85°C. IP67-rated housings protect against dust and temporary immersion but fail under prolonged pressure beyond 1 meter depth–opt for titanium encapsulation for submersible designs. Silicone conformal coatings prevent corrosion in high-humidity conditions, though they add 100 ms latency to capacitive touch feedback sensors.

Calculate power budgets to avoid cascading failures. Linear actuators drawing 2 A at 24 V stall under sustained loads, necessitating thermal cutoffs or pulse-width modulation at 20 kHz to reduce duty cycles below 60%. Piezoelectric actuators offer micro-Newton precision but require 150 V drive circuits, increasing switching losses by 15% compared to electromagnetic counterparts. For battery-operated designs, prioritize components with standby currents under 1 mA–motion detectors and gas sensors often exceed this threshold by two orders of magnitude.

Redundancy protocols prevent single-point failures in safety-critical loops. Dual-axis inclinometer setups cross-validate pitch/roll data at 100 Hz, flagging discrepancies exceeding 0.5° as sensor drift. For hydraulic valves, incorporate pressure transducers at inlet/outlet ports to detect leaks via real-time differential calculations. Wireless modules–BLE, Zigbee, or LoRa–should implement frequency-hopping spread spectrum with 128-bit AES encryption to thwart interference or spoofing attempts in RF-dense environments.

Validate component interoperability through worst-case scenario testing. Simulate 12 V supply sag to 9 V during transient loads, measuring dropout times for voltage regulators–LDOs typically handle 500 ms while switching regulators sustain output across 6–36 V input ranges. Test actuator hysteresis by cycling between +90° and -90° positions at 0.1 Hz, recording positional errors with linear potentiometers or magnetic encoders. Document EMI susceptibility by introducing 10 V/m RF fields at 10 MHz–1 GHz, ensuring signal integrity through shielded twisted-pair cabling and ferrite beads on high-speed data lines.
