RS Flip Flop Circuit Design and Truth Table Analysis Guide

Begin with two cross-coupled NOR gates to construct a fundamental bistable element. This configuration ensures stable output states–Q and its complement–holding values indefinitely until an external trigger alters them. Use 74LS02 ICs for prototyping; their 8 mA output drive suffices for most applications while maintaining TTL compatibility. Ensure pull-down resistors (1 kΩ) on unused inputs to prevent floating nodes, a common source of erratic behavior in asynchronous designs.

For minimal component count, replace NOR gates with NAND gates but invert inputs. The CD4011 provides Schmitt-trigger inputs, improving noise immunity in noisy environments. Add 0.1 µF decoupling capacitors near power pins to suppress voltage spikes, critical for maintaining clean logic transitions during state changes. Test stability by toggling inputs with a 1 Hz square wave: outputs must switch cleanly without intermediate voltage levels.

When prototyping on perfboard, arrange components symmetrically to mirror signal paths. Route R (reset) and S (set) lines orthogonal to each other to minimize crosstalk. For critical applications, substitute discrete transistors–2N3904 pairs–configured as inverters; this approach yields lower propagation delays (~10 ns) but demands precise resistor matching (±1% tolerance). Verify edge triggering by applying a 10 kHz pulse train: the circuit must reject sub-50 ns glitches to prevent false state changes.

Optimize power consumption by powering the circuit from 3.3 V instead of 5 V when feasible. Many modern CMOS variants (74HC02) operate reliably at reduced voltages, cutting current draw by ~40% without sacrificing speed. Log timing constraints: ensure input pulses exceed the gate propagation delay (~15 ns) to guarantee reliable operation.

RS Bistable Circuit Layout and Implementation

Construct the bistable element using two cross-coupled NOR gates (e.g., 74HC02) or NAND gates (e.g., 74HC00) depending on desired logic behavior. For NOR-based design, connect the output of each gate to one input of the opposite gate–leave the remaining inputs free for Set (S) and Reset (R) signals. Apply pull-down resistors (10 kΩ) on S and R lines to prevent floating states. Power the circuit with 5V DC, ensuring stable rail voltage to avoid metastability. Test switching behavior by momentarily grounding S or R; observe Q and Q̅ outputs settling into complementary states (Q=HIGH, Q̅=LOW or vice versa) within 15–20 ns for HC-series ICs.

• NOR vs NAND selection: NOR gates yield active-HIGH S/R inputs, while NAND gates require active-LOW. Match input logic to your signal source.
• Component placement: Route power traces directly from the IC’s V_CC pin to the supply, avoiding shared paths with output lines to minimize noise coupling.
• Decoupling: Place a 0.1 µF ceramic capacitor between V_CC and GND as close as possible to each IC to suppress voltage spikes during transitions.
• Metastability mitigation: Add a Schmitt trigger (e.g., 74HC14) on S/R inputs if signal edges are slow/ramp-like, ensuring clean threshold detection.
• Layout traps: Keep feedback traces (Q→gate and Q̅→gate) equal in length to prevent timing skew. Use 0.25 mm width for signal paths to reduce inductance.

Core Hardware for Constructing an RS Bistable Element

Select two cross-coupled NOR gates to form the bistable core. 74HC02 ICs provide reliable performance with minimal propagation delay–typically under 15 ns at 25°C–and operate on a supply voltage range of 2V to 6V, making them suitable for both CMOS and TTL interfacing. Ensure each gate’s output directly feeds the opposite gate’s input to maintain stable complementary states.

Incorporate pull-down resistors at the set (S) and reset (R) inputs to prevent floating nodes. Values between 1 kΩ and 10 kΩ prevent unintended toggling while allowing deliberate signal transitions. For 5V circuits, 4.7 kΩ strikes a balance–low enough to suppress noise, high enough to limit current draw to under 1 mA per input during active states.

Essential Control and Power Delivery

Add decoupling capacitors–0.1 µF ceramic–between the IC’s power pins and ground. Place them within 2 mm of the pins to filter high-frequency transients that can disrupt state retention. For circuits operating above 1 MHz, pair a 10 µF electrolytic capacitor in parallel to handle bulk charge demands during simultaneous input transitions.

Include SPDT switches or debounced pushbuttons for manual S/R activation. Mechanical switches generate bounce–settling within 20 ms–so integrate a single Schmitt-trigger inverter (e.g., 74HC14) between each switch and NOR gate to clean the signal edge. This eliminates false triggers during state changes without requiring additional passive components.

For clocked variants, insert a NAND gate (e.g., 74HC00) before the NOR pairs. Connect the clock signal to both NAND inputs to gate the S/R lines, allowing state changes only during the active clock phase. Maintain clock rise/fall times under 100 ns to avoid metastability–use a 10 kΩ series resistor if driving from a microcontroller’s GPIO.

Test state retention by measuring output voltages during idle conditions. A properly configured bistable should maintain outputs within 10% of VCC (e.g., 4.5V–5.0V) when S and R are inactive (both low). If outputs drift toward threshold voltage (≈2.5V), recheck cross-coupling connections, resistor values, or replace the IC–leakage currents in damaged gates can degrade holding stability.

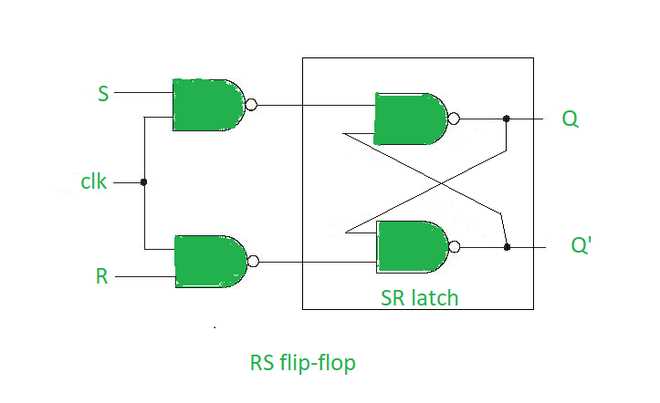

Step-by-Step Construction of a Bistable Latch Using NAND Gates

Begin with two NAND gates–these will form the core of the bistable circuit. Connect the output of the first NAND gate to one input of the second gate. Conversely, link the output of the second NAND gate to an input of the first. Label the remaining inputs of the gates as R (reset) and S (set). This cross-connection ensures mutual feedback, the foundation of stable state retention.

Signal Path and Initial State Setup

Apply a logic-high voltage (e.g., +5V) to both R and S terminals to initialize the latch. Measure the outputs: both should settle at logic-high. This neutral state confirms the gates are functioning before deliberate state changes. Use a multimeter to verify voltage levels at each node–any deviation below 4.5V indicates faulty connections or gate degradation.

Activate the set function by pulling S low while keeping R high. The output of the first gate (Q) will transition to logic-low while its complement (Q̄) mirrors this by going high. This action latches the circuit into the set state, maintained even if S returns to high. Test stability by briefly toggling S–the outputs must remain unchanged.

Reset Operation and Edge Case Handling

To reset, return S to high and pull R low. Q will switch to logic-high while Q̄ drops low, confirming the reset state. Validate rail-to-rail voltage swings (0V to +5V) to rule out weak output drivers. Introduce a 1kΩ pull-up resistor on both R and S lines if using mechanical switches to eliminate transient noise during transitions.

Address the forbidden state by applying logic-low to both R and S. Both outputs will momentarily go high–a metastable condition that resolves unpredictably when one input rises first. Mitigate this by ensuring control signals never arrive simultaneously. Add a 100ns delay between transitions using a Schmitt-trigger inverter if the application tolerates latency.

Finalize the build by decoupling each gate with a 0.1µF ceramic capacitor placed within 2mm of the power pins. This filters high-frequency noise that could corrupt state retention. Bench-test with a 1Hz square wave on S while R remains high, then reverse roles. Record propagation delays–typical values should not exceed 15ns for 74HC00-series gates at 5V supply.

Truth Table Analysis of RS Latch Operation

Begin by examining the input-output relationship through the standard four-state matrix. For an RS element constructed with NOR gates, the truth table reveals two key constraints: R=1, S=1 produces an invalid condition, while R=0, S=0 retains the prior output state. These constraints dictate the operational boundaries–violating them leads to unpredictable behavior in synchronous circuits.

Prioritize analyzing the Set (S=1, R=0) and Reset (R=1, S=0) states first. The Set operation forces the output Q to 1 and its complement Q̅ to 0, regardless of previous values. Conversely, the Reset state reverses this, pushing Q to 0 and Q̅ to 1. These transitions occur immediately upon input application, making them critical for edge-triggered applications.

Use the truth table to verify metastability risks. When both inputs transition from R=1, S=1 to R=0, S=0, the output latches into an undefined state. This race condition necessitates input constraints or additional synchronization logic–implementing an enable pulse or using a D-type variant mitigates this issue by ensuring only one input is active at a time.

Propagation Delay Considerations

Measure the propagation delay for each state transition. NOR-based RS elements typically exhibit asymmetric delays: Reset (R=1) often completes faster than Set (S=1) due to gate symmetry differences. Document these delays in timing diagrams to anticipate skew in asynchronous designs–failure to account for this may cause glitches in downstream logic.

Cross-reference the truth table with gate-level simulations. For NAND-based implementations, invert the input logic (S=0 sets, R=0 resets) but maintain identical state preservation during S=1, R=1. This inversion is frequently overlooked in schematic-to-verilog translations, leading to incorrect RTL synthesis. Always verify with a testbench covering all input combinations, including invalid states.

Practical Applications and Limitations

Map the truth table to real-world use cases. In debounce circuits, the hold state (R=0, S=0) filters mechanical switch noise, while Set/Reset transitions latch stable signals. For memory cells, however, the invalid state prohibits standalone use–pairing with a clocked enable input converts it into a gated RS, resolving the metastability issue at the cost of added complexity.

Quantify power consumption per state. Static power dominates in hold mode, while dynamic power spikes during transitions–especially when R and S toggle simultaneously. Optimize by replacing NOR gates with transmission gates in low-power designs, as they reduce leakage currents during idle periods while maintaining the same truth table behavior.
