RS485 to USB Interface Wiring Guide and Schematic Solutions

For reliable two-wire differential signaling to USB connectivity, use a transceiver like the MAX485 or SN75176 paired with an off-the-shelf USB-to-UART bridge such as the CP2102 or CH340. Ensure the transceiver’s DE (Driver Enable) and RE (Receiver Enable) pins are tied together and controlled by a microcontroller GPIO or a dedicated pull-up resistor for automatic switching. This eliminates manual intervention in half-duplex setups.

Power the transceiver from a stable 5V source, preferably the USB port itself, but add a 1μF decoupling capacitor near the VCC pin to suppress noise. For signal integrity, terminate the differential lines with a 120Ω resistor between A and B at both ends–omitting this causes reflections and data corruption. Avoid ground loops by connecting the transceiver’s ground directly to the USB ground without intermediate resistance.

For UART bridging, configure the CP2102’s TXD and RXD pins to 3.3V logic levels; 5V may damage the transceiver. Route cable shielding to ground at one end only to prevent ground loops. Test with a baud rate of 9600 first, then incrementally increase to 115200 while monitoring for packet loss. Use twisted-pair cables no longer than 1200 meters at lower speeds; signal degradation becomes noticeable beyond this limit.

Isolate the circuit with an ADuM120x digital isolator if ground potential differences exceed 50V, or use optocouplers like the 6N137 for cost-sensitive applications. Include a TVS diode (e.g., P6KE6.8CA) on the differential lines to clamp transients above ±7V, protecting the transceiver from surges. For long-distance runs, add 4.7kΩ pull-up/pull-down resistors on A and B to prevent undefined states during disconnections.

Flash the CP2102 driver on a Linux system via sudo modprobe cp210x; Windows requires vendor-provided INF files. Verify functionality with a loopback test: connect RO (Receiver Output) to DI (Driver Input) onboard and send/receive data through a terminal. If corruption occurs, reduce the baud rate or shorten the cable length. For debugging, probe the differential lines with an oscilloscope set to 200mV/div; valid signals should swing between -1.5V and +1.5V.

Building a Serial Interface Bridge: Key Schematic Insights

Start with an isolated MAX13487E transceiver to ensure noise immunity in industrial environments. Pair it with a FT232RL USB bridge IC for seamless host integration–this combination reduces signal reflection issues common in long cable runs. The MAX13487E’s fail-safe feature prevents undefined states on idle lines, a critical advantage when connecting distant endpoints.

Add a 120-ohm termination resistor at both ends of the differential line to match impedance and eliminate signal echoes. Place decoupling capacitors (0.1µF ceramic) near both ICs’ power pins to suppress high-frequency transients. For transient protection, incorporate bidirectional TVS diodes (P6KE6.8CA) across A/B lines, clamping voltages above ±7V without compromising data integrity.

Use twisted-pair cabling (CAT5 or better) for the differential link to minimize electromagnetic interference. Route ground wires separately from signal pairs to avoid ground loops. If galvanic isolation is required, insert a low-cost ISO3082 isolator between the transceiver and bridge–this isolates grounds up to 2.5kV RMS while maintaining full-duplex communication at up to 10Mbps.

Power Distribution Strategies

Derive bridge IC power (3.3V or 5V) directly from the host port via a low-dropout regulator like the AP2112K-3.3TRG. Input capacitors (10µF tantalum) stabilize voltage during inrush currents. For bus-powered designs, add a ferrite bead on the USB VBUS line to suppress conducted emissions, particularly in environments with switching power supplies.

Avoid ground plane splits under the differential traces–route them on the same layer with minimal parallel runs over 5cm. Keep traces short (under 15cm) between the transceiver and bridge IC; longer connections risk capacitive loading and signal degradation despite the ICs’ high drive strength (MAX13487E outputs ±25mA). For PCB layouts, use 45° trace bends instead of 90° to reduce impedance discontinuities.

Polarity matters–label A/B terminals on the board silkscreen to prevent reversed connections, which can damage transceivers. Test termination resistor values before final assembly; 110-ohm resistors may improve performance in noisy or high-capacitance installations. For half-duplex setups, include a manual switch to toggle direction if automatic drivers (like MAX13487E’s DE/RE pins) aren’t used.

Calibrate baud rates between endpoints to 0.1% tolerance; mismatches cause framing errors despite hardware flow control. For debugging, add 0.1-inch header test points for A, B, GND, and VCC to simplify oscilloscope probing. Document jumper settings for termination and bias resistors–their omission is a frequent troubleshooting pitfall in field-deployed units.

Key Components Required for Serial Interface Bridging

Select a transceiver chip compliant with TIA/EIA-485 standards–models like MAX485, SN75176, or ISL317x series offer reliable differential signal handling. These ICs provide noise immunity over twisted pair cables up to 1200 meters, supporting data rates up to 10 Mbps. Ensure the part includes fail-safe biasing for proper idle-state voltage on the bus.

Integrate a USB-to-UART bridge IC (FTDI FT232R, CP2102, or CH340G) to translate UART signals to host port protocols. Verify that the chosen bridge supports 3.3V or 5V logic levels compatible with the transceiver. Bulk capacitance of 10 µF near the bridge’s VCC pin prevents voltage droop during enumeration.

Termination and Isolation Elements

Component	Value/Part	Purpose
Termination resistor (Rt)	120 Ω (1% tolerance)	Matches cable impedance, prevents signal reflections at line ends
TVS diode	P6KE6.8CA (bidirectional)	Suppresses transients up to ±15 kV (IEC 61000-4-2)
Optocoupler	6N137 (300 ns response)	Galvanic isolation for 2500 Vrms (1s surge)

Place Rt resistors at both ends of the differential pair–omitting them risks signal degradation and data corruption. Couple the link with optoisolators if running 60 VDC or higher on the bus to protect low-voltage logic. Include bidirectional TVS diodes across A/B lines to clamp surges from cable faults.

Power and Signal Conditioning

Deploy a low-dropout regulator (MIC5205-3.3YM5) to derive stable 3.3V from a 5V bus for both transceiver and bridge. Add a 100 nF decoupling capacitor adjacent to each IC’s power pin to filter high-frequency noise. Use a 4.7 kΩ pull-up resistor on the transceiver’s RE pin if hardware flow control via RTS is required.

Route twisted-pair cables with consistent spacing, avoiding parallel runs near switching supplies. For half-duplex setups, connect transceiver’s DE/RE pins together, toggling them via bridge-controlled GPIO. Test signal integrity with an oscilloscope before finalizing PCB layout–ensure differential voltage swings exceed 1.5V peak without clipping.

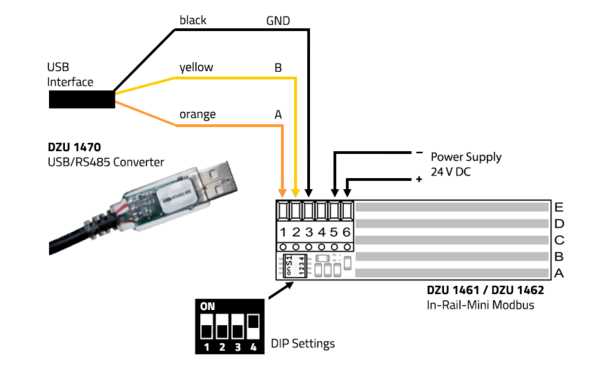

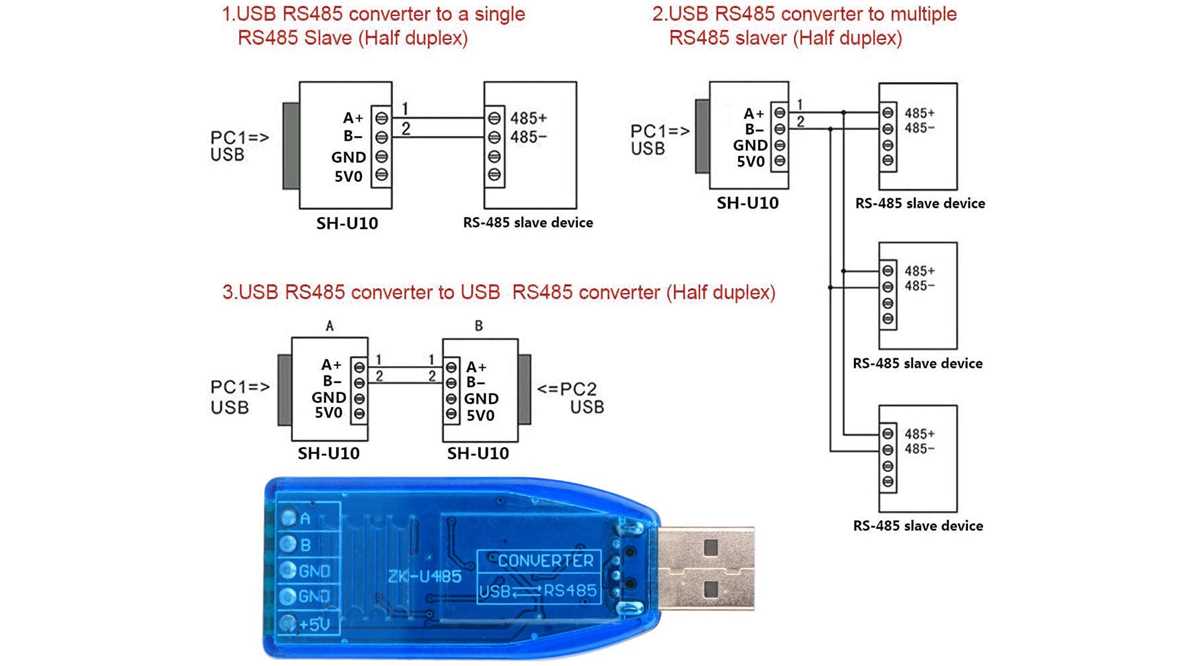

Step-by-Step Wiring Layout for the Interface Device

Begin by securing a differential signal transceiver capable of handling bidirectional data at up to 12 Mbps. Locate pins labeled A (non-inverted) and B (inverted) on the transceiver–these are critical for balancing transmissions. Connect A to a terminal block or screw connector labeled DATA+, and B to DATA-. Ensure no other components or wires interfere with this direct pairing, as improper routing introduces noise and corrupts signals.

Ground the transceiver’s GND pin to the target port’s reference plane. Use a dedicated wire with a cross-section of at least 0.5 mm² to minimize voltage drop. Avoid shared grounding paths with inductive loads (e.g., motors, relays) to prevent transient currents from disrupting data integrity. If the transceiver includes a RE (receiver enable) or DE (driver enable) pin, tie them both to a logic high (3.3V or 5V) via a pull-up resistor (4.7 kΩ) to keep the line in an active state for half-duplex operation.

Power Supply and Isolation

• Feed the transceiver’s VCC pin through a linear regulator (e.g., LM1117) set to 3.3V if the host uses a 5V bus. Place a 10 µF tantalum capacitor close to the VCC pin and a 0.1 µF ceramic capacitor directly between VCC and GND to filter high-frequency noise.
• For isolated designs, insert an optocoupler (e.g., 6N137) between the transceiver’s data lines and the port controller. Wire the optocoupler’s LED anode to the transceiver’s output and cathode to ground through a 220 Ω resistor. The phototransistor side connects to the controller’s input, ensuring galvanic separation with no shared ground.
• If termination is needed, attach a 120 Ω resistor across A and B at the physical endpoints of the bus. Omit this resistor at intermediate nodes to prevent signal reflection.

Link the transceiver’s TX and RX pins to the serial interface controller’s corresponding pins. Use twisted pairs for these connections, keeping them under 10 cm in length to avoid crosstalk. If the controller lacks built-in pull-up/pull-down resistors, add 10 kΩ resistors to TX (pull-up to 3.3V) and RX (pull-down to ground) to define idle states.

Mount transient voltage suppression diodes (e.g., SMAJ5.0CA) across A and B to clamp spikes exceeding ±6V. Position these diodes within 5 mm of the transceiver pins to minimize lead inductance. For outdoor or industrial applications, add a gas discharge tube (e.g., Bourns 2030-15-B) in parallel with the diodes to handle surge events up to 1.5 kV.

Verify connectivity with a multimeter before powering the device. Measure resistance between A and B; it should read near 60 Ω (termination resistance divided by 2). Confirm the absence of shorts between any data line and ground or power rails. Apply power and monitor current draw–expect 50–100 mA at 3.3V for a typical transceiver under active load. If current exceeds 150 mA, immediately disconnect power to prevent damage from miswiring.

Final Checks Before Operation

1. Insert a 10 ms delay in firmware between toggling DE and transmitting data to allow the transceiver to stabilize. Ignoring this may cause the first few bits to be lost.
2. Test with a loopback plug (cross DATA+ to DATA- at the far end) to confirm bidirectional communication. A functioning link should show error-free data transfer at 9600 baud or higher.
3. If errors persist, reduce baud rate incrementally until stability is achieved. Persistent issues usually stem from incorrect termination or grounding–recheck wiring against this layout.
