Complete Guide to Sonos Speaker Wiring and Connection Diagrams

Start with verifying impedance compatibility between amplifiers and speakers. Most modern multi-room audio components handle 4 to 8 ohms, yet bridging configurations require lower impedance loads. Mismatches lead to overheating, signal distortion, or component failure within days. Check printed specifications on each enclosure rear panel before connecting terminals.

Use oxygen-free copper conductors for all permanent installations. Stranded 14 AWG wire suits runs under 50 feet, while solid-core variants minimize resistance in longer spans. Avoid mixing gauge types–consistent diameter ensures uniform signal strength across zones. Twist pairs at a rate of 1.5 twists per inch to reduce electromagnetic interference, especially near power cables.

Label each connection point immediately after stripping insulation. Heat-shrink tubing or color-coded sleeves prevent shorts and simplify future troubleshooting. Mark the left channel positive lead red, right channel blue, and common ground black on both sender and receiver ends. Include length and destination identifiers for complex multi-room setups.

Shielded coaxial cables carry line-level signals between preamplifier outputs and amplifier inputs. RG-6 variants deliver superior noise rejection compared to standard RCA cables, particularly in environments with fluorescent lighting or Wi-Fi routers. Secure connectors with gold-plated contacts to prevent signal degradation from oxidation.

Dedicated power conditioning provides consistent voltage delivery, critical for digital signal processors. Separate circuits for core components prevent ground loops, identifiable by low-frequency hum. Install isolated power strips rated at 15 amps minimum, ensuring sufficient wattage headroom for peak transients.

Adhere to distance limitations for unamplified connections. For 3.5mm aux inputs, maintain cable lengths below 20 feet to prevent high-frequency loss. Optical cables tolerate up to 30 feet without signal attenuation, while Cat-6 Ethernet supports runs exceeding 150 feet for network-based audio distribution.

Test continuity across each path before finalizing installations. Use a multimeter set to ohms scale; readings below 0.5 ohms indicate secure connections. Verify signal transmission at multiple volume levels, listening for phase cancellation or unintended resonances that suggest incorrect polarity or loose terminal screws.

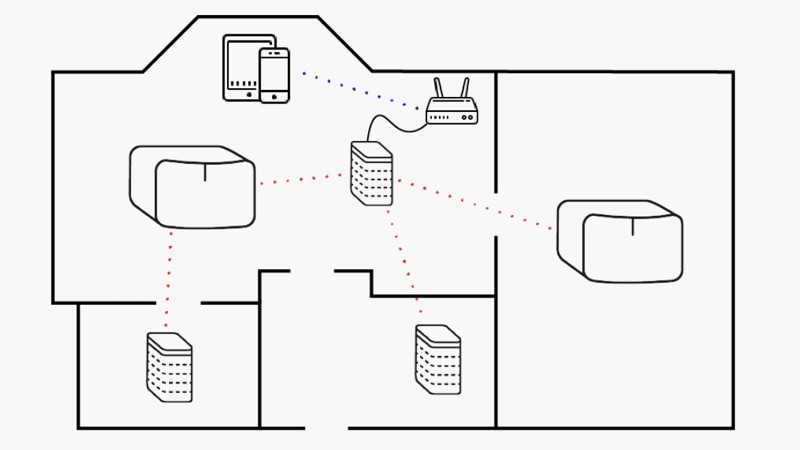

How to Map Your Multi-Room Audio Setup Correctly

Begin by identifying the amplifier or preamp outputs in your AV receiver–these ports typically use RCA connectors. For distributed audio, assign each zone a dedicated pair of cables running directly from these outputs to the intended playback devices. Label both ends of every cable with zone names (e.g., “Kitchen Left”) to prevent crossing connections during installation.

Use Cat 6 Ethernet for power-over-Ethernet (PoE) speakers if your system supports streaming via networked audio. Run cables from a central gigabit switch to each in-ceiling or wall-mounted unit, ensuring a maximum distance of 100 meters per run to maintain signal integrity. Avoid sharp bends; instead, follow a gentle arc with at least a 25mm radius to protect internal conductors.

For configurations mixing analog and digital connections, route optical Toslink cables separately from copper lines to minimize interference. Secure optical cables with Velcro ties every 30cm to prevent sagging, which can degrade the plastic core’s light transmission. Test each optical link with a fiber continuity tester before finalizing walls or conduit.

Connect bridge devices, such as wireless access points or range extenders, at midpoint intersections if Wi-Fi coverage drops below -70 dBm. Position these units at least 1.5m above floor level and away from large metal surfaces that reflect signals unevenly. Log signal strength in each room using a spectrum analyzer to confirm consistent performance.

Ground loops often manifest as low-frequency hum in ceiling speakers–mitigate them by lifting the ground on one end of RCA cables using isolation transformers or grounding lifts. If transformers increase impedance beyond 600 ohms, replace them with balanced XLR cables to preserve audio fidelity across parallel setups.

Finalize the layout by documenting each cable path with precise measurements, termination points, and device serial numbers in a spreadsheet. Include photographs of every junction box and connector orientation to simplify future troubleshooting or expansions.

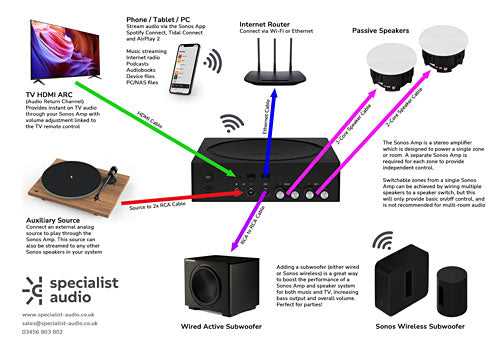

Precision Audio Installation Guide for Sonos Amplifier

Begin by stripping 6-8 mm of insulation from each conductor end using a dedicated cable cutter–never scissors–to prevent frayed strands. For 16 AWG stranded copper, twist exposed threads clockwise before inserting into binding posts to maintain signal integrity. Ensure bare wire extends no more than 1 mm beyond the terminal to prevent short circuits between adjacent channels.

Secure connections by rotating binding posts clockwise until firm, then apply an additional quarter-turn. Avoid overtightening, which can damage internal threading; the post should resist further turning without forcing. For bi-wiring configurations, label conductors with tape (red for “+”, black for “−”) before separation to eliminate phase cancellation risks during playback.

Terminal Compatibility Check

Match amplifier outputs to specific driver requirements: tweeters (2–8 Ω) to the high-frequency terminals, woofers (4–16 Ω) to low-frequency. Verify impedance ratings against the amp’s documentation–mismatches exceeding ±1 Ω will trigger thermal protection circuits. For passive setups, use oxygen-free copper wire with a minimum 1.5 mm² cross-sectional area for runs under 5 meters.

Test continuity with a multimeter set to 200 Ω range before finalizing connections. Probe each path–positive to positive, negative to negative–expecting readings below 0.5 Ω. If resistance exceeds this threshold, re-examine conductor integrity or terminal oxidation. Post-installation, power the unit and verify balanced channel output at -3 dB using a calibration microphone.

Avoiding Common Pitfalls

Route cables perpendicular to AC power lines to minimize 60 Hz interference; maintain a 30 cm separation where crossings are unavoidable. Use ferrite beads on digital signal runs to suppress RF noise from nearby wireless devices. When daisy-chaining, limit series connections to three speakers to prevent impedance dips below 3 Ω, which can overheat the amplifier’s output stage.

Integrating Port Devices Into Distributed Sound Networks

Connect the Port to your existing audio preamp or receiver via RCA cables, ensuring impedance matches–typically 10k ohms for line-level outputs. Use shielded cables to minimize interference, especially in setups with compression drivers or passive speakers sharing the same amplification path. Label each cable at both ends to avoid cross-connections during troubleshooting or future expansions.

Assign fixed IP addresses to each Port unit within your network to prevent DHCP conflicts. Configure the device’s digital signal routing through the companion app, prioritizing wired Ethernet over Wi-Fi for latency-sensitive zones like home theaters. If using Power over Ethernet (PoE), verify voltage compatibility (48V) to avoid damaging the unit’s network interface.

Calibrate output levels individually for each zone. A preamp’s volume setting should not exceed -10dBV to prevent distortion when chaining multiple units. Use a multimeter to check ground loops between zones; install an isolating transformer or ground loop eliminator if hum persists. For analog source switching, bypass unnecessary signal processors to preserve clarity.

Organize cabling with a dedicated patch panel or labeled conduit. Bundle cables in groups of six or fewer to maintain airflow and ease future modifications. If integrating with older audio distribution systems, verify phono jack compatibility or use balanced XLR adapters where signal degradation is critical.

Test each zone independently before finalizing the configuration. Playback should sync within 30ms across all endpoints–adjust buffer settings in the app if delays occur. For redundant failover, assign a secondary router on a separate subnet for wired connections, ensuring uninterrupted streaming during primary network outages.

Optimizing Power Delivery and Network Routing for Multi-Room Audio Devices

Position amplifiers and speakers within 1.5 meters of a grounded power outlet using cables no longer than 2 meters to prevent voltage drop. For units with internal amplification, use 18 AWG oxygen-free copper conductors; passive speakers tolerate 20 AWG but require dedicated circuits when drawing above 5A. Avoid daisy-chaining power strips–each unit demands its own surge-protected path with at least 20% overhead capacity beyond the device’s rated consumption. In-wall installations must comply with Class 2 wiring standards, ensuring no parallel runs with high-voltage lines within the same conduit.

• Place Gigabit Ethernet connections directly from the router or a PoE+ switch (minimum Cat 6 cable) to each networked zone player, limiting cable runs to 55 meters per segment. Bypass Wi-Fi extenders–direct cabling eliminates latency spikes above 2ms.
• For outdoor setups, use shielded Cat 6a cable buried at 30cm depth or enclosed in rigid conduit, terminating at waterproof-rated RJ45 connectors (IP68).
• In ceilings or behind drywall, secure cables with Velcro ties spaced every 50cm; avoid staples to prevent crosstalk or pinch damage.
• Label both ends of each cable with unique alphanumeric IDs corresponding to a physical layout map stored in the system’s controller app.
• Test continuity and signal strength using a cable certifier (e.g., Fluke DSX-8000) before connecting endpoints–NEXT/PSNEXT readings must stay below -45dB.
