Understanding Relay Circuit Diagrams Structure and Functionality

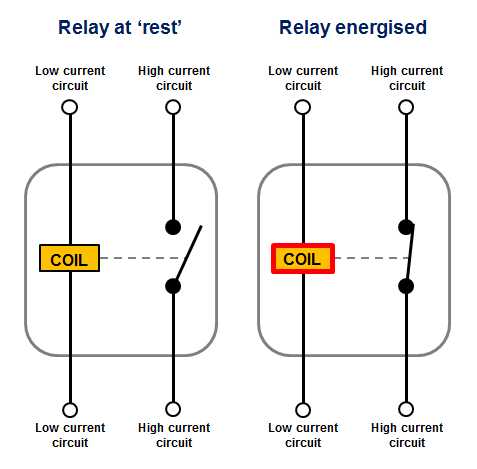

Start by identifying the three core components in any controlled switching system: the control input, the actuator coil, and the mechanical contacts. The control input, typically a low-voltage signal (5–24 VDC), energizes the coil, which generates a magnetic field. This field pulls the contacts together, bridging the high-power circuit (up to 10 A at 250 VAC) without direct manual intervention. Always verify coil voltage ratings–mismatches lead to premature failure or non-operation.

Place the coil symbol vertically in your drawing, with the input terminals at the top. Below, align the contacts in their normally open (NO) or normally closed (NC) state, clearly labeling each. For DC applications, orient the diode across the coil (anode to negative) to suppress inductive spikes; reverse polarity will destroy the diode and risk damaging the driving circuit.

Connect the high-power terminals to the right of the contacts, ensuring the load (e.g., motor, lamp) can handle the relay’s maximum switching capacity. Use 22 AWG wire for coil connections and 16–14 AWG for power circuits–undersized wires overheat and introduce voltage drops. Include a flyback diode for inductive loads; omit it and expect arcing, contact erosion, and eventual welding.

Test before deployment: apply the rated coil voltage and listen for a distinct click. Measure contact resistance with a multimeter–ideal readings are <0.1 Ω; values above 0.5 Ω indicate contamination or wear. Replace relays if contacts fail to close under 90% of rated voltage, as degraded coils waste energy and overheat.

For high-frequency switching (beyond 10 cycles/minute), opt for solid-state alternatives. Mechanical units degrade after 100,000 operations, while SSRs last indefinitely but demand proper heatsinking and zero-crossing detection to prevent false triggering. Always fuse both control and power sides–unfused circuits risk fire when faults occur.

Understanding Electrical Switching Circuit Illustrations

Begin by labeling each component in the electromechanical switch illustration with standardized notation: coil as L1, normally open contacts as NO (e.g., NO1), normally closed contacts as NC (e.g., NC1), and the armature with A. Use ISO 7000 or IEC 60617 symbols for clarity–avoid custom drawings that deviate from these conventions. Include precise voltage ratings (e.g., 12V DC, 230V AC) next to the coil and contact paths to prevent misapplication.

Structure the visual representation in layers:

• First layer (input): Power source (battery/AC supply) → coil → ground/reference. Indicate polarity if DC; for AC, use a sine wave symbol.
• Second layer (control): Control signal (e.g., microcontroller, sensor) → coil terminals. Add a flyback diode (D1) across the coil for inductive load protection, oriented cathode-to-positive.
• Third layer (output): Load (e.g., motor, lamp) → NO or NC contacts → power return. Specify contact material (e.g., AgCdO for high-current loads) if relevant.

Critical Annotations for Reliability

1. Add pull-up/pull-down resistors (e.g., 10kΩ) if the control signal is weak or floating to prevent erratic operation.
2. For high-voltage applications (>24V), isolate the control circuit from the load circuit using optocouplers (e.g., PC817)–draw a dashed line to show galvanic separation.
3. Indicate minimum switching current (e.g., 10mA for reed types, 100mA for power types) to ensure compatibility with the load. For inductive loads, note arc suppression methods (e.g., RC snubber across contacts).
4. Use color-coding: red for high-voltage paths, blue for control signals, and green for ground/common.

Test the drawn layout with a multimeter in continuity mode to verify contact paths before energizing. For PWM-controlled circuits, highlight potential EMI issues by adding ferrite beads (FB1) on the coil lead.

Key Symbols and Notations in Control Circuit Blueprints

Begin with standardized IEC 60617 or ANSI Y32.2 symbols to ensure cross-industry compatibility. Coil representations differ: IEC shows a rectangle with lettering (e.g., “K1”), while ANSI uses a circle with dashed lines. Always label coil identifiers–omitting them causes tracing failures during panel testing.

• Normally Open (NO) Contact: Two parallel lines, slightly separated. ANSI adds a diagonal slash. Verify switch state annotations: “53” (closed) or “53a” (open) in automotive circuits; industrial schematics often use “13-14” pairs.
• Normally Closed (NC) Contact: Two parallel lines crossed by a diagonal. ANSI appends a filled circle at the intersection. Cross-reference with terminal numbers–mismatches between wiring lists and drawings create 30% of field failures.
• Double-Throw Configuration: Three terminals forming a “Y” shape. Center point connects to common; outer terminals link NO/NC paths. Document pole count: 4PDT symbols stack four contact pairs; confusion here doubles troubleshooting time.

Use distinct line styles for coil circuits versus contact circuits. Solid lines denote power paths; dashed lines indicate control signals. IEC 60617 specifies red for coils, blue for NO contacts, and yellow for NC–color-code CAD exports to 85% faster diagnostics. ANSI prefers monochrome with text labels; ensure labels align with terminal blocks numbering (e.g., TB1-7 for the seventh terminal).

Mark transient states explicitly. Holding coils display an “H” inside the symbol, latching types add a mechanical reset arrow. Transient suppression diodes attach opposite the coil arrowhead; omit these on high-voltage DC coils (60V+) to prevent reverse breakdown. Thermal overloads appear as bimetallic strips adjacent to coils–link their reset buttons to auxiliary contact chains in PLC-controlled systems.

For multi-pole devices, number each pole sequentially with suffixes: “A1-A2” for coil, “11-12” for first NO pair. ANSI appends letters (e.g., “A, B, C”) while IEC uses numerals. Merge symbols only when contacts share identical timing–split representations for staggered closures. Add mechanical linkages via dotted lines connecting armature symbols to contact pairs; mechanical engineers rely on these for actuator force calculations.

How to Illustrate an Electromagnetic Switch Wiring Plan

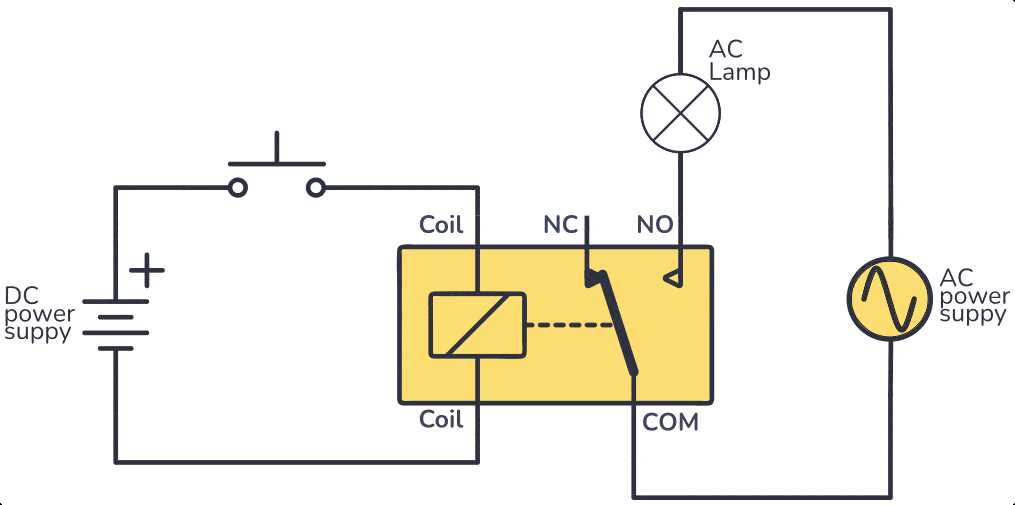

Select a standard symbol set before sketching. ANSI/IEEE or IEC symbols ensure consistency–use a coil (rectangle with two vertical lines) for the actuator, a pair of contacts (parallel lines with a diagonal break) for normally open (NO), and a parallel set with an intersecting line for normally closed (NC). Place the coil centrally with input terminals at the top or left, outputs at the bottom or right. Label pins immediately: “85” and “86” for control, “30” (common), “87” (NO), and “87a” (NC) if applicable. Confirm pin numbering matches the datasheet of the specific model you’re documenting.

Draw power lines first. Extend a straight vertical or horizontal line from the positive rail, ending at the coil’s first terminal. Repeat for ground or negative return, linking it to the second coil terminal through a switch if manual activation is desired. Keep traces uncluttered–use 90-degree bends sparingly, favoring 45-degree angles to avoid signal reflection in high-speed applications. Label each segment with wire gauge or current capacity where critical limits apply.

Connect contact paths. From the common terminal, trace a line to the NO contact, ensuring minimal distance to reduce resistive losses. Repeat for NC if present, branching the line clearly without overlaps. Add protective elements–in-series diodes for inductive loads, snubbers across coil terminals if switching high-voltage DC or AC. Specify component values directly beside symbols: a 1N4007 diode for flyback, a 0.1µF capacitor for noise suppression.

Testing Conventions Before Finalizing

Insert test points at every critical node: coil input, common terminal, and output contacts. Represent test points with a small circle and reference designator (TP1, TP2). Use color-coded dash lines for different states: solid for energized, dotted for de-energized. Verify continuity paths with a multimeter simulation–trace each path mentally to confirm no unintended open or short circuits exist.

Annotate operational limits. Above the coil, add voltage rating (e.g., “12 VDC”), current (e.g., “200 mA”), and switching time (”

Digital Integration Tips

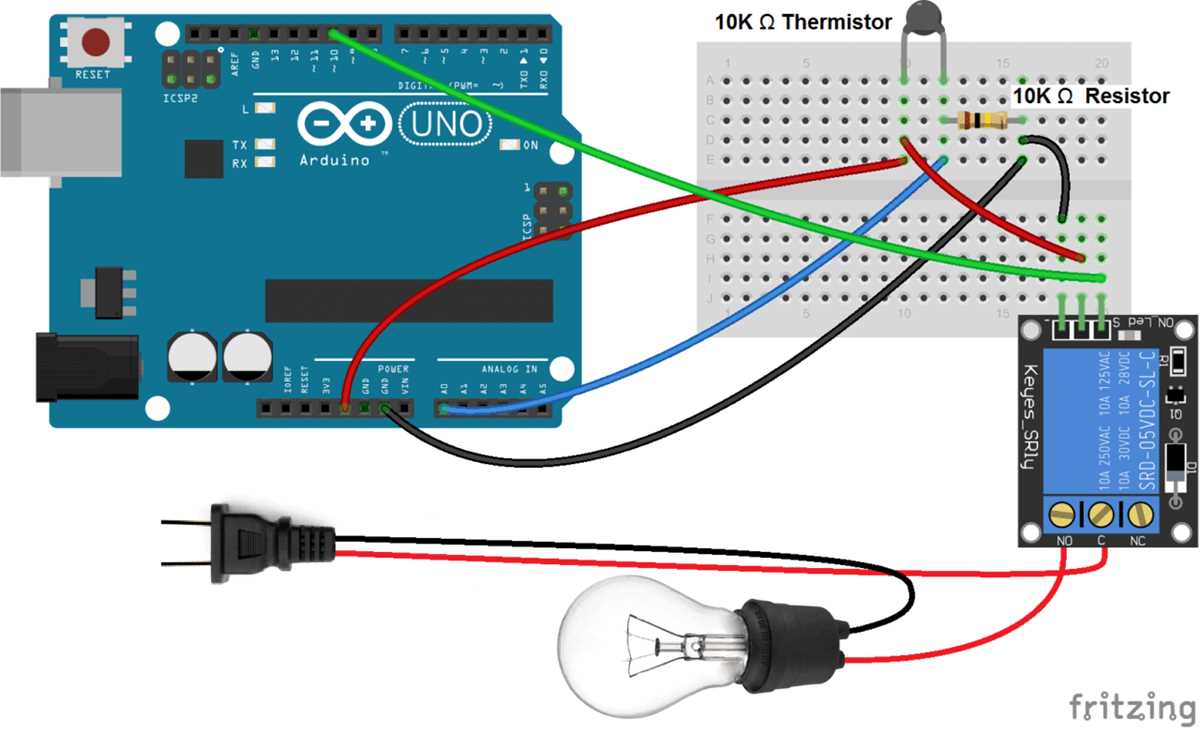

If interfacing with microcontrollers, place a transistor or MOSFET driver stage between logic pin and coil. Draw the transistor as a simple NPN symbol, emitter grounded, collector tied to coil terminal “86,” base driven through a 1 kΩ resistor for current limiting. Indicate firmware commands where relevant–e.g., “set GPIO_High for activation”–to bridge hardware and software documentation. Avoid generic labels; replace “input” with “ECU control signal” or “PLC output channel” for context clarity.

Common Switching Component Pin Configurations and Terminal Labels

For most electromechanical control units, the 5-pin SPDT layout remains the industry standard. Pins 85 and 86 serve as the coil terminals–connect 85 to ground and 86 to the control voltage (typically 12V or 24V) for activation. Load contacts split into three terminals: 30 (common), 87 (normally open), and 87a (normally closed). Use 87 for circuits requiring power when the coil is energized, while 87a maintains continuity when the coil is off. Always verify polarity on DC coils–reversing leads risks overheating.

4-pin SPST variants simplify wiring with just coil inputs (terminals A and B) and load outputs (C and D). Unlike SPDT, these lack a normally closed contact, limiting flexibility in fail-safe designs. Industrial miniaturized plugs often label pins numerically (1-4) rather than alphanumerically–consult datasheets to confirm correspondence, as mismatched mappings can disrupt logic sequences. For high-current applications beyond 10A, opt for 8-pin DPDT layouts with bifurcated contacts to handle arc suppression.

Pin Type	Typical Label	Function	Voltage Tolerance
Coil	85/86, A/B	Control voltage input	3-110VDC, 6-250VAC
Common	30, C	Load input	Up to 30A (resistive)
NO Contact	87, D	Switched output (energized)	10mA-20A
NC Contact	87a	Switched output (de-energized)	5mA-15A

Automotive ISO micro-relays use a compact 4-pin footprint with terminals 85/86 (coil) and 30/87 (load). These frequently omit a diode across the coil–add one externally (cathode to 86) to prevent transient spikes from damaging ECUs. In AC circuits, prioritize snubber networks across contacts to mitigate arcing, especially at 230V. For PCB-mounted solid-state versions, confirm pin pitch–common spacings include 5mm and 7.62mm–to avoid board damage during soldering.
