How to Read and Build a Home Electrical Transformer Schematic Step by Step

Begin by identifying the primary voltage supply feeding the distribution unit–typically 120V/240V split-phase in North American grids or 230V single-phase in EU/UK standards. Connect the high-voltage input terminals to the pole-mounted or pad-mounted step-down unit, ensuring copper wiring with a minimum 6 AWG gauge for currents exceeding 40A. Overhead installations require weatherproof enclosures rated NEMA 3R, while underground feeds need direct burial cables (e.g., USE-2 or XLP) with 50 mils of insulation thickness.

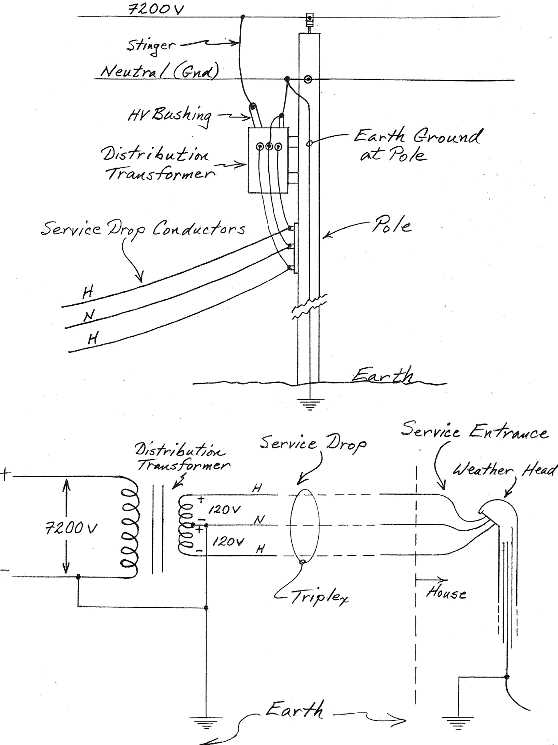

Locate the core winding ratio–commonly 10:1 for 7200V to 120V/240V conversions–on the specification plate before energizing. Install fused disconnect switches (60A-100A) upstream to isolate faults; never bypass these for temporary loads. Ground the neutral bus at the service panel using an 8-foot copper rod driven 6 inches below grade, bonded with #4 AWG bare copper wire. Verify impedance values with a megohmmeter; readings below 1 megaohm indicate compromised insulation.

Route secondary output to a main breaker panel, splitting circuits into 120V single-pole (lights, outlets) and 240V double-pole (appliances, EV chargers). Use THHN/THWN-2 wire in conduit for indoor runs, sized per NEC Table 310.16–e.g., 12 AWG for 20A, 10 AWG for 30A. Install arc-fault circuit interrupters (AFCIs) on all 120V branch circuits and ground-fault circuit interrupters (GFCIs) within 6 feet of water sources. Label all conductors at both ends with heat-shrink tubing or permanent markers to comply with NEC 210.5(C).

Measure load balance across phases using a clamp meter; discrepancies over 10% risk overheating the winding. For systems with photovoltaic arrays, integrate a bidirectional meter and ensure the inverter’s anti-islanding protection aligns with UL 1741. Test shutdown procedures twice annually–once in wet conditions–by simulating a line-to-ground fault and confirming the protective relays trip within 0.1 seconds.

Understanding the Electrical Layout for Home Power Distribution

Install primary protective devices rated for 200% of the expected load to avoid overheating during peak demand. Use a 25 kVA unit for single-family homes with central HVAC, electric water heaters, and multiple high-wattage appliances. For homes under 1,500 sq. ft., a 15 kVA model is sufficient if only basic lighting and small electronics are powered.

Connect the input side to a 120/240V single-phase supply via dual primary bushings. Label each bushing with voltage ratings to prevent miswiring–H1 and H2 for the high side, ensuring H2 is grounded. For underground service, use 6 AWG copper conductors with THWN-2 insulation, buried at least 24 inches deep in conduit to comply with NEC Article 300.

Key Components to Verify Before Energizing

• Core and coils: Inspect for physical damage or discoloration–indications of internal short circuits or arcing. Replace if resistance between windings deviates by >5% from factory specs.
• Tap changer: Confirm it’s set to the correct voltage ratio (±2.5%, 5%) for your utility’s incoming line. Improper settings lead to inefficient voltage regulation and premature appliance failure.
• Neutral bonding: Ensure a solid connection between the neutral bus and grounding electrode conductor (GEC). Loose bonds cause stray voltage on metal enclosures, creating shock hazards.
• Fuse/circuit breaker: Match interrupting ratings to the transformer’s kVA. A 15 kVA unit requires a 60A breaker; a 25 kVA needs 100A. Undersized protection risks catastrophic failure.

For outdoor installations, mount the unit on a 6-inch-thick concrete pad elevated 6 inches above grade to prevent water ingress. Use stainless steel hardware for all external connections to resist corrosion. Inside enclosures, apply silicon grease to terminals to block moisture and oxidation–critical in humid or coastal areas.

Load Balancing and Secondary Wiring

1. Split secondary outputs into two 120V legs for balanced load distribution. Uneven loads cause high neutral currents, leading to overheated conductors.
2. Dedicate one leg to lighting and outlets (max 12A per circuit), the other to major appliances (e.g., refrigerator, microwave). Avoid mixing to reduce voltage drop.
3. Use 12 AWG copper for branch circuits, upgrading to 10 AWG if runs exceed 50 feet. Secure connections with anti-oxidant compound and torque to 20 in-lbs (NEC 110.14).
4. Install a main disconnect within 10 feet of the transformer (NEC 240.21) for quick isolation during emergencies. Label it clearly to prevent accidental energization during maintenance.

Test the setup with a megger (minimum 500V DC) to verify insulation resistance exceeds 1 MΩ. Lower readings indicate degraded insulation, requiring immediate replacement to prevent short circuits. Finally, conduct a load test by energizing and measuring output voltage at each outlet (target 115–125V). Deviations beyond ±5% warrant adjustments to tap settings or conductor sizing.

Core Elements Depicted in Electrical Step-Down Unit Blueprints

Start by identifying the primary coil–typically marked with thicker lines or a distinct color–to trace voltage input paths. This winding connects directly to the high-voltage side (e.g., 11 kV or 6.6 kV), and its turns ratio relative to the secondary coil determines output voltage. Verify insulation gaps between windings; IEC 60076-3 mandates minimum clearances based on voltage class (e.g., 10 mm for 1.2 kV). Use a multimeter in continuity mode to confirm no short circuits between layers before energizing.

Essential Safety and Regulatory Components

• Tap Changer: Locate the adjustable contacts (usually on the primary side) to fine-tune voltage under load. ANSI C57.12.30 prescribes ±5% increments for distribution units. Test tap positions with a megohmmeter at 500 VDC to ensure resistance >1 MΩ.
• Buchholz Relay: Mounted between the core and conservator tank, this gas-actuated device detects internal faults. For installations above 1 MVA, pair it with a sudden-pressure relay per IEEE C57.12.50.
• Pressure Relief Valve: Positioned atop the tank, it vents at 55–70 kPa to prevent rupture. Replace annually if seals show corrosion or deformation.

Ensure the secondary winding’s connections deploy delta or wye configurations based on system grounding needs. For single-phase loads (e.g., North American homes), wye output with a neutral conductor simplifies bonding. Refer to NEC Article 250 for grounding electrode selection–copper-clad steel rods (minimum 2.4 m length) are required for resistances <25 Ω. Label all terminals clearly: L1/L2/L3 for phases, N for neutral, and G for ground.

Overlooked Ancillary Devices

1. Core Ground Straps: Connect the laminated iron core to the tank via braided copper strips to suppress circulating currents. Tighten to 25 Nm torque; corrosion here mimics core faults.
2. Magnetic Shields: Install around high-flux areas (e.g., near bushing turrets) to reduce stray losses. Use 0.35 mm grain-oriented silicon steel sheets with interleaved edges.
3. Temperature Sensors: Embed PT100 RTDs in windings and oil–pair with a controller set to trip at 90°C for Class A insulation (IEC 60085).

Inspect oil conservator dynamics: a 2% oil expansion space must remain above the active core. For sealed units, use nitrogen gassing at 1–3 psi to prevent moisture ingress–sample dielectric strength biannually (ASTM D877: <25 kV/cm indicates contamination). Replace silica gel breathers when 50% of desiccant turns pink; ignore this and risk accelerated acid buildup (pH <4.5).

How to Read Electrical Grid Connection Blueprints for Home Installations

Begin by identifying the input and output voltage markings on the circuit layout. Typical household power distribution units in North America show 240V split-phase on the primary side, labeled as L1, L2, and neutral. Check for corresponding secondary values–commonly 120V/240V–annotated near terminal blocks or coil windings. Missed voltage mismatches lead to equipment damage; verify with a multimeter if documentation lacks clarity.

Trace the conductive paths from the street-side feed through the isolation device before the load center. Look for clear separation between high-voltage leads and low-voltage outputs–often marked with color codes: black/red for hot wires, white for neutral, green or bare for grounding. Ensure the ground reference connects to both the metal enclosure and earth rod; incomplete grounding causes safety hazards and interference in sensitive electronics.

Examine protection components like fuses, breakers, or surge arrestors integrated into the layout. Locate their placement between the utility feed and consumer-side panel. A properly rated breaker, usually 20–100A for residential feeds, must align with the wire gauge–10 AWG for 30A, 6 AWG for 60A. Overlooking this can result in overheating, tripping, or fire risks.

Decode symbols for auxiliary elements: suppressors, relays, or isolation switches. Circles with arrows indicate current flow; dashed lines represent shielding or neutral bonding. Cross-reference unusual symbols with the accompanying legend–manufacturers may use proprietary notations. Neglecting these details compromises troubleshooting efficiency.

Confirm load balancing by comparing labeled current ratings on both sides. Uneven distribution, especially on split-phase systems, causes voltage drop and transformer overheating. Use a clamp meter to measure actual current draw at each terminal; discrepancies above 10% require reconfiguration. Document each step to recreate the setup after maintenance or modifications.
