Autoclave Schematic Layout and Key Components Explained

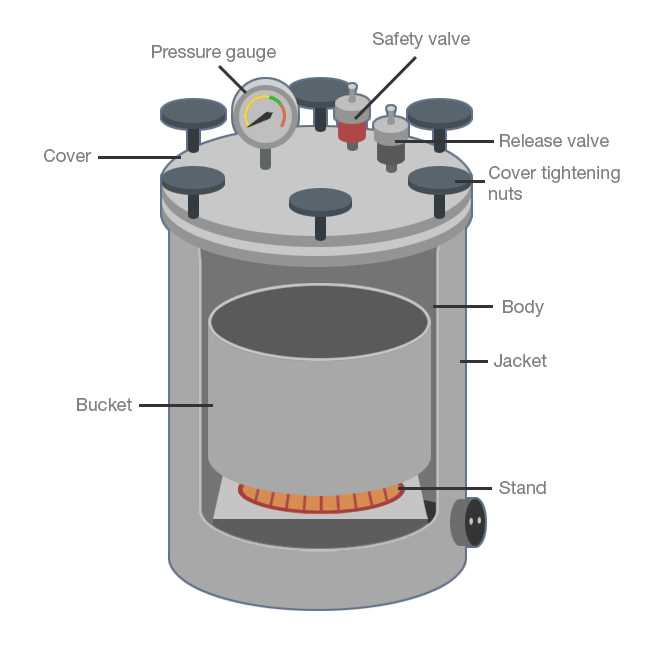

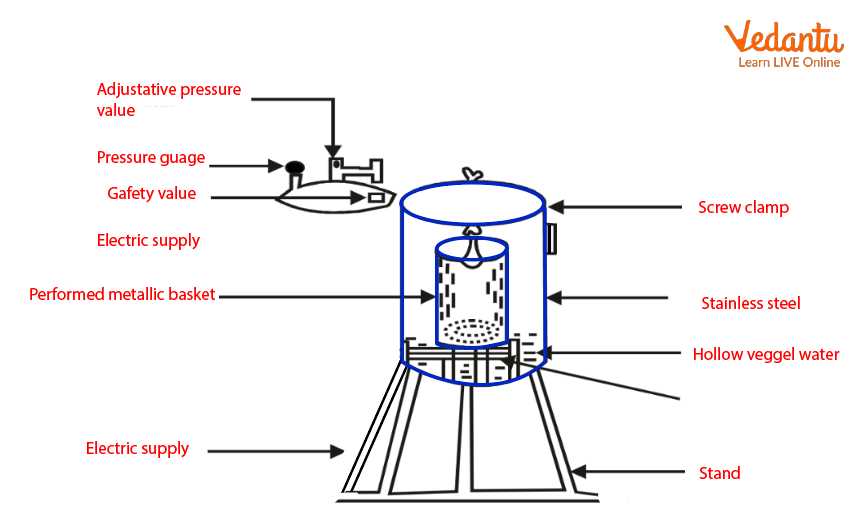

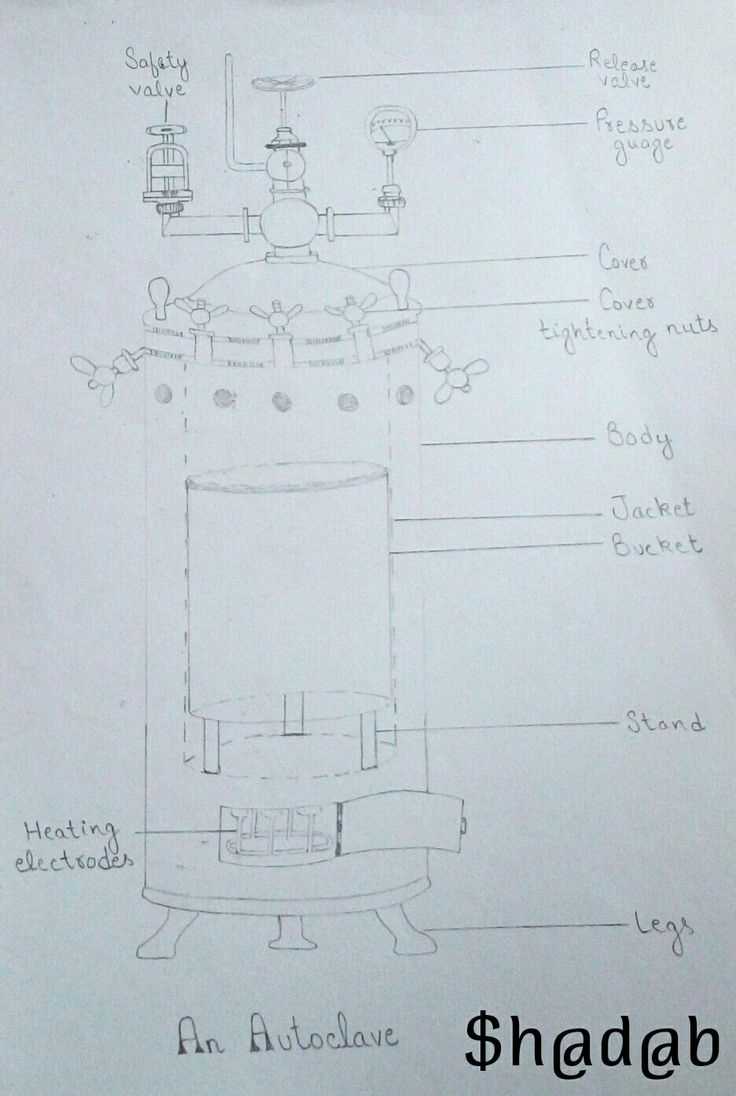

Begin by identifying the primary components in a typical pressurized steam chamber assembly: the pressure vessel, heating element, control panel, and safety valve. The pressure vessel must meet ASME BPVC Section VIII standards, ensuring a minimum wall thickness of 6mm for vessels rated at 2.5 bar or above. Avoid generic blueprints–demand detailed CAD models specifying flange types (ANSI B16.5 Class 150) and seal materials (silicone or PTFE).

Position the heating coil along the inner base, not the sides, to prevent heat stratification. Use DIN 4751-compliant thermostats with ±0.5°C accuracy. Electrical wiring should follow IEC 60335-1, isolating high-voltage connections from moisture-prone zones with IP65-rated enclosures. For automated cycles, integrate a PLC with modbus RTU or Profinet–avoid proprietary protocols unless latency is under 10ms.

Prioritize fail-safe redundancy. Install dual pressure relief valves (set at 110% of working pressure) and a separate overpressure rupture disc (burst tolerance: ±5%). Venting must direct steam away from operators–use Schedule 40 stainless steel piping with a minimum 1:50 slope to prevent condensate pooling. Test valve response quarterly using ASTM E1003 procedures.

For documentation, require Gerber RS-274X or DXF exports from CAD tools–layer organization should separate mechanical, electrical, and pneumatic circuitry. Label all sensors (RTDs, load cells, flow meters) with unique IDs matching the P&ID legend. Omit vague notations–every conduit, terminal, and junction must reference specific wire gauges (AWG 14 for mains, AWG 22 for signal).

Validate the final layout with FEA stress analysis at 1.5x working pressure–focus on weld seams and flange interfaces. Reject designs showing stress concentration factors above 2.0. Use CFD simulations to confirm uniform steam distribution, targeting <5% temperature variance across the chamber. Replace theoretical assumptions with ASTM D4685 empirical load testing before commissioning.

Understanding the Blueprint of Steam Sterilization Chambers

Begin by identifying the pressure vessel as the core component, typically constructed from grade 316L stainless steel to withstand high-temperature cycles up to 134°C. Ensure the vessel’s wall thickness aligns with ASME Boiler and Pressure Vessel Code Section VIII, calculating a minimum of 6mm for units handling 2.1 bar (absolute). Connect the steam inlet via a DN25 flange at the top rear, fitted with a check valve to prevent backflow during cooling phases. The drain line must include a DN40 solenoid valve, programmable to purge condensate at 5-second intervals to avoid chamber flooding.

Critical Components and Their Placement

• Jacket vs. Non-Jacketed: For units exceeding 100 liters capacity, use a water or steam jacket to maintain uniform heating. Jacketed models reduce cycle time by 18–23% compared to direct steam injection, but increase water consumption by 1.5x.
• Control System: Position PLC-based controllers on the right side panel for ergonomic access. Configure PID parameters: P=1.8, I=0.4 min⁻¹, D=0.08 min for optimal steam penetration without overshoot. Include a redundant RTD sensor in the chamber’s geometric center to cross-validate temperature readings.
• Safety Valves: Install dual pressure relief valves–one set to 2.2 bar (absolute) and a secondary at 2.4 bar–compliant with EN 285 standards. Position them at the highest point of the vessel to prevent moisture accumulation.
• Vacuum System: For porous load sterilization, integrate a liquid-ring vacuum pump with a capacity of 25–30 m³/h for chambers up to 200 liters. Connect it to the chamber’s base via a DN65 line, incorporating a 10 µm filter to trap particulates.

Validate the layout by simulating worst-case scenarios: load density of 0.8 kg/L (porous) and 2.0 kg/L (solid). Use F0 calculation (F0 = 15) to adjust hold times–typically 3.5–5 minutes for wrapped instruments and 15–20 minutes for textiles. Ensure the door gasket, made of EPDM or silicone, maintains a minimum Shore A hardness of 70 to sustain repeated thermal expansion cycles without deformation. Document all connection points with isometric sketches, noting torque specifications for flanges (e.g., 85 Nm for M12 bolts) to prevent leaks during pre-vacuum stages.

Critical Elements in a Pressure Sterilization Unit Layout

Integrate a temperature-resistant pressure vessel rated for at least 15 psi above standard operating conditions (typically 30–50 psi) to accommodate steam fluctuations and prevent material fatigue. Select stainless steel alloys like 316L for corrosion resistance and weld integrity, ensuring seamless seals at ports and door mechanisms. For high-throughput systems, prioritize a self-locking bayonet closure over hinged doors–it distributes stress evenly, reducing sealing failure risks by up to 40% in cyclic loads. Include a safety valve sized to release excess pressure within 0.5 seconds of surpassing 110% of the working limit, calibrated to ASTM standards.

Steam Generation and Distribution Network

Design the steam inlet with a spiral or annular distributor to prevent cold spots–untreated areas can compromise sterilization efficiency by 25%. Position the steam entry at the top rear of the chamber to leverage thermal convection, forcing air downward through a bottom-located thermostatic trap (critical for gravity-displacement cycles). For prevacuum systems, incorporate a vacuum pump capable of pulling 20–25 inHg absolute pressure in under 2 minutes, paired with a non-condensable gas bleed valve to eliminate trapped air pockets. Use duplex stainless steel piping (0.5% carbon max) for steam lines to resist embrittlement under rapid heating cycles.

Install a PT100 RTD sensor (not thermocouples) at the drain port–the coldest point–to monitor process lethality (F₀ value) with ±0.5°C accuracy. For control systems, deploy a PID loop with autotuning for heating ramps, but override it with a hardwired mechanical thermostat set to 134°C (±0.5°C) as a failsafe. Use food-grade silicone gaskets for doors, replacing them if compression set exceeds 20% after 1,000 cycles. In systems with automated loading, fit load cells to detect overloading–exceeding 70% chamber volume reduces steam penetration efficiency by 15%.

Step-by-Step Breakdown of Pressure Chamber Electrical Pathways

Begin by isolating the power source terminals labeled L (live), N (neutral), and E (earth) on the sterilizer’s control panel. Verify voltage compatibility–most industrial units operate at 220-240V AC, but modular designs may support dual-voltage inputs (110V/230V). Trace the L wire through the primary cutoff switch: a thermal-magnetic circuit breaker rated for 16A-20A must trip at 135% nominal current within 3 seconds to meet IEC 60335-2-47. Skip generic fuse holders; use a HRC fuse (gG type) with a 5x20mm cartridge for precise overcurrent protection. From the breaker, follow the feed into the PID temperature controller–ensure the relay contact handles at least 10A resistive load to avoid pitting.

Critical junctions: The neutral bus must connect directly to the heating element’s return path without splicing; any intermediate resistance above 0.1Ω risks uneven thermal distribution. For the earth path, use 4mm² green/yellow stranded copper wire bolted to the chamber’s stainless-steel body with a serrated washer–torque to 12 Nm to prevent galvanic corrosion. The pressure switch (typically set to 30 psi) interrupts power via a NO contact; jumper this to the safety valve solenoid only after confirming the mechanical latch engages at 35±2 psi. Test each connection with a 500V insulation tester–leakage current above 0.5mA at 1 minute indicates compromised dielectric strength.

Symbols and Notations in Pressure Vessel Blueprints

Start by labeling all valves with standardized ISA symbols–gate valves use a modified “T” shape with a diagonal slash, while ball valves appear as a circle intersected by a perpendicular line. Ensure pressure relief devices are marked with a spring-loaded symbol (a triangle atop a coiled line) and include set pressure values directly adjacent.

Use ANSI/ISA-5.1-2009 conventions for piping: solid lines for process flow, dashed for instrumentation, and cross-hatched for insulation. For electrical heating elements, depict zigzag resistors with resistance values in ohms (Ω) and power ratings in watts (W). Example: R = 25Ω, P = 1.5kW.

Junction boxes require a rectangle with internal terminals numbered sequentially–tie these to wire gauges (e.g., 12 AWG for 20A circuits) using color-coding per IEC 60446 (L1=Brown, N=Blue, PE=Green-Yellow). Include wire run lengths in millimeters for precision.

Component	Symbol	Critical Annotations
Temperature Sensor (RTD)	●—⏜	Add Pt100 class (A/B) and response time (e.g., 6s)
Pressure Gauge	−◯−	Specify range (0-2.5 bar) and dial diameter (Φ100mm)
Steam Inlet	→||	Note pipe schedule (Sch 40) and connection type (NPT 1/2″)

For sealing mechanisms, differentiate between O-rings (dotted circle) and gaskets (thick solid line). Specify material–silicone for

Control loops must show PID controllers as rectangles with input/output arrows. Label setpoints (e.g., 121°C ±1°C) and scale factor (PV: 0-150°C). Distinguish between manual (hand icon) and automated (gear icon) overrides.

Safety interlocks require hexagonal symbols with internal logic gates (AND/OR/NOT). Link these to fail-safe conditions–example: “Steam valve closes if T > 130°C OR P > 2.2 bar.” Use red borders for high-criticality warnings.

Vacuum systems use venturi symbols (converging-diverging nozzles) with suction capacity in m³/h. Add filter specifications (e.g., 5µm absolute) upstream of vacuum pumps, depicted with impeller blades and motor power (kW).
