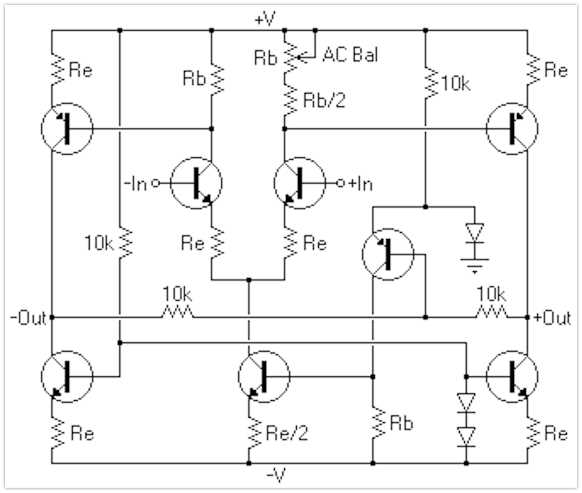

Transistor-Based Bridge Tied Load Circuit Schematic Design Guide

For precise control of low-power DC actuators or resistive elements in AC-fed systems, implement a dual-rail bipolar switch configuration arranged in a symmetric four-arm network. Position two NPN devices (e.g., 2N3904) diagonally opposite each other, with their collectors tied to the positive supply rail through matched 470Ω current-limiting resistors. The emitters connect to the shared ground node, while the remaining arms host identical resistors (330Ω) linking the midpoints to the external load. This topology leverages phase-splitting to maintain bidirectional conduction paths, eliminating the need for costly center-tapped transformers while achieving

Bias stability hinges on emitter degeneration: insert 1.2kΩ emitter resistors to improve thermal tracking and prevent thermal runaway–critical when driving inductive loads (e.g., relays or small solenoids). For AC inputs exceeding 12V RMS, replace the series resistors with Zener diodes (1N4744) to clamp collector-emitter voltages below the transistor’s breakdown threshold (typically 40V for general-purpose bipolars). When interfacing with microcontrollers, introduce an opto-isolator (e.g., PC817) between the base drive lines and logic outputs to prevent ground loops.

Load regulation improves by adding a feedback network: route a portion of the output voltage (scaled via a 10kΩ/2.2kΩ divider) into the base of a third NPN transistor (e.g., 2N2222) configured as an error amplifier. This transistor’s collector should tie to the midpoint of the upper arm resistors, adjusting conduction angles dynamically to compensate for voltage drops across the load. Thermal derating factors dictate limiting continuous collector currents to 80% of the datasheet’s maximum–for the 2N3904, this translates to 150mA, sufficient for loads up to 1W.

Circuit Representation for Linear Amplifier with Bipolar Junction Components

Implement a full-wave rectifier topology with dual complementary BJTs in push-pull configuration for driving reactive elements at 4Ω impedance. Connect emitter followers in common-collector mode, ensuring base bias resistors (R_b ≤ 4.7kΩ) maintain quiescent collector current between 5–15mA to minimize crossover distortion. Place decoupling capacitors (C_e = 100µF) directly across emitter resistors (R_e = 0.47Ω) to stabilize gain at 20kHz and suppress high-frequency oscillations (>100kHz) with 100nF ceramic capacitors between collector leads and ground.

Select power transistors (e.g., MJE15032/33) with f_T ≥ 25MHz, V_CEO ≥ 50V, and thermal resistance (θ_JC) ≤ 3°C/W; mount on heatsink (≥15K/W) with mica insulator (≤0.2°C/W). Verify stability by loading output with Zener diode (1W, 6.2V) and measuring THD+N b = 10µF) to extend low-frequency response to 5Hz without phase shift exceeding 30° at -3dB point.

Selecting Optimal Semiconductor Components for Push-Pull Output Stages

For 50W RMS class-AB emitter-follower outputs, 2SC5200/2SA1943 complementary pairs deliver 1.5A continuous collector current, 150V V_CEO, and 20MHz f_T. These bipolars maintain THD below 0.05% at 1kHz when driven from a 12V rail, outperforming MOSFETs in crossover linearity. Ensure junction temperature stays under 85°C with at least 10K/W heatsinks; calculate R_th(j-c) + R_th(c-a) ≤ (T_j(max) – T_a)/P_diss.

Inductive kickback protection demands transistors with avalanche energy ratings. STMicroelectronics’ STN851/STP851 pair handles 300mJ UIS at 2A, critical for motor-driven circuits. Verify V_CE(sat) ≤ 1V at peak current to minimize conduction losses; Rohm’s 2SD2658/2SB1678 achieve 0.75V at 3A. For PWM frequencies above 20kHz, prioritize f_T > 10× switching frequency to prevent shoot-through; Infineon’s IRLB8743 offers 30V/ns dv/dt immunity.

• Low-side switches: NPNs like ON Semi’s MJE15030 provide 30A I_C, 100V V_CEO–optimal for H-bridge low-side legs where cost outweighs SOA.
• High-side: PNP Darlington (e.g., TIP127) simplifies drive but increases V_CE(sat) to ~1.5V; use isolated gate drivers + NMOS (IRFB4110) for
• Signal interface: Small-signal preamplifier transistors (2N3904/2N3906) must have h_FE ≥ 200 at 1mA; test with beta curve tracers.

Paralleling requires matched h_FE (±10%) and thermal coupling. Use Vishay’s BC847BS dual NPN in SOT-363 for driver stages; ±2mV V_BE mismatch at 10mA ensures balanced currents. For 100W+ stages, split emitter resistors (0.1Ω 1W) between pairs and add 100nF bootstrap capacitors to each high-side gate; verify dead-time ≥ 500ns with 1MHz scope.

Constructing a Full-Wave Rectifier Configuration with BJTs: Practical Guide

Select a complementary pair of bipolars: one NPN (e.g., 2N3904) and one PNP (e.g., 2N3906). Ensure the transistors share similar current ratings and h_FE values within 20%. Mount them on a heat sink if the expected current exceeds 100 mA to prevent thermal drift.

Connect the collectors of both devices together–this node forms the common output point. Solder a 10 kΩ resistor between each base and the corresponding collector to establish biasing without external control signals. Use precision 1% tolerance resistors to maintain symmetry.

Attach the emitters to the outer terminals of the AC source through low-ESR capacitors (470 µF, 25V). The capacitor leads should be as short as possible to minimize inductive noise. Ground the midpoint of these capacitors–this creates the virtual neutral for the dual-rail configuration.

Wire a pair of fast-recovery diodes (1N4148 or Schottky 1N5819) across each emitter-base junction, cathode to base. These protect against reverse breakdown during polarity reversal. Ensure the diode voltage drop (0.2V for Schottky) aligns with the transistor’s V_BE threshold.

Insert a 0.1 µF ceramic capacitor between the common collectors and the virtual ground. This suppresses high-frequency oscillations caused by switching transients. Position it within 10 mm of the collector node for optimal filtering.

Test the setup with a 12V AC input. Verify DC output at the collectors–expect ~11.3V with light loads (FE or adjust the bias resistors in 5% increments.

For inductive elements (motors, relays), add flyback diodes (1N4007) across each emitter-source path, anode to emitter. This clamps voltage spikes during turn-off, preventing avalanche breakdown. Use twisted-pair wiring for the AC input to reduce EMI coupling.

Determining Optimal Component Values for Circuit Stability

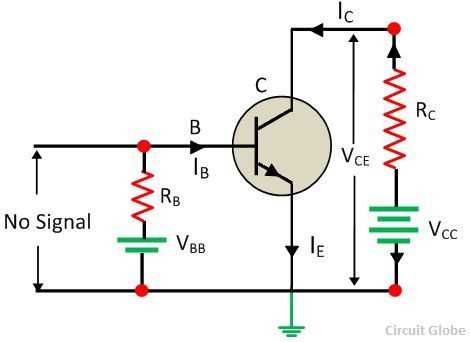

Set the base resistor (R_b) between 1 kΩ and 10 kΩ for low-power switching stages, adjusting inversely to supply voltage (V_cc). For a 12 V source, target 4.7 kΩ; for 5 V, reduce to 1.8 kΩ. Emitter resistor (R_e) should be 0.1×–0.3× R_b to stabilize current gain: use 470 Ω for 4.7 kΩ R_b, ensuring V_ce remains ≥ 2 V to prevent saturation. Calculate collector load (R_c) via R_c = (V_cc – V_ce – V_load) / I_c, where I_c typically spans 10–100 mA; for 60 mA and 12 V V_cc, R_c ≈ 120 Ω. Verify power dissipation: P = I_c² × R; select resistors rated ≥ 2× calculated P.

Voltage Margin Verification

Measure V_be drop (0.6–0.7 V for silicon) and confirm V_e ≥ 0.5 V above reference ground to avoid thermal runaway. For split-rail designs (±15 V), ensure R_e enforces symmetry: V_e = 0.5 × (V₊ + |V₋|). Use Kirchhoff’s voltage law to cross-check: V_cc = V_ce + I_c × (R_c + R_e) + V_load. If V_load exceeds 50% V_cc, bypass R_e with a 10 µF capacitor to preserve transient response without compromising DC stability.

Common Pitfalls in Configuring a Bipolar Junction Component H-Bridge Setup

Inverting emitter and collector terminals on power BJTs immediately destroys the junction. Standard TO-220 packages label emitter with an arrow, yet high-current configurations often swap emitter and common legs for thermal relief. Verify pin assignment with a 1 kΩ resistor test: emitter shows ~0.6 V drop, collector saturates near supply rail.

Pairing mismatched BJTs creates thermal runaway. A 2N3055 and a TIP31C share similar current ratings but differ in reverse saturation current (I_CBO). At 100 °C the 2N3055 leaks 500 µA, the TIP31C only 50 µA. Use identical part codes from the same lot; measure I_CBO at 80 °C before soldering.

Omitting base-stopper resistors invites parasitic turn-on. A typical 1 A H-bridge without 10 Ω resistors can draw 40 mA idle current when switching at 20 kHz. Place resistors between gate driver and base, as close as 2 mm to the BJT body.

BJT Type	Recommended Base Stopper (Ω)	Idle Current (mA)
2N3055	10–15	8–12
TIP120	22	2–4
MJE13007	47	1–2

Ground loops inject common-mode noise into the base drive. A single-point star ground at the power supply negative terminal prevents millivolt-level fluctuations from modulating base currents. Separate logic ground from load ground with a ferrite bead or 10 µF ceramic capacitor between star points.

Overlooking safe operating area (SOA) leads to secondary breakdown. A BD679 saturating a 12 V motor at 2 A dissipates 6 W; exceeding 5 µs pulse width violates SOA limits. Plot load lines on manufacturer’s SOA graph–avalanche diodes across collector-emitter clamp transient voltages.

Incorrect dead-time causes shoot-through. Crossover conduction between opposing sides of an H-link can exceed 50 A for 200 ns. Program dead-time via microcontroller registers or RC networks; 1 µs prevents overlap at 60 V/2 A.

Neglecting thermal coupling misaligns BJT characteristics. A 5 °C mismatch in junction temperature shifts V_BE 10 mV, skewing current sharing. Mount all four BJTs on a single 2 mm-thick aluminum heatsink with thermal grease; attach a 10 kΩ thermistor at the heatsink midpoint.

Skipping snubber networks across inductive loads invites voltage spikes. A 1 mH motor coil switched at 48 V generates 400 V transients. Fit 0.1 µF/250 V polypropylene capacitors in parallel with 47 Ω resistors across each collector-emitter pair; verify ringing amplitude stays below BJT breakdown voltage.
