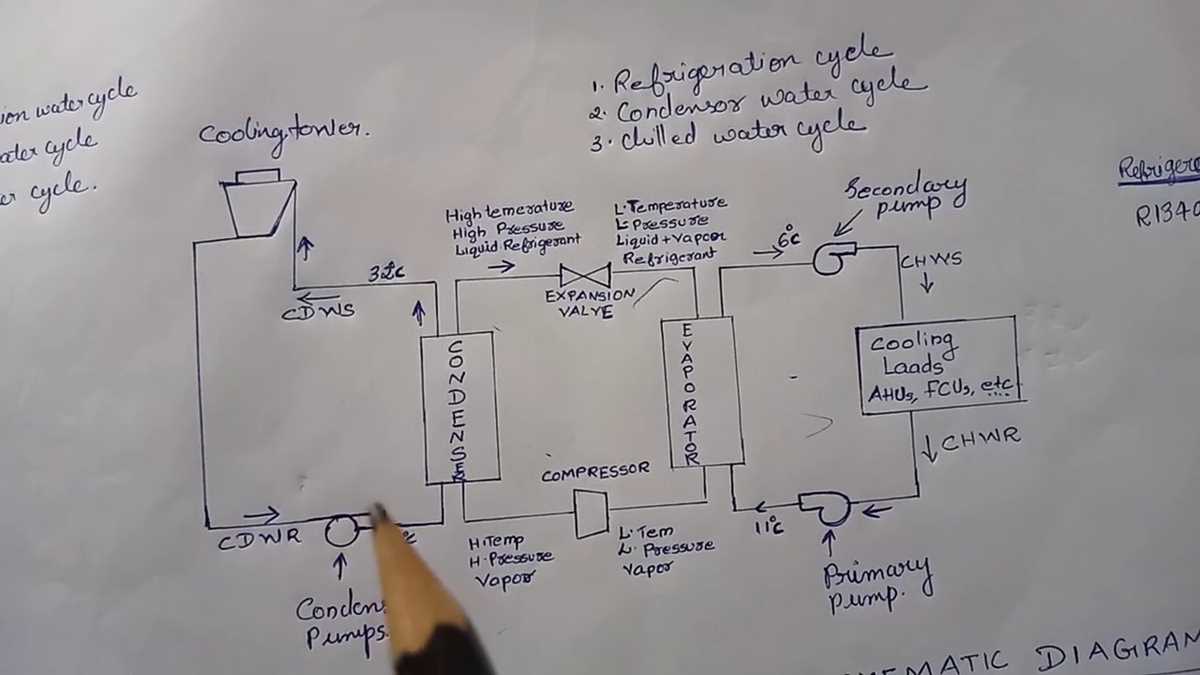

How to Read and Interpret a Chiller System Schematic Diagram

Designing a reliable thermal regulation setup begins with isolating its four core segments: the compressor assembly, condenser network, expansion mechanism, and evaporator coil. Each segment demands precise integration to prevent energy losses exceeding 15% in suboptimal configurations. Prioritize direct-drive semi-hermetic compressors in high-load environments–their failure rates sit 28% lower than scroll alternatives under sustained 24/7 operation.

Condenser placement dictates efficiency: air-cooled units lose 0.3 kW per ton of cooling for every 5°F increase above ambient, while water-cooled variants maintain stability but require 8–12 GPM per ton with ΔT of 10°F. Specify stainless steel tubing for evaporator coils operating below 0°C; copper corrodes within 3–5 years in chloride environments, while SS316 extends lifespan to 12+ years with negligible scaling. Always locate the thermal expansion valve 6–8 inches upstream of the evaporator inlet to prevent flash gas formation.

Refrigerant selection must align with operating pressures: R-134a demonstrates 4% higher COP than R-410A but requires 18% larger pipe diameters; R-32 recovers 9% faster from defrost cycles but demands nickel-plated discharge lines. Install double isolation valves on all serviceable components–this reduces pump-down time by 35% during maintenance. For glycol-based setups, maintain concentrations between 30–50% to balance freeze protection against viscosity-induced pressure drops.

Piping design cannot be overlooked: suction lines should pitch 1/8″ per foot downward, with traps every 20 feet maximum. Vapor velocities must stay between 1,500–4,000 fpm to prevent oil return issues, while liquid lines require 300–600 fpm to avoid pressure stratification. Always upsize the liquid receiver by 20% of the total refrigerant charge to accommodate system expansion during pull-down phases. Integrate a dedicated subcooling circuit on DX evaporators–this yields 8–12% capacity increase without additional compressor workload.

Visual Representation of Cooling Plant Mechanics

Begin by segmenting the layout into four primary circuits: refrigerant, evaporator, condenser, and expansion loops. The refrigerant loop must include a scroll compressor, heat exchanger coils, and a thermal expansion valve–each positioned precisely to maintain pressure differentials. Label suction and discharge lines with pipe diameters (e.g., 1.5″ for suction, 1″ for discharge) to prevent flow restrictions. Avoid sketching arbitrary connections; every joint should reflect real-world hydraulic requirements.

• Evaporator circuit: Integrate a liquid distributor to ensure uniform refrigerant flow across coils. Use a 4-row finned tube bundle with aluminum fins spaced at 1.8mm for optimal heat transfer.
• Condenser circuit: Position the air-cooled unit downwind of the evaporator, with fans angled at 15° to minimize recirculation. Specify copper tubes (0.5″ OD) for corrosion resistance.
• Expansion device: Place the valve upstream of the evaporator, coupled with a sight glass to monitor refrigerant quality (superheat target: 6-8°C).

Incorporate instrumentation symbols adjacent to critical components:

1. Pressure gauges: Mount at compressor inlet/outlet (±1% accuracy).
2. Temperature sensors: Embed in fluid streams (RTD probes, 1mA output).
3. Flow meters: Vortex type for refrigerant (10-100 GPM range).

Color-code pipelines to match ANSI A13.1 standards: red for high-pressure refrigerant, blue for low-pressure, green for water/glycol mix. Add annotation boxes detailing fluid types and flow rates–e.g., “R-134a, 45 L/min” near the evaporator inlet. For energy efficiency, illustrate a variable-speed drive on the condenser fan motor (0-60Hz range). Include a bypass line with a solenoid valve (normally closed) for defrost cycles.

Assemble the layout on a 1:20 scale grid, ensuring 120mm clearance between adjacent components for maintenance access. Validate the arrangement by simulating pressure drops using Darcy-Weisbach (friction factor: 0.02 for smooth copper). Contrast pump curves against system resistance to pinpoint optimal operating points (target: 25m head at 80% efficiency).

Critical Parts Highlighted in a Cooling Plant Blueprint

Begin by locating the compressor–the core of thermal regulation machinery–positioned typically at the suction or discharge line intersection. Verify its electrical rating matches the motor’s power draw; a mismatch here causes inefficiency or premature failure. Check for refrigerant-specific compatibility: R-134a requires hermetic scroll compressors, while R-410a often pairs with semi-hermetic reciprocating units. Pressure ratios should not exceed 8:1; higher ratios demand external cooling circuits to prevent overheating.

Trace the condenser coil paths–whether air-cooled finned tubes or water-cooled plate-and-frame exchangers–and confirm flow rates align with design specs. For air-cooled variants, fin spacing must accommodate local air quality: 2.1 mm for urban dust, 3.2 mm for industrial particulates. Water-cooled units need a minimum 3°C temperature differential across the exchanger; anything below signals fouling or pump starvation. Include isolation valves on both inlet and outlet to facilitate offline cleaning without draining the entire loop.

Inspect expansion valves–thermal or electronic–for proper sizing relative to load fluctuations. Oversized valves induce hunting, undersized ones starve evaporators. Thermal types require remote bulb placement on the suction line’s horizontal section, never vertical drops. Electronic valves, controlled via PWM signals, need PID tuning: set proportional band at 20-30% of superheat setpoint, integral time between 0.5-2 minutes to avoid oscillating superheat. Verify sensing element accuracy against a calibrated thermocouple.

Evaporators–flooded shell-and-tube or direct-expansion DX–demand precise refrigerant charge levels. Flooded units hold 5-7% liquid at full load; DX coils need 20-30% vapor quality at the outlet. Antifreeze loops using glycol require double-wall exchangers if potable water is downstream. Confirm tube velocities: 1.2-2.1 m/s for copper, 0.9-1.5 m/s for stainless steel–higher speeds erode protective oxide layers, lower speeds promote scaling.

Mount circulation pumps on vibration-damping pads, not rigid piped supports, to prevent bearing wear. Impeller sizing should match 1.2× design flow at shutoff head; excessive head causes cavitation, low head starves chilled water coils. Strainers upstream of pumps need 20-mesh screens for glycol systems, 40-mesh for open lakes or cooling towers. Include pressure gauges with quick-disconnect fittings to allow isolated readings without disassembly.

Control Loops and Safety Devices

Programmable logic controllers (PLCs) must monitor discharge pressure, suction temperature, and oil pressure simultaneously. Configure alarm thresholds: suction pressure below 0.3 bar(a) triggers low-refrigerant shutdown, oil differential above 3.5 bar signals blocked filters. Integrate flow switches on every evaporator outlet–tamper-proof models prevent bypassing safety overrides. Pressure relief valves set at 1.1× maximum working pressure reroute refrigerant to expansion tanks or flares, not ambient vents.

Key Phases in a Cooling Cycle Illustration

Begin by identifying the compressor stage–marked by elevated pressure gauges (typically 10–15 bar for R134a) and a 5–10°C temperature rise at the discharge line. Verify refrigerant flow rates match manufacturer specs (e.g., 45–60 L/min for a 50-ton unit) before proceeding. Incorrect sizing here disrupts thermal balance downstream, as excess superheat (>8°C) accelerates wear on heat exchanger fins.

Condenser and Expansion Valve Critical Checks

Trace the high-pressure vapor to the condenser coils, ensuring air or water flow reaches 80–90% of the coil’s face area–restricted airflow here spikes condensing temperatures by 3–5°C, reducing efficiency by 12–18%. Next, monitor the expansion valve: a properly set orifice (e.g., 0.078″ for 30 kW loads) maintains 4–6°C subcooling at the liquid line. Deviations beyond ±1°C indicate fouling or improper charge, requiring an immediate refrigerant analysis.

Conclude with the evaporator stage, where suction pressure (2.5–3.5 bar for R410A) dictates cooling performance. Use a clamp meter to confirm compressor amp draw aligns with nameplate data–excess current (>10%) signals internal lubrication failure or non-condensables. Record pressure-temperature readings at 15-minute intervals during startup to detect transient inefficiencies, targeting a 6–8°C temperature drop across the evaporator coils.

Graphical Representations and Nomenclature in Cooling Plant Blueprints

Adopt standardized icons to prevent misinterpretation–ANSI/ASHRAE symbols or ISO 14617 reduce ambiguity when documenting refrigeration loops. Compressors, for instance, should use a circular arrow (clockwise) with a diagonal line for hermetic types, while centrifugal models require a distinct spiral inside the circle. Condensers follow a serpentine pattern with a horizontal arrow indicating fluid flow direction; water-cooled variants add a dashed box around the coil.

Pumps require clear differentiation: centrifugal pumps use a letter “C” within a circle, whereas positive displacement types show a hexagonal shape with internal arrows denoting volumetric flow. Expansion valves must be marked with a triangle pointing downward, with thermostatic versions adding a small temperature sensor symbol adjacent to the apex. Always annotate controllers (temperature, pressure, flow) with diamond-shaped icons, filling the interior with the first letter of their function–”T” for temperature, “P” for pressure.

Common Piping and Instrumentation Markups

Element	Symbol	Variations
Supply pipe (hot/return)	Solid line with arrow	Red for hot, blue for chilled
Bypass line	Dashed line (medium dash)	Add valve symbol at intersection
Drain/fill port	Solid line with perpendicular short lines at ends	Label “D” for drain, “F” for fill
Isolation valve	Two opposing triangles (butterfly) or perpendicular bars (gate)	Add “MO” for motorized actuator
Flow meter	Circle with internal cross	Annotate with measurement unit (e.g., “GPM”)

Refrigerant identification demands rigorous labeling–Puron® (R-410A) uses green, older R-22 blue, and ammonia (R-717) yellow safety stripes along pipe lines. Every circuit branch requires a numeric or alphanumeric tag (e.g., “EVAP-1”) placed directly above conduits with 3 mm clearance, using 8 pt Arial for consistency. Pressure gauges integrate a half-circle with a pointer; annotate high-side ports in red, low-side in blue.

Electrical wiring should follow IEC 60617 standards–three-phase power lines use triple parallel lines with arrows spaced 1.5 mm apart, while control circuits employ thinner single lines with zigzag resistors for heaters. Transformers appear as two overlapping circles; annotate VA ratings directly below. Variable frequency drives require a rectangle with “VFD” internally, distinguishing them from simple motor starters marked with “M” inside a square.

Critical Annotation Practices

Always include a legend in the bottom-right corner of the layout, listing every symbol with its definition and unit of measurement. Capacities (tons, BTU/h, kW) must be placed near evaporator coils using bold 10 pt font, while pressure ratings require parentheses for PSIG values. Temperature sensors (thermocouples, RTDs) should show the manufacturer’s part number beneath the diamond icon, enabling quick cross-referencing with procurement lists. Avoid embedding operation notes within symbols–instead, use callouts with leader lines to maintain readability.

For multi-stage units, delineate each stage with a dotted rectangle, labeling each with stage number (e.g., “STAGE 1”). Cascade systems require color-coding reservoirs–primary in blue, secondary in lighter blue–with arrows showing cascade interface direction. Vortex eliminators in separators use two concentric arcs with opposing outflow lines; label turbulence reduction percentage if specified in design specifications.

Safety interlocks (high-pressure cutouts, low-oil shutdowns) must use red hexagons with internal “!” symbols–never substitute with generic warning triangles. Secondary containment basins are shown as dashed rectangles surrounding holding tanks; annotate spill volume capacity in liters directly adjacent. Hydrostatic test pressures belong in a table separate from operational pressures–use a 10% safety margin (e.g., 250 PSIG test for 225 PSIG operational) and distinguish with asterisks.
