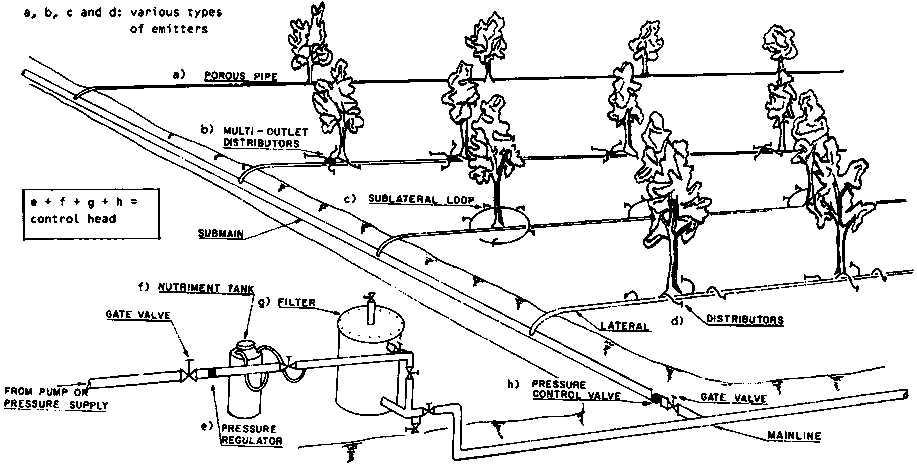

Step-by-Step Guide to Designing a Drip Irrigation System Schematic

Start with a mainline pipe no smaller than 25 mm in diameter for flows up to 10 m³/h. For every 50 meters of lateral length, reduce the diameter by one size–use 20 mm for 15 m³/h, 16 mm for 5 m³/h. Bury the mainline at least 30 cm deep to prevent UV degradation and temperature swings that alter emitter discharge rates.

Space emitters 30 cm apart for sandy soils, 50 cm for clay. Each emitter should deliver 2–4 liters per hour; verify uniformity by measuring catch-cup volumes after 30 minutes of runtime. If variation exceeds 10%, flush laterals with a 1 bar surge–clogged emitters waste water and raise energy costs by 15%.

Insert a 200-mesh screen filter upstream of the pressure regulator, sized to the mainline flow rate. For every hectare, calculate backflow volume at 1% of daily supply; install a drain valve at the lowest point to remove sediment before winter. Connect laterals to the mainline with barbed fittings rated for 1.5× the operating pressure–compression fittings fail sooner under temperature cycles.

Mount the controller on the north side of a pole to avoid direct sun, which shortens battery life by 30%. Use solenoid valves with IP68 rating; verify coil resistance matches the controller voltage–mismatches cause overheating and valve sticking. Test the layout with water before planting; mark wet zones on soil to confirm overlap–dry spots reduce yield by 8–12%.

Designing a Precision Water Delivery Layout

Start by mapping emitter placement every 30–50 cm along laterals for uniform flow, adjusting spacing to 20 cm for sandy soils or high-value crops like strawberries or cucumbers. Use 16 mm lateral tubing for runs up to 100 m; switch to 20 mm if exceeding this length to prevent pressure loss exceeding 10%. Position laterals at a 5–7° downward slope from the submain to avoid air locks and ensure consistent discharge rates as low as 1.0–1.6 L/h per emitter.

• Install pressure regulators at submains: 1.0 bar for low-flow emitters, 1.5–2.0 bar for turbulent-flow models.
• Place filtration units–disc filters for organic debris, screen filters (120–150 mesh) for fine sediment–immediately downstream of the pump.
• Size the mainline tubing to handle peak flow without exceeding 1.5 m/s velocity; use 32 mm for 4 m³/h, 50 mm for 12 m³/h.
• Add flush valves at the farthest points of laterals to clear accumulated particles weekly.

Component Integration for Optimal Performance

Connect the fertigation injector between the filter and submain, ensuring its flow rate matches 30–50% of the system’s total output to avoid nutrient stratification. Position air vents at the highest points of the layout–typically 3–5 m intervals on undulating terrain–to release trapped air during startup and prevent emitter blowouts. Use compression fittings for lateral-to-submain junctions, barbed connectors for emitter insertion, and clamp saddles for retrofitting existing lines. Test the assembled network at 1.2× operating pressure for 15 minutes prior to planting; look for leaks exceeding 0.1 L/h per 100 m of tubing.

Critical Elements for Your Water Delivery Blueprint

Begin with a high-quality pressure regulator–most gardens require 1.0 to 2.5 bar to prevent emitter blowouts and uneven flow. Select models with built-in filters (150-200 mesh) to block silt and debris before they reach the tubing. Cheaper units often lack adjustment precision, so prioritize brass-bodied regulators with clearly marked gauges for consistent calibration.

Lateral Lines and Emission Points

Use 16mm or 20mm poly tubing for main laterals–thicker walls (1.2mm minimum) resist UV degradation and rodent damage. For emitter spacing, match output rates to plant root zones: 2L/h for containers, 4L/h for shrubs, and 8L/h for trees. Subsurface installations (10-15cm deep) reduce evaporation by 30-50%, but require flush valves every 30 meters to prevent sediment buildup.

Integrate check valves at the lowest points in the network to stop drainage and airlocks when the supply shuts off. For slopes steeper than 3%, install pressure-compensating emitters to maintain uniform discharge across elevations. Add quick-release fittings at supply line junctions for faster winterization–ball valves alone take 2-3 minutes per disconnect, while cam locks reduce this to under 30 seconds.

Power the setup with a 12V or 24V DC pump if municipal pressure is below 1.0 bar; solar-powered models eliminate grid dependency but need a 120Ah battery for 48-hour autonomy in cloudy conditions. Include a fertilizer injector port upstream of the filter to prevent clogging–venture-type injectors (1:100 ratio) cost 40% more than diaphragm models but avoid salt buildup in the mixing chamber.

Step-by-Step Layout for Main Water Supply Lines and Sub-Mains

Begin by mapping the primary conduit route along the field’s longest edge, ensuring a straight path with a minimum 0.2% gradient for consistent flow. Use 63mm PVC pipes for the main artery, burying them 45cm deep to prevent frost damage and accidental punctures. At 20-meter intervals, install air release valves (38mm) to eliminate trapped air pockets, which disrupt pressure.

For sub-main branches, reduce pipe diameter to 50mm and maintain a 30cm burial depth. Connect these laterals at 90-degree angles to the main line using reinforced T-joints, angled downward to avoid sediment buildup. Pre-drill connection points with a 25mm bit to ensure precise threading–misalignment here causes leaks exceeding 3L/hour under standard pressure (1.5 bar).

Pressure Regulation Zones

Divide the network into 50-meter segments, installing pressure-reducing valves (PRVs) at each junction. Set PRVs to 1.2 bar for uphill slopes and 0.8 bar for downhill sections–these values prevent emitter blowouts while compensating for elevation changes. Test each valve with a manometer after installation: deviations above 0.1 bar require recalibration or replacement of faulty springs.

Critical junction placements: Position sub-main takeoffs 5 meters upstream of slope transitions to stabilize flow. Avoid curves sharper than 45 degrees–use two 22.5-degree bends instead to minimize friction losses (up to 15% in 90-degree elbows). Include a flush valve (not a standard gate valve) at the distal end of each sub-main to purge accumulated debris during seasonal maintenance cycles.

Mark all buried lines with color-coded stakes–blue for mains, yellow for sub-mains–to simplify future repairs. During backfilling, compact soil in 10cm layers using a vibrating plate to prevent settling that misaligns pipes. Conduct a final pressure test at 1.8 bar for 30 minutes: water loss exceeding 0.5L/min indicates joint failures requiring excavation and resealing with thread sealant rated for potable water.

Optimal Placement and Intervals of Flow Devices Along Distribution Lines

Position emitters 15–30 cm from the plant stem for seedlings and young trees, extending outward as roots expand–mature vines and shrubs require 40–60 cm spacing to match root spread. Avoid direct contact with stems to prevent rot; instead, align devices along the drip line where feeder roots concentrate.

For row crops, maintain 30 cm intervals between devices on a single lateral, adjusting to 20 cm in sandy soils or high-evaporation zones. Loamy soils tolerate wider spacing (up to 45 cm), while clay demands closer placement (25 cm) due to slower horizontal water movement. Test soil moisture 10 cm deep 24 hours post-delivery to confirm coverage.

• Leafy greens: 20–25 cm emitter spacing, 2–4 liters/hour flow rate.
• Tomatoes/cucumbers: 30–40 cm spacing, 4–8 liters/hour.
• Orchard trees: 50–70 cm from trunk, 4 devices per tree, 8 liters/hour each.
• Grapes: 40–60 cm spacing, 2 lines per row, staggered arrangement.

Stagger devices on parallel lines 30–50 cm apart to create uniform wet patterns. For slopes >5%, reduce spacing by 10–15% every 1% grade increase to counteract gravity-induced runoff. Install pressure-compensating devices above 2% slopes to maintain consistent output.

Space emitters 10–15% closer in arid climates (annual rainfall 800 mm). Adjust based on evapotranspiration data: reduce spacing by 5 cm for every 1 mm/day increase in ET rates above 6 mm/day.

1. Mark emitter positions with stakes before installation.
2. Lay tubing along plant rows, securing with ground staples every 1.5 m.
3. Punch holes at marked intervals using a 3 mm punch tool.
4. Insert devices firmly until seated, ensuring arrow aligns with water flow.
5. Connect lines to main supply, then flush for 2 minutes to clear debris.
6. Run test cycle, inspecting for leaks and uniform wetting patterns.

Replace devices every 3–5 seasons or when output deviates >10% from rated flow. Clean lines annually with 10% chlorine solution (30-minute soak, then flush) to prevent clogging. For organic farming, use citric acid flushes every 6 months.

Calculate lateral length limitations: 20 mm tubing serves 120–150 emitters (max 50 m), 16 mm handles 80–100 devices (max 40 m). Exceeding these limits causes pressure drops and uneven distribution. Use larger-diameter tubing (25 mm) for runs >60 m or emitter counts >200.

Optimizing Flow Control Components for Precision Water Delivery

Install mesh filters with a minimum 120-micron rating upstream of pressure regulators to prevent clogging of emitters. Sediment screens degrade rapidly under high flow rates, so select stainless steel or nylon filters with reinforced screens for heavy debris loads. Replace filter elements when pressure differential exceeds 7 psi, as indicated by built-in gauges.

Position pressure reducers immediately after the main supply line cutoff to stabilize output at 15–25 psi. Diaphragm-style regulators maintain consistent flow despite inlet fluctuations, while piston models require backflow prevention valves. Calibrate regulators annually using a digital manometer–adjust screw settings to compensate for spring fatigue.

Component	Ideal Pressure (psi)	Replacement Trigger	Maintenance Interval
Mesh Filter	N/A	7 psi ΔP	Monthly inspection
Diaphragm Regulator	20 psi	Output > ±3 psi	Annual calibration
Solenoid Valve	18–22 psi	Coil resistance drift	5,000 cycles

Use 24V solenoid valves for zoned flow management–close-tolerance sealing prevents weeping at low-head conditions. Size actuator coils to match local voltage (220V in EU, 120V in US) to avoid overheating. Test response time with a stopwatch: valves should transition in under 1.5 seconds; slower performance indicates fouled diaphragms or burnt coils.

Integrate manual bypass valves upstream of automatic controllers to isolate sections for repairs without disrupting the entire network. Gate valves work for on/off control, but ball valves offer finer flow modulation below 30% open. Label valve handles with UV-resistant tags indicating zone numbers–clear identification prevents cross-valve errors during maintenance.

Install check valves at hose bib connections to prevent backflow contamination, especially in municipal systems. Swing-check models handle particulate better than spring-loaded types but require at least 1.5 psi cracking pressure. For slopes, use inline check valves spaced every 100 linear feet to prevent post-shutdown drainage.

Couple hydraulic valves with air vents at high points to eliminate trapped air pockets that cause uneven distribution. Install vents with float mechanisms; automatic designs outperform manual bleeders by releasing bubbles without operator intervention. Position vents at the terminal ends of laterals–air accumulation in mid-lines reduces emitter uniformity by up to 23%.
